SparkEditor

SparkEditor

SparkEditor is a required Windows build product and authoring surface in the blocked and uncertified stable-v1 profile. Its source inventory contains 65 *Panel.h classes; registration and default visibility are separate metrics. All three transform gizmos (translate, rotate, scale) now apply to World entities through one CommandHistory entry per drag, and World-document create/delete/duplicate/reparent/rename/transform/inspector edits are command-backed; EDT-210 remains open for the asset browse/drag/assign path, the author-to-installed-runtime round trip, and the still-unwired crash-recovery pipeline. Collaboration, visual scripting, plugin breadth, and non-Windows editor paths remain experimental or outside the profile.

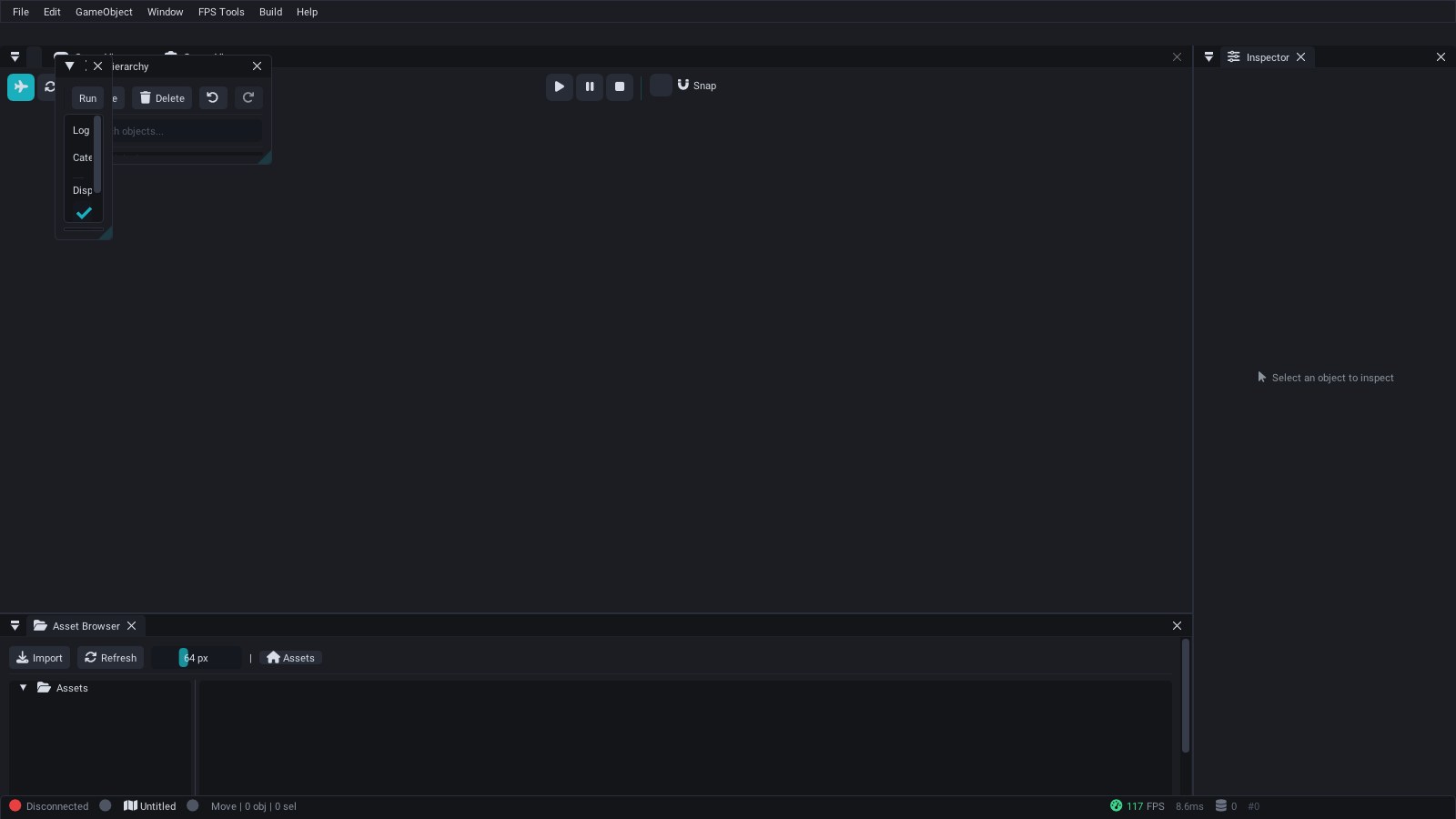

SparkEditor layout preview — Hierarchy, Scene View, Inspector, Asset Browser, and Console panels shown with the legacy Spark Professional palette.

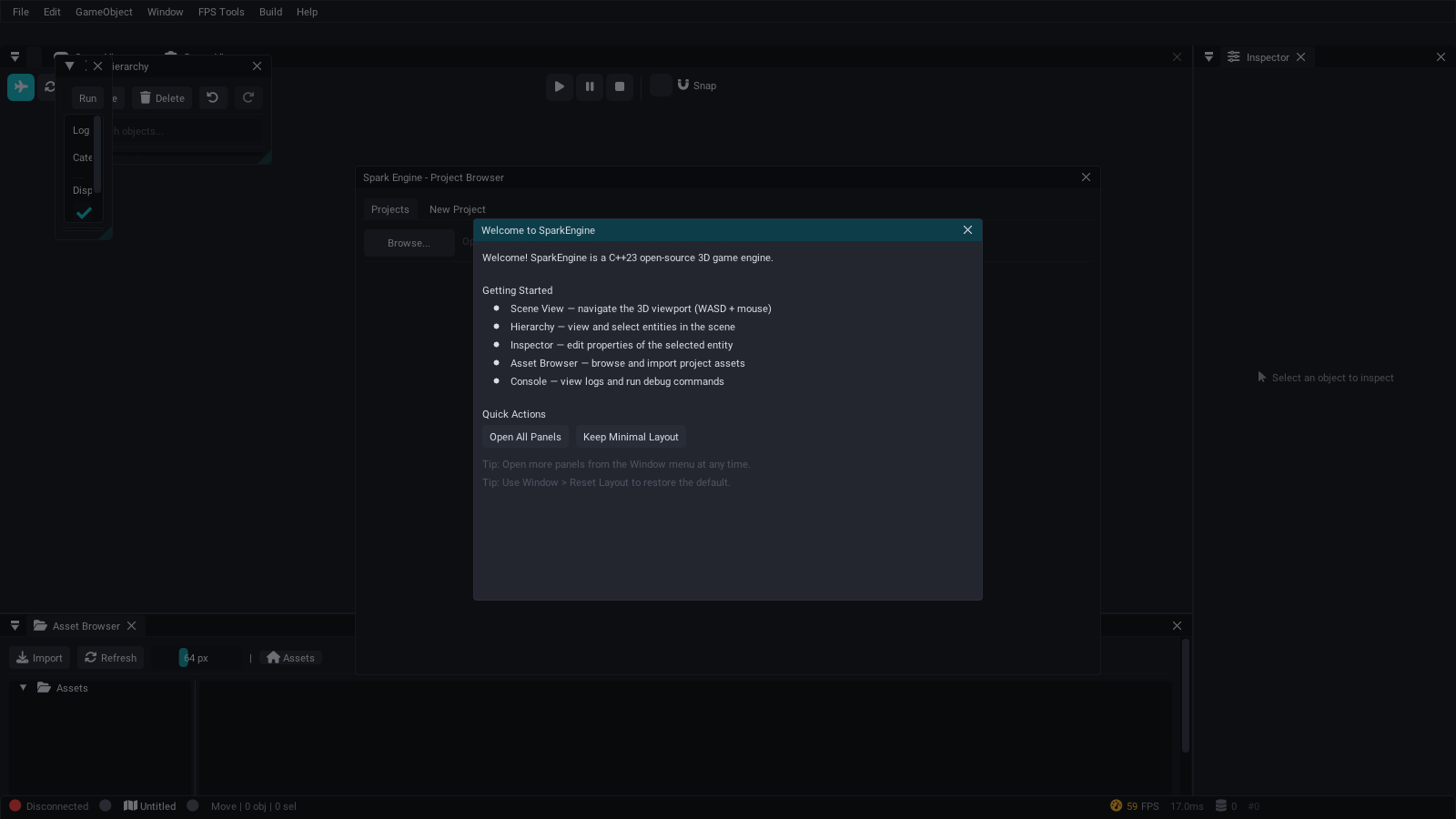

Welcome Screen

On first launch, a welcome screen introduces the core panels and offers quick actions:

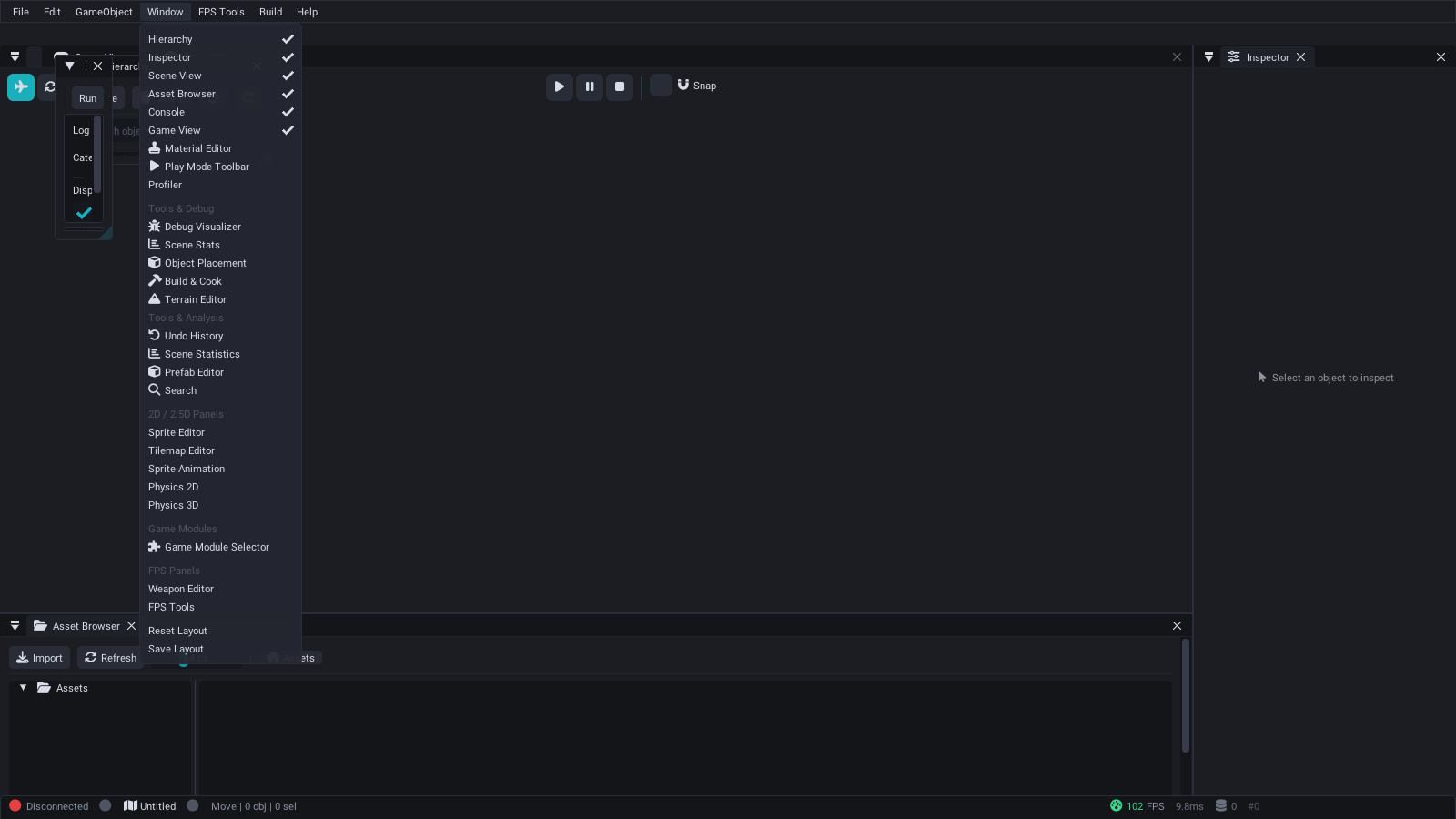

Window Menu — All Available Panels

Additional panels can be enabled from the Window menu at any time:

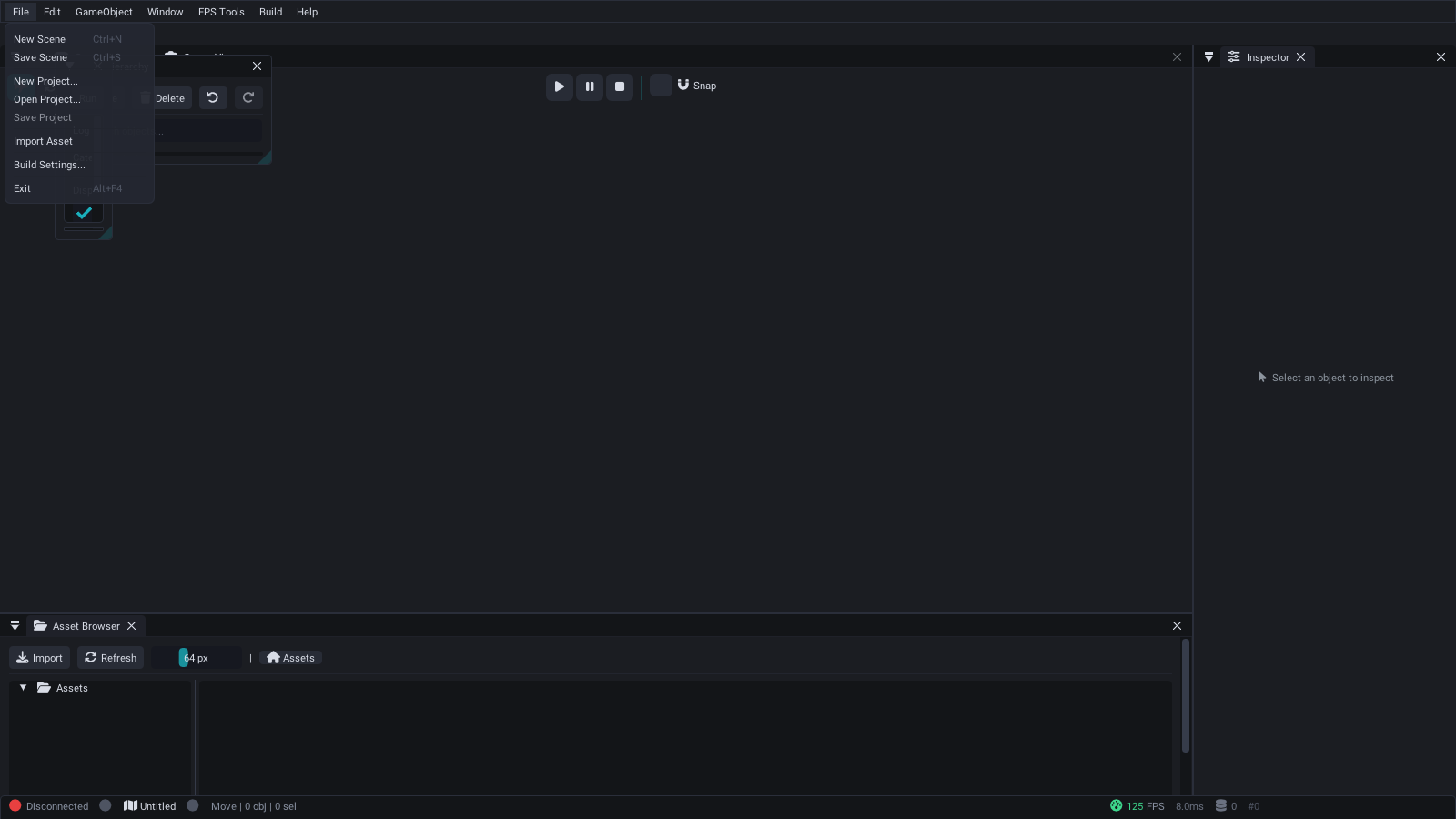

File Menu

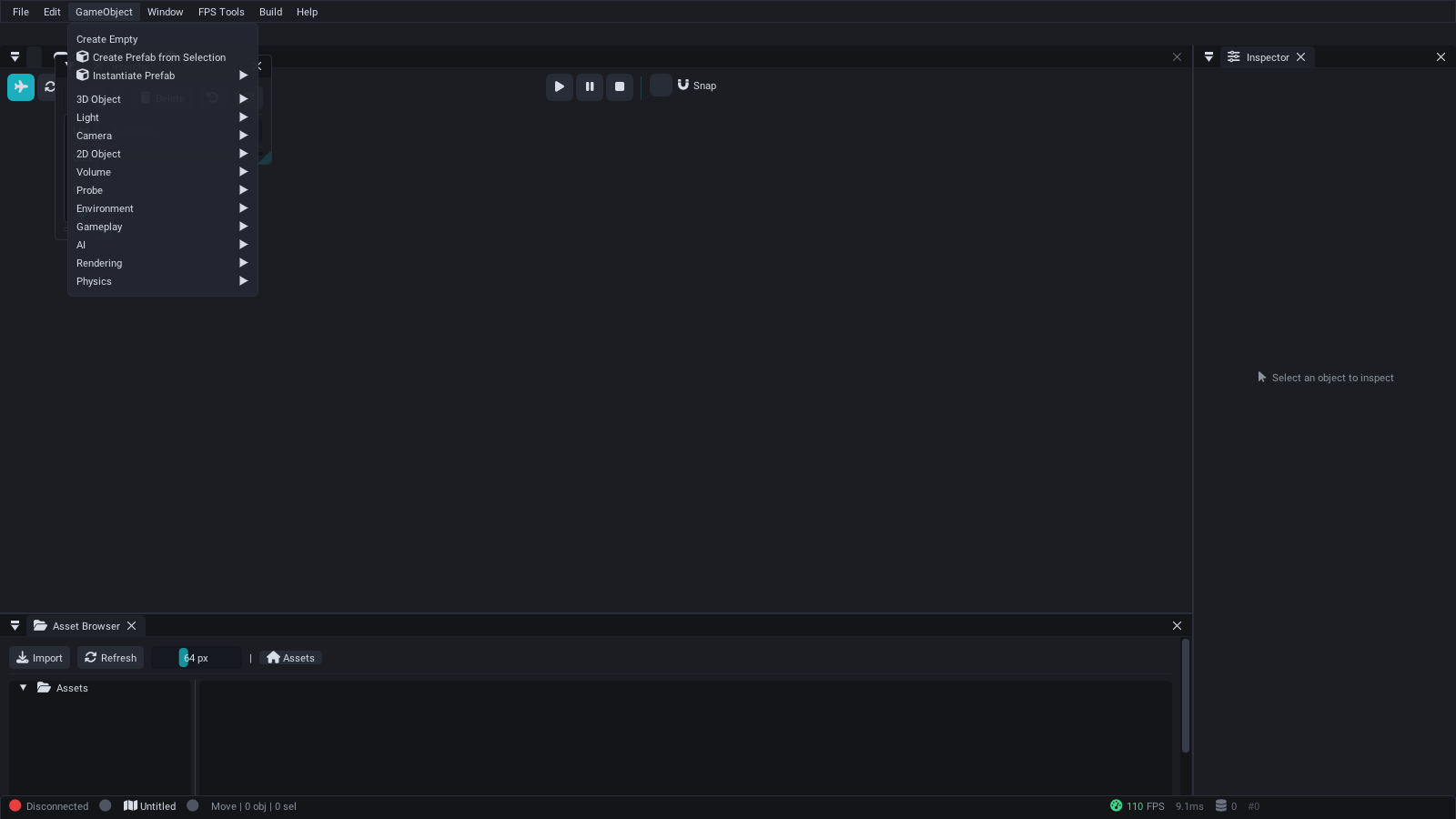

GameObject Menu

Create entities with pre-configured components:

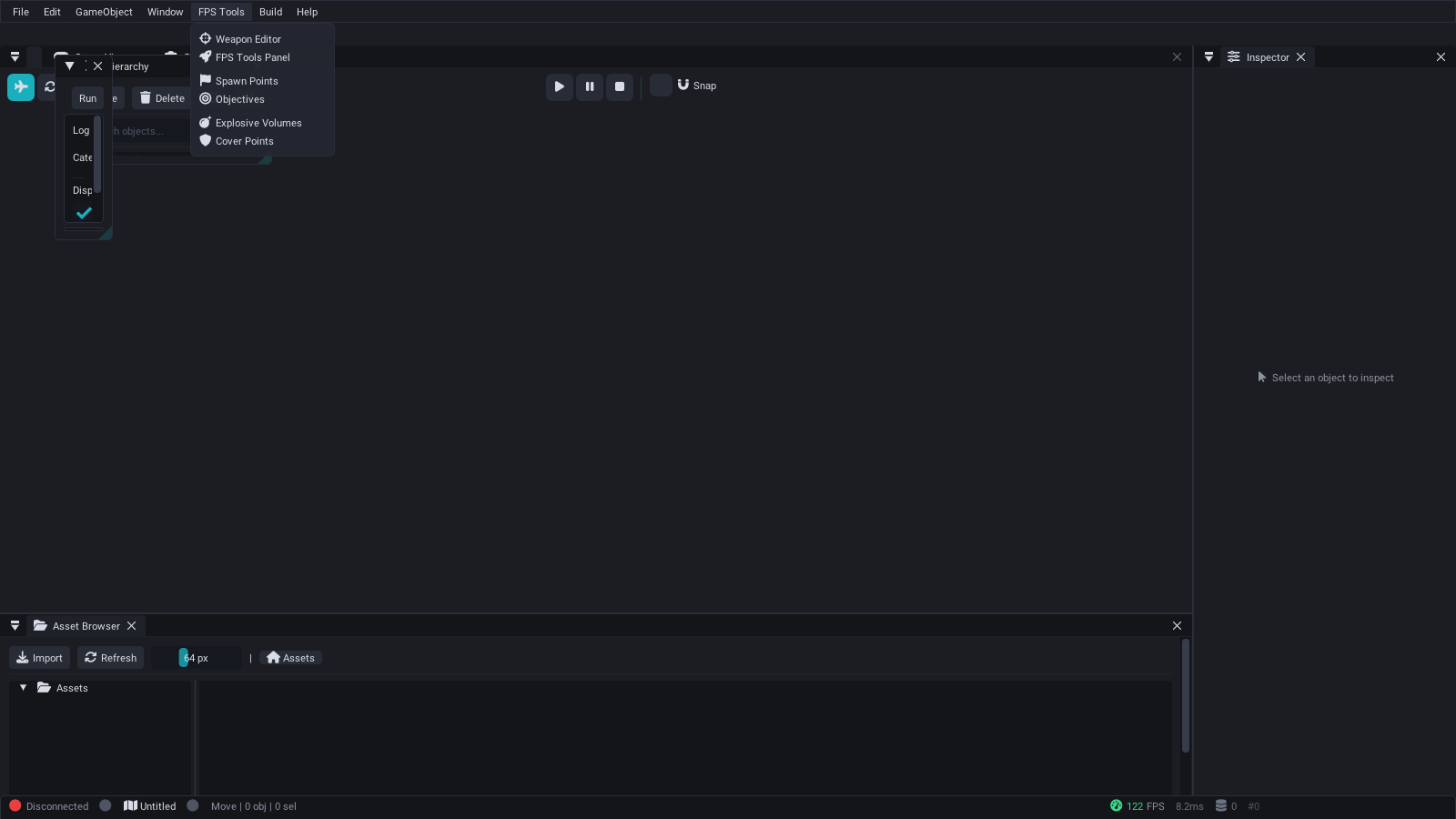

FPS Tools Menu

Weapon editor, spawn points, objectives, explosives, and cover points:

Source: SparkEditor/Source/

Platforms:

• Windows: Win32 + DirectX 11 ImGui backends (primary)
• Linux: Experimental SDL2 + OpenGL 3.3 ImGui path; Mesa llvmpipe is an explicitly configured development route, not certified support

ENABLE_EDITOR=ON

Architecture

EditorApplication
  |
  +-- EditorUI
  |     |
  |     +-- EditorLayoutManager   (dock positions, panel visibility, layout save/load)
  |     +-- EditorTheme           (color palette, rounding, spacing, font config)
  |     +-- EditorPanel* panels[] (registered panel set)
  |     +-- SceneViewPanel gizmos  (translate/rotate/scale, one value via EditorUI::SetTransformTool)
  |     +-- UndoRedoManager       (command history stack)
  |     +-- CommandPalette        (Ctrl+P quick-command search)
  |
  +-- EditorPluginManager         (built-in + DLL plugin lifecycle)
  +-- SceneManager                (scene load/save/serialize)
  +-- PrefabManager               (prefab asset CRUD)
  +-- VersionControlSystem        (optional git integration; git runs from an argument vector, no shell)
  +-- BuildCookPanel               (cook, package, deploy)
  +-- PerformanceProfiler         (frame time, FPS, percentiles; CPU samples only from imported captures)

EditorApplication

The entry point is EditorApplication (Core/EditorApplication.h). On Windows it owns the Win32 window and DirectX 11 device/context/swap chain; the experimental Linux implementation owns an SDL2 window and OpenGL 3.3 context. Each platform path owns its ImGui context and backend bindings.

struct EditorConfig
{
    std::string projectPath = ".";
    std::string layoutDirectory = "Layouts";
    std::string logDirectory = "Logs";
    bool enableLogging = true;
    bool startMaximized = true;
    float autoSaveInterval = 30.0f;
    int windowWidth = 1600;
    int windowHeight = 900;
};

class EditorApplication
{
public:
    bool Initialize(const EditorConfig& config);
    int  Run();
    void Shutdown();
    bool IsRunning() const;
    void RequestExit();
    PerformanceMetrics GetPerformanceMetrics() const;
    void OnWindowResize(int width, int height);
    void SetWindowTitle(const std::string& title);
};

Frame Loop

Each frame executes the following steps:

1. ProcessMessages() -- Win32 message pump or the Linux SDL2 event loop
2. Update(deltaTime) -- tick all panels, the Scene View gizmo interaction, profiler
3. Render() -- begin the platform ImGui frame, render visible panels, and present through DX11 or swap the SDL/OpenGL window

EditorPanel Base Class

Every panel inherits from EditorPanel (Core/EditorPanel.h), which provides a consistent interface:

class EditorPanel
{
public:
    EditorPanel(const std::string& name, const std::string& id);
    virtual ~EditorPanel() = default;

    virtual bool Initialize() = 0;
    virtual void Update(float deltaTime) = 0;
    virtual void Render() = 0;
    virtual void Shutdown() {}
    virtual bool HandleEvent(const std::string& eventType, void* eventData);

    // Visibility and state
    bool IsVisible() const;
    void SetVisible(bool visible);
    bool IsFocused() const;
    void SetFocused(bool focused);
    bool IsClosable() const;
    bool IsModified() const;

    // Persistence
    virtual std::string SaveState() const;
    virtual bool LoadState(const std::string& state);

    // Geometry
    void GetSize(float& width, float& height) const;
    void SetSize(float width, float height);
    void GetPosition(float& x, float& y) const;
    void SetPosition(float x, float y);

protected:
    bool BeginPanel();   // Sets up ImGui window
    void EndPanel();     // Finishes ImGui window
    void NotifyStateChange();
};

Editor Panels

The generated inventory below tracks source *Panel.h headers rather than a fixed count of registered, visible, or certified subsystem panels.

Scene Hierarchy

• Tree view of all scene nodes with parent-child relationships
• Drag-and-drop to reparent nodes
• Right-click context menu for add/delete/duplicate
• Search and filter nodes by name or type

Inspector

• Property editor for the selected node/entity
• Transform editing (position, rotation, scale)
• Component editing with type-appropriate widgets
• Material assignment and configuration
• Component reflection via ComponentReflection.h

Game Viewport

• Real-time 3D preview of the scene
• Play/pause/stop game simulation via PlayModeToolbarPanel
• Camera controls (orbit, pan, fly-through)
• Grid and axis overlays

Gizmos (Scene View)

The Scene View ships all three transform gizmos for selected World entities on Windows: translate arrows, rotate rings, and scale box handles. Each drag commits exactly one CommandHistory entry (SceneEditTools::CommitEntityRotation / CommitEntityScale / translation), so a gizmo edit is a single undo step. Grid snap applies 15 degrees to rotation and 0.1 to scale when snapping is enabled. The toolbar buttons, the W/E/R hotkeys, the command palette, and the Scene View toolbar all drive one value (EditorUI::SetTransformTool); previously they only changed a status-bar label. The separate Gizmos/GizmoSystem class was deleted as a duplicate of this path (see Stub and Abandoned Features). Regression coverage: Tests/TestEditorGizmoTransformReal.cpp.

Asset Browser (see Asset Pipeline)

• File-system view of project assets
• Drag-and-drop assets into the scene
• Thumbnail previews for textures and models
• Dependency tracking via AssetDependencyPanel

Material Editor (see Shader Pipeline)

• PBR material authoring
• Texture slot assignment
• Real-time preview sphere
• Blend mode and shader selection

Animation Timeline

Removed. The SparkEditor/Source/Animation/ timeline, clip manager, curve, and playback classes had no production caller and were deleted rather than completed. Sprite animation authoring lives in the Sprite Animation Editor Panel.

Terrain Editor (see Terrain and Procedural Generation)

• Heightmap painting (raise/lower/smooth/flatten)
• Texture splatting brush
• Object placement brush via ObjectPlacementPanel
• Terrain configuration (size, resolution, LOD)
• Save writes .sparkterrain v2 to an editable project-relative path (default Assets/Terrains/<name>.sparkterrain, overwrite confirmation, directory created); texture layers have Diffuse/Normal fields and detail meshes a Mesh Path field

Weapon Editor (see Gameplay Systems)

A balance calculator: DPS chart and comparison table over weapon stats (damage, fire rate, spread, reload). Edits are session-only -- the panel cannot save, the no-op "Save All" button was removed, and no game module reads its values.

Node Graph (imnodes)

• Visual scripting nodes (see Scripting with AngelScript)
• Material graph editor
• Connection-based data flow

Profiler Panel

• Frame time, FPS, and frame-time percentiles (measured live)
• CPU sample hierarchy and draw-call/triangle counters are populated only from an imported capture file; ProfileScope/PROFILE_SCOPE were deleted and no panel is instrumented, so there is no live CPU sample producer
• Memory usage tracking
• Frame time history

Console Panel

Debug console with real-time log streaming (the panel subscribes to Spark::Logger), severity filtering, and command execution.

• Real-time log output with color-coded severity (Info, Warning, Error, Fatal)
• Command input with Tab auto-completion and Up/Down history
• Case-insensitive text search across log output (substring match, not regex)

The Version Control panel launches git from an argument vector with no shell, so commit messages, branch names, and paths containing spaces, quotes, ampersands, or semicolons are accepted verbatim; the former "File path contains unsafe characters" guard is gone, commit messages are no longer mangled, and commit subjects no longer carry a trailing quote.

• Export logs to txt or csv
• Configurable scroll behavior (auto-scroll, pause on hover)

Source: SparkEditor/Source/Panels/ConsolePanel.cpp (821 lines)

Scene View

3D viewport for editing the scene with editor camera controls.

• Orbit, pan, and fly-through camera modes
• Grid overlay with configurable spacing
• Multiple render modes (lit, wireframe, unlit, normals)
• Translate/rotate/scale gizmo rendering and interaction for selected entities (Windows path)
• Click-to-select entities via raycasting

Source: SparkEditor/Source/Panels/SceneViewPanel.cpp (404 lines)

Play Mode Toolbar

Transport controls for play-in-editor (PIE) sessions.

• Play, Pause, Stop, and Step-Frame buttons
• Time-scale slider (0.1x to 10x)
• Per-subsystem toggle (physics, AI, audio, particles)
• Camera mode switching (editor camera vs. game camera)
• Frame statistics overlay during play

Source: SparkEditor/Source/Panels/PlayModeToolbarPanel.cpp (644 lines)

Build & Cook Panel

Build configuration and packaging pipeline.

• Profile selection: Debug, Development, Release, Shipping
• Asset cooking with progress tracking
• Platform targeting (Windows, Linux, macOS stubs)
• Output directory configuration
• Build log with error/warning highlights

Source: SparkEditor/Source/Panels/BuildCookPanel.cpp (591 lines)

Workflow Panel

Runs the project's build workflows from inside the editor.

• Build workflows configure with the host preset (windows-release on the stable-v1 platform) rather than linux-gcc-release
• Clean & Rebuild requires an explicit confirmation, deletes only the open project's build directory, and fails with a clear message when no project is open
• Running a workflow still blocks the editor UI for the duration of the process

Source: SparkEditor/Source/Panels/WorkflowPanel.h

Dedicated Server Panel

Launch and monitor a SparkServer process from the editor.

• Server cook settings and launch configuration for the single launch map (the Maps tab is a pick-list for that map)
• Local server launch for testing; the browser lists only the server launched from this editor (there is no discovery transport)
• Join is disabled until an editor client transport exists
• Monitoring shows uptime plus the player count parsed from SparkServer's health report

There is no LAN auto-discovery, no RCON console, and no kick/ban player list.

Source: SparkEditor/Source/Panels/DedicatedServerPanel.cpp

Debug Visualizer Panel

Preview - not connected. The grid, wireframe, collider, physics-contact, navmesh, light-radius, and audio-range toggles are authored in the panel, but no renderer consumes them yet and the panel reports no debug-draw counts. It is listed in Stub and Abandoned Features until SceneViewPanel reads it.

Source: SparkEditor/Source/Panels/DebugVisualizerPanel.cpp

Event Monitor Panel

Real-time EventBus inspector for debugging event-driven systems.

• Live event stream during play mode
• Filter by event type or source
• Event payload inspection
• Pause/resume event capture

Source: SparkEditor/Source/Panels/EventMonitorPanel.cpp (97 lines)

Dialogue Editor Panel

Visual dialogue tree authoring tool.

• Node types: Text, Choice, Branch, Event, End
• Speaker name and voice clip assignment per node
• Branching condition configuration
• Preview dialogue flow in-editor

Source: SparkEditor/Source/Panels/DialogueEditorPanel.cpp (175 lines)

FPS Tools Panel

Specialized tools for first-person shooter level design and balancing.

• Spawn point placement and team assignment
• Game mode configuration (Deathmatch, CTF, Domination)
• Player stats testing (health, armor, speed)
• Combat simulation for balance testing
• Level design helpers (cover analysis, sight lines)

Source: SparkEditor/Source/Panels/FPSToolsPanel.cpp (630 lines)

Scene Statistics Panel

Live scene metrics dashboard, reading the open scene's World.

• Entity and component counts by type (from the open scene's World)
• Render statistics: draw calls and batches as reported by the scene viewport (only while it reports stats); triangle/vertex/shader/texture-VRAM figures are not measured
• Physics statistics: rigid bodies, contacts, constraints -- only while a game session runs
• Memory: the editor process working set (there is no per-asset mesh/texture/audio breakdown)
• Per-frame performance graphs with history

Source: SparkEditor/Source/Panels/SceneStatisticsPanel.cpp

Search Panel

Fuzzy search over the open scene and the project asset root.

• Search entities by name and by the reflected component types on those entities
• Search file names under the project asset root
• Selecting an entity result selects it in the editor; asset results report their path
• Search history with recent queries

Property-value search does not exist.

Source: SparkEditor/Source/Panels/SearchPanel.cpp

Object Placement Panel

Creates real, undoable entities from the editor's entity templates.

• Quick Place and Place Selected create entities through CommandHistory
• Entity template list (there is no drag-and-drop and no PrefabManager lookup)
• Brush, line, grid, and scatter modes, align mode, and snap settings are authored in the panel but not yet read by the viewport -- they are not working placement modes

Source: SparkEditor/Source/Panels/ObjectPlacementPanel.cpp

Prefab Editor Panel

Create, edit, and manage prefab assets.

• Prefab browser with search
• Component editing within prefab context
• Property serialization and override tracking
• Create prefab from selected entities
• Apply prefab changes to all instances

Source: SparkEditor/Source/Panels/PrefabEditorPanel.cpp (393 lines)

Project Browser Panel

Project-level hub for opening, creating, and managing projects.

• Recent projects list with last-opened timestamps
• New project wizard with templates (FPS, RPG, Blank)
• Existing project browser with folder navigation
• Project settings quick-access

Source: SparkEditor/Source/Panels/ProjectBrowserPanel.cpp (540 lines)

Particle Editor Panel

Visual particle system authoring.

• Emission rate, lifetime, and burst configuration
• Emitter shapes: Point, Sphere, Cone, Box
• Color gradient editor over particle lifetime
• Physics integration (gravity, wind, collision)
• Live preview in viewport

Source: SparkEditor/Source/Panels/ParticleEditorPanel.cpp (147 lines)

Post-Processing (Inspector)

The separate PostProcessingPanel was removed: it edited a SceneFile-backed document model the editor no longer builds. Add a Post-Process Volume component to an entity and edit bloom, tonemapping, fog, and related settings in the Inspector.

Localization Panel

String table editor for multi-language support.

• Supported languages: English, Spanish, French, German, Japanese, Chinese
• Key/value translation table with inline editing
• Missing translation highlighting
• Import/export CSV for translator workflows

Source: SparkEditor/Source/Panels/LocalizationPanel.cpp (149 lines)

Save System Panel

Save/Load slot manager over the real save directory.

• Lists the .spark_save files in the save directory with their metadata (timestamp, playtime, level)
• Rename and delete slots
• Load requires a running game session (a live World in the engine context) and at least one enumerated slot; it is disabled otherwise
• Export/Import were removed

Source: SparkEditor/Source/Panels/SaveSystemPanel.cpp

Region Map Editor

The Region Map Editor discovers every Terrafront continent lattice declared by Assets/MMOFPS/Data/continents.json. Switching maps is disabled while the current map has unsaved edits. Save validates the serialized document with the strict JSON parser, refreshes that selected map's sibling .bak, and atomically replaces only its declared region file, so an interrupted write cannot truncate the live lattice.

Source: SparkEditor/Source/Panels/RegionMapEditorPanel.h

Spline Editor Panel

Spline path authoring for cameras, AI, and procedural content.

• Control point creation and editing
• Curve types: Catmull-Rom, Bezier
• Closed loop toggle
• Tension parameter adjustment
• Visual preview in scene view

Source: SparkEditor/Source/Panels/SplineEditorPanel.cpp (140 lines)

Weather & Fog Panel

Applies the engine's own weather presets to the running WeatherSystem.

• Shows the engine's weather-type presets read-only
• Applies a selected type, intensity, and transition time to the running WeatherSystem
• With no game session the panel shows Preview - not connected

Custom presets, per-field authoring, and preset persistence do not exist.

Source: SparkEditor/Source/Panels/WeatherFogPanel.cpp

Undo History Panel

Visual timeline of the undo/redo command stack.

• Chronological command list with descriptions
• Click to jump to any point in history
• Current position indicator
• Saved state marker

Source: SparkEditor/Source/Panels/UndoHistoryPanel.cpp (161 lines)

AI Editor Panel

Behavior tree visual editor.

• Node creation for Selector, Sequence, Decorator, Action types
• Template management for reusable tree patterns
• Agent inspection with live blackboard values
• Tree validation and error highlighting

Source: SparkEditor/Source/Panels/AIEditorPanel.cpp (201 lines)

AI Debug Panel

Real-time AI agent runtime inspector for play-mode debugging.

• Agent list with color-coded state (Idle, Patrol, Alert, Combat, Flee, Dead)
• Per-agent blackboard variable viewer with type-aware display
• Behavior tree execution trace with active node highlighting
• Perception overlay toggles (detection ranges, attack ranges, nav paths, target lines)
• AI system statistics (agent counts by state, targets)
• State filtering and configurable refresh rate

Source: SparkEditor/Source/Panels/AIDebugPanel.cpp (290 lines)

2D Panels

Physics 2D Panel

2D physics configuration and debugging.

• Gravity vector configuration
• Collision layer matrix editor
• Debug visualization: AABBs, contacts, grid
• Interactive raycast testing tool

Source: SparkEditor/Source/Panels/Physics2DPanel.cpp (308 lines)

Sprite Editor Panel

Sprite configuration for 2D rendering.

• Texture selection and source rectangle editing
• Pivot point setup with visual indicator
• Sorting layer and order assignment
• Color tint and flip controls

Source: SparkEditor/Source/Panels/SpriteEditorPanel.cpp (329 lines)

Sprite Animation Editor Panel

2D animation clip authoring.

• Frame-by-frame timeline with keyframe editing
• Per-frame duration control
• Preview with play/pause/step controls
• Onion skinning for animation reference

Source: SparkEditor/Source/Panels/SpriteAnimationEditorPanel.cpp (534 lines)

Tilemap Editor Panel

Tile-based map editing.

• Tools: Paint, Erase, Fill, Rectangle
• Collision layer painting
• Auto-tiling rules configuration
• Zoom and pan viewport
• Panel-local undo/redo commands; this does not establish complete editor-wide coverage

Source: SparkEditor/Source/Panels/TilemapEditorPanel.cpp (540 lines)

Game View Panel

Game viewport with a simulated FPS HUD preview.

• The HUD overlay (crosshair, health/armor bars, ammo, minimap, kill feed, scoreboard) is generated by the editor and labelled on screen as SIMULATED HUD - not game data; it is not connected to SparkGameFPS state
• The Game View fly camera no longer moves the scene's authored camera

Source: SparkEditor/Source/Panels/GameViewPanel.cpp

Collaborative Editing

SparkEditor contains an experimental multi-user collaboration implementation outside stable-v1. See Collaborative Editing for development documentation.

Key features:

• Peer presence — see other editors' selections and viewport cameras
• Node locking — pessimistic locks prevent conflicting edits
• Edit broadcasting — changes are visible across all editors in real-time
• Auto-expiry — locks expire after 5 minutes to prevent blocking

Source: SparkEditor/Source/Communication/CollaborativeEditSession.h

Undo/Redo System

The UndoRedoManager (UndoRedo/UndoRedoManager.h) maintains command stacks. For the World document the following mutations are all command-backed and undoable (regression coverage in Tests/TestEditorUndoHierarchyReal.cpp and Tests/TestEditorGizmoTransformReal.cpp):

Operation	Entry points
Create / delete / duplicate entity	Hierarchy context menu, Ctrl+D, Delete key
Rename entity	F2, double-click, context menu, toolbar
Reparent	Hierarchy drag-and-drop
Translate / rotate / scale	Scene View gizmos (one command per drag)
Inspector property edits	Reflected component fields

Editor-wide certification is still open under EDT-210 because the asset drag/assign path and the author-to-package round trip are not yet gated:

class UndoRedoManager
{
public:
    void ExecuteCommand(std::unique_ptr<EditorCommand> command);
    bool Undo();
    bool Redo();
    void UndoToIndex(size_t targetIndex);

    bool CanUndo() const;
    bool CanRedo() const;
    std::string GetUndoDescription() const;
    std::string GetRedoDescription() const;

    void Clear();
    void MarkSaved();
    bool HasUnsavedChanges() const;

    size_t GetMaxStackDepth() const;           // Default: 100
    void SetMaxStackDepth(size_t depth);
    void SetOnStackChanged(std::function<void()> callback);
};

Operations use ExecuteCommand() and implement EditorCommand::Execute() / Undo(). Executing a new command clears the redo stack, and UndoHistoryPanel exposes the recorded command history.

Theme System

Select a palette from Help > Themes; it applies immediately to ImGui widgets, the toolbar, the status bar, and notification toasts. Ember Studio is the startup default. Use SparkEditor.exe --theme "Cobalt Forge" (or another exact name below) to override the startup palette. Menu selections currently apply for the running session; they are not saved as a startup preference.

The EditorTheme class (Core/EditorTheme.h) registers these built-in themes:

Theme	Description
Ember Studio	Warm charcoal, ember accent, cyan data highlights (default)
Cobalt Forge	Cool slate, cyan accent, violet data highlights
Graphite Signal	Neutral graphite, silver accent, mint data highlights
Professional Light	Light theme for well-lit environments
High Contrast	Accessibility-focused high-contrast theme

Retired built-in names remain accepted as compatibility aliases without extra picker entries: Spark Professional, Spark Ember, and Orange Accent resolve to Ember Studio; Spark Fusion, Unreal Pro, and Blue Accent resolve to Cobalt Forge; Unity Pro, VS Pro, and JetBrains resolve to Graphite Signal. Explicitly registered custom themes retain their names and take precedence over compatibility aliases. Unknown names fall back to Ember Studio.

Theme Data Structure

The EditorThemeData struct contains 60+ color properties organized into groups:

• Background: background, backgroundDark, backgroundLight, backgroundAccent, backgroundHeader, backgroundActive, backgroundHover, backgroundSelected
• Text: text, textDisabled, textSecondary, textAccent, textWarning, textError, textSuccess
• Buttons: button, buttonHovered, buttonActive, buttonDisabled
• Frames: frame, frameHovered, frameActive
• Borders: border, borderLight, borderAccent, borderSeparator
• Tabs/Scrollbars/Menus: full color sets for each
• Style values: rounding, border sizes, padding, spacing, shadows, font size

Theme Customization

// Apply a built-in theme
EditorTheme::ApplyTheme("Ember Studio");

// Create a blended theme
EditorTheme::CreateBlendedTheme("Unity Pro", "Unreal Pro", 0.5f, "HybridTheme");

// Export/import custom themes
ThemeCustomizer::ExportTheme(theme, "MyTheme.json");
ThemeCustomizer::ImportTheme("MyTheme.json", theme);

// Live editing
ThemeCustomizer::ShowThemeEditor();

Layout Management

The EditorLayoutManager (Core/EditorLayoutManager.h) handles docking, saving, and loading panel layouts:

enum class DockPosition { Left, Right, Top, Bottom, Center, Float };

struct PanelConfig
{
    std::string name;
    std::string displayName;
    DockPosition dockPosition;
    ImVec2 size;
    ImVec2 position;
    bool isVisible;
    bool isFloating;
    bool canClose;
    bool canDock;
    float dockRatio;    // Ratio of parent space to occupy
    int tabOrder;
    std::string parentDock;
};

The editor uses ImGui's docking branch for a fully customizable workspace:

• Drag panels to dock at any edge
• Create floating windows
• Save and load layout configurations
• Reset to default layout

Plugin System

The EditorPluginManager (Core/EditorPluginManager.h) supports both built-in and DLL-loaded editor plugins:

class EditorPluginManager
{
public:
    // Registration
    template<typename T> bool RegisterPlugin();
    bool LoadPlugin(const std::string& path);
    bool UnloadPlugin(const std::string& name);

    // Lookup
    IEditorPlugin* GetPlugin(const std::string& name) const;
    size_t GetPluginCount() const;
    std::vector<std::string> GetPluginNames() const;

    // Lifecycle
    bool InitializeAll(EditorApplication* app);
    void ShutdownAll();
    void UpdateAll(float deltaTime);
    void RenderAll();

    // Events
    void NotifySceneLoad(const std::string& scenePath);
    void NotifySceneSave(const std::string& scenePath);
    void NotifyEntitySelected(uint32_t entityID);
    void RenderMenuBarItems();

    // Panel registration from plugins
    void RegisterPanel(std::unique_ptr<EditorPanel> panel);
};

Plugins implement the IEditorPlugin interface and are loaded at startup or dynamically at runtime. Each plugin can register custom panels, menu items, and respond to editor events.

Building with the Editor

# Windows (preferred): CMake presets
cmake --preset windows-release
cmake --build --preset windows-release

# build.ps1 remains supported; ENABLE_EDITOR defaults ON, and -editor only forces it ON
.\build.ps1 -config Release -editor

Performance Considerations

• All panel rendering uses immediate-mode ImGui; no retained scene graph overhead.
• The PerformanceProfiler reports frame time, FPS, and percentiles; it has no per-panel or CPU-sample producer (PROFILE_SCOPE was deleted), so bottleneck hunting needs an imported capture or an external profiler.
• Gizmo rendering uses dedicated DX11 vertex/pixel shaders with minimal draw calls.
• The EditorApplication frame loop targets 60 FPS; the editor can optionally cap to lower rates when idle.

Thread Safety

• All editor UI code runs on the main thread.
• The EditorApplication holds the DX11 device and context; rendering is single-threaded.
• Background asset imports (if any) communicate results back to the main thread via queues.
• The SimpleConsolePanel wraps the engine's thread-safe SimpleConsole.

Troubleshooting

Editor window does not appear

1. Verify ENABLE_EDITOR=ON is set in CMake.
2. Confirm you are building on Windows with MSVC.
3. Check that DirectX 11 runtime is available (Windows 10+ includes it).

Panel is missing from the View menu

1. Check that the panel's SetVisibleInMenu(true) is called during registration.
2. If the panel was loaded from a plugin, verify the plugin initialized successfully.

Gizmo does not respond to clicks

1. Ensure the Scene View panel has focus so it receives mouse events before ImGui consumes them.
2. Check the active transform tool (W/E/R or the toolbar) -- all surfaces drive EditorUI::SetTransformTool.
3. Verify at least one World entity is selected in the hierarchy.

Editor crashed -- where is the dump?

SparkEditor installs a Windows unhandled-exception filter at startup and restores the previous filter on shutdown. Dumps and logs are written under the per-user editor data directory (not a CWD-relative Crashes/). The recovery dialog and RecordOperation journaling are still unwired (EDT-210), so a crash leaves a dump but does not offer scene recovery.

Theme colors look wrong

1. Re-select the palette from Help > Themes and check the selected menu item.
2. For missing fonts or icons, check the startup log from EditorFonts::LoadFonts() and the packaged EditorAssets/Fonts directory beside the executable. Fonts are loaded at startup; changing the palette does not reload the font atlas.
3. Report any panel that retains a fixed color across palettes; custom drawing should use the active theme's semantic colors or ImGui style colors.

Time of Day

• Time slider (0-24h) with formatted HH:MM display
• Time scale control (1x, 10x, 60x, 600x) with pause/resume
• Preset buttons: Dawn, Morning, Noon, Dusk, Midnight
• Sun direction, color, and intensity preview with color swatches
• Ambient lighting state display
• Day/night indicator and day period classification
• Day cycle progress bar

Ability Editor

• Tabbed view: Abilities, Auras, Procs
• Ability authoring: targeting, range, cast time, cooldown, resource cost, channeling
• Aura authoring: type, school, duration, tick interval, modifiers, stacking
• Proc authoring: trigger mask checkboxes, chance, cooldown, charges
• Filterable lists with create/delete operations

Trigger Editor

• List of proximity trigger volumes with ID, shape, label, enabled state
• Create dialog for sphere/AABB triggers with center and size parameters
• Per-trigger detail editor (shape, center, radius/extents, enabled, occupant count)
• Viewport visualization toggle

Condition Editor

• Visual condition set builder with AND/OR group logic
• 27 condition types matching ConditionSystem enum (IsAlive, HasItem, QuestComplete, etc.)
• Negation toggle per condition
• World variable editor (name/value pairs with add/edit/delete)
• World flag editor (boolean toggle list)

Decal Editor

• Decal material list with create/delete
• Per-material texture paths (albedo, normal, roughness), opacity, fade time
• Surface-to-decal mapping table (Concrete, Metal, Wood, etc.)
• Active decal count display and "Clear All" button
• Max decal pool size configuration

---

See Also

• Scene Management -- Scene hierarchy and serialization
• Rendering and Graphics -- Material system and render pipelines
• Animation -- Animation state machines and timeline
• Cinematic Sequencer -- Timeline editor
• Entity Component System -- Component architecture
• Shader Pipeline -- Shader authoring and compilation
• Asset Pipeline -- Asset importing and management
• Physics -- Physics simulation
• Terrain and Procedural Generation -- Terrain editing and procedural tools
• Gameplay Systems -- Weapons, inventory, and game mechanics
• Scripting with AngelScript -- Visual scripting system

Editor Panels

Panel	Header
AIDebugPanel	SparkEditor/Source/Panels/AIDebugPanel.h
AIEditorPanel	SparkEditor/Source/Panels/AIEditorPanel.h
AbilityEditorPanel	SparkEditor/Source/Panels/AbilityEditorPanel.h
AssetBrowserPanel	SparkEditor/Source/Panels/AssetBrowserPanel.h
AudioMixerPanel	SparkEditor/Source/Panels/AudioMixerPanel.h
BasicMaterialEditorPanel	SparkEditor/Source/Panels/BasicMaterialEditorPanel.h
BuildCookPanel	SparkEditor/Source/Panels/BuildCookPanel.h
CSGEditorPanel	SparkEditor/Source/Panels/CSGEditorPanel.h
CinematicSequencerPanel	SparkEditor/Source/Panels/CinematicSequencerPanel.h
CollaborationPanel	SparkEditor/Source/Panels/CollaborationPanel.h
ConditionEditorPanel	SparkEditor/Source/Panels/ConditionEditorPanel.h
ConsolePanel	SparkEditor/Source/Panels/ConsolePanel.h
CoroutineDebugPanel	SparkEditor/Source/Panels/CoroutineDebugPanel.h
DebugVisualizerPanel	SparkEditor/Source/Panels/DebugVisualizerPanel.h
DecalEditorPanel	SparkEditor/Source/Panels/DecalEditorPanel.h
DecorLayoutEditorPanel	SparkEditor/Source/Panels/DecorLayoutEditorPanel.h
DedicatedServerPanel	SparkEditor/Source/Panels/DedicatedServerPanel.h
DestructionEditorPanel	SparkEditor/Source/Panels/DestructionEditorPanel.h
DialogueEditorPanel	SparkEditor/Source/Panels/DialogueEditorPanel.h
EventMonitorPanel	SparkEditor/Source/Panels/EventMonitorPanel.h
EventResponsePanel	SparkEditor/Source/Panels/EventResponsePanel.h
FPSToolsPanel	SparkEditor/Source/Panels/FPSToolsPanel.h
GameModuleSelectorPanel	SparkEditor/Source/Panels/GameModuleSelectorPanel.h
GameModuleSelectorPanel	SparkEditor/Source/Panels/PlayControlPanel.h
GameViewPanel	SparkEditor/Source/Panels/GameViewPanel.h
HierarchyPanel	SparkEditor/Source/Panels/HierarchyPanel.h
InspectorPanel	SparkEditor/Source/Panels/InspectorPanel.h
LocalizationPanel	SparkEditor/Source/Panels/LocalizationPanel.h
MaterialEditorPanel	SparkEditor/Source/Panels/MaterialEditorPanel.h
ModdingPanel	SparkEditor/Source/Panels/ModdingPanel.h
NetworkDebugPanel	SparkEditor/Source/Panels/NetworkDebugPanel.h
ObjectPlacementPanel	SparkEditor/Source/Panels/ObjectPlacementPanel.h
ParticleEditorPanel	SparkEditor/Source/Panels/ParticleEditorPanel.h
Physics2DPanel	SparkEditor/Source/Panels/Physics2DPanel.h
Physics3DPanel	SparkEditor/Source/Panels/Physics3DPanel.h
PlayModeToolbarPanel	SparkEditor/Source/Panels/PlayModeToolbarPanel.h
PrefabEditorPanel	SparkEditor/Source/Panels/PrefabEditorPanel.h
ProjectBrowserPanel	SparkEditor/Source/Panels/ProjectBrowserPanel.h
ProjectSettingsPanel	SparkEditor/Source/Panels/ProjectSettingsPanel.h
PrototypingPanel	SparkEditor/Source/Panels/PrototypingPanel.h
RegionMapEditorPanel	SparkEditor/Source/Panels/RegionMapEditorPanel.h
ReplayPanel	SparkEditor/Source/Panels/ReplayPanel.h
SaveSystemPanel	SparkEditor/Source/Panels/SaveSystemPanel.h
SceneImportPanel	SparkEditor/Source/Panels/SceneImportPanel.h
SceneStatisticsPanel	SparkEditor/Source/Panels/SceneStatisticsPanel.h
SceneViewPanel	SparkEditor/Source/Panels/SceneViewPanel.h
ScriptDebugPanel	SparkEditor/Source/Panels/ScriptDebugPanel.h
ScriptEditorPanel	SparkEditor/Source/Panels/ScriptEditorPanel.h
SearchPanel	SparkEditor/Source/Panels/SearchPanel.h
ServiceTopologyPanel	SparkEditor/Source/Panels/ServiceTopologyPanel.h
SplineEditorPanel	SparkEditor/Source/Panels/SplineEditorPanel.h
SpriteAnimationEditorPanel	SparkEditor/Source/Panels/SpriteAnimationEditorPanel.h
SpriteEditorPanel	SparkEditor/Source/Panels/SpriteEditorPanel.h
StreamingPanel	SparkEditor/Source/Panels/StreamingPanel.h
TilemapEditorPanel	SparkEditor/Source/Panels/TilemapEditorPanel.h
TimeOfDayPanel	SparkEditor/Source/Panels/TimeOfDayPanel.h
TriggerEditorPanel	SparkEditor/Source/Panels/TriggerEditorPanel.h
UIDesignerPanel	SparkEditor/Source/Panels/UIDesignerPanel.h
UndoHistoryPanel	SparkEditor/Source/Panels/UndoHistoryPanel.h
VRConfigPanel	SparkEditor/Source/Panels/VRConfigPanel.h
VisualScriptPanel	SparkEditor/Source/Panels/VisualScriptPanel.h
WeaponEditorPanel	SparkEditor/Source/Panels/WeaponEditorPanel.h
WeatherFogPanel	SparkEditor/Source/Panels/WeatherFogPanel.h
WorkflowPanel	SparkEditor/Source/Panels/WorkflowPanel.h
