buy esp32cam dev board with ov2640 camera
get power supply
FTDI programmer
external antenna
free focus

Description

Only available with ESP32-cam board with OV2640 camera. Manages the camera settings and initialization, sends images to the server via socket.io.

Notes

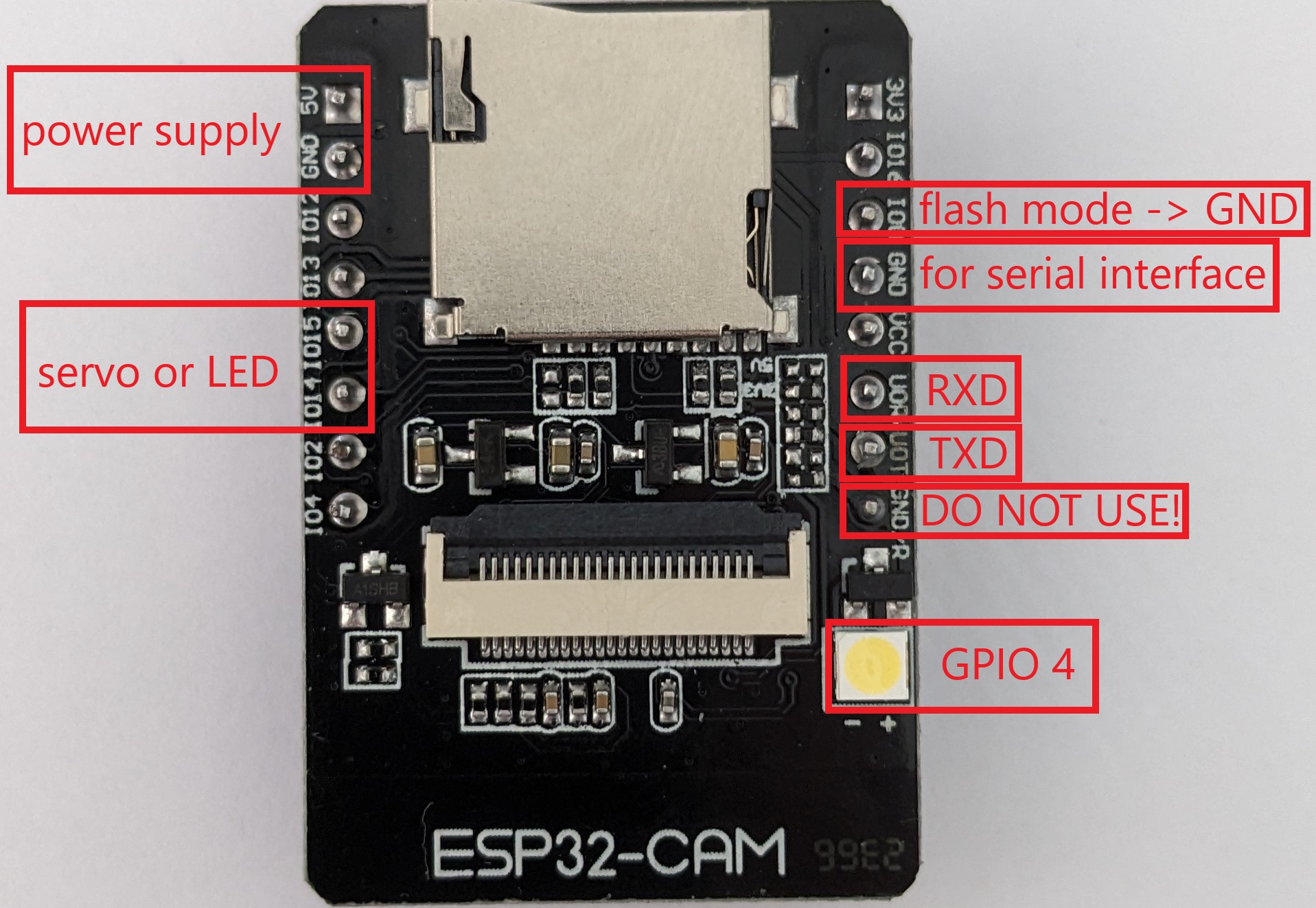

only 2 fully functional GPIO are free and exposed: $14$ and $15$
on some hardware revisions, one of the $GND$ pins is not functional
