Installing hMailServer

Installing hMailServer

This page began as a chapter of the 6.2.10 manual and has been corrected against the 6.2.28 source tree. The Control Panel's pages are grouped differently now, so the paths below use today's groups; the TLS ports 465, 993 and 995 exist only after you create them on the TCP/IP ports page (a fresh install seeds 25, 587, 110 and 143); and everything added since 6.2.10 is in Changes-Since-6210. Where a value here disagrees with the Settings Reference, which is generated from the code, the reference is right.

Everything on this page is drawn from the installer script itself — hmailserver/installation/, an Inno Setup project whose logic lives in hMailServerInnoExtension.iss. Where a claim here matters, the file and function are named so you can check it.

Work through Before You Install first.

4.1 Download

Get hMailServer-6.2.28-x64.exe from the releases page.

Each release also carries:

Asset	What it is	Do you need it?
hMailServer-6.2.28-x64.exe	The installer	Yes
hmailserver.spdx.json	SBOM in SPDX format	Only if you audit your supply chain
hmailserver.cyclonedx.json	SBOM in CycloneDX format	Only if you audit your supply chain
<asset>.cosign.bundle	A Sigstore signature and certificate bundle for every asset	Recommended — it is how you prove the file came from this repository's build

Verifying the download. Signing is keyless Sigstore: the signature is bound to this repository's GitHub Actions identity through OIDC and recorded in the public Rekor transparency log, so there is no key for anyone to leak. With cosign installed:

cosign verify-blob \
  --bundle hMailServer-6.2.28-x64.exe.cosign.bundle \
  --certificate-identity-regexp '^https://github\.com/Progressiverobot/hmailserver/' \
  --certificate-oidc-issuer https://token.actions.githubusercontent.com \
  hMailServer-6.2.28-x64.exe

Verified OK

Signed from 6.3.1. The installer carries an Authenticode signature from Azure Artifact Signing, countersigned with an RFC 3161 timestamp, so the UAC prompt names Progressive Robot Ltd rather than Unknown publisher, and a policy that refuses unsigned binaries no longer refuses this one. SmartScreen still warns: it judges a file by reputation, and a new installer every few weeks never accumulates any, so expect Windows protected your PC with the publisher's real name on it. Releases before 6.3.1 are unsigned and stay so - a published release is immutable. Sigstore is unchanged and is the check that proves provenance for every asset, Linux packages included: cosign verify-blob against the .cosign.bundle beside each file (.github/workflows/sign-release.yml).

4.2 Run the installer

Right-click the installer and choose Run as administrator. PrivilegesRequired=admin means it will ask anyway; starting elevated avoids a second prompt.

What it checks before it shows you anything

InitializeSetup() runs first, and can refuse to start. Knowing what it looks at saves a puzzled five minutes:

Check	What you see when it fires	Result
/adminpassword shorter than 5 characters	"The password given with /adminpassword must be at least 5 characters long."	Setup stops
A window titled hMailServer Control Panel is open	"…You must close down this application before starting the installation."	Setup stops
A window titled hMailServer Administrator is open (a legacy version's GUI)	the same message	Setup stops
A window titled hMailServer Database Setup, hMailServer Database Upgrader or DBSetup is open	the same message	Setup stops
Ports 25, 110 or 143 already in use while the hMailServer service is not running	"…one or several of the TCP/IP ports 25, 110 and 143 are already in use. This indicates that there already is an email server running on this computer."	Warning only — setup continues, and you will have two servers fighting over port 25
Windows older than build 14393, or 32-bit	"hMailServer requires Windows 10 version 1607 (build 14393) / Windows Server 2016 or later, 64-bit."	Setup stops

Every one of those dialogs is a SuppressibleMsgBox, so under /SUPPRESSMSGBOXES they take their default button instead of waiting for a keyboard that is not there. That is deliberate: in 6.2.19 a plain MsgBox on this path made a /VERYSILENT install wait ninety minutes in CI for an answer nobody could give.

The wizard, page by page

Screenshots on this page are from a 6.2.11-era build. The wording is current except where a caption says otherwise.

1. Licence agreement. hMailServer is AGPL-3.0. In short: you may use it freely, including commercially; if you modify it and offer it to others over a network, you must publish your changes. License.rtf is also copied to {app}\Bin so it is on the machine afterwards.

The body text visible in this 6.2.11-era shot is the pre-AGPL preamble. The heading is unchanged, but current releases show the GNU Affero General Public License v3 text beneath it — verified in installation/License.rtf.

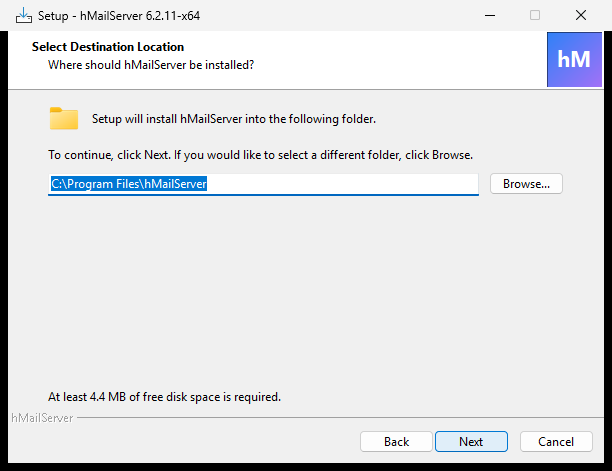

2. Destination folder. The default C:\Program Files\hMailServer is fine.

On a machine where hMailServer has been installed before, OverrideInstallationFolder() reads HKLM32\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\hMailServer_is1\InstallLocation and puts that path in the box, so an upgrade returns to wherever the original install went. This is what makes an x86-to-x64 upgrade find the existing installation, which Inno does not do on its own.

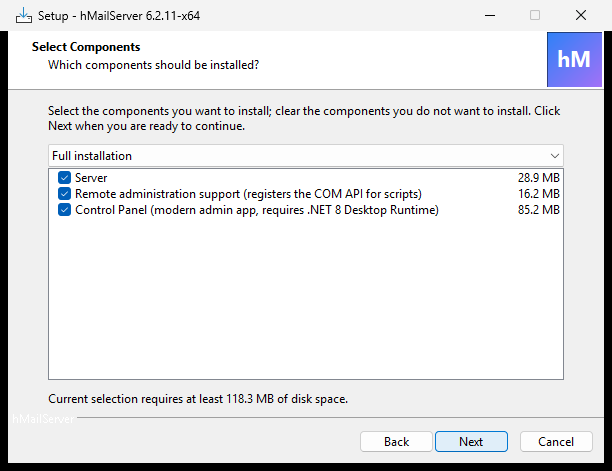

3. Components. This page matters, so read it:

Component	Internal name	Take it?	What it does
Server	server	Yes	The mail server itself, the database tools, the add-ons, the DB scripts. Everything else is optional
Remote administration support	admintools	Only if scripting from another machine	Registers the hMailServer COM type library on a machine that is not the server, so scripts and COM clients can administer a remote instance
Control Panel	controlpanel	Yes	The administration application. Without it you have no GUI

The component sizes shown are from a 6.2.11 build; the Control Panel line now reads ".NET 10 Desktop Runtime".

The Control Panel does not need "Remote administration support". It binds late, through IDispatch, and connects to a remote host by itself. The component is only for other COM clients — your own scripts, monitoring tools — running on a machine that is not this one. See section_components.iss.

Note for upgraders: "Administrative tools" in older versions bundled the classic Administrator GUI and a PHP web interface. Both are gone. The component now does only what it always really did — register the COM type library.

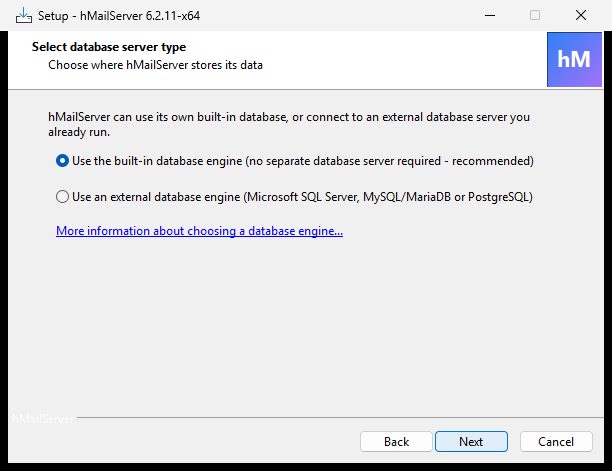

4. Database type. Choose Use the built-in database engine unless you decided otherwise in Before You Install §3.5.

This page is skipped when [Database] Type is already set in an existing hMailServer.ini — an upgrade never re-asks — or when the server component is not selected (ShouldSkipPage).

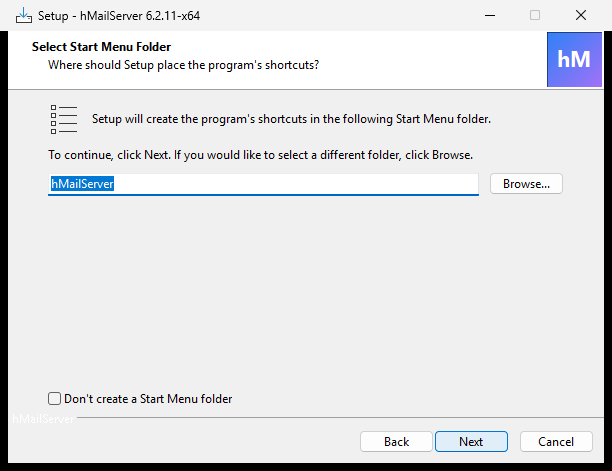

5. Start menu folder. hMailServer, and you can suppress the group entirely.

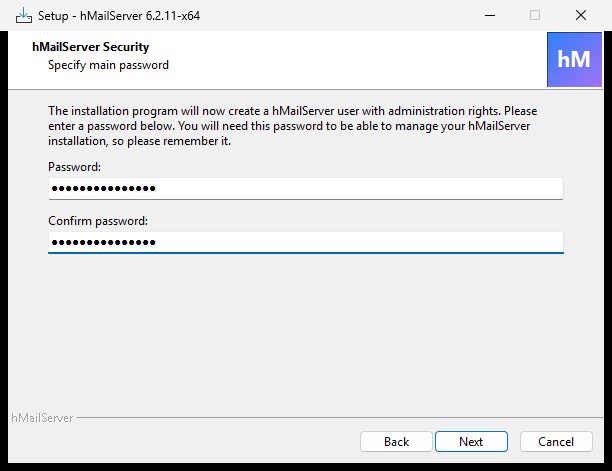

6. Administrator password. hMailServer asks you to set a password for the administration interface. This is not an email password — it is the master password for the whole server. Minimum five characters, and the two boxes must match.

This page is skipped when the server component is not selected, when a password is already present in the ini (you cannot change it here — use the Control Panel), or when one arrived on the command line with /adminpassword.

Set one. Use a long, unique password and store it in a password manager. Anyone with it owns every mailbox on the server. And an installation with no administrator password is not merely unprotected — COMAuthentication::AttempAnonymousAuthentication grants server-administrator rights to any COM caller while the value is empty, and RestApiServer::Start refuses to start the REST API at all. Leaving it unset is the installer's safest available state, not a good one.

7. Ready to install. This is the last page at which anything can still be stopped.

Pressing Install here does one thing before any file is touched: it stops the hMailServer service and waits for it to actually stop, with a bound. If it will not stop, setup refuses to go past this page:

The hMailServer service did not stop within 30 seconds.

Setup cannot continue: replacing the program files while the service is running
would leave the old server binary installed alongside an upgraded database, and
hMailServer would then refuse to start at all.

Stop the hMailServer service manually (services.msc), then run this installation
again.

The budget is ShutdownDrainSeconds + 30 seconds, read from the existing ini — so an installation that deliberately holds its shutdown open to let sessions finish gets the time it asked for. (StopHMailServerService.)

8. Install. Files are copied, then the six post-install steps below run.

The whole decision, in one picture

flowchart TD
    START(["Setup starts"]) --> IS["InitializeSetup: password length, running GUIs, ports 25/110/143"]
    IS -->|refused| STOP(["Setup exits"])
    IS -->|ok| IW["InitializeWizard: read /useinternaldbms, OverrideInstallationFolder from HKLM32"]
    IW --> SILENT{"Silent install?"}
    SILENT -->|Yes| READY
    SILENT -->|No| PAGES["Licence, Destination, Components"]
    PAGES --> DBPAGE{"Database Type already in the INI, or server component not selected?"}
    DBPAGE -->|Yes| SKIP1["Database page skipped"]
    DBPAGE -->|No| ASKDB["Ask: built-in or external"]
    SKIP1 --> GROUP
    ASKDB --> GROUP["Start menu folder"]
    GROUP --> PWPAGE{"Password already set, given by /adminpassword, or server not selected?"}
    PWPAGE -->|Yes| SKIP2["Password page skipped"]
    PWPAGE -->|No| ASKPW["Ask for the administrator password, minimum 5 characters"]
    SKIP2 --> READY
    ASKPW --> READY["Ready page"]
    READY --> STOPSVC{"Stop the hMailServer service. Did it reach STOPPED within ShutdownDrainSeconds plus 30?"}
    STOPSVC -->|No| REFUSE["Refuse to continue. Stop it by hand and run setup again"]
    STOPSVC -->|Yes| INSTALL["ssInstall: MoveIni, copy files, write INI keys, write HKLM32 InstallLocation, create folders"]
    INSTALL --> POST["ssPostInstall"]
    POST --> SERVERSEL{"Is the server component selected?"}
    SERVERSEL -->|No| ADMINONLY{"admintools selected?"}
    ADMINONLY -->|Yes| REGTLB["RegisterTypeLib only"]
    ADMINONLY -->|No| DONE
    SERVERSEL -->|Yes| TASKS["RunPostInstallTasks, six steps"]
    TASKS --> RESULT{"Every step succeeded?"}
    RESULT -->|No| RAISE["RaiseException: the install FAILS with a non-zero exit code"]
    RESULT -->|Yes| RUNSEC["Run section: install the .NET runtime if still missing, offer to launch the Control Panel"]
    REGTLB --> DONE
    RUNSEC --> DONE(["Completed"])

Loading

The six post-install steps

RunPostInstallTasks() shows a progress page and runs these in order. Each one's failure is checked — this is the part of the installer that used to report success regardless, and no longer does.

#	Step	What runs	If it fails
1	Install the .NET 10 Desktop Runtime	windowsdesktop-runtime-10.0-win-x64.exe /install /quiet /norestart, only when DotNetDesktopMissing() says the shared framework has no Microsoft.WindowsDesktop.App\10.* directory	Error dialog naming the exit code, and pointing at the download page and DBSetupQuick.exe. Exit codes 0, 3010 (reboot required) and 1638 (a newer build already present) are all treated as success
2	Initialise the database backend	msiexec /I "{tmp}\SSCERuntime_x64-ENU.msi" /quiet /norestart, only for a fresh built-in install or an upgrade already on MSSQLCE	Error dialog; step 4 is then skipped entirely, because the tools cannot possibly succeed without it
3	Create the hMailServer service	hMailServer.exe /Register, then sc failure and sc description	Error dialog naming the exit code; step 5 is skipped
4	Create or upgrade the database	DBSetupQuick.exe for the built-in engine or an existing configuration, DBSetup.exe when an external engine is being chosen for the first time. /silent and password:<value> are forwarded	Error dialog naming the exit code, and the install fails
5	Start the service	net START hMailServer, then the verdict is taken from the SCM, not from net.exe	"The hMailServer service was installed but did not start." — check hMailServer.log and the ERROR log
6	Completed	—	—

What a running service does and does not prove. ServiceMain reports SERVICE_RUNNING before it connects to the database, so step 5 succeeding means the process started — not that the schema is usable. The schema is covered by step 4's exit code, which is why that one fails the install.

4.3 Confirm it is running

Open Services (services.msc) and find hMailServer. It should say Running, startup type Automatic, logging on as Local System.

The Description column is blank in this 6.2.11-era shot. Current installers set it — see the sc description call in ConfigureServiceRecovery() — so a fresh install reads "hMailServer email server - SMTP, POP3 and IMAP."

Or from PowerShell:

Get-Service hMailServer

Status   Name          DisplayName
------   ----          -----------
Running  hMailServer   hMailServer

Check the recovery configuration too — this is set by the installer, not by the service itself, and it is the difference between a mail server that comes back after a crash and one that stays down until somebody notices:

sc.exe qfailure hMailServer

SERVICE_NAME: hMailServer
        RESET_PERIOD (in seconds)    : 86400
        FAILURE_ACTIONS              : RESTART -- Delay = 60000 milliseconds.
                                       RESTART -- Delay = 120000 milliseconds.
                                       RESTART -- Delay = 300000 milliseconds.

Three restarts, escalating 1 → 2 → 5 minutes, with the counter cleared after a day without a failure. Deliberately not unbounded: a server that fails four times inside a day has a problem restarting will not fix, and by then the SCM has recorded four failures for whoever looks.

4.4 Open the Windows Firewall

The installer does not open firewall ports for you. Until you do, nothing can reach your server. Run this in an elevated PowerShell:

New-NetFirewallRule -DisplayName "hMailServer SMTP"        -Direction Inbound -Protocol TCP -LocalPort 25  -Action Allow
New-NetFirewallRule -DisplayName "hMailServer Submission"  -Direction Inbound -Protocol TCP -LocalPort 587 -Action Allow
New-NetFirewallRule -DisplayName "hMailServer IMAP"        -Direction Inbound -Protocol TCP -LocalPort 143 -Action Allow
New-NetFirewallRule -DisplayName "hMailServer IMAPS"       -Direction Inbound -Protocol TCP -LocalPort 993 -Action Allow
New-NetFirewallRule -DisplayName "hMailServer POP3"        -Direction Inbound -Protocol TCP -LocalPort 110 -Action Allow
New-NetFirewallRule -DisplayName "hMailServer POP3S"       -Direction Inbound -Protocol TCP -LocalPort 995 -Action Allow

Your router or cloud firewall needs the same ports forwarded to this machine.

993 and 995 are in that list because you will want them, but a fresh install only listens on 25, 587, 110 and 143 — those four are the rows seeded into hm_tcpipports by the create script. Add the TLS ports on Connections & protocols → TCP/IP ports; see Encryption and Certificates.

4.5 Unattended install

The installer is Inno Setup, so the standard switches apply. Two are this installer's own, and one is used by the server's own update helper.

Switch	Meaning	Notes
/SILENT	No wizard, but a progress window
/VERYSILENT	Nothing on screen
/SUPPRESSMSGBOXES	Dialogs take their default button	Use it with /VERYSILENT, always. Without it a failure waits for a keypress forever
/LOG="<path>"	Write a setup log	Use it. It is the only record of what happened
/DIR="<path>"	Destination folder	On a machine with a previous install, OverrideInstallationFolder() puts the recorded InstallLocation into the directory box during InitializeWizard, so an upgrade goes back to the original folder
/COMPONENTS="…"	Comma-separated: server, admintools, controlpanel	Omit to get the full installation
/useinternaldbms=true|false	true (the default) uses the bundled SQL Server Compact database; false when pointing at an existing MySQL, MariaDB, PostgreSQL or MS SQL server	Read in InitializeWizard
/adminpassword=<password>	Sets the administrator password the wizard page would have asked for	At least five characters, or setup refuses to start. Without it the key is left out of the ini entirely
/upgradetoken=<token>	The single-use token the server issues to its own update helper, forwarded to the database tool as password:token:<token>	Not something you pass by hand. It is never written to the ini

hMailServer-6.2.28-x64.exe /VERYSILENT /SUPPRESSMSGBOXES /LOG="C:\Temp\hmail-install.log" ^
   /COMPONENTS="server,controlpanel" /useinternaldbms=true /adminpassword=<password>
if errorlevel 1 (
   echo Install FAILED - see C:\Temp\hmail-install.log
   exit /b 1
)

Always check the exit code. The installer checks that the database tool ran and its exit code, and raises on failure, so a failed database create or upgrade cannot report a successful install. The tools' own codes, which end up in the log:

Tool	Code	Meaning
DBSetupQuick.exe	0	Database created, or already present and up to date
	1	The create failed, or DBUpdater.exe could not be started
	3	Authentication failed — the administrator password was wrong or missing
	other	Whatever DBUpdater.exe returned, forwarded unchanged
DBUpdater.exe	0	Upgraded, or already at the required schema version
	1	The upgrade failed, or the window was closed before it finished
	2	Configuration error — settings could not be loaded, or no upgrade path exists between the two schema versions
	3	Authentication cancelled or refused

Why the password has to be forwarded on the upgrade path too. DBUpdater must authenticate before it can move the schema. Until 6.2.23, DBSetupQuick forwarded only /silent — so a silent upgrade had no password, fell through to a modal dialog nobody was there to answer, and hung the install indefinitely. Both paths forward it now, and the shared Authenticator fails rather than prompting under /silent, so the worst case is a reported exit code instead of a wait with no end.

4.6 What the installer actually wrote

Worth knowing, because it is what you back up, and what you edit when something needs to change outside the Control Panel.

{app}\Bin\hMailServer.INI — the only configuration file. Everything else lives in the database.

[Directories]
ProgramFolder=C:\Program Files\hMailServer
DatabaseFolder=C:\Program Files\hMailServer\Database
DataFolder=C:\Program Files\hMailServer\Data
LogFolder=C:\Program Files\hMailServer\Logs
TempFolder=C:\Program Files\hMailServer\Temp
EventFolder=C:\Program Files\hMailServer\Events

[GUILanguages]
ValidLanguages=english,swedish

[Security]
AdministratorPassword=5f4dcc3b5aa765d61d8327deb882cf99

[Database]
Type=MSSQLCE
Database=hMailServer
Server=
Username=
Password=<encrypted>
PasswordEncryption=6
Port=0
Internal=1

Key	Written by	Preserved on upgrade?
[Directories] ProgramFolder	[INI] in section_ini.iss	Overwritten every time — it must match where you just installed
[Directories] DatabaseFolder, DataFolder, LogFolder, TempFolder, EventFolder	[INI], flag createkeyifdoesntexist	Preserved. A data folder you moved stays moved
[GUILanguages] ValidLanguages	[INI]	Overwritten
[Security] AdministratorPassword	[INI], flag createkeyifdoesntexist, guarded by Check: HasAdministratorPassword	Preserved, and only written at all when a password was actually collected
[Database] *	DBSetup / DBSetupQuick through the COM API, not by the [INI] section	Preserved
Every [Settings] key in the Settings Reference	You, by hand	The installer never touches them

The HasAdministratorPassword guard is load-bearing. Without it, an installation that never collected a password — every silent install, because the password page only exists in the interactive wizard — wrote d41d8cd98f00b204e9800998ecf8427e into the ini: the MD5 of the empty string. That is not "no password set"; it is a valid entry the server authenticates an empty password against, because Crypt::GetHashType treats any 32-character value as MD5. It also silently disabled the two protections that key off an unset password. Leaving the key out is the safer state, and it is the one the rest of the product is written for.

The installer stores the password as MD5 (GetMD5OfString). Change it once from the Control Panel — Access & abuse protection → Administrative access — and it is rewritten as PBKDF2, which looks like $h1$<iterations>$<salt-hex>$<key-hex>. Doing that immediately after installing is a good habit.

Registry. One value, in the 32-bit view, and that is not a mistake:

HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\hMailServer
    InstallLocation = C:\Program Files\hMailServer

Registry::GetStringValue opens the key with KEY_WOW64_32KEY, so the 64-bit server reads the 32-bit view; writing to the 64-bit view would make the lookup fail on every machine. It is declared in section_registry.iss rather than written from code so that the uninstaller removes it, and so that it exists before the service is first started.

Service.

Property	Value	Set by
Name / display name	hMailServer	hMailServer.exe /Register
Binary	"…\Bin\hMailServer.exe" RunAsService	ServiceManager::RegisterService
Start type	Automatic	the same
Dependencies	RPCSS	the same
Log on as	Local System, unless ServiceAccountName is set in the ini	the same
Recovery	restart after 60 s, 120 s, 300 s; counter reset after 86400 s	sc.exe failure, from ConfigureServiceRecovery()
Description	"hMailServer email server - SMTP, POP3 and IMAP."	sc.exe description, from the same function

Files that are never overwritten and never uninstalled. These carry the onlyifdoesntexist uninsneveruninstall flags, so an upgrade cannot clobber your edits and an uninstall cannot delete them:

• {app}\Events\EventHandlers.vbs and the rest of {app}\Events
• everything under {app}\Addons
• %WINDIR%\System32\atl70.dll (shared with other products; hMailServer neither downgrades nor removes it)

4.7 What an upgrade does differently

sequenceDiagram
    autonumber
    participant U as You
    participant S as Setup
    participant SCM as Service Control Manager
    participant Q as DBSetupQuick.exe
    participant D as DBUpdater.exe
    U->>S: Run the new installer
    S->>S: OverrideInstallationFolder reads HKLM32 InstallLocation
    S->>S: GetCurrentDatabaseType reads the existing INI, so the DB page is skipped
    S->>S: An existing AdministratorPassword skips the password page
    U->>S: Install
    S->>SCM: Stop hMailServer, then poll until STOPPED
    SCM-->>S: STOPPED, or the wait expires and setup refuses to continue
    S->>S: Copy files, preserving Events, Addons and the INI keys marked createkeyifdoesntexist
    S->>Q: DBSetupQuick.exe /silent password:...
    Q->>Q: Database.DatabaseExists is true, so this is an upgrade
    Q->>D: DBUpdater.exe /SilentIfOk /silent password:...
    D->>D: Compare CurrentVersion with RequiredVersion, 6031 for 6.2.28
    D-->>Q: 0 up to date or upgraded, 1 failed, 2 no upgrade path, 3 auth refused
    Q-->>S: the same code, forwarded
    S->>SCM: net START hMailServer
    SCM-->>S: RUNNING, checked through the SCM rather than net.exe's exit code

Loading

Three things follow from that picture:

• The database is upgraded before the service starts, and after the binaries are replaced. That ordering is why setup refuses to proceed when the service will not stop: the old binary left in place against a new schema makes the server refuse to start at all ("The database is too new for this version of hMailServer").
• The schema version for 6.2.28 is 6031. DBUpdater compares Database.CurrentVersion with Database.RequiredVersion and exits 0 immediately when they match, so re-running the installer over an up-to-date installation costs nothing.
• Back up first. See Backup and Restore and Upgrading hMailServer for the full procedure; nothing on this page replaces taking a copy of Data\, Database\ and Bin\hMailServer.INI before you start.

4.8 When it does not work

What you see	What it means	What to do
"The hMailServer service did not stop within N seconds"	The old service is wedged or the stop failed	Stop it in services.msc, or net stop hMailServer, then run setup again. Do not work around this
"The hMailServer COM API could not be registered (… returned -1)"	RegisterAppId or RegisterServer failed	From an elevated prompt in {app}\Bin: hMailServer.exe /RegisterTypeLib
"The hMailServer service could not be created (… returned -1)"	CreateService or ChangeServiceConfig failed	Check the hMailServer error log, then hMailServer.exe /Register from an elevated prompt in {app}\Bin
"The SQL Server Compact 4.0 runtime installation failed (msiexec returned N)"	The bundled MSI would not install	Install SSCERuntime_x64-ENU.msi by hand, then run DBSetupQuick.exe
"The hMailServer database could not be created or upgraded (exit code N)"	Step 4 failed; N is from the table in §4.5	Fix the cause, then DBSetupQuick.exe from {app}\Bin
"The hMailServer service was installed but did not start"	The process would not come up	Read Logs\hmailserver_*.log and the ERROR log, then net start hMailServer
"A post-installation step failed: …"	An exception escaped RunPostInstallTasks	The program files are installed. Finish by hand from {app}\Bin: hMailServer.exe /Register, then DBSetup.exe, then start the service
Setup finishes but Get-Service hMailServer says nothing	The server component was not selected	Re-run setup and tick it

ssPostInstall is past the point at which Inno can roll anything back, which is why these messages tell you what to run rather than offering to retry.

4.9 Uninstalling

Use Apps & features, or the Installation → Uninstall hMailServer start-menu shortcut. The order matters and is set in section_uninstallrun.iss:

1. net.exe STOP hMailServer — synchronous, so the process is gone before anything is removed
2. net.exe STOP hMailServerMySQL — for a very old installation that bundled MySQL
3. hMailServer.exe /Unregister — removes the service and unregisters COM
4. three more entries for hMailServer 3- and 4-era files, all flagged skipifdoesntexist

The stop comes first for a reason: /Unregister calls DeleteService, which on a running service only marks it for deletion and leaves the process alive — so the uninstaller then began deleting {app} with hMailServer.exe holding its own files open, and COM was unregistered from under a live server.

What is left behind, on purpose: {app}\Data, {app}\Events, {app}\Addons and Bin\hMailServer.INI. Your mail and your configuration are not deleted by an uninstall. Remove them by hand only when you are certain.

Next: The Control Panel, then Your First Domain and Mailbox.

---
