Outfits and armor

Outfits and armor

An outfit is the list of garments one person wears. dress makes every garment from that person's skin and adds it to the scene on the person's own skeleton. Plate rides one bone or bends in lames. Sockets hang shields and swords from the body.

from extensions.attire.outfit import dress
from extensions.attire.preset import outfit_named

var person = add_game_humanoid(scene, assets, root, spec, 24000)
var dressed = dress(scene, assets, person, outfit_named("knight"))

This is not a three.js port. The code is in extensions/attire/. See Garments for one garment, Cloth and spring bones for motion, and Attire estimates for mass and protection.

Outfits

Outfit.add refuses a second garment in the same slot and layer. A person wears one tunic, over one shirt. Outfit.order gives the garments from the skin out: by layer, then in the order they were added.

dress(scene, assets, person, outfit) does five things.

1. It makes each garment's shell from each of the person's skinned meshes: the body and both hands. It hangs a skirted garment's skirt and closes a shod garment's feet in lasts. See Forms.
2. It drops the skin triangles the outfit hides fully.
3. It binds each garment to its bones, cuts it along its dye pattern and paints it. It gives the garment texture coordinates in meters.
4. It adds each garment as a skinned mesh on the person's skeleton, with its fabric's look and bump map.
5. It hides the scalp's hair under a garment that covers the head.

It returns a Dressed record: the skinned mesh of each garment, or -1, and each garment's whole shell. dress changes the person's skin, so dress a person once.

outfit_named gives three outfits.

Name	Garments
peasant	shirt, hose, tunic, hood, boots
man-at-arms	shirt, hose, gambeson, hauberk, coif, boots, gloves
knight	the man-at-arms's, then cuirass, fauld, pauldrons, vambraces, greaves, surcoat, gorget, gauntlets and sabatons

Crowds

A crowd in one outfit looks like a uniform. extensions/attire/mix.mojo dresses each person of a crowd by a seed.

from extensions.attire.mix import mixed_outfit

var dressed = dress(scene, assets, person, mixed_outfit(person_index))

mixed_calling(seed) picks a Calling. Of each twenty seeds, about five are peasants, four goodwives, three archers, two monks, two merchants, one a noblewoman, two men-at-arms and one a knight. calling_outfit(calling, seed) dresses that calling. The same seed gives the same outfit on every machine.

Calling	Garments
PEASANT	shirt, breeches over hose, tunic and boots; a hood and a belt by chance
GOODWIFE	shirt, gown and boots, and a belt; a hood by chance
ARCHER	shirt, hose, gambeson, jerkin, belt and boots; a hood by chance
MONK	shirt, robe, hood, belt and boots
MERCHANT	shirt, hose, tunic, belt and boots; a hood by chance
NOBLEWOMAN	shirt, gown, belt and boots
MAN_AT_ARMS	the man-at-arms's outfit and a belt; a surcoat by chance
KNIGHT	the knight's outfit and a belt

The poor wear the dyes of plain_dye: madder, woad, weld, walnut, nettle, gray and cream wool, russet and lichen purple. The rich wear the dyes of rich_dye: kermes crimson, deep woad, verdigris, saffron, black and murex violet. A merchant's trim is rich. A knight's surcoat takes two rich dyes per pale. Three plates in ten are blackened against rust.

Some garments are parti-colored: four merchants' tunics in ten and three women's gowns in ten take a second dye on the left side. Three men-at-arms' surcoats in ten are quartered.

examples/crowd.mojo draws the eight callings side by side, each with a genome and a stature of their own. It writes out/crowd.png.

Plate

A flexible garment keeps the skin's weights and bends as the skin bends. Plate does not bend.

Articulation	How it rides	Example
FLEXIBLE	the skin's own weights	cloth, leather, mail
RIGID with an anchor	that one bone	a cuirass on the chest, a bascinet on the head
RIGID without an anchor	at each vertex, the heaviest bone it covers	greaves on each shin
LAMED	bands that step from the anchor to the skin's weights	a fauld from the hips, pauldrons from the chest

A lamed garment is cut into bands along the anchor's own weight on the skin. The top lame rides the anchor wholly. Each lame below it shares more of its weight with the bones under it, in equal steps. Each lame reaches 0.3 of a band past its lower bound and stands 2.5 mm out over the lame below. So each lame shows its lower edge as a lip, and the fauld opens as the thigh lifts.

Sockets and props

A socket is a named place on the body that rides one bone. Each socket is placed from the rig's landmarks and scaled with its stature.

Socket	Rides
CROWN	head
BACK	chest
RIGHT_HIP, LEFT_HIP, BELT_FRONT	hips
RIGHT_SHOULDER, LEFT_SHOULDER	chest
RIGHT_GRIP, LEFT_GRIP	each hand

attach(scene, person, socket, node) hangs a node from the socket's bone, at the socket. The node keeps its rotation, so turn a shield or a scabbard before you attach it.

heater_shield(height, dexter, sinister) gives a flat-topped shield, curved across and painted per pale. sword_in_scabbard(length) gives the leather and the steel of a sword in its scabbard, as two meshes.

var slung = Object3D()
slung.rotate_y(Angle(180.0, DEGREE))
var back = attach(scene, person, BACK, slung^)
scene.add_mesh(Mesh(assets.geometries.add(heater_shield(height, blue, white)), paint, back))

Saved outfits and dressed bakes

A player saves a look and puts it on again, on the same body or another. outfit_json writes an outfit as one JSON object. outfit_from_json reads it back. Slots, layers, fabrics, articulations, patterns and forms are written by name, anchors by joint name, dyes as sRGB bytes, and the flare as a number. A garment saved without a form reads as fitted, with no flare.

write_dressed_bake writes a sealed bake of a dressed humanoid. The geometry digest covers every garment, so dress before you bake. The scene extras keep the outfit under OUTFIT_KEY, with the fingerprint of the spec it was fitted to. stored_outfit(extras, spec) gives the outfit back and refuses it for another body.

Example

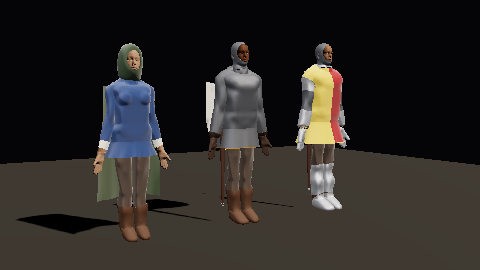

examples/armory.mojo dresses a peasant woman, a man-at-arms and a knight, each of their own build. It hangs a cloak on the peasant, a shield and a sword on the man-at-arms, and a sword on the knight. The three walk while the camera turns round them. It writes out/armory.png.

.venv/bin/mojo run -I . examples/armory.mojo out/armory.png

Tests

tests/test_attire_outfit.mojo, test_attire_preset.mojo, test_attire_mix.mojo and test_attire_sockets.mojo cover this page.
