Animals

create_animal draws one animal from a species and a seed. mesh_animal poses it and returns a painted mesh.

The modules live in extensions/animals/. The distance field, the sculpt helpers and the mesher live in extensions/sdf/, for any extension. Vectors are the generators' Vec3d. The modules port procedural-animals by Majid Manzarpour (MIT, 2026). The original is at https://github.com/majidmanzarpour/threejs-procedural-animals. See Extensions.

Call it

from extensions.animals.build import animal_materials, create_animal, mesh_animal
from extensions.animals.gait import walk_pose
from extensions.animals.options import HIGH, animal_options
from extensions.animals.registry import species_of

var wolf = create_animal(species_of("wolf"), animal_options(3, quality=HIGH))
var still = mesh_animal(wolf, wolf.bind_pose())
var stride = mesh_animal(wolf, walk_pose(wolf.rig, 0.25), workers=0)

The geometry has positions, normals and linear vertex colors. Its groups are the surface classes. Draw it with the list from animal_materials. Each material reads the vertex colors.

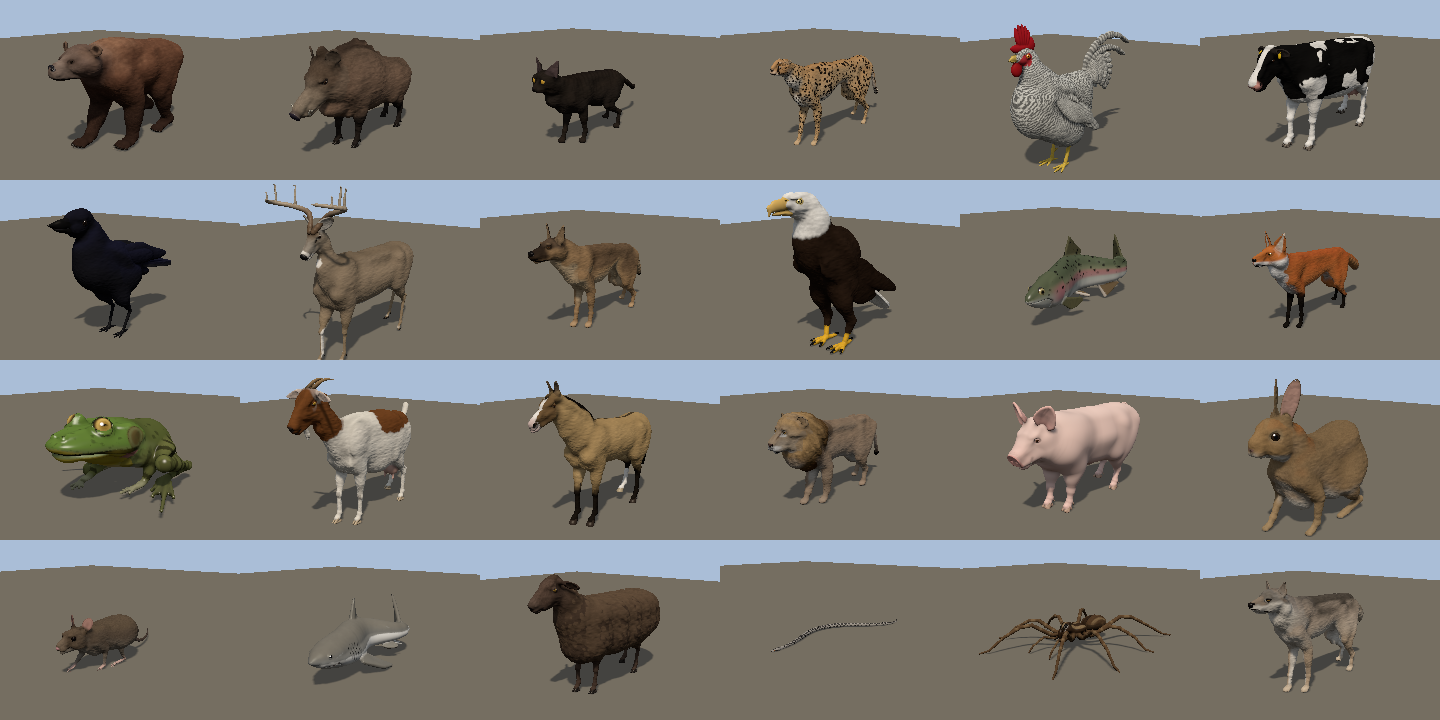

Species

SpeciesId names 24 species, in the order of procedural-animals. species_of takes the common name.

Body plan	Species
Paws	bear, cat, cheetah, dog, fox, lion, rabbit, rat, wolf
Hooves	boar, cow, deer, goat, horse, pig, sheep
Birds	chicken, crow, eagle
Swimmers	fish, shark
Others	frog, snake, spider

species_variants lists the color morphs of a species. Variant picks one by index. ANY_VARIANT lets the seed pick it.

Options

animal_options takes a seed, a quality tier, a sex, an age and a morph.

Field	Type	Default
seed	Int, low 32 bits	1
quality	Quality	HIGH
sex	Sex: ANY_SEX, MALE, FEMALE	ANY_SEX
age	Age: ANY_AGE, ADULT, JUVENILE	ANY_AGE
variant	Variant	ANY_VARIANT

A seed draws the same individual as procedural-animals draws. The streams are rng(seed * 2654435761 + 12345) for the body and rng(seed * 7919 + 17) for the coat. The draws come in the original order.

The tier multiplies the species' finest cell size.

Tier	Factor
HERO	1
HIGH	1.3
MEDIUM	2
LOW	3
CROWD	4.2

At MEDIUM and coarser, thin solids grow to the species' least thickness. Ears and tail tips then stay visible.

How an animal is built

1. The species draws its traits from the seed: size, proportions and coat values.
2. The species places the joints of its rig and adds the bones.
3. The species sculpts the animal: ellipsoids, round cones, eye lenses and fins, each on a bone.
4. The proportion warps move the sculpt and the joints.
5. A pose turns the bones. Each primitive moves with its bone.
6. Each surface part is meshed by narrow-band surface nets.
7. Each vertex is painted, and its occlusion is baked.

The distance field

Solids join with a polynomial smooth minimum. Each solid has its own blend radius k. A carving solid cuts with the matching smooth maximum. The field is negative inside.

Kind	Shape
ELLIPSOID	A turned ellipsoid
CONE	A round cone between two balls
LENS	An almond prism: the eye aperture
FIN	A planar polygon with a thickness and a rounded rim

Surface parts

A part is meshed apart from the others. Solids of one part blend. Solids of two parts do not. The lower jaw is its own part, so the mouth can open.

BODY, JAW, HORN, TEETH, TONGUE, APPENDAGE, HOOF, EYEBALL, EAR, LIMB, TAIL and WATTLE are the parts.

The mesher

extensions.sdf.mesher.mesh_part samples the corners of blocks of cells first. It keeps the blocks that the surface can reach. Each kept block is sampled finely with the solids that can change it.

Each cell that the surface crosses gets one vertex. Two Newton steps move the vertex onto the surface. The normal is the field gradient. Each crossed lattice edge makes a quad, split along its shorter diagonal.

Only active blocks hold samples. Memory grows with the surface, not with the box. Work is shared among threads. The mesh is the same for any number of threads.

The mesher uses at most eight sample-and-spill rounds to find all blocks that the surface crosses. If the last round wakes another block, it raises an error. It does not return an incomplete mesh or read samples that do not exist. A surface that finishes on the eighth round is accepted.

The box coordinates must be finite and each upper bound must exceed its lower bound. Each part index must name a primitive in the model. Cell counts, grid products and storage byte counts must fit in Int. The mesher checks these limits before the related allocation. These checks do not add a smaller fixed grid limit.

The coat

A painter reads one vertex at a time. It gets the tag and the bone of the nearest solid. It gets the position and normal in the reference bind pose. A mark therefore stays on the skin when the animal moves. The painter returns a linear color and a SurfaceClass.

Class	Material
FUR, FEATHER	Lambert, matte
SKIN	Phong, soft sheen
NOSE, WET	Phong, tight highlight
KERATIN, SCALES, CHITIN	Phong, gloss
EYE	Phong, the tightest highlight

Near a joint, the colors of the two bones blend over the blend radius of their solids.

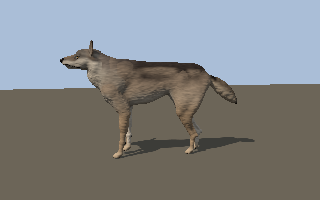

Pose and walk

Pose turns bones about their head joints. A child bone rides its parent. Pose.root moves the whole animal.

walk_pose gives an in-place lateral-sequence walk. Dynamic similarity supplies a reference stride at a Froude number, 0.25 by default. walk_stride caps that stride to the common reach of all four two-link legs. The visual stride can therefore be shorter than the reference. See Animal anatomy.

Each foot is in stance for 70 % of the cycle. Two-bone inverse kinematics keep a stance foot at its bind height while it moves backward under the body. All four feet use the same bounded sweep. The leg targets compensate for the body bob. The tail swings once. A rig without four legs gets its bind pose.

walk_pose_at takes a Duration. It samples the phase from that animal's reference frequency. Use the same time for animals in one scene. The anatomy gallery plays one shared-time clip once, because the species have different cycle periods.

This is a kinematic illustration. The reference frequency and stride relation are estimates. The walk does not translate the body or solve contact dynamics. If a caller translates the body, the speed consistent with the visual stance is walk_stride * stride_frequency, not the uncapped reference speed. Validated engineering locomotion is not supported.

Differences from procedural-animals

These changes improve the result in the software renderer.

• A pose moves the solids and meshes the field again. The original skins one mesh with dual quaternions. A skinned joint loses volume as it bends. A re-meshed joint keeps its volume and its blend.
• The proportion warps move the sculpt, not the mesh. The surface stays a true field surface with exact normals.
• Occlusion is baked from the field into the vertex colors. Each vertex samples the field five times along its normal. Creases such as the armpit and the eye socket get darker.
• Fur and feathers tilt their normals by fractal noise in the bind pose. The noise is stretched along the body. Lambert shading then shows combed clumps on the coat.
• Each eyeball is a separate part with a finer cell. It is painted with a pupil, an iris with radial fibers, a limbal ring and a sclera. A slit or bar pupil is drawn where the species has one.
• The mesher stores only its active blocks, so a fine cell costs little memory.

What is not ported

• The fur, feather and scale shells, and the shader that draws them. The coat is in the vertex colors.
• Feather cards and whiskers. Wings and tails are sculpted as fins.
• The behavior, action and steering engines. walk_pose is one gait.
• Web workers and baked .animal files. A build runs on threads.
• Dual-quaternion skinning. Poses re-mesh instead.

Anatomy

Each animal also has a skeleton, Hill-type muscles, segment mass and inertia, and an engineering mode. See Animal anatomy.

Types and checks

Each id, kind and mode is a type with is_valid: SpeciesId, PrimitiveKind, BoneId, TagId, SurfacePart, SurfaceClass, WarpKind, Quality, Sex, Age and Variant. create_animal, check_options, require_species, require_part and require_kind refuse a value that is not valid. The files in tests/compile_fail/ prove that a bare integer does not compile.
