A live oscilloscope for serial data, in your terminal.
Your board is printing numbers. You want to see them move. Right now that means opening the Arduino IDE's plotter (a GUI, Windows-shaped, one window), or piping to a file and loading it into Python after the fact — neither of which helps while you are actually turning a PID knob.
termscope plots the stream as it arrives, in the terminal you already have open, over SSH if that is where the board is.

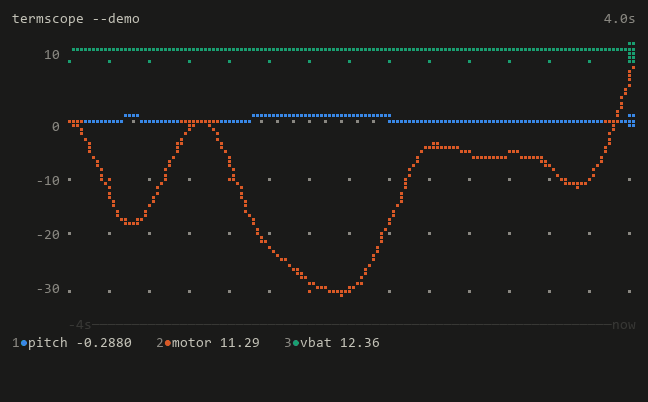

$ pipx run termscope --demo
No hardware needed for that — --demo simulates a two-wheel balancing robot.
Here is the same thing as text, which is what the tool actually writes to your
terminal:
balancing-robot.csv (replay) snapshot
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡏⠉⠉⠉⠉⠉⠉⠉⠉⢣⠀⠀⠀⢀⠏⠉⠉⠉⠉⠉⢣⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⢲⠓⠒⠒⠒⠒⠒⠒⠒⠒⠚⢶⠒⠒⡺⠒⠒⠒⠒⠒⠒⠚⡖⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠒⠿
10 ⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⢸⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠳⠵⠃⠀⠀⠀⠁⠀⠀⠀⢱⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢠⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠸⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
0 ⠖⠒⠦⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⢼⢤⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⡤⠤⣀⣄⣀⣄⣀⣄⣀⣄⡠⠤⢧⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠤⠖⠖⠒⠖⠒⠖⠒⠦⠤⠤⠤⠤⠤⠤⠤⣶
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡎⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠸⡀⠀⠀⠀⠀⠀⠀⡴⠉⢱⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⠀⡴⠉⠓⢤⣀⣠⢤⣀⡀⠀⠀⢠⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢣⠀⠀⠀⠀⠀⡜⠀⠀⠀⢣⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡴⠚⠱⡀
⠀⠀⠀⢠⠃⠀⠀⠀⠀⠀⠀⠀⠳⡀⠀⡜⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⣆⠀⠀⣠⠎⠀⠀⠀⠀⠘⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣠⠞⠀⠀⠀⣣
-10 ⠁⠀⠀⡜⠀⠁⠀⠀⠀⠀⠁⠀⠀⠳⠴⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠈⠶⠋⠁⠀⠀⠀⠁⠀⠀⢣⠀⠁⠀⠀⠀⠀⠁⠀⠀⢀⠜⠁⠀⠀⠀⠀⠛
⠀⠀⠀⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⡆⠀⠀⠀⠀⠀⠀⠀⠀⡎⠀⠀⠀⠀⠀⠀⠀
⠀⠀⢸⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠸⡄⠀⠀⠀⠀⠀⠀⡸⠀⠀⠀⠀⠀⠀⠀⠀
-20 ⠄⠀⡇⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⢧⠀⠀⠀⠀⠄⠀⡇⠀⠀⠄⠀⠀⠀⠀⠄
⠀⢰⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⡆⠀⠀⠀⠀⢸⠀⠀⠀⠀⠀⠀⠀⠀⠀
⢀⠇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠱⡀⠀⠀⠀⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀
⡼⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢣⠀⠀⣰⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀
-30 ⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠈⠳⠤⠃⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
-8s─────────────────────────────────────────────────────────────────now
1●pitch 0.2470 2●motor -9.670 3●vbat 12.36
Point it at a real board when you have one:
$ termscope /dev/ttyUSB0 --baud 115200$ pip install termscope[serial]The [serial] extra pulls in pyserial, which is only needed to open a physical
port. The core has no dependencies at all — plotting, parsing and the
terminal layer are pure standard library, so --demo, pipes and log replay work
on a bare interpreter.
Python 3.9+. Linux, macOS, Windows.
There is no standard for serial telemetry, so termscope detects the format instead of asking you to adopt one. All four of these work with no flags:
Your printf |
Channels you get |
|---|---|
pitch:1.23 roll:-4.5 |
pitch, roll |
1.23, -4.5, 0.02 |
ch0, ch1, ch2 (Arduino Serial Plotter style) |
{"pitch": 1.23} |
pitch |
time,pitch,roll then 0.1,1.23,-4.5 |
time, pitch, roll (CSV header names the columns) |
Real streams are messier than any of those, so the parser is built for the mess:
- Debug output mixed into telemetry is ignored, not fatal. A stray
printf("boot ok\n")between readings does not break the plot. - A format is locked in once detected, so one malformed line in a thousand cannot silently re-key your channels.
- ANSI colour and control bytes are stripped, so a log line wrapped in escape codes still parses.
- NaN and inf are dropped rather than being allowed to collapse the y-axis.
--prefix '>'if you want only lines your firmware tags as data.
Shared axis (default) — every channel on one scale, so relative magnitudes are honest.
Split (--split, or m while running) — one panel per channel, each
independently scaled. This is what you want when a battery in volts shares a
screen with a motor command in percent:
balancing-robot.csv (replay) snapshot
pitch ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢀⡤⠤⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠹⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣠⠊⠀⠀⠘⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀
0.5 ⠄⠙⡄⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⡴⠃⠀⠀⠀⠄⠹⡄⠀⠀⠄⠀⠀⠀⠀⠄
⠀⠀⠱⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡴⠁⠀⠀⠀⠀⠀⠀⠱⡄⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⢣⠀⠀⠀⠀⠀⠀⠀⠀⢀⡴⠲⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣠⠶⢤⣀⠀⠀⠀⠀⠀⠀⡜⠁⠀⠀⠀⠀⠀⠀⠀⠀⠙⠦⣀⡀⠀⠀⠀⣶
⠀⠀⠀⠀⠧⣄⡤⠖⠒⠒⠒⠒⠋⠀⠀⠹⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡼⠁⠀⠀⠈⠙⢦⡀⠀⢀⡜⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠙⠢⢤⡴⠃
0.0 ⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⢵⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⣀⣄⡜⠄⠀⠄⠀⠄⠀⠄⠉⠖⠊⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄⠀⠄
motor ⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⡺⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⠉⠋⢳⠂⠀⠂⠀⠂⠀⠂⣀⠦⢄⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂⠀⠂
⠀⠀⠀⠀⡔⠋⠒⠦⠤⠤⠤⠤⣄⠀⠀⢰⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢳⡀⠀⠀⠀⣠⠞⠁⠀⠈⢣⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣠⠔⠚⠳⣄
⠀⠀⠀⡜⠀⠀⠀⠀⠀⠀⠀⠀⠈⠳⠴⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠙⠶⠒⠉⠀⠀⠀⠀⠀⠀⢣⡀⠀⠀⠀⠀⠀⠀⠀⠀⣠⠔⠉⠁⠀⠀⠀⠛
⠀⠀⡰⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠳⡄⠀⠀⠀⠀⠀⠀⡰⠃⠀⠀⠀⠀⠀⠀⠀
-20 ⠁⢠⠃⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠁⠀⠀⠀⠀⠙⡄⠀⠀⠀⠁⣰⠃⠀⠀⠁⠀⠀⠀⠀⠁
⣰⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠘⢆⠀⠀⢠⠇⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠑⠒⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
vbat ⠂⠀⠀⠀⠀⣂⢀⠀⠀⠀⠂⠀⠀⠀⠀⠂⡰⡀⠀⠀⠂⠀⠀⠀⠀⠂⠀⠀⠀⠀⠂⠀⠀⠀⠀⠂⠀⠀⠀⠀⢂⣤⡀⠀⠀⠂⠀⠀⢀⣠⡦⣄⠀⠀⠀⠂⠀⠀⠀⠀⠂⠀⠀⠀⠀⠂⠀⠀⠀⠀⠂
⠀⠀⠀⢀⠞⠉⠙⠛⠗⠚⠚⠷⠦⣆⠀⡸⠁⢇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣀⣤⡀⠀⠀⠀⠀⠀⠀⠀⣠⠞⠀⠱⣄⣀⢀⣤⡴⠋⠃⠀⠈⢳⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢀⣀⣴⠾⠟⠹⣄
⠀⠀⢀⠎⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⠁⠀⠈⡆⠀⠀⠀⠀⠀⣀⠀⣠⡴⠋⠁⠉⠸⣄⠀⠀⠀⠀⠀⡴⠋⠀⠀⠀⠉⠙⠋⠉⠀⠀⠀⠀⠀⠈⠑⣆⠀⠀⠀⠀⠀⠀⠀⢀⡜⠉⠉⠁⠀⠀⠀⠛
⠀⢠⠏⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠻⣄⠀⣠⡴⠟⠙⠋⠁⠁⠀⠀⠀⠀⠸⣆⠀⠀⠀⡼⠃⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⢧⡀⠀⠀⠀⠀⢠⠏⠀⠀⠀⠀⠀⠀⠀⠀
12.30 ⢴⠋⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠘⠶⠉⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠘⣦⣴⡼⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⠀⠀⠀⠀⠄⢻⣄⡀⠀⢤⠎⠀⠀⠀⠄⠀⠀⠀⠀⠄
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠛⠛⠋⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
-8s─────────────────────────────────────────────────────────────────now
1●pitch 0.2470 2●motor -9.670 3●vbat 12.36
There is deliberately no third mode that puts two different y-scales on one plot. The alignment between two such scales is arbitrary, so a dual-axis chart invents correlations that are not in the data.
space |
hold / resume | a |
autoscale on / off |
1–8 |
toggle one channel | 0 |
show every channel |
m |
shared / split axes | t |
x-axis: time / samples |
[ ] |
shorter / longer window | + - |
zoom y (autoscale off) |
g |
gridlines | v |
raw text view |
r |
start / stop recording | c |
clear buffers |
? |
help | q |
quit |
Plot and log at the same time, then replay the capture later:
$ termscope /dev/ttyUSB0 --record run.csv
$ termscope --replay run.csvThe CSV is one row per sample with a column per channel. A channel that appears
partway through a capture gets its own column, and rows that predate it are left
empty rather than back-filled with zeros — the file never claims a reading that
did not arrive. --record-raw logs the unparsed stream instead, for when the
interesting part is the line the parser could not read.
Replay reconstructs the original timing. If the stream carries its own clock, termscope plots against that instead of against arrival time — so a replay looks like the capture, not like however fast the file happened to be read. Recorded captures always carry one, and common firmware names are detected automatically:
printf("millis:%lu pitch:%.2f\n", millis(), pitch); // plotted against millistime_s, timestamp, time, millis, micros and t are recognised, with
units taken from the name. Use --time-column NAME to name a different one, or
--no-time-column to force arrival time. A device that reboots and restarts its
counter is re-anchored rather than plotted in the past.
Anything that prints numbers can be plotted:
$ pio device monitor | termscope -
$ cat /sys/class/thermal/thermal_zone0/temp | termscope -And a single frame can be rendered non-interactively — useful in CI, or for pasting into an issue:
$ termscope --replay run.csv --once 5 > plot.txtEvery plot in this README is produced by exactly that, replaying the capture in
examples/balancing-robot.csv. Because the
capture carries its own timestamps, the frames are byte-identical on every
machine — so CI can check the README is current rather than trusting that
someone remembered to update it:
$ python docs/build_readme.py --checkPlots are drawn with braille glyphs, which pack a 2×4 grid of dots into each character cell — an 80×24 terminal becomes a 160×96 bitmap.
Where braille is not available the plot degrades rather than failing. If your locale encoding cannot represent it (a Chinese or Japanese Windows install defaults to GBK or CP932, neither of which can), termscope switches the output stream to UTF-8; if that is not possible either, it falls back to ASCII:
balancing-robot.csv (replay) snapshot
||||||||||||||,,,,:|||||||||:,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,:
::::: :| "
"|
0 ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,||,::.:.::,,,,,,,.:.:.:.:.:.:.:.:.:,,,,,|
"| ::""|, ,,:,
|, ::: :: ,:|" ::
"::" :: |:" :
"| :|
-20 ' ' ' ' ' ' ' ' ' ' |: ' :|' ' '
|: ,|
":, :|
"""
-6s-----------------------------------------------------------------now
1*pitch 0.2470 2*motor -9.670 3*vbat 12.36
Colour follows the same idea: 24-bit where the terminal supports it, 256-colour
or 16-colour where it does not, and none at all under NO_COLOR or when the
output is redirected.
The eight series colours are not hand-picked. They are a documented palette, checked by script for lightness band, chroma floor, contrast against the background, and separation under simulated protanopia and deuteranopia. Both the dark and light sets clear every gate:
| worst adjacent pair, CVD | worst adjacent pair, normal vision | |
|---|---|---|
| dark (default) | ΔE 8.4 | ΔE 19.3 |
light (--light) |
ΔE 9.1 | ΔE 19.6 |
Two rules follow from this and are enforced in code:
- A channel's colour is fixed when the channel first appears and is never
reassigned. Hiding one trace does not repaint the others — if you learned
that
pitchis blue, it stays blue. - Hues are never cycled. Past eight channels there is no ninth colour that survives CVD simulation, so extra channels stay hidden until you pick which eight to watch, and the status bar says so.
Colour also never carries a reading on its own: the legend always shows each channel's name and current value as text.
The pieces are separable if you want to plot something that is not a serial port:
from termscope import StreamParser, ChannelSet, Renderer, Palette
parser = StreamParser()
channels = ChannelSet()
for line in my_stream:
parsed = parser.feed(line)
if parsed:
channels.add(parsed.values, time.time())
renderer = Renderer(Palette())
layout = renderer.layout(80, 24, len(channels))
rows = renderer.render_plot_rows(
channels,
channels.visible_names(),
layout,
lo,
hi,
window=10.0,
now=time.time(),
x_mode="time",
)Bug reports and pull requests are welcome — see CONTRIBUTING.md. The test suite runs with no dependencies at all:
$ python -m unittest discover -s testsMIT — see LICENSE.
