Execution domains

Domain	Ownership
Host	Application/reference code, aligned buffers, WED construction, libcxl device attach, MMIO configuration, bounded completion wait, and result checking
FPGA	Power Service Layer, AFU control, MMIO/WED decode, command/credit/tag/data/response handling, compute units, progress, completion, and reset

PSLSE emulates the host-facing CAPI transport during simulation. The AFU-control and compute-unit logic remains the FPGA-side design represented by the same interface boundary.

Repository boundaries

Path	Responsibility
00_bench	Host applications, OpenMP references, CAPI launch code, tests
01_capi_integration/accelerator_rtl/afu_control	PSL command, response, credit, tag, data, error, and completion control
01_capi_integration/accelerator_rtl/cu_control	Application compute units and their read/write engines
01_capi_integration/accelerator_verification	Host contract tests, bound RTL monitor/tests, manifests, models, scripts, and simulation wave evidence
01_capi_integration/accelerator_sim	ModelSim design and PSLSE endpoint configuration
01_capi_integration/accelerator_synth	Quartus project generation and implementation
01_capi_integration/accelerator_bin	Platform images and implementation reports

Runtime path

1. The host allocates cache-line-aligned data and builds a 128-byte WED.
2. libcxl attaches the WED to the selected AFU and maps big-endian MMIO.
3. AFU configuration sets arbitration, credits, caching, and prefetch behavior.
4. CU configuration selects engines, thread/CU count, and workload-specific arguments.
5. CU commands enter AFU-control buffers and are issued to the PSL.
6. Responses update running counters, error state, and the final completion registers.
7. The host acknowledges completion, waits for CU reset, and compares output.

The bounded host protocol is defined in Accelerator verification.

Diagram blocks

Block	Responsibility	Primary RTL
Host application	Allocates aligned data, builds the WED, configures MMIO, waits, and checks results	00_bench
Power Service Layer (PSL)	Coherent command, response, data, MMIO, and job transport	Platform PSL / PSLSE
WED control	Fetches and decodes the 128-byte work descriptor	afu_control/wed_control.sv
MMIO	Receives AFU/CU configuration and publishes status, counters, errors, and completion	afu_control/mmio.sv
Command buffers	Separate WED, read, write, and prefetch request queues	afu_control/fifo.sv
Arbiter	Selects eligible command/data producers using fixed or round-robin policy	afu_control/*priority_arbiter*.sv
Credit control	Prevents requests from exceeding PSL credits	afu_control/credit_control.sv
Tag control	Allocates tags and preserves request metadata until response	afu_control/tag_control.sv
Command issue/restart	Issues PSL commands and replays restartable transactions	afu_control/command_control.sv, restart_control.sv
Read/write data	Routes cache-line data between PSL buffers and CUs	afu_control/read_data_control.sv, write_data_control.sv
Response/error	Classifies responses, reports protocol errors, and gathers statistics	afu_control/response_control.sv, error_control.sv, response_statistics_control.sv
Done/reset	Freezes final counters, requests CU reset, publishes completion, and waits for host ACK	afu_control/done_control.sv, reset_control.sv
Compute unit (CU)	Implements application-specific read, write, and compute engines	accelerator_rtl/cu_control

AFU-control detail

AFU control owns credit and tag management, command issue/restart, read and write data, WED loading, MMIO, error reporting, reset, and response statistics. Boundary-local arrows show interface direction without implying a direct wire between every internal block; the blocks are grouped by protocol responsibility.

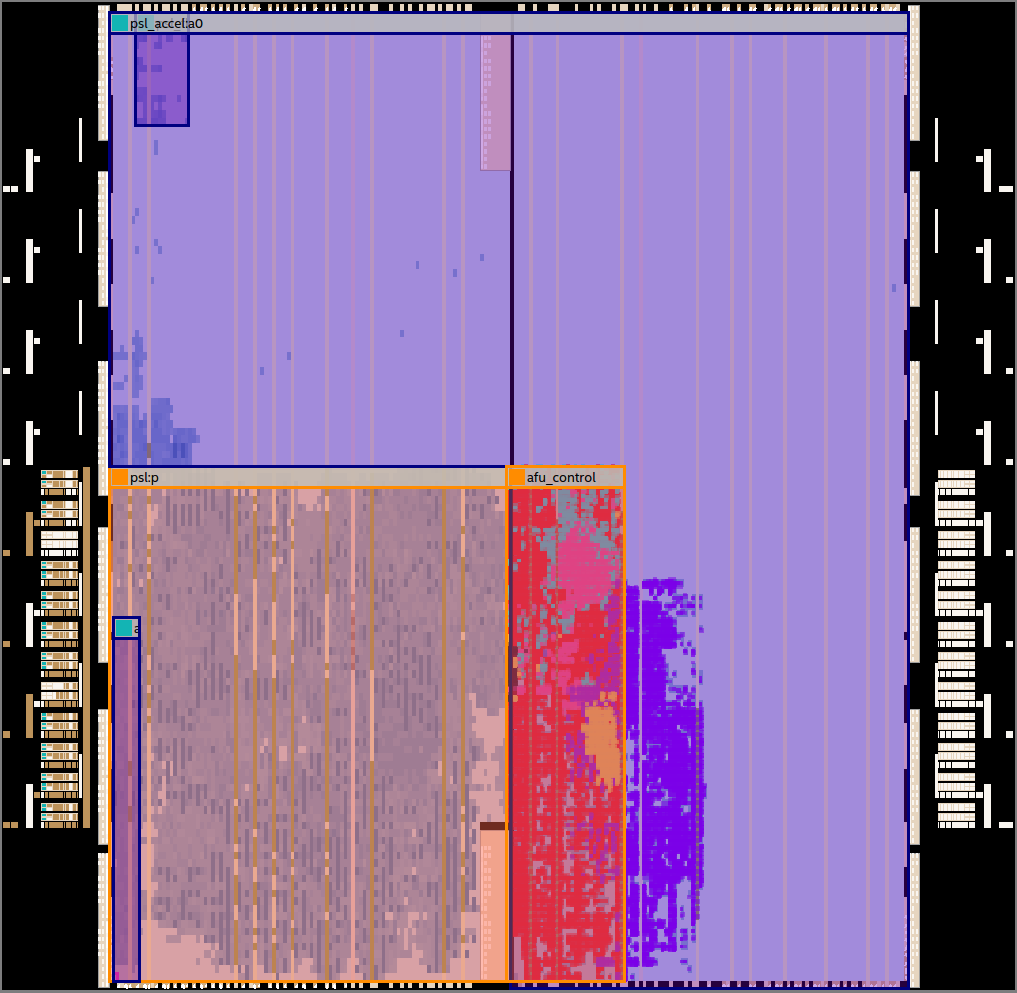

Implementation example

Simulation and hardware

Simulation replaces the platform PSL and libcxl with PSLSE while keeping the same WED and MMIO contract. Hardware uses the platform libcxl implementation and a matching flashed .rbf image. A host binary, CU selection, and FPGA image are one compatibility unit.
