@david-bakin david-bakin commented May 9, 2022

[Unit tests are not complete to resolve #23279 - yet. But those additional tests - see this space for future developments! - will not change the code presented here.]

This PR provides unit tests for Taproot functionality in script/interpreter.cpp, #23279.

Goal is to show correctness vs specifications in BIPs 341/342, and to improve code coverage in Taproot functionality there.

Intent is to unit test completely without changing interpreter.cpp itself to provide visibility into static functions/private methods. Thus some of the tests must be "indirect", testing the unit-under-test by probing a visible caller. This makes those specific tests somewhat fragile as they depend on code paths in the caller, which may change in the future. However, such tests are written so they will fail if the unit-under-test isn't actually called. This is noted in the code of those specific tests.

No changes to Bitcoin Core are made - just unit tests added. The Boost Test framework file boost/test/execution_monitor.hpp was added to the lint whitelist - this is acceptable because it is a documented public header of the Boost Test framework, which is already part of the project.

  • EvalChecksigTapscript
  • HandleMissingData
  • SignatureHashSchnorr - now with full path coverage
  • GenericTransactionSignatureChecker<T>::VerifySchnorrSignature
  • GenericTransactionSignatureChecker<T>::CheckSchnorrSignature
  • ComputeTaprootMerkleRoot
  • SigVersion::TAPSCRIPT code paths in ExecuteWitnessScript
  • Taproot code paths in VerifyWitnessProgram
  • Tapscript code paths in VerifyWitnessProgram

TODO: Full Tapscript (BIP-342) unit tests yet to be completed.
TODO: Does anything need to be done with libconsensus? Please advise!

2 commits:

  1. Add new utility functions to src/test/util that are not only used in these tests but may also be useful for future unit tests. Also, refactor some existing utility functions from current tests (mainly, script_tests.cpp) into src/test/util so they can be more widely used too. All of these new test utility functions have unit tests themselves, in src/test/test_utils_tests.cpp.
  2. All the tests for Taproot/Tapscript functionality requested by Add unit tests for Taproot code in src/script/interpreter.cpp #23279 in a new file src/test/script_tapscript_tests.cpp. Code coverage runs show 100% coverage of lines and near 100% coverage of branches.

DEATH TRAP AHEAD!: These unit tests include "death tests" (name comes from Googletest framework): Tests that check that an assert actually fails. These are handled with a Boost execution_monitor (mentioned above) but the asserts still issue messages even when correctly trapped by the Boost Test framework. You'll see the following in the logs:

gitpod /workspace/bitcoin/src/test (23279-taproot-unit-tests) $ ./test_bitcoin
Running 527 test cases...
test_bitcoin: script/interpreter.cpp:1495: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `false' failed.
test_bitcoin: script/interpreter.cpp:1497: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `in_pos < tx_to.vin.size()' failed.
test_bitcoin: script/interpreter.cpp:1528: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_annex_init' failed.
test_bitcoin: script/interpreter.cpp:1556: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_tapleaf_hash_init' failed.
test_bitcoin: script/interpreter.cpp:1559: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_codeseparator_pos_init' failed.
test_bitcoin: script/interpreter.cpp:1469: bool HandleMissingData(MissingDataBehavior): Assertion `!"Missing data"' failed.
test_bitcoin: script/interpreter.cpp:1474: bool HandleMissingData(MissingDataBehavior): Assertion `!"Unknown MissingDataBehavior value"' failed.

*** No errors detected
gitpod /workspace/bitcoin/src/test (23279-taproot-unit-tests) $

These specific Assertion ... failed messages are expected. The tests triggering them properly pass iff the assert (and no other) is triggered.


Coverage results 2022-06-05 showing Taproot coverage (Tapscript tests not yet complete) when only running script_tapscript_tests.cpp:

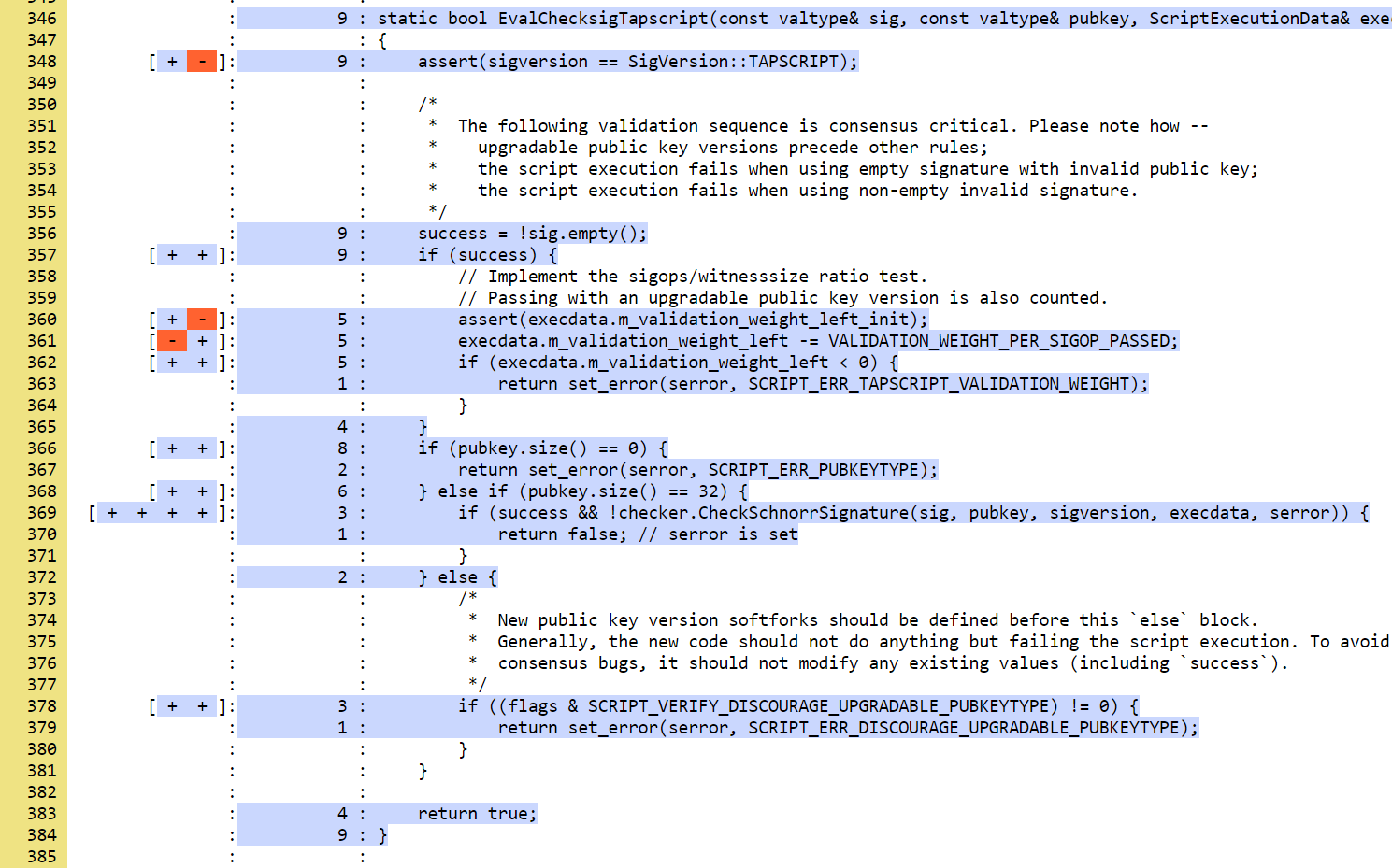

EvalChecksigTapscript EvalChecksigTapscript

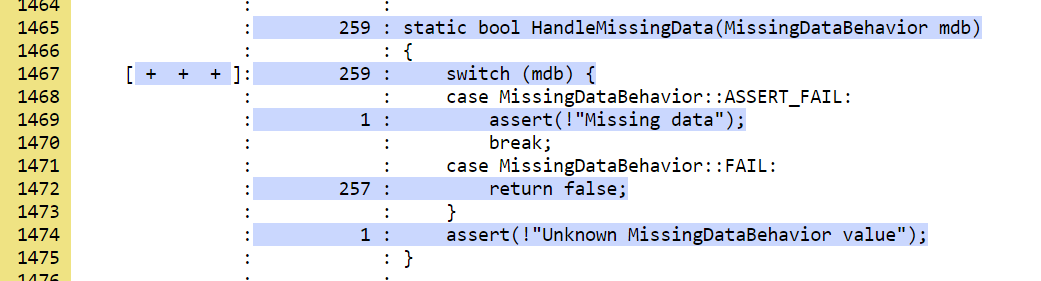

HandleMissingData HandleMissingData coverage

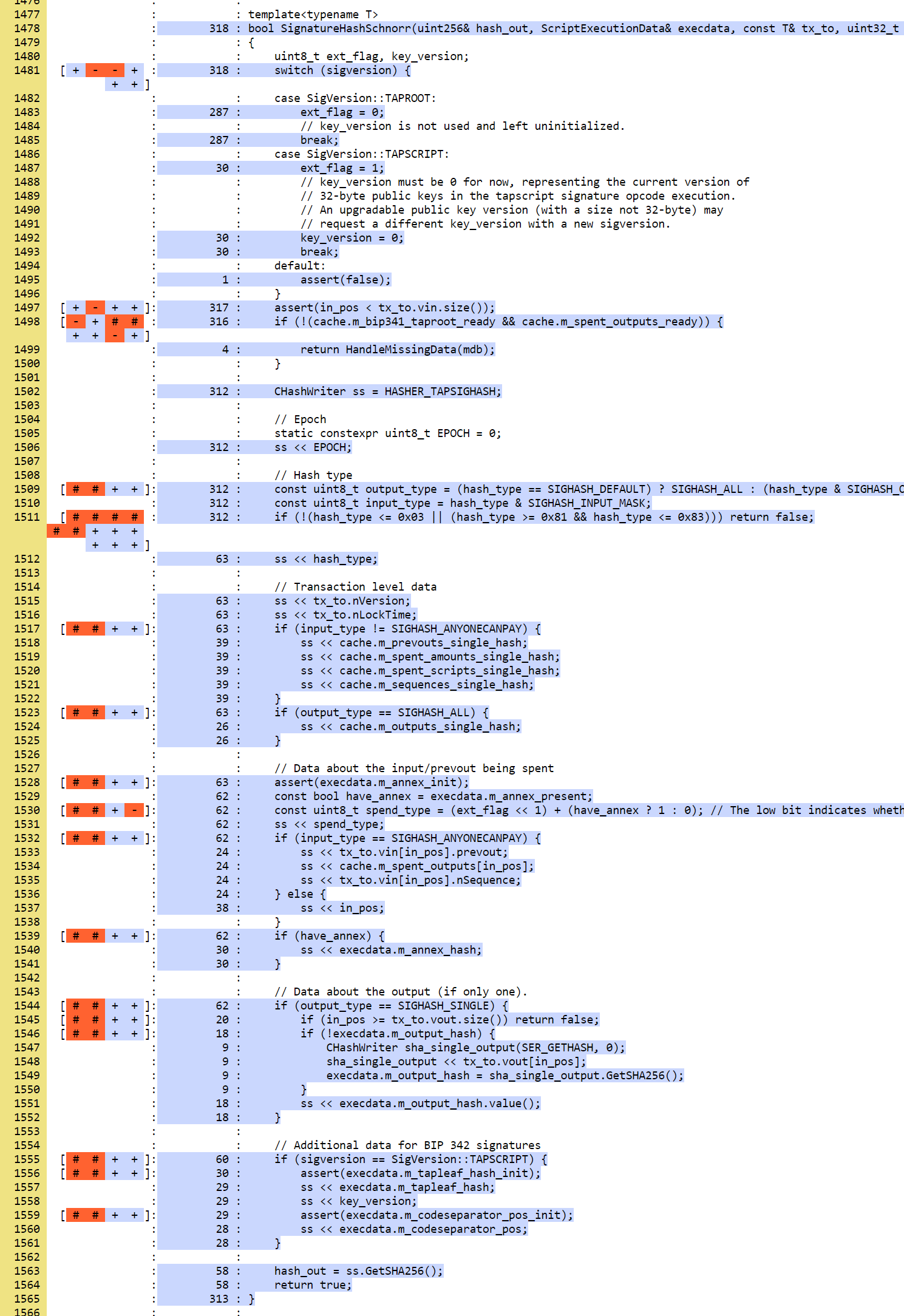

SignatureHashSchnorr SignatureHashSchnorr coverage

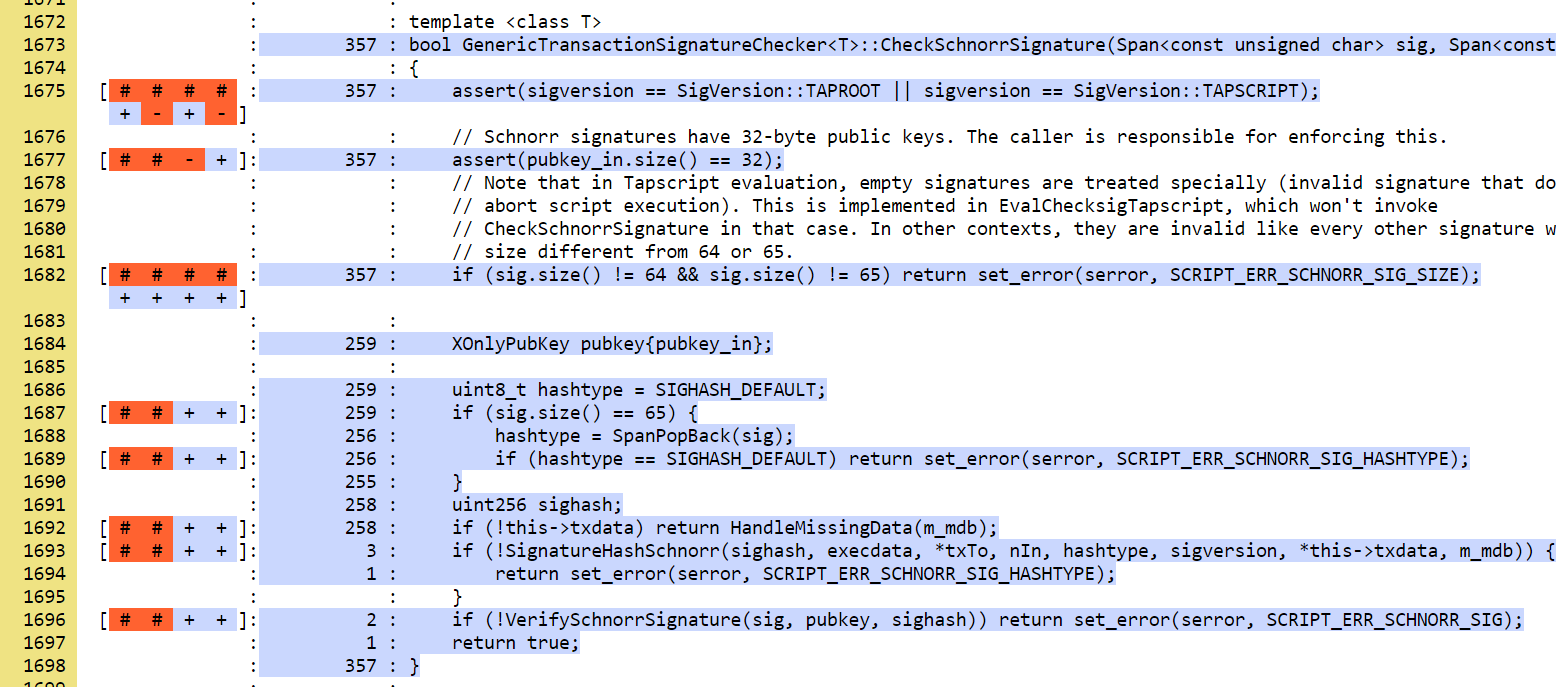

GenericTransaction-
SignatureChecker<T>::
CheckSchnorrSignature
CheckSchnorrSignature

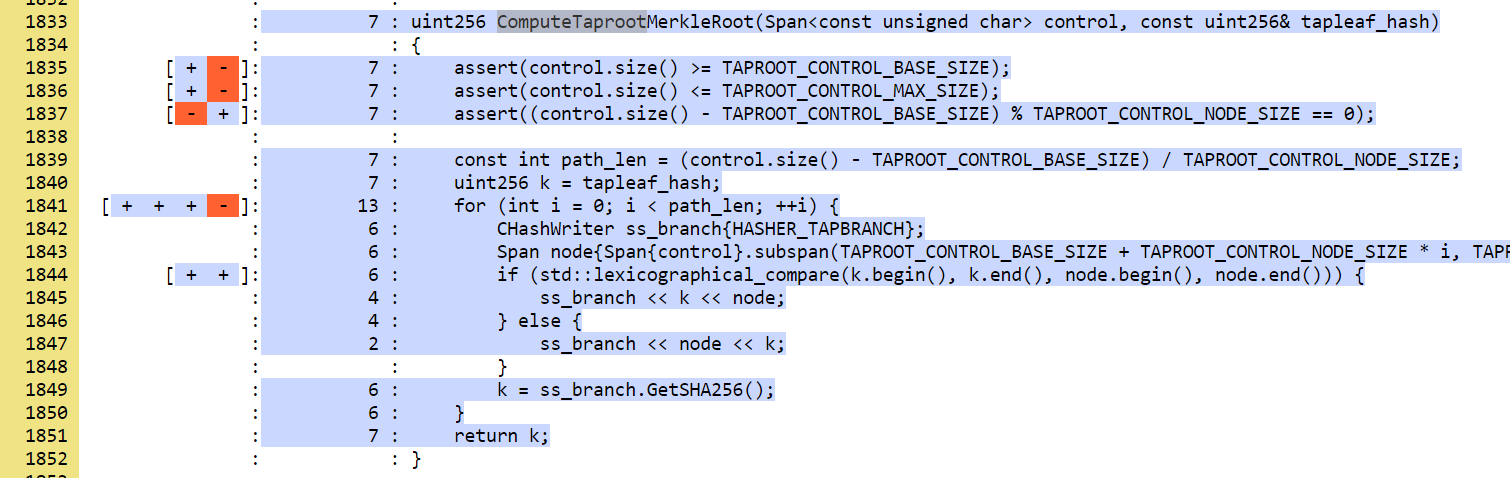

ComputeTaprootMerkleRoot ComputeTaprootMerkleRoot

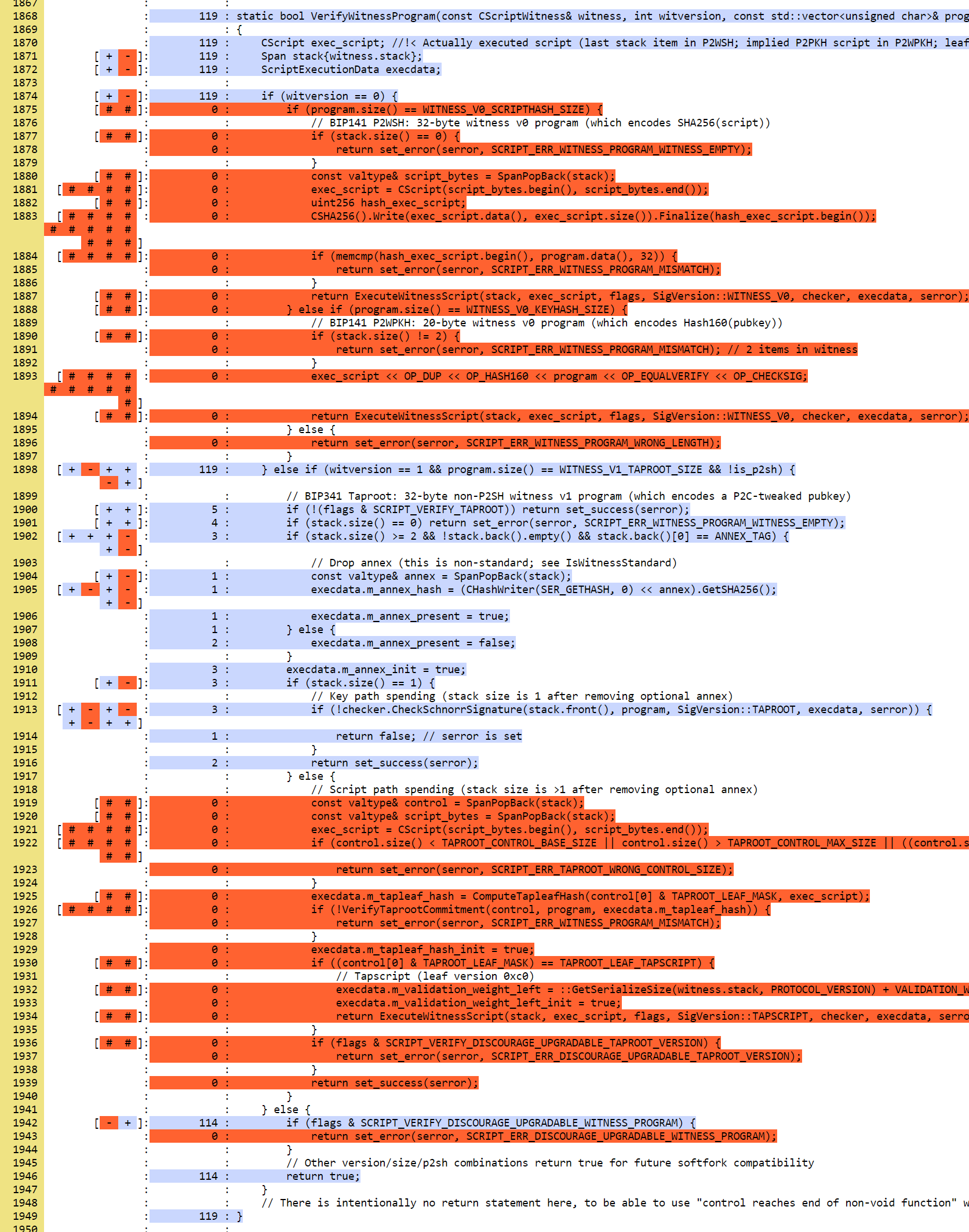

VerifyWitnessProgram
(Taproot only)
VerifyWitnessProgram

@fanquake fanquake added the Tests label May 9, 2022
@david-bakin
Copy link
Contributor Author

(Win64 native [msvc] failed above in functional test feature_index_prune.py - this test has been reported recently as flaky, see #25031.)

@david-bakin david-bakin force-pushed the 23279-taproot-unit-tests branch from 5753025 to cd89899 Compare May 12, 2022 19:38
@david-bakin david-bakin changed the title Unit tests for taproot/tapscript coverage in interpreter.cpp test: Unit tests for taproot/tapscript coverage in interpreter.cpp May 14, 2022
@david-bakin david-bakin changed the title test: Unit tests for taproot/tapscript coverage in interpreter.cpp test: [WIP] Unit tests for taproot/tapscript coverage in interpreter.cpp May 14, 2022
@david-bakin david-bakin changed the title test: [WIP] Unit tests for taproot/tapscript coverage in interpreter.cpp [WIP] test: Unit tests for taproot/tapscript coverage in interpreter.cpp May 14, 2022
@jonatack
Copy link
Member

Squashed and rebased this branch to master and seeing this when running the tests:

$  ./src/test/test_bitcoin -t script_tapscript_tests
Running 12 test cases...
test_bitcoin: script/interpreter.cpp:1495: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `false' failed.
test_bitcoin: script/interpreter.cpp:1497: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `in_pos < tx_to.vin.size()' failed.
test_bitcoin: script/interpreter.cpp:1528: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_annex_init' failed.
test_bitcoin: script/interpreter.cpp:1556: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_tapleaf_hash_init' failed.
test_bitcoin: script/interpreter.cpp:1559: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_codeseparator_pos_init' failed.
test_bitcoin: script/interpreter.cpp:1469: bool HandleMissingData(MissingDataBehavior): Assertion `!"Missing data"' failed.
test_bitcoin: script/interpreter.cpp:1474: bool HandleMissingData(MissingDataBehavior): Assertion `!"Unknown MissingDataBehavior value"' failed.

@david-bakin
Copy link
Contributor Author

david-bakin commented May 18, 2022

Squashed and rebased this branch to master and seeing this when running the tests:

$  ./src/test/test_bitcoin -t script_tapscript_tests
Running 12 test cases...
test_bitcoin: script/interpreter.cpp:1495: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `false' failed.

Yes - that's actually expected. Those are death tests - testing asserts. The Boost Test framework will print that the assertion failed but then it is properly caught with an ExecutionMonitor so the test actually succeeds.

[Following paragraph was initially wrong but now is correct:]
The reason for these tests is that I wanted to get 100% coverage. This routine implements the Schnorr signature hash - which is specified in a BIP and of course is part of the consensus - and it is a very complicated routine - it takes several structs as inputs and those structs can have "optional" fields (but not std::optional) - which may or may not be initialized. I thought it was important to make sure that the logic errors in callers actually caused the asserts to happen. Plus, it makes it easier to look at the coverage report and say, yep, everything in here is tested.

Do you have any suggestions on how I can improve the documentation or the test to avoid confusion such as this? Perhaps I could use BOOST_TEST_MESSAGE to emit a message: "These following assertions are expected"??

(There's a big comment explaining this in the code @1366 but of course people will just see the logs first ...)

P.S. Thank you for checking this PR out! Very encouraging for me...

@jonatack
Copy link
Member

Oh ok, I hadn't looked at the code yet (the fixup and merge commits really need to be squashed to encourage people to look at it) but indeed there is a large comment. Agree, logging a message to explain would be helpful.

@david-bakin
Copy link
Contributor Author

david-bakin commented May 18, 2022

I will squash now (actually, in the morning ...) - I was waiting until I finished the last couple of tasks but no problem doing it now. Thanks for the tip.

Also, unfortunately, BOOST_TEST_MESSAGE messages aren't displayed unless you set a log_level, like --log_level=message - so most people still won't see it ...

@jonatack
Copy link
Member

jonatack commented May 18, 2022

I tend to run individual tests with -l test_suite or -l all if anything unusual occurs when running it without a log level.

In any case, the unit test runner invoked with make check runs it fine locally for me and it looks like you solved your CI issue.

Edit: nit fixups signaled by test/lint/lint-spelling.py

$ test/lint/lint-spelling.py
src/test/script_tapscript_tests.cpp:650: tranaction ==> transaction
src/test/script_tapscript_tests.cpp:1048: suceeds ==> succeeds

Edit 2: I did see this error with make check, unsure if it was with your latest push:

Running tests: from test/script_tapscript_tests.cpp
cat: test/script_tapscript_tests.cpp: No such file or directory
Missing an argument value for the parameter run_test in the argument

  run_test
    Filters which tests to execute.
    --run_test=<test unit filter>
    -t <test unit filter>


  Use
      test_bitcoin --help
  or  test_bitcoin --help=<parameter name>
  for detailed help on Boost.Test parameters.
make[3]: *** [Makefile:20940: test/script_tapscript_tests.cpp.test] Error 1
make[3]: *** Waiting for unfinished jobs....

Copy link
Contributor

@jamesob jamesob left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Concept ACK

Nice job so far! These tests are well formulated. I like how declarative and readable they are. I'll review more of the substance once this exits draft state.

@david-bakin
Copy link
Contributor Author

Edit: nit fixups signaled by test/lint/lint-spelling.py

Fixed, and I'll run lint-spelling on my own from now on.

Edit 2: I did see this error with make check, unsure if it was with your latest push:

Running tests: from test/script_tapscript_tests.cpp
cat: test/script_tapscript_tests.cpp: No such file or directory
Missing an argument value for the parameter run_test in the argument

  run_test
...

I do not see this when running make check or when running test_bitcoin either with or without --run_test=script_tapscript_tests. Relevant section of my terminal spew when running make check locally:

...
Running tests: script_tapscript_tests from test/script_tapscript_tests.cpp
export TEST_LOGFILE=/workspace/bitcoin/src/$( echo test/script_tapscript_tests.cpp | grep -E -o "(wallet/test/.*\.cpp|test/.*\.cpp)" | /usr/bin/sed -e s/\.cpp/.log/ ) && \
test/test_bitcoin --catch_system_errors=no -l test_suite -t "$( cat test/script_tapscript_tests.cpp | grep -E "(BOOST_FIXTURE_TEST_SUITE\\(|BOOST_AUTO_TEST_SUITE\\()" | cut -d '(' -f 2 | cut -d ',' -f 1 | cut -d ')' -f 1 )" -- DEBUG_LOG_OUT > "$TEST_LOGFILE" 2>&1 || (cat "$TEST_LOGFILE" && false)
Running tests: script_tests from test/script_tests.cpp
...

And the CI checks all pass too. Not sure how to proceed on this report.

@david-bakin david-bakin force-pushed the 23279-taproot-unit-tests branch from b8e049e to d692ae7 Compare May 21, 2022 04:29
@david-bakin
Copy link
Contributor Author

david-bakin commented May 21, 2022

Squashed now as requested. Still 2 tests left to write: They're tough ones as both are for static free functions well hidden by an accessible public free function, and no easy hooks like polymorphic classes to mock/fake to get in there with.

However, all general-purpose "test only" internal helpers - data structures, functions for visibility, etc. - are now in src/test/util headers, with tests for them in src/test/test_util_tests.cpp.

@DrahtBot
Copy link
Contributor

DrahtBot commented May 24, 2022

The following sections might be updated with supplementary metadata relevant to reviewers and maintainers.

Conflicts

Reviewers, this pull request conflicts with the following ones:

  • #25648 (refactor: Remove all policy globals by MarcoFalke)
  • #25325 (Add pool based memory resource by martinus)
  • #22954 ([TESTS] Allow tx_invalid.json tests to include flag rules for if_unset: [A,B,C] then_unset: [D] by JeremyRubin)
  • #22876 ([TESTS] Update Transaction Tests to permit setting a flag as always on and disabling the exhaustive failure test by JeremyRubin)
  • #22793 (Simplify BaseSignatureChecker virtual functions and GenericTransactionSignatureChecker constructors by achow101)
  • #22338 ([Refactor]: Rename Script methods that only work on PreTapScript scripts by sanket1729)
  • #20100 (Script: split policy/error consensus codes for CLEANSTACK, MINIMALIF by sanket1729)

If you consider this pull request important, please also help to review the conflicting pull requests. Ideally, start with the one that should be merged first.

@david-bakin
Copy link
Contributor Author

DrahtBot said:

Conflicts

Reviewers, this pull request conflicts with the following ones:

  • #25152 (refactor: Split util/system into exception, shell, and fs-specific files by Empact)

Referenced PR is a refactoring PR. I tried it out in my branch. Only merge conflict here is to src/Makefile.test.include (and it's not a "real" conflict: just two lines changed, one in each PR, which happen to be adjacent (due to the alphabet)) which will be easily merged whichever PR lands first.

@david-bakin david-bakin force-pushed the 23279-taproot-unit-tests branch from 3dba72f to fedc037 Compare May 24, 2022 20:42
laanwj added a commit that referenced this pull request May 26, 2022
…eTaprootMerkleRoot`

bd7c5e2 Add BIP-341 specified constraints to `ComputeTaprootMerkleRoot` (David Bakin)

Pull request description:

  [**N.B.:** This PR **_does not change the consensus_**.  It only adds `assert` statements according to the current consensus in consensus-sensitive code (`interpreter.cpp`). So that's why the bot added the "consensus" tag and I prefixed the PR title with "consensus".]

  BIP 341 specifies [constraints on the size of the control block _c_ used to compute the taproot merkle root](https://github.com/bitcoin/bips/blob/master/bip-0341.mediawiki#script-validation-rules).

  > The last stack element is called the control block _c_, and must have length _33 + 32m_, for a value of _m_ that is an integer between 0 and 128, inclusive. Fail if it does not have such a length.

  The actual merkle root is computed in `ComputeTaprootMerkleRoot` ([interpreter.cpp@1833](https://github.com/bitcoin/bitcoin/blob/master/src/script/interpreter.cpp#L1833)) - this code does _not_ check these constraints.

  All the callers do check the constraints before calling `ComputeTaprootMerkleRoot`.  But in the future there may be more callers, and these checks may be inadvertently omitted at those future calls.  Also, code at/near the current call sites may also change and skip these checks.  Therefore _this PR adds those checks as `asserts` directly in `ComputeTaprootMerkleRoot`_ to help prevent that error.

  No unit tests provided: they'd have to be death tests as these are `assert` statements which raise `SIGABRT` and kill the program.  Boost Test has a way to implement death tests (see the in-progress draft PR #25097 at [this code (you may have to click to expand the diff)](https://github.com/bitcoin/bitcoin/pull/25097/files#diff-21483d0e032747850208f21325b29cde89e9c1f55f83a7a166a388cc5c27115aR1089) and could be added here if desired by reviewers.

  Current callers of `ComputeTaprootMerkleRoot`:
  - `InferTaprootTree` ([standard.cpp@1552](https://github.com/bitcoin/bitcoin/blob/master/src/script/standard.cpp#L546))
  - `VerifyTaprootCommittment` ([interpreter.cpp@1859](https://github.com/bitcoin/bitcoin/blob/master/src/script/interpreter.cpp#L1859)) does a partial check, but it is called from `VerifyWitnessProgram` ([interpreter.cpp@1922](https://github.com/bitcoin/bitcoin/blob/master/src/script/interpreter.cpp#L1918)) where a full check is done

ACKs for top commit:
  sipa:
    ACK bd7c5e2
  theStack:
    ACK bd7c5e2

Tree-SHA512: cec5aebfdf9fc9d13011abdf8427c934edf1df1ffc32b3e7cc5580f12809f24cf83e64ab0c843fabfce3591873bfcfa248277b30820fd786684319a196e4e550
sidhujag pushed a commit to syscoin/syscoin that referenced this pull request May 28, 2022
…`ComputeTaprootMerkleRoot`

bd7c5e2 Add BIP-341 specified constraints to `ComputeTaprootMerkleRoot` (David Bakin)

Pull request description:

  [**N.B.:** This PR **_does not change the consensus_**.  It only adds `assert` statements according to the current consensus in consensus-sensitive code (`interpreter.cpp`). So that's why the bot added the "consensus" tag and I prefixed the PR title with "consensus".]

  BIP 341 specifies [constraints on the size of the control block _c_ used to compute the taproot merkle root](https://github.com/bitcoin/bips/blob/master/bip-0341.mediawiki#script-validation-rules).

  > The last stack element is called the control block _c_, and must have length _33 + 32m_, for a value of _m_ that is an integer between 0 and 128, inclusive. Fail if it does not have such a length.

  The actual merkle root is computed in `ComputeTaprootMerkleRoot` ([interpreter.cpp@1833](https://github.com/bitcoin/bitcoin/blob/master/src/script/interpreter.cpp#L1833)) - this code does _not_ check these constraints.

  All the callers do check the constraints before calling `ComputeTaprootMerkleRoot`.  But in the future there may be more callers, and these checks may be inadvertently omitted at those future calls.  Also, code at/near the current call sites may also change and skip these checks.  Therefore _this PR adds those checks as `asserts` directly in `ComputeTaprootMerkleRoot`_ to help prevent that error.

  No unit tests provided: they'd have to be death tests as these are `assert` statements which raise `SIGABRT` and kill the program.  Boost Test has a way to implement death tests (see the in-progress draft PR bitcoin#25097 at [this code (you may have to click to expand the diff)](https://github.com/bitcoin/bitcoin/pull/25097/files#diff-21483d0e032747850208f21325b29cde89e9c1f55f83a7a166a388cc5c27115aR1089) and could be added here if desired by reviewers.

  Current callers of `ComputeTaprootMerkleRoot`:
  - `InferTaprootTree` ([standard.cpp@1552](https://github.com/bitcoin/bitcoin/blob/master/src/script/standard.cpp#L546))
  - `VerifyTaprootCommittment` ([interpreter.cpp@1859](https://github.com/bitcoin/bitcoin/blob/master/src/script/interpreter.cpp#L1859)) does a partial check, but it is called from `VerifyWitnessProgram` ([interpreter.cpp@1922](https://github.com/bitcoin/bitcoin/blob/master/src/script/interpreter.cpp#L1918)) where a full check is done

ACKs for top commit:
  sipa:
    ACK bd7c5e2
  theStack:
    ACK bd7c5e2

Tree-SHA512: cec5aebfdf9fc9d13011abdf8427c934edf1df1ffc32b3e7cc5580f12809f24cf83e64ab0c843fabfce3591873bfcfa248277b30820fd786684319a196e4e550
- Add new test utility methods for use in various unit tests.
- Refactor some existing methods out of tests where they're currently
  embedded into the test util area.
- Ensure that the conversions of string name to/from ScriptError_t have
  all the defined enum values.
- And provide unit tests for the whole shebang.
This commit provides unit tests for Taproot functionality in
`script/interpreter.cpp`, bitcoin#23279.

Goal is to show correctness vs specifications in BIPs 341/342, and to
improve code coverage in Taproot functionality there.

Intent is to unit test completely without changing `interpreter.cpp`
itself to provide visibility into static functions/private methods.
Thus some of the tests must be "indirect", testing the unit-under-test
by probing a visible caller. This makes those specific somewhat fragile
as they depend on code paths in the caller, which may change in the
future.  However, such tests are written so they will fail if the
unit-under-test isn't actually called. This is noted in the code of
those specific tests.

No changes to Bitcoin Core are made - just unit tests added. The
Boost Test framework file `boost/test/execution_monitor.hpp` was
added to the lint whitelist - this is acceptable because it is a
documented public header of the Boost Test framework, which is
already part of the project.

- [x] `EvalChecksigTapscript`
- [x] `HandleMissingData`
- [x] `SignatureHashSchnorr` - now with full _path_ coverage
- [x] `GenericTransactionSignatureChecker<T>::VerifySchnorrSignature`
- [x] `GenericTransactionSignatureChecker<T>::CheckSchnorrSignature`
- [x] `ComputeTaprootMerkleRoot`
- [ ] `SigVersion::TAPSCRIPT` code paths in `ExecuteWitnessScript`
- [x] Taproot code paths in `VerifyWitnessProgram`
- [ ] Tapscript code paths in `VerifyWitnessProgram`

**TODO:** Full Tapscript (BIP-342) unit tests yet to be completed.
**TODO:** Does anything need to be done with `libconsensus`? Please advise!

**N.B.:** These unit tests include "death tests" (name comes from
Googletest framework): Tests that check that an `assert` actually
fails.  These are handled with a Boost `execution_monitor`
(mentioned above) but the asserts _still issue messages_ even when
by correctly trapped by the Boost Test framework.  You'll see the following:

```
gitpod /workspace/bitcoin/src/test (23279-taproot-unit-tests) $ ./test_bitcoin
Running 527 test cases...
test_bitcoin: script/interpreter.cpp:1495: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `false' failed.
test_bitcoin: script/interpreter.cpp:1497: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `in_pos < tx_to.vin.size()' failed.
test_bitcoin: script/interpreter.cpp:1528: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_annex_init' failed.
test_bitcoin: script/interpreter.cpp:1556: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_tapleaf_hash_init' failed.
test_bitcoin: script/interpreter.cpp:1559: bool SignatureHashSchnorr(uint256 &, ScriptExecutionData &, const T &, uint32_t, uint8_t, SigVersion, const PrecomputedTransactionData &, MissingDataBehavior) [T = CMutableTransaction]: Assertion `execdata.m_codeseparator_pos_init' failed.
test_bitcoin: script/interpreter.cpp:1469: bool HandleMissingData(MissingDataBehavior): Assertion `!"Missing data"' failed.
test_bitcoin: script/interpreter.cpp:1474: bool HandleMissingData(MissingDataBehavior): Assertion `!"Unknown MissingDataBehavior value"' failed.

*** No errors detected
gitpod /workspace/bitcoin/src/test (23279-taproot-unit-tests) $
```

These specific `Assertion ... failed` messages are _expected_.  The
tests triggering them properly _pass_ iff the `assert` (and no other)
is _triggered_.
@david-bakin david-bakin force-pushed the 23279-taproot-unit-tests branch from fedc037 to eeefec3 Compare June 5, 2022 16:29
@david-bakin david-bakin changed the title [WIP] test: Unit tests for taproot/tapscript coverage in interpreter.cpp test: Unit tests for taproot/tapscript coverage in interpreter.cpp Jun 5, 2022
@david-bakin david-bakin marked this pull request as ready for review June 5, 2022 17:48
@david-bakin
Copy link
Contributor Author

david-bakin commented Jun 6, 2022

DrahtBot said:

Conflicts

Reviewers, this pull request conflicts with the following ones:

  • #22793 (Simplify BaseSignatureChecker virtual functions and GenericTransactionSignatureChecker constructors by achow101)

Referenced PR updates BaseSignatureChecker and GenericSignatureChecker which are used in these tests, and also various the internals of some routines in interpreter.cpp including CheckSchnorrSignature.

Most of the resulting conflicts are easy to resolve; the tricky one was the update to CheckSchnorrSignature which changed its behavior in such a way that one of these tests became invalid.

  • This was exactly the case I was referring to in the PR header comment when I said:

    This makes those specific tests somewhat fragile as they depend on code paths in the caller, which may change in the future. However, such tests are written so they will fail if the unit-under-test isn't actually called. This is noted in the code of those specific tests.

    And naturally it was immediately hit! But it was also easily fixable.

So in fact I am ready to update this PR if #22793 lands first. And also, except for that, I can update this code now so that there won't be any conflict if #22793 lands later.

(I am of the opinion that there are routines in interpreter.cpp which are defined there static which needn't be. They could just be file-scoped. And thus these unit tests could call them directly (by providing the prototype) and test them directly rather than having to go indirectly through CheckSchnorrSignature, and so on. But I didn't want to change interpreter.cpp to add unit tests after-the-fact. I thought it would make it easier to get approvals for this PR if I didn't make changes there.)

for (const auto& se : script_errors)
if (se.name == name)
return se.err;
if (issue_boost_error) BOOST_ERROR("Unknown scripterror \"" << name << "\" in test description");
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

eeefec3

You may want to move these BOOST_ERROR(...) changes back to the previous commit (where this file is introduced), since attempting to build the previous commit fails with this error:

/usr/bin/ld: /usr/bin/ld: DWARF error: could not find variable specification at offset 7218
libtest_util.a(libtest_util_a-pretty_data.o): in function `ParseScriptFlags(std::basic_string_view<char, std::char_traits<char> >, bool)':
./src/test/util/pretty_data.cpp:138: undefined reference to `boost::unit_test::unit_test_log_t::set_checkpoint(boost::unit_test::basic_cstring<char const>, unsigned long, boost::unit_test::basic_cstring<char const>)'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `lazy_ostream_impl':
/usr/include/boost/test/utils/lazy_ostream.hpp:74: undefined reference to `boost::unit_test::lazy_ostream::inst'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `ParseScriptFlags(std::basic_string_view<char, std::char_traits<char> >, bool)':
./src/test/util/pretty_data.cpp:138: undefined reference to `boost::test_tools::tt_detail::report_assertion(boost::test_tools::assertion_result const&, boost::unit_test::lazy_ostream const&, boost::unit_test::basic_cstring<char const>, unsigned long, boost::test_tools::tt_detail::tool_level, boost::test_tools::tt_detail::check_type, unsigned long, ...)'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `FormatScriptError[abi:cxx11](ScriptError_t, bool)':
./src/test/util/pretty_data.cpp:167: undefined reference to `boost::unit_test::unit_test_log_t::set_checkpoint(boost::unit_test::basic_cstring<char const>, unsigned long, boost::unit_test::basic_cstring<char const>)'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `lazy_ostream_impl':
/usr/include/boost/test/utils/lazy_ostream.hpp:74: undefined reference to `boost::unit_test::lazy_ostream::inst'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `FormatScriptError[abi:cxx11](ScriptError_t, bool)':
./src/test/util/pretty_data.cpp:167: undefined reference to `boost::test_tools::tt_detail::report_assertion(boost::test_tools::assertion_result const&, boost::unit_test::lazy_ostream const&, boost::unit_test::basic_cstring<char const>, unsigned long, boost::test_tools::tt_detail::tool_level, boost::test_tools::tt_detail::check_type, unsigned long, ...)'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `ParseScriptError(std::basic_string_view<char, std::char_traits<char> >, bool)':
./src/test/util/pretty_data.cpp:176: undefined reference to `boost::unit_test::unit_test_log_t::set_checkpoint(boost::unit_test::basic_cstring<char const>, unsigned long, boost::unit_test::basic_cstring<char const>)'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `lazy_ostream_impl':
/usr/include/boost/test/utils/lazy_ostream.hpp:74: undefined reference to `boost::unit_test::lazy_ostream::inst'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `ParseScriptError(std::basic_string_view<char, std::char_traits<char> >, bool)':
./src/test/util/pretty_data.cpp:176: undefined reference to `boost::test_tools::tt_detail::report_assertion(boost::test_tools::assertion_result const&, boost::unit_test::lazy_ostream const&, boost::unit_test::basic_cstring<char const>, unsigned long, boost::test_tools::tt_detail::tool_level, boost::test_tools::tt_detail::check_type, unsigned long, ...)'
/usr/bin/ld: libtest_util.a(libtest_util_a-pretty_data.o): in function `_GLOBAL__sub_I_pretty_data.cpp':
/usr/include/boost/test/unit_test_log.hpp:227: undefined reference to `boost::unit_test::unit_test_log_t::instance()'
clang: error: linker command failed with exit code 1 (use -v to see invocation)

Copy link
Contributor

@jamesob jamesob left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Partial review done

Code is high quality so far (if not a little complex), and I really like the look of these tests. Will finish review early next week, probably Monday.


  • 12ae337 Add new test utility methods; break out some existing ones

A lot of this code is fairly elaborate in terms of use of C++ templating
features - for example, all the machinations necessary to get Hex() to work -
which I think I'd be hesitant to include in non-test code. But since these are
tests, the complexity/convenience trade-off seems okay.

  • eeefec3 Unit tests for Tap{root,script} of interpreter.cpp, #23279


#define EVAL(...) []() -> bool { return __VA_ARGS__; }()

BOOST_AUTO_TEST_CASE(is_base_of_trait)
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

12ae337

Is there a reason to include this test case? This doesn't look like it's testing any non-std functionality. It also seems like a direct adaptation of the example usage here: https://en.cppreference.com/w/cpp/types/is_base_of

@david-bakin
Copy link
Contributor Author

Partial review done

Addressing these comments now.

Code is high quality so far (if not a little complex), and I really like the look of these tests. Will finish review early next week, probably Monday.

Thank you, and looking forward to more comments!

Is it preferred (i.e., do you prefer) squashing during a review or should I fix things in an additional commit on top of this one while you're in progress and squash it later?

@jamesob
Copy link
Contributor

jamesob commented Jul 12, 2022

Is it preferred (i.e., do you prefer) squashing during a review or should I fix things in an additional commit on top of this one while you're in progress and squash it later?

Typically squashes are done immediately because if you squash at some point later, all reviewers will have to re-review to ensure that the code hasn't actually changed unexpectedly during the squash.

Copy link
Contributor

@jamesob jamesob left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

approach ACK eeefec3 (jamesob/ackr/25097.1.david-bakin.test_unit_tests_for_tapr)

Wow, thanks for this contribution @david-bakin. These are some really
fine-grained tests for various Taproot related parts of the script interpreter.
The code here is very readable and seems nicely extensible. Clearly a
lot of work went into this.

For many parts of the codebase, this sort of testing would be overkill IMO
because it is so tightly coupled to the tested code. But in the case of script
interpretation - debatably the heart of bitcoin validation - I think it's
worthwhile to have painstakingly involved tests at the cost of slight
maintenance burden if the underlying code happens to change somehow. Maybe
someone more experienced than me w.r.t. changing the script interpreter can
weigh in here and confirm my intuition.

All of my comments are pretty minor. I'd say it might be wortwhile to break
out the Parse*() optional changes in the second commit either into their own
commit, or as I mentioned in a previous review, fold it into the first.

// This is the known sighash of the Tx and input data we set up (precomputed)
h.SetHex("f614d8ae6dcc49e2ca2ef1c03f93c7326189e5575d446e825e5a2700fb1cb83c");
return h;
}();
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.


enum class if_as_expected_return { False,
True };
if_as_expected_return m_iae{if_as_expected_return::True};
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

eeefec3

What's the rationale not just to make m_iae a bool?

}
{
// Negative tests: last byte is _not_ SIGHASH_DEFAULT, but we early exit _without changing
// serror_ because we don't provide a txDataIn (🡄 this requires knowledge of how
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

}

{
// Now check that, given the parameters, if `SignatureHashSchnorr fails there's an error exit.
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

eeefec3

nit: missing a tick

{
m_hash_type = hash_type;
m_witness_signature = m_sig;
if (hash_type) m_witness_signature.push_back(hash_type);
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

eeefec3

If you wind up having to retouch this commit, I might advise changing if (hash_type) to if (hash_type != SIGHASH_DEFAULT) here and below; to me it's a little clearer and less tricky... I had to verify that SIGHASH_DEFAULT would evaluate to false in this context.

if (m_p2sh_wrapped) {
// But BIP-341 allows all SegWit v1 P2SH-wrapped outputs to pass
valtype fake_hash(20, 0x00);
script_sig << OP_0 << fake_hash;
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

eeefec3

Interesting... if I change this to OP_1 or remove the OP_0 << altogether, all tests still pass.

Context& CheckSignatureCheckerWasCalled()
{
BOOST_CHECK_MESSAGE(m_checker_was_called,
Descr() << ": Schnoor signature checker was called, as expected");
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

eeefec3

"Schnoor" misspelling here and elsewhere

@DrahtBot
Copy link
Contributor

DrahtBot commented Aug 3, 2022

🐙 This pull request conflicts with the target branch and needs rebase.

Want to unsubscribe from rebase notifications on this pull request? Just convert this pull request to a "draft".

@achow101
Copy link
Member

Are you still working on this?

@david-bakin
Copy link
Contributor Author

david-bakin commented Oct 12, 2022 via email

@achow101
Copy link
Member

yes sorry - i will update by tomorrow!

It's been several weeks since this comment with no additional updates, so I'm going to close this for now. If you do get around to working on this, please leave a comment so that it can be reopened.

@achow101 achow101 closed this Nov 10, 2022
@jamesob
Copy link
Contributor

jamesob commented Nov 10, 2022

Sad to see this closed as it contains some novel unittest coverage. Please feel free to reopen with updates @david-bakin. Hopefully others will step in to review as well.

@david-bakin
Copy link
Contributor Author

david-bakin commented Nov 10, 2022 via email

@bitcoin bitcoin locked and limited conversation to collaborators Nov 10, 2023
Sign up for free to subscribe to this conversation on GitHub. Already have an account? Sign in.

Projects

None yet

Development

Successfully merging this pull request may close these issues.

Add unit tests for Taproot code in src/script/interpreter.cpp

6 participants
