A - Overview

Pentaho Data Integration (PDI) provides the Extract, Transform, and Load (ETL) capabilities that facilitate the process of capturing, cleansing, and storing data using a uniform and consistent format that is accessible and relevant to end users and IoT technologies.

• ℹ️ Introduction to PDI
• 📥 PDI Download Link
• 📘 Installation Guide on Linux
• 📘 Installation Guide on Windows

B - Prerequisites

• Create an Astra Database
• Create an Astra Token
• Download your secure connect bundle ZIP
• Download and install PDI

This article was written for version 9.1 on MacOS but it should also work for the Windows version.

C - Installation and Setup

✅ Step 1: Download JDBC Driver

Download the JDBC driver from the DataStax website:

1. Go to https://downloads.datastax.com/#odbc-jdbc-drivers.
2. Select Simba JDBC Driver for Apache Cassandra.
3. Select JDBC 4.2.
4. Read the license terms and accept it (click the checkbox).
5. Hit the blue Download button.
6. Once the download completes, unzip the downloaded file.

✅ Step 2: Import Driver JAR in Pentaho

Deploy the Simba driver to Pentaho servers using the distribution tool:

1. On your laptop or PC, copy the Simba JAR to the JDBC distribution directory:

$ cp CassandraJDBC42.jar pentaho/jdbc-distribution/

2. Run the distribution tool (distribute-files.bat on Windows)

$ cd /Applications/Pentaho/jdbc-distribution
$ ./distribute-files.sh CassandraJDBC42.jar

3. Verify that the JAR has been copied to the PDI library:

$ cd /Applications/Pentaho
$ ls -lh design-tools/data-integration/lib/CassandraJDBC42.jar

• Expected output:

-rw-r--r--  1 erick  vaxxed   16M 14 Sep 22:18 design-tools/data-integration/lib/CassandraJDBC42.jar

$ file design-tools/data-integration/lib/CassandraJDBC42.jar

• Expected output:

design-tools/data-integration/lib/CassandraJDBC42.jar: Java archive data (JAR)

4. Restart Pentaho on your workstation for the Simba driver to be loaded.

✅ Step 3: Define a connection in Pentaho

In this section we assume that your database in Astra is called pentaho and as such the download secure bundle is called secure-connect-pentaho.zip

1. Create a new Transformation.

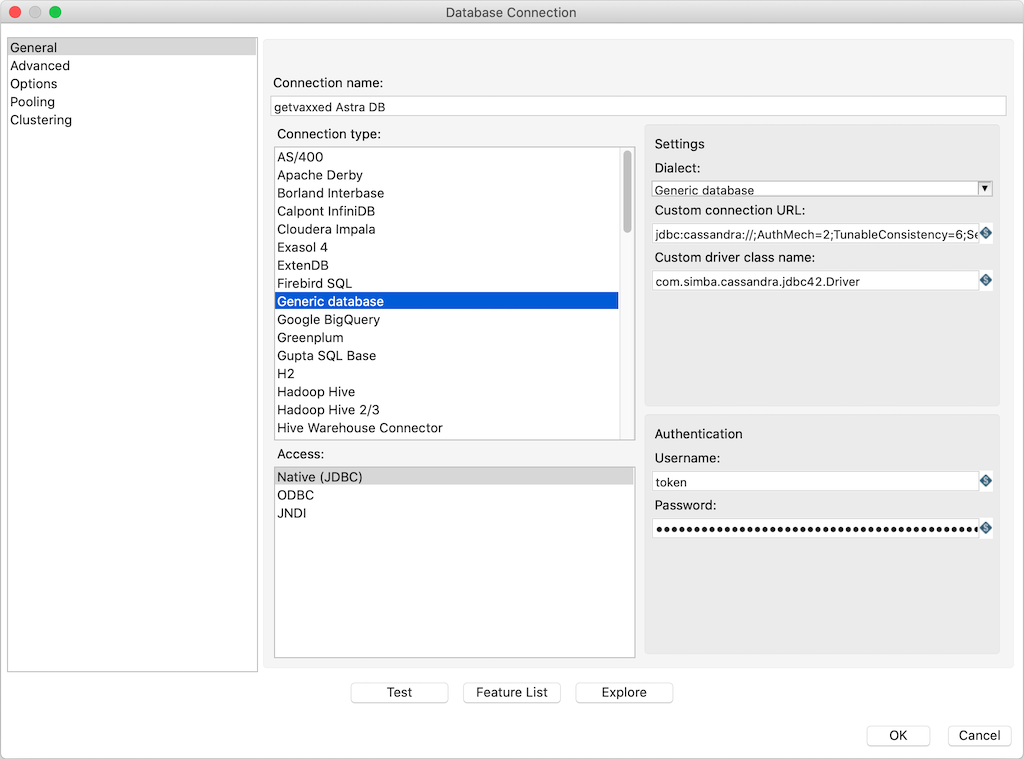

2. Open a new Database Connection dialog box.
3. In the Connection name field, give your DB connection a name.
4. Under Connection type, select Generic database.
5. Set the Custom connection URL. (Note that you will need to specify the full path to your secure bundle and adapt to your database name)

jdbc:cassandra://;AuthMech=2;TunableConsistency=6;SecureConnectionBundlePath=/path/to/secure-connect-pentaho.zip

6. Set the Custom driver class name field to com.simba.cassandra.jdbc42.Driver.

7. In the Username field, enter the string token.

8. In the Password field, paste the value of the token you created in the Prerequisites section above. The token looks like AstraCS:AbC...XYz:123...edf0

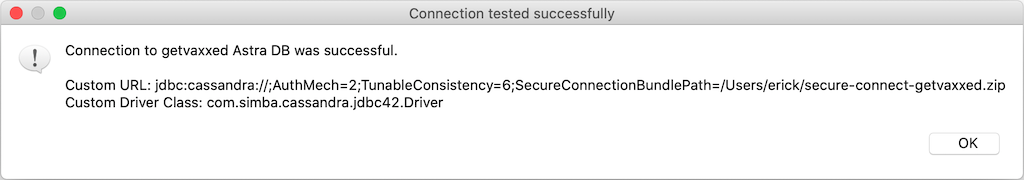

9. Click on the Test Connection button to confirm that the driver configuration is working:

10. Click on the OK button to save the connection settings.

✅ Step 4: Final Test

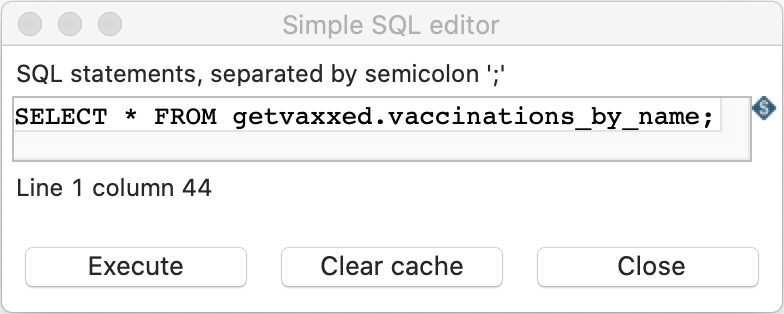

Connect to your Astra DB by launching the SQL Editor in Pentaho and run a simple CQL statement. For example:

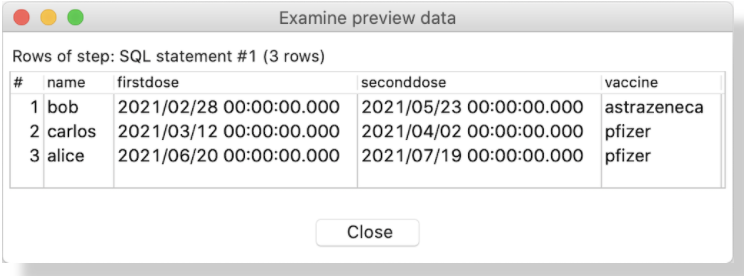

Here's an example output:

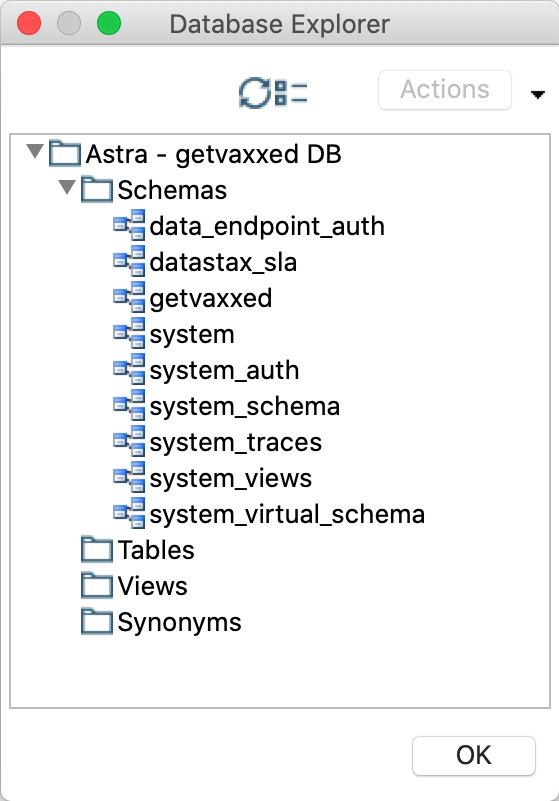

You should also be able to browse the keyspaces in your Astra DB using the DataBase Explorer. Here's an example output:
