Archive Trac dn messaging
Legacy Trac archive page imported from
dn_messaging. Source: https://genapp.rocks/wiki/wiki/dn_messaging. Review age, links, and examples before treating as current.
- currently only available in html5/php
- the idea is a running module can send intermediate JSON output during execution to provide progress and preliminary results updates
- user information about how it works is here
- genapp provides some "extra fields" in the input json to support messaging
- "_udphost" : the host ip address of the udp message server
- "_udpport" : the port of the udp message server
- "_uuid" : a unique id assigned to each submitted job
- the host and ports are defined in appconfig:messaging
- e.g.
,"messaging" : {
"wsport" : 37777
,"wssport" : 443
,"zmqhostip" : "127.0.0.1"
,"zmqport" : 37778
,"udphostip" : "127.0.0.1"
,"udpport" : 37779
,"tcphostip" : "127.0.0.1"
,"tcpport" : 37780
}
-
here we have a tcphost and port which are not currently used
-

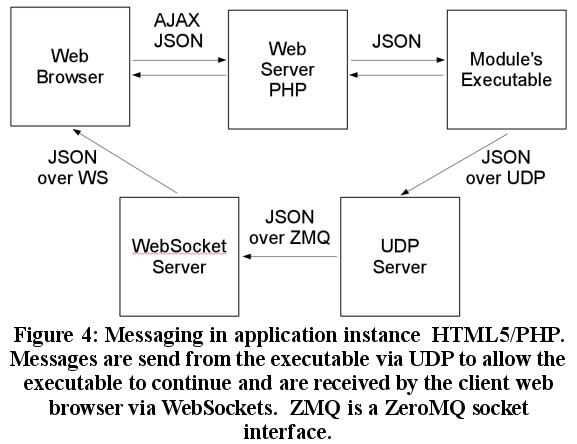

leveraged technologies
-
servers
- websocket server
- supports pub-sub on ws to topic of "_uuid"
- listens on zmq socket for messages and broadcasts to topic ws subscribers
- logs last messages into mongodb for reattachment
- udp server
- listens for udp messages and retransmits them to zmq server
-
i am thinking that we may be able to directly interface with zeromq, so i would start there
- rewrite udp server in target language (it should be very easy, a simple server)
- write a replacement for msg-wsserver.php without ratchet, but using only zeromq (which supports pub-sub) directly in target language
- listen on zmq socket and forward messages to the user interface
- we should keep track of job uuid's and only forward if job uuid matches the one currently shown on user interface
-
new plan
- start udp server with application start
- when submitting jobs create uuid, add uuid host & port info (from appconfig.json) to input json
- monitor udp messages during module execution and display on user interface if uuid matches
