Add a Rizin-based core library

[haeter525]

Description

Quark needs an alternate core library apart from Androguard. Here are the concerns of the Quark team.

1. Androguard is no longer maintained. (#833 from Androguard)
2. Androguard takes up too much memory during analysis.

Hence, this PR aims to add a core library based on Rizin.

Why is Rizin?

Rizin is a fork of the radare2 reverse engineering tools. Here are the advantages.

1. A strong community supports the project.
2. It provides analysis assists that cover the functions of Androguard.
3. It focuses on usability and working features.

How to enable it?

Command Line

Add an option --core-library with the parameter Rizin.

quark --core-library "Rizin" -a APK_FILE -s

Python Module

Add a keyword argument named "core_library" with the string Rizin.

from quark.report import Report

report = Report(APK_FILE, core_library="Rizin")

How accurate is the Rizin-based core library?

For now, most of the analysis results are not correct.

The reason is that Rizin doesn't fully support the following analysis on APKs.

1. Multi-dex analysis
2. Comprehensive cross-references between methods

I have reported these issues to the Rizin community. They are currently working on them.

Also, to ensure the core library works with those functions in the future, I made two assumptions to build the core library.

1. The commands in Rizin have handled the multi-dex issue.
2. The cross-reference provided by Rizin is correct.

Once Rizin fixes the above issues, the core library will work as expected.

How do you prove your code is reliable?

I collected a set of rules that are not impacted by the above issues to verify the analysis results.

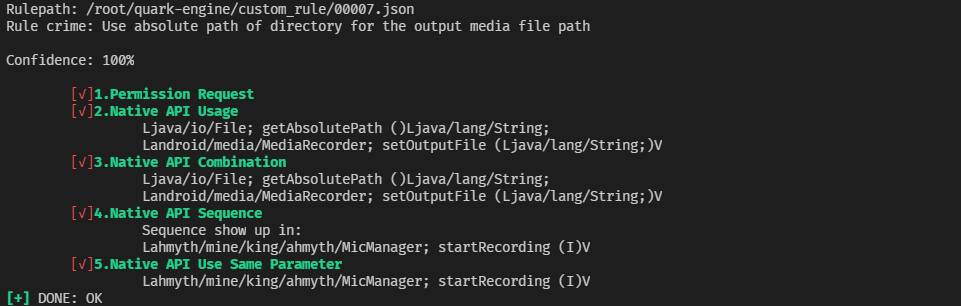

For example, 0007.json is one of these rules.

The confidence has been confirmed 100% by the Androguard-based core library.

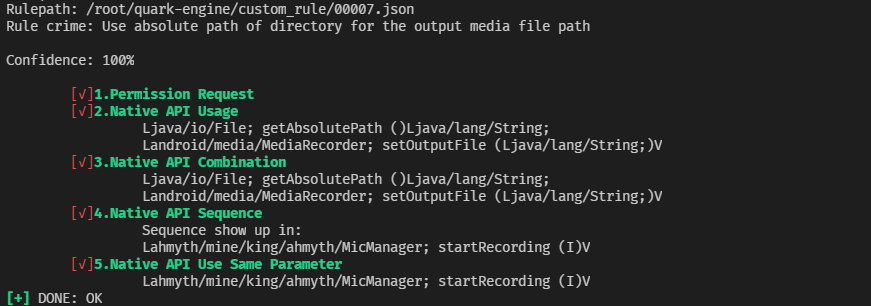

Then, I will ensure that the Rizin-based core library reports the same confidence.

Code Changes

• quark/Objects/axmlreader/*

  • A Rizin-based AndroidManifest Reader for the core library

• quark/Objects/rzapkinfo.py

  • A file that stores the Rizin-based core library

• quark/Objects/quark.py

  • Add an if-statement to check if the references exist.
  • Add a keyword argument to specify the core library.

• quark/Objects/forensic.py and quark/report.py

  • Add a keyword argument to specify the core library.

• quark/cli.py

  • Add an option --core-library to specify the core library.

• Pipfile and setup.py

  • Add rzpipe package.

Test Plans

• Ensure the PR passes all existing tests.

[pep8speaks]

Hello @haeter525! Thanks for updating this PR. We checked the lines you've touched for PEP 8 issues, and found:

There are currently no PEP 8 issues detected in this Pull Request. Cheers! 🍻

Comment last updated at 2021-07-09 10:56:50 UTC

[sourcery-ai]

Sourcery Code Quality Report

Merging this PR leaves code quality unchanged.

Quality metrics	Before	After	Change
Complexity	29.30 😞	29.00 😞	-0.30 👍
Method Length	62.65 🙂	64.74 🙂	2.09 👎
Working memory	15.45 ⛔	16.09 ⛔	0.64 👎
Quality	49.71% 😞	49.71% 😞	0.00%

Other metrics	Before	After	Change
Lines	1270	1311	41

Changed files	Quality Before	Quality After	Quality Change
setup.py	66.25% 🙂	66.09% 🙂	-0.16% 👎
quark/cli.py	2.26% ⛔	2.13% ⛔	-0.13% 👎
quark/report.py	73.94% 🙂	73.64% 🙂	-0.30% 👎
quark/Objects/quark.py	51.12% 🙂	50.91% 🙂	-0.21% 👎
quark/forensic/forensic.py	93.12% ⭐	91.32% ⭐	-1.80% 👎
tests/Object/test_apkinfo.py	91.07% ⭐	90.03% ⭐	-1.04% 👎

Here are some functions in these files that still need a tune-up:

File	Function	Complexity	Length	Working Memory	Quality	Recommendation
quark/cli.py	entry_point	91 ⛔	895 ⛔	39 ⛔	0.50% ⛔	Refactor to reduce nesting. Try splitting into smaller methods. Extract out complex expressions
quark/Objects/quark.py	Quark.check_parameter	40 ⛔	184 😞	12 😞	28.27% 😞	Refactor to reduce nesting. Try splitting into smaller methods. Extract out complex expressions
quark/Objects/quark.py	Quark.run	19 😞	307 ⛔	14 😞	29.19% 😞	Refactor to reduce nesting. Try splitting into smaller methods. Extract out complex expressions
quark/Objects/quark.py	Quark.generate_json_report	15 🙂	198 😞	18 ⛔	33.64% 😞	Try splitting into smaller methods. Extract out complex expressions
quark/Objects/quark.py	Quark.show_detail_report	13 🙂	201 😞	11 😞	44.06% 😞	Try splitting into smaller methods. Extract out complex expressions

Legend and Explanation

The emojis denote the absolute quality of the code:

• ⭐ excellent
• 🙂 good
• 😞 poor
• ⛔ very poor

The 👍 and 👎 indicate whether the quality has improved or gotten worse with this pull request.

---

Please see our documentation here for details on how these metrics are calculated.

We are actively working on this report - lots more documentation and extra metrics to come!

Help us improve this quality report!

[lgtm-com]

This pull request introduces 1 alert when merging 6718711 into 18a7115 - view on LGTM.com

new alerts:

• 1 for Except block handles 'BaseException'

[krnick]

Nice work @haeter525 !
Supporting rizin will make our code base more stable!
