Resources

🔴 Everli Icons/Resources

All resources are provided as vector drawables based (.xml based on .svg) We use two different classes of resources:

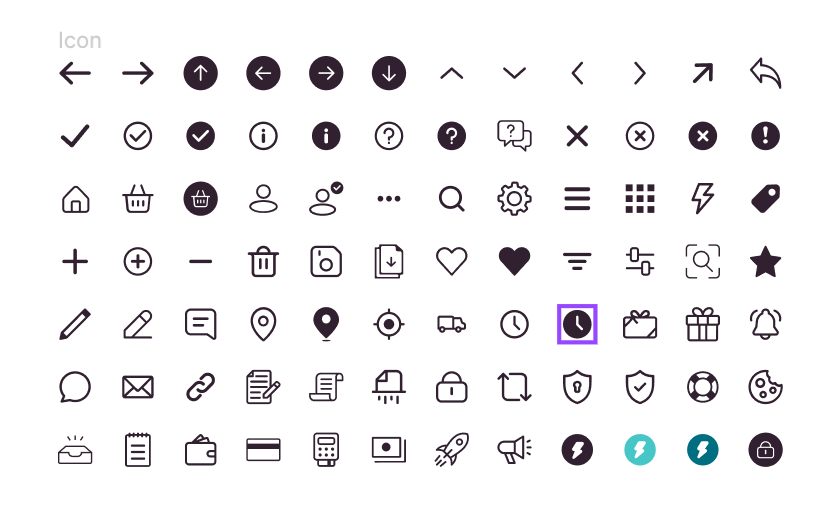

1. Icons

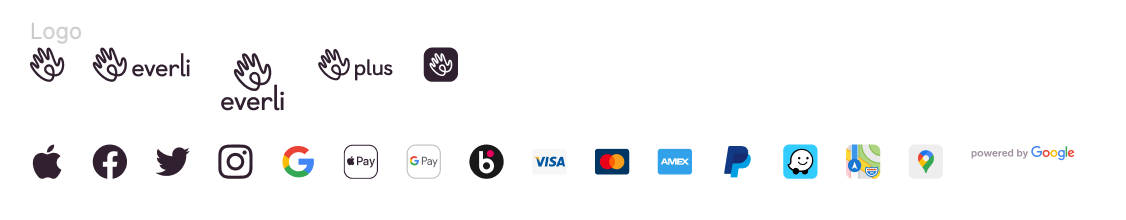

2. Logos

Differences

	Icons	Logos
Size	24x24	Variable
Color	Single color -> Black100	Some single color Some multicolor
Scope	Designed to be reused with different sizes and colors	Specific logos, can be reused

Compose

All icons are Painter type, accessible via EverliResources

@Composable
fun CoolIcon() {
  Icon(
    painter = EverliResources.Icons.AddCircle,
    contentDescription = "action more",
    tint = EverliColors.Red100, // change color
    modifier = Modifier // change size
      .width(64.dp)
      .height(64.dp),
  )
}

To avoid hardcoded sizes, you can use the values provided by EverliTheme:

@Composable
fun CoolIcon() {
  Icon(
    painter = EverliResources.Icons.AddCircle,
    contentDescription = "action more",
    tint = EverliColors.Red100, // change color
    modifier = Modifier // change size
      .width(EverliTheme.icon.size.medium) // from theme
      .height(EverliTheme.icon.size.medium),
  )
}

XML

Icons are used normally from /drawable inside XML or R.drawable in code.

<TextView
    style="@style/EverliTypography.Body.Regular"
    android:layout_width="18dp"
    android:layout_height="18dp"
    android:text="Hello"
    android:textColor="@color/black_100" />

You can also avoid hardcoded sizes by using the attributes from the theme:

<TextView
    style="@style/EverliTypography.Body.Regular"
    android:layout_width="?attr/iconSizeSmall"
    android:layout_height="?attr/iconSizeSmall"
    android:text="Hello"
    android:textColor="@color/black_100" />

EverliResource Enum

EverliResource is a utility class supposed to be used in your data layer if needed. It can be helpful when your backend provides it in data objects

🔧 Utilities

EverliResource.fromString() -> used to handle deserialization.

EverliResource.toPainter() -> used to convert to Compose Painter.

EverliResource.toResourceId() -> used to convert to XML resource id.

EverliResources.Images

In the first iteration of the library, we had a third category of resources, images. With time we decided to remove them BUT we still left the EverliResources.Images as an object to allow clients to extend them:

E.g. in you client app if you have an R.drawable.img_benefit_saving:

/*
  Images are not part of the design-system but we can still extend it to use the same [EverliResources] entry point
 */

val EverliResources.Images.BenefitSaving: Painter
  @Composable
  get() = painterResource(id = R.drawable.img_benefit_saving)

➕ Adding a new resource

It mainly involves following the usages mentioned above:

1. First is importing the svg as vector drawable
2. Then a new resource in EverliResources
3. Then a new enum value in EverliResource
4. Finally make sure you also converted EverliResource.toPainter() and EverliResource.toResourceId() and unit tests.
