Use ranged filtered markers in marker chart

[gregtatum]

This profile has a large amount of markers and is slow on rendering the marker chart. I switched it to use the getRangeSelectionFilteredTracingMarkers and things got fast again. The tests need fixing for this, so it's still WIP.

STR: Mouse over the markers in the marker chart.

Before:

[timing]    "markerChartCanvas render" took 3068ms to execute.
[timing]    "markerChartCanvas render" took 958ms to execute.
[timing]    "markerChartCanvas render" took 588ms to execute.
[timing]    "markerChartCanvas render" took 222ms to execute.
[timing]    "markerChartCanvas render" took 220ms to execute.
[timing]    "markerChartCanvas render" took 104ms to execute.
[timing]    "markerChartCanvas render" took 188ms to execute.
[timing]    "markerChartCanvas render" took 346ms to execute.

After:

[timing]    "markerChartCanvas render" took 12ms to execute.
[timing]    "markerChartCanvas render" took 10ms to execute.
[timing]    "markerChartCanvas render" took 8ms to execute.
[timing]    "markerChartCanvas render" took 4ms to execute.
[timing]    "markerChartCanvas render" took 6ms to execute.
[timing]    "markerChartCanvas render" took 10ms to execute.
[timing]    "markerChartCanvas render" took 6ms to execute.
[timing]    "markerChartCanvas render" took 8ms to execute.
[timing]    "markerChartCanvas render" took 6ms to execute.
[timing]    "markerChartCanvas render" took 8ms to execute.
[timing]    "markerChartCanvas render" took 6ms to execute.
[timing]    "markerChartCanvas render" took 8ms to execute.```

[julienw]

I believe this is the important change: we loop over marker timings in the chart. Even if we don't draw all of them, if we have a lot of markers merely looping through them can be costly.

The obvious drawback is that we'll have to regenerate the marker timings at each range change. I'd like that you measure the effect of changing the range on this. Maybe it's less costly to filter the marker timings using the range, rather than rebuild the marker timings from the markers filtered with the range (if you follow me). But I really don't know so we need to measure.

[julienw]

But for sure this is better to do this filtering here, in memoized selectors, rather than do it again and again in the react component.

[codecov]

Codecov Report

Merging #865 into master will increase coverage by 0.04%.
The diff coverage is 100%.

@@            Coverage Diff             @@
##           master     #865      +/-   ##
==========================================
+ Coverage   70.89%   70.94%   +0.04%
==========================================
  Files         141      141
  Lines        8325     8325
  Branches     1895     1895
==========================================
+ Hits         5902     5906       +4
+ Misses       2140     2137       -3
+ Partials      283      282       -1

Impacted Files	Coverage Δ
src/reducers/profile-view.js	94.04% <100%> (ø)	⬆️
src/components/marker-chart/index.js	88.23% <100%> (ø)	⬆️
src/test/fixtures/profiles/make-profile.js	98.56% <100%> (ø)	⬆️
src/profile-logic/profile-data.js	76.47% <0%> (-0.19%)	⬇️
src/components/marker-table/index.js	76.56% <0%> (+7.81%)	⬆️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 568aa80...054bf0d. Read the comment docs.

[gregtatum]

@julienw This is ready for review. I added a test for it. I also don't think the perf of running the selectors is critical as it's not on a hot path, and doesn't feel slow when I use the tool. I didn't include a profile of that as you commented.

[gregtatum]

@julienw looks like the ball is in your court on this one. I still need to rebase it.

[julienw]

Ah nice ! I don't remember why I missed it. I even feel like I looked at it already... anyway this is in my TODO now.

[julienw]

I'd like to look again at how this looks like after #1134 lands.

I think this is nice for the UI (less empty lines when we don't need them) but that it doesn't change much the performance as our performance in this chart is mainly driven by how much we draw to the canvas (which is what #1134 fixes in some situations, and what your patch was incidentally fixing).

[julienw]

I took some measurements with #1134:

• Loading the profile: https://perfht.ml/2LjtyVM (Note: I did it several times and didn't always get the same measurements, so take with a grain of salt; this one is after minimizing the memory)
• Hovering some markers to display their tooltips: https://perfht.ml/2LnusRf (zoomed in on one of the biggest hang -- slightly more than 100ms)
• Selecting a range (but not "committing" it) from the "2.7sec" range: https://perfht.ml/2uCBomo
• Moving back from 6ms to 2.7sec: https://perfht.ml/2LnLf6L
  I expect this is where this PR can change things for the worse.
• Moving back from 6ms to full range: https://perfht.ml/2uEVvA6
  Same consideration.
• Moving from full range to 6ms: https://perfht.ml/2uFnccb

The main benefit without this patch is that the MarkerTimings need to be computed only once at load time. The downside is that we need to compute them for all markers even if we display a part of it.

And now with both #1134 and this patch:

• Loading the profile: https://perfht.ml/2LlyxoO
  getMarkerTiming is now nearly absent, which was expected.
• Hovering some markers to display their tooltips: https://perfht.ml/2LhF6Mo
  We definitely see that drawMarkers is a lot less visible
• Selecting a range: https://perfht.ml/2LpSVFl
  Same here.
• Moving back from 6ms to 2.7sec: https://perfht.ml/2Lk4PRm
  I'm very surprised that drawOneMarker is much more visible. I retried this scenario several times, with and without the patch, but this is pretty consistent. This is as if we're drawing twice as much, but I don't see how this is possible... (unless I screwed up my rebase in some way ?)
• Moving back from 6ms to full range: https://perfht.ml/2LjbhYD
  We see the same thing happening. Also obviously getMarkerTiming needs to be recomputed, which takes time in this case. But if we can fix the issue with drawOneMarker I think this is acceptable.
• Moving from full range to 6ms: https://perfht.ml/2uE8vGn
  This one looks worse too, but I think this isn't significant.

When using it for real there doesn't seem to be very different performance characteristics with this PR. Although I'd like to understand why drawOneMarker is called more (?) for some scenarios, maybe there is something (else) fishy happening here.

UX difference

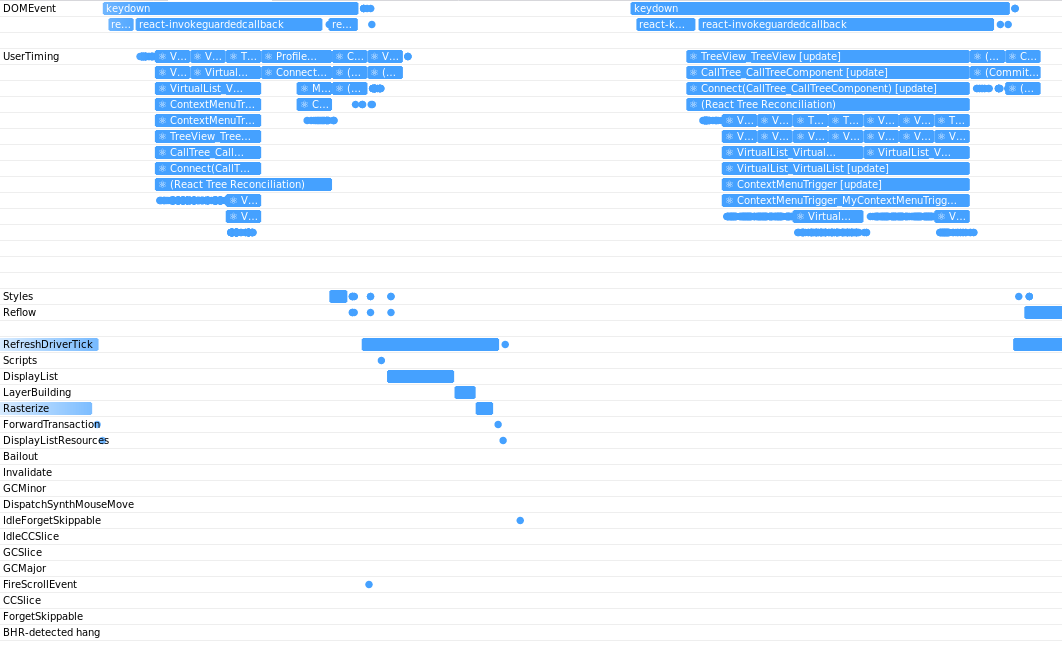

In terms of UX I prefer the behavior with this patch. Compare without the patch:

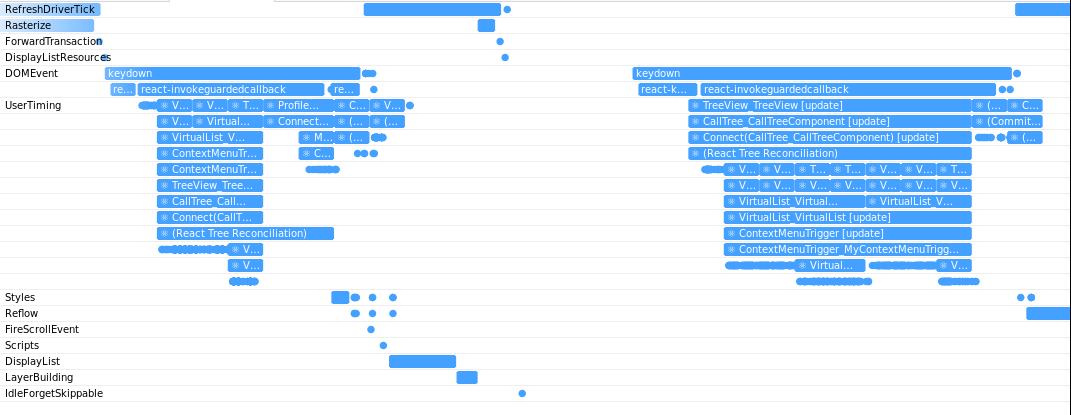

with the patch:

So I find the second behavior much cleaner.

[gregtatum]

Closing in favor of #1216.
