dotnet-matplotlib

A native .NET 10 port of Matplotlib — the de-facto 2D plotting library for Python — rebuilt in idiomatic F# following Object-Oriented and Domain-Driven Design principles.

A faithful port of Matplotlib's plotting model (Figure / Axes / Artist / Transform / Backend) with a familiar pyplot-style facade, producing publication-quality output with zero native dependencies — pure-managed SVG, PNG and PDF backends.

Gallery

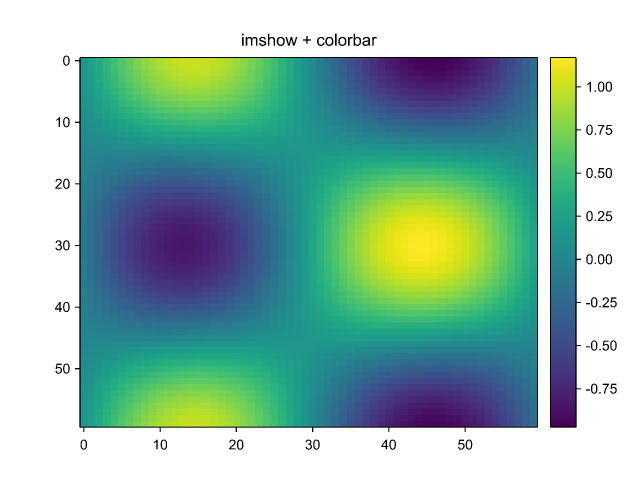

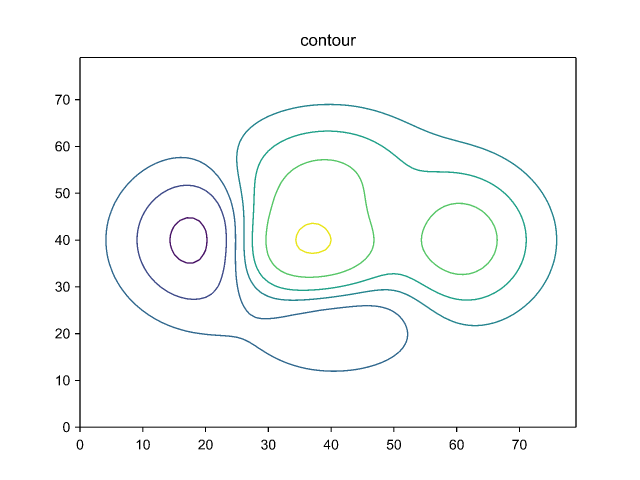

imshow + colorbar (viridis)	contour (marching squares)

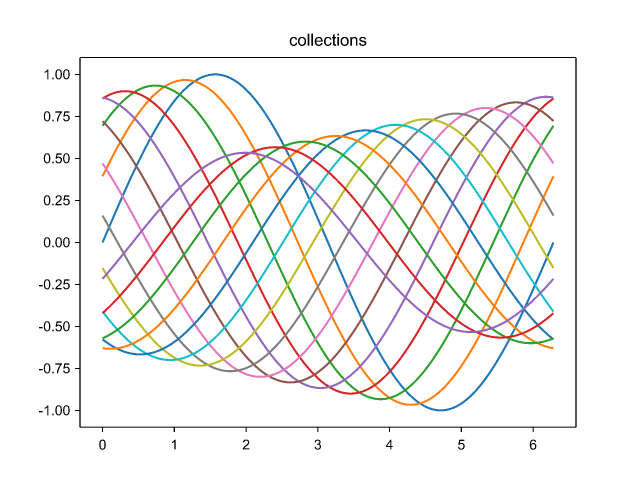

annotate + text	line collections

Install

dotnet add package DotnetMatplotlib

open Matplotlib

let plt = Pyplot()
plt.Plot([| 1.0; 2.0; 3.0; 4.0 |], [| 1.0; 4.0; 9.0; 16.0 |], color = "C0", label = "y = x^2")
|> ignore
plt.Title "Hello, dotnet-matplotlib"
plt.XLabel "x"
plt.YLabel "y"
plt.Legend()
plt.Savefig "hello.svg"

Output formats

Savefig chooses the format from the file extension. SVG, PNG and PDF are all pure-managed and cross-platform (zero native dependencies):

plt.Savefig "plot.svg"   // vector SVG
plt.Savefig "plot.png"   // raster PNG (software rasterizer, anti-aliased)
plt.Savefig "plot.pdf"   // vector PDF

Text uses TrueType fonts discovered from the system. To select a font, set the default family before plotting — the equivalent of Matplotlib's rcParams["font.family"]:

plt.FontFamily <- "serif"

Animations are written as looping GIFs:

// factory builds the Figure for each frame index
plt.SaveGif("wave.gif", 30, (fun i -> buildFrame i), fps = 20)

Interactive window

Figures can also be shown in a live window — the equivalent of Matplotlib's plt.show(). This is an opt-in, Windows-only backend (WinForms + GDI+) that lives in Matplotlib.Gui, so the default path stays free of any UI dependency:

open Matplotlib
open Matplotlib.Gui   // adds plt.Show()

let plt = Pyplot()
plt.Plot([| 0.0; 1.0; 2.0; 3.0 |], [| 0.0; 1.0; 4.0; 9.0 |], color = "C0") |> ignore
plt.Title "Hello, window"
plt.Show()            // opens a window and blocks until it is closed; resizes re-layout

Notebooks

In a .NET Interactive / Polyglot / Jupyter notebook, figures render inline as SVG:

#r "nuget: DotnetMatplotlib.Interactive"
open Matplotlib
Matplotlib.Interactive.Notebook.register ()   // once per session

let plt = Pyplot()
plt.Plot([| 0.0; 1.0; 2.0 |], [| 0.0; 1.0; 4.0 |], color = "C0") |> ignore
plt   // the cell value renders as an inline SVG plot

Browser (Blazor WebAssembly)

Because the library is pure-managed, it runs in the browser via .NET WebAssembly — no JavaScript charting library and no native dependencies. The standalone Blazor WASM demo renders plots as inline SVG client-side:

dotnet run --project samples/BlazorDemo

DataFrames

Plot directly from a Microsoft.Data.Analysis.DataFrame (pandas .plot() style):

dotnet add package DotnetMatplotlib.DataFrame

open Matplotlib.DataFrame   // adds df.PlotLine / PlotScatter / PlotBar / PlotHist

df.PlotLine("x", "y").Savefig "line.png"
df.PlotHist("value", 20).Savefig "hist.svg"

Each method plots the named column(s) and returns the Pyplot, so you can add a title or choose the output format. The same extension methods work from C#.

AI agents (MCP)

DotnetMatplotlib.Mcp is a Model Context Protocol server that lets AI agents create plots with this library. Install it as a .NET tool and point your MCP client at the matplotlib-mcp command:

dotnet tool install -g DotnetMatplotlib.Mcp

{
  "mcpServers": {
    "matplotlib": { "command": "matplotlib-mcp" }
  }
}

It exposes plot_line, scatter, bar and heatmap tools that render to a PNG / SVG / PDF file (chosen by the output extension) and return the saved path.

Features

• Plots: plot, scatter, bar/barh, fill_between, step, errorbar, stem
• Statistics & fields: hist2d, boxplot, violinplot, quiver, streamplot
• Images: imshow, pcolormesh with colormaps (viridis, gray, jet, hot) and colorbar
• Contours: contour (marching squares), contourf
• Patches & line/poly collections, hatching, the full marker set
• Legends (including automatic best placement), text & annotations
• Subplots with tight_layout / constrained_layout
• Scales: linear / log / symlog / logit; categorical & date axes
• 3D: plot3D, scatter3D, plot_wireframe
• Style sheets and rcParams parsing (ggplot, dark_background, …)
• Backends: SVG, PNG and PDF (pure-managed), an interactive window (Windows), and animated GIF
• Integrations: Microsoft.Data.Analysis DataFrames, .NET Interactive / Jupyter notebooks, an MCP server for AI agents, and Blazor WebAssembly (runs in the browser)

See PORTING.md for the parity log.

Building

Requires the .NET 10 SDK.

dotnet tool restore           # Fantomas (one-time)
dotnet build                  # whole solution (warnings are errors)
dotnet test                   # all tests
dotnet run --project samples/Gallery -- out   # render the sample gallery to ./out

Code style is enforced with Fantomas; the lint configuration is described in LINTING.md.

License

dotnet-matplotlib is released under the MIT license — see LICENSE.

Citation

Hunter, J. D. (2007). Matplotlib: A 2D graphics environment. Computing in Science & Engineering, 9(3), 90–95. https://doi.org/10.1109/MCSE.2007.55
