Adds counters to processed_variant and creates a wrapper for Beam counters. #125

bashir2 · 2018-02-28T21:13:46Z

Tested:

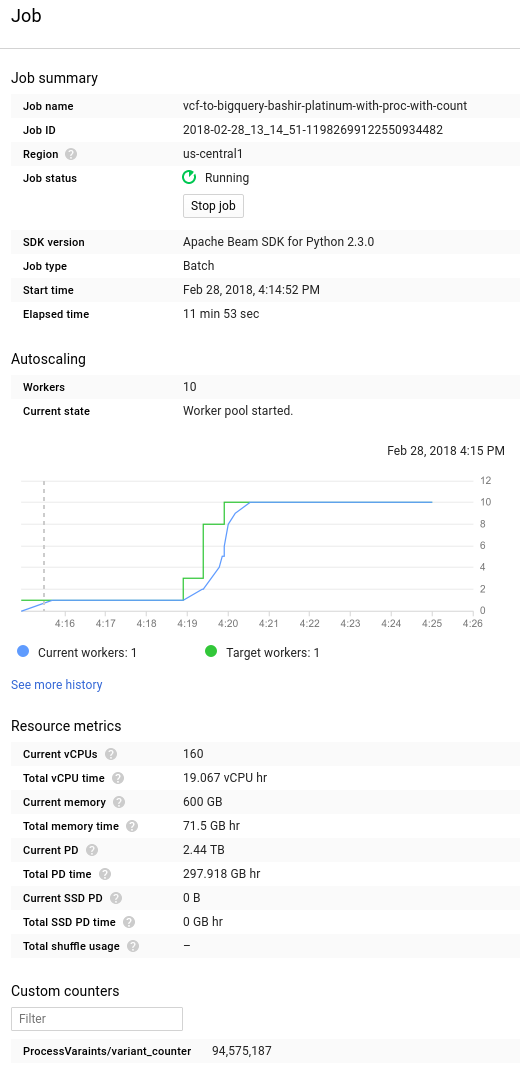

New unit-tests added; ran integration test; also ran manually on the platinum set (for performance).

Issue #81

coveralls · 2018-02-28T21:17:40Z

Pull Request Test Coverage Report for Build 403

97 of 116 (83.62%) changed or added relevant lines in 5 files are covered.
1 unchanged line in 1 file lost coverage.
Overall coverage decreased (-0.02%) to 90.184%

Changes Missing Coverage	Covered Lines	Changed/Added Lines	%
gcp_variant_transforms/libs/metrics_util.py	27	35	77.14%
gcp_variant_transforms/vcf_to_bq.py	1	12	8.33%

Files with Coverage Reduction	New Missed Lines	%
gcp_variant_transforms/vcf_to_bq.py	1	51.24%

Totals
Change from base Build 401:	-0.02%
Covered Lines:	3179
Relevant Lines:	3525

💛 - Coveralls

bashir2 · 2018-02-28T21:45:02Z

Folks, this PR does not really need two reviews. I have added you both to take a look at how I have implemented counter utils in case that you also need to use it for other features. In my experience, counters and other metrics are a great way of reporting/monitoring issues/progress of a pipeline. Note that these counters are exposed in the Dataflow dashboard too while the job is running (see attached snapshot), so it is not just in the final logs.

bashir2 · 2018-02-28T21:46:14Z

nmousavi · 2018-03-02T19:41:34Z

gcp_variant_transforms/libs/beam_util.py

+    """
+    counter_filter = MetricsFilter().with_name(self._counter_name)
+    query_result = pipeline_result.metrics().query(counter_filter)
+    if query_result['counters']:


make 'counters' a constant?

nmousavi · 2018-03-02T19:42:42Z

gcp_variant_transforms/libs/beam_util.py

+    if query_result['counters']:
+      counter = query_result['counters'][0]
+      return counter.committed
+    return 0


When does this happen? Does it make sense to log error too or not? Any risk on silently returnin zero?

The main case in which this can happen without a bug, is when we have a counter, for example for counting error/warning cases (like the annotation_alt_mismatch_counter I have added in this PR) and there are none of those particular errors. So this counter is never registered in the Beam Metrics for legitimate reasons.

arostamianfar · 2018-03-02T20:32:01Z

gcp_variant_transforms/libs/beam_util_test.py

+# don't own (i.e., they are in our upstream dependency) but filling a counter
+# and connecting it to PipelineResults properly seems excessive for this test.
+class MockMetrics(object):
+  def __init__(self):


nit: please add a blank link before every def (here and everywhere).

Done.
Are you aware of a way to tell pylint to catch this? I prefer style related issues being caught by tools as much as possible.

+1 for pylint to catch this, but I don't know how to do it. Can you please look into adding it?

nmousavi · 2018-03-02T20:46:29Z

gcp_variant_transforms/libs/beam_util.py

+    """Extracts and returns the value of this counter.
+
+    Note that this goes through all counters every time it is called to find the
+    matching counter (see `query` implementation). So if the goal is to just


What use case do you envision for get_counter()? Is it used in PR#126 (it's not used in this PR)?

You are right that it is not used in this PR (and not even PR #126) except in unit-tests. But I originally started by logging the counters one by one and that is useful in those cases. Since it is also unit-tested and the logic is not trivial (it took me some time to find what is the right way of getting a single counter value), I decided to keep it but if you feel strongly about it, I can remove it either.

Yes, I think it's a good practice to remove unused code, otherwise we will end up with unused code, no one remember about it. Can we put what you found valuable in the comment instead?

Done.
For now I just removed it.

nmousavi · 2018-03-02T20:47:37Z

gcp_variant_transforms/libs/beam_util.py

+_METRICS_NAME_SPACE = 'VT_metrics_name_space'
+
+
+class BaseCounter(object):


Not sure what value this base class adds here (esp. in python world)? :)

Well, you already know I am not a big fan developing software "the Python way" :-)

But on a more serious note, this is basically the interface for all Counter implementations. It serves two needs:

Our library methods do not need to depend on anything Beam specific. So for example ProcessedVariant constructor takes a BaseCounterFactory by default. I could set the default to None there but then I should have had "if not None ..." anywhere inside that code that I needed to use the counters (this is the design pattern).

It makes it easy for downstream code to be unit-tested. For example in processed_variant_test.py a CounterMock implements this interface and then is fed easily into the ProcessedVariant test objects.

You don't need inheritance for the benefits you mentioned, do you? Define the child and test (and if you really need a no-op) class as before just without inheritance and it works. I'll leave it to you if you prefer this way. :)

So as discussed offline, the benefit of BaseCounter is that (i) as an interface it documents the intended API of Counter implementations (we can also impose it to some extent in Python with "types" we are adding) and (ii) Having a base implementation let us implement the Null object pattern easily.

nmousavi · 2018-03-02T20:57:21Z

gcp_variant_transforms/vcf_to_bq.py

+  result = pipeline.run()
+  result.wait_until_finish()
+
+  beam_util.log_all_counters(result)


For my information: since it was the first use of beam counter in this code base (right?), I am wondering what were the motivations behind it? :)

Right this is the first use and I have tried to make subsequent uses simple by adding the beam_util library.

Part of the motivation is what I mentioned in my first comments after sending the PR (I am not sure if GitHub sent you emails for that, if not please take a look at them in the UI, in particular the snapshot I have attached from Dataflow dashboard). There are at least two benefits:

In error/warning cases, (e.g., annotation_alt_mismatch_counter) it is hard to find/monitor those through logs since each worker has its own logs (I am not even sure if the Dataflow/Stackdriver dashboards easily expose those logs but certainly you could get them in the Borg world). One higher level way is to count those cases and log them at the end. So at least one can easily/quickly check if their job ran error/warning free.

Non-error counters can be used for monitoring the progress of the job. For example, I vaguely know that there are N variants in my input and through Dataflow dashboard pipeline I can see live how many of those records have been processed. It is needless to say that monitoring error counters is also very useful: If I get too many errors while the pipeline is running I can stop it early and investigate the issue instead of waiting until it finished and potentially produce garbage results.

nmousavi · 2018-03-02T21:01:50Z

gcp_variant_transforms/libs/beam_util.py

+
+
+class CounterFactory(BaseCounterFactory):
+  def create_counter(self, counter_name):


Why not just calling ctor in the client code? :)

Because the client class (e.g., ProcessedVariantFactory) will become attached to a particular implementation. That will reduce modularity and will make unit-testing more difficult (I know, I know, in Python you can overwrite everything :-) ). This is basically the factory pattern.

Similar to the above, I am not sure if the base class and factory is needed. Another option is to pass fn obj that calls ctor in client code. Leave it to you if you prefer this design. :)

So in this case, again as discussed offline, I am making this a pure interface and removing the default implementation. I think the "fn obj" method you mentioned works too but I prefer to use interfaces to make it more similar to usual object oriented design patterns (the main advantage of the interface in this case is its documentation and pseudo-type enforcement).

nmousavi

Nice PR, Bashir! Just few comments on the design choices in beam_util.

bashir2

Thanks for the review. PTAL.

bashir2 · 2018-03-02T22:54:55Z

gcp_variant_transforms/libs/beam_util.py

+_METRICS_NAME_SPACE = 'VT_metrics_name_space'
+
+
+class BaseCounter(object):


Well, you already know I am not a big fan developing software "the Python way" :-)

But on a more serious note, this is basically the interface for all Counter implementations. It serves two needs:

Our library methods do not need to depend on anything Beam specific. So for example ProcessedVariant constructor takes a BaseCounterFactory by default. I could set the default to None there but then I should have had "if not None ..." anywhere inside that code that I needed to use the counters (this is the design pattern).

It makes it easy for downstream code to be unit-tested. For example in processed_variant_test.py a CounterMock implements this interface and then is fed easily into the ProcessedVariant test objects.

bashir2 · 2018-03-02T23:00:40Z

gcp_variant_transforms/libs/beam_util.py

+    """Extracts and returns the value of this counter.
+
+    Note that this goes through all counters every time it is called to find the
+    matching counter (see `query` implementation). So if the goal is to just


You are right that it is not used in this PR (and not even PR #126) except in unit-tests. But I originally started by logging the counters one by one and that is useful in those cases. Since it is also unit-tested and the logic is not trivial (it took me some time to find what is the right way of getting a single counter value), I decided to keep it but if you feel strongly about it, I can remove it either.

bashir2 · 2018-03-02T23:23:27Z

gcp_variant_transforms/libs/beam_util.py

+    """
+    counter_filter = MetricsFilter().with_name(self._counter_name)
+    query_result = pipeline_result.metrics().query(counter_filter)
+    if query_result['counters']:


bashir2 · 2018-03-02T23:26:23Z

gcp_variant_transforms/libs/beam_util.py

+    if query_result['counters']:
+      counter = query_result['counters'][0]
+      return counter.committed
+    return 0


The main case in which this can happen without a bug, is when we have a counter, for example for counting error/warning cases (like the annotation_alt_mismatch_counter I have added in this PR) and there are none of those particular errors. So this counter is never registered in the Beam Metrics for legitimate reasons.

bashir2 · 2018-03-02T23:33:07Z

gcp_variant_transforms/libs/beam_util.py

+
+
+class CounterFactory(BaseCounterFactory):
+  def create_counter(self, counter_name):


Because the client class (e.g., ProcessedVariantFactory) will become attached to a particular implementation. That will reduce modularity and will make unit-testing more difficult (I know, I know, in Python you can overwrite everything :-) ). This is basically the factory pattern.

bashir2 · 2018-03-02T23:34:36Z

gcp_variant_transforms/libs/beam_util_test.py

+# don't own (i.e., they are in our upstream dependency) but filling a counter
+# and connecting it to PipelineResults properly seems excessive for this test.
+class MockMetrics(object):
+  def __init__(self):


Done.
Are you aware of a way to tell pylint to catch this? I prefer style related issues being caught by tools as much as possible.

bashir2 · 2018-03-02T23:41:39Z

gcp_variant_transforms/vcf_to_bq.py

+  result = pipeline.run()
+  result.wait_until_finish()
+
+  beam_util.log_all_counters(result)


Right this is the first use and I have tried to make subsequent uses simple by adding the beam_util library.

Part of the motivation is what I mentioned in my first comments after sending the PR (I am not sure if GitHub sent you emails for that, if not please take a look at them in the UI, in particular the snapshot I have attached from Dataflow dashboard). There are at least two benefits:

In error/warning cases, (e.g., annotation_alt_mismatch_counter) it is hard to find/monitor those through logs since each worker has its own logs (I am not even sure if the Dataflow/Stackdriver dashboards easily expose those logs but certainly you could get them in the Borg world). One higher level way is to count those cases and log them at the end. So at least one can easily/quickly check if their job ran error/warning free.

Non-error counters can be used for monitoring the progress of the job. For example, I vaguely know that there are N variants in my input and through Dataflow dashboard pipeline I can see live how many of those records have been processed. It is needless to say that monitoring error counters is also very useful: If I get too many errors while the pipeline is running I can stop it early and investigate the issue instead of waiting until it finished and potentially produce garbage results.

bashir2 · 2018-03-02T23:58:07Z

Oops, sorry that commits from my development branch leaked into this review branch :-)
To only view the changes since your last review, check this commit.

arostamianfar

Some comments about the design of the file/classes. I like the factory pattern :)

arostamianfar · 2018-03-05T22:13:34Z

gcp_variant_transforms/libs/beam_util.py

+from apache_beam.metrics.metric import MetricsFilter
+
+_METRICS_NAME_SPACE = 'VT_metrics_name_space'
+_COUNTERS = 'counters'


Please provide comments about the context of these constants.

arostamianfar · 2018-03-05T22:15:04Z

gcp_variant_transforms/libs/beam_util.py

@@ -0,0 +1,97 @@
+# Copyright 2018 Google Inc.  All Rights Reserved.


Should this file be named counters_util or counter_factory(preferred) instead? In general, we should aim to limit the scope of 'util' classes as they can become a bag of unrelated stuff over time.

I thought we will have more little Beam related things that do not warrant a separate file, but I also see your concern about "util bags". For now, I changed this to metrics_util (as a minimum this can include other metrics too, not just counters) and we can rename again depending on future needs (it is probably not a great idea to create a separate file+test-file for each little util thing as well).

arostamianfar · 2018-03-05T22:18:14Z

gcp_variant_transforms/libs/beam_util.py

+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+"""Wrapper for Beam classes, e.g., Metrics.


As mentioned above, I think we should limit the scope of this file. It's ok to have multiple files that specialize for each function.
Please also add an example of how classes in this file should be used as there are several classes and their connection is not trivial.

arostamianfar · 2018-03-05T22:20:01Z

gcp_variant_transforms/libs/beam_util.py

+class BaseCounter(object):
+  """The interface of counter objects which does nothing.
+
+  This also acts as a nop implementation.


Is there any value of providing a no-op implementation? I think it's better to raise NotImplementError in inc instead so that it forces subclasses to override (i.e. actually become an 'interface'). Can also rename BaseCounter to CounterInterface if we expect all methods to be abstract.

Yes, there is value in this no-op implementation and it is to avoid checking for None (null) everywhere in the code where counters are used. This is the Null object pattern.

arostamianfar · 2018-03-05T22:21:58Z

gcp_variant_transforms/libs/beam_util.py

+    if query_result[_COUNTERS]:
+      counter = query_result[_COUNTERS][0]
+      return counter.committed
+    return 0


I wonder if it's better to return None instead to distinguish between a case there the counter is not there vs. it's actually 0 (if that matters)? Also, please add a brief comment about when this would happen.

Let's keep it simple for now and return 0, there is very subtle difference between None and 0 in this context and let's leave this until there is a real use for this. Also this will happen, when for example counter.inc() has never been called on that counter, it does not mean that it is not referenced anywhere in the code for example (that's why I said the difference is very subtle).

arostamianfar · 2018-03-05T22:23:00Z

gcp_variant_transforms/libs/beam_util.py

+    return 0
+
+
+class BaseCounterFactory(object):


Should this become an interface with abstract methods as well?

Same reason as before: Null object pattern.

arostamianfar · 2018-03-05T22:29:29Z

gcp_variant_transforms/libs/processed_variant.py

+      header_fields,  # type: vcf_header_parser.HeaderFields
+      split_alternate_allele_info_fields=True,  # type: bool
+      annotation_fields=None,  # type: List[str]
+      counter_factory=beam_util.BaseCounterFactory()


Please do not use mutable objects as default values as it can have unexpected characteristics: http://docs.python-guide.org/en/latest/writing/gotchas/
You can set this to None and then initialize to counter_factory or beam_util.BaseCounterFactory() in the method. Or just make it a required field?

What is mutable in BaseCounterFactory? As I said this is exactly to avoid checking for "None" everywhere these objects are accessed.
BTW, that gotchas link was mentioned in another review comment between us recently, remember? :-)

Thinking a little more about this, while BaseCounterFactory is semantically immutable but I suppose in Python a rogue function can mutate anything passed to it (e.g., by accessing __dict__) and so cause confusing bugs (for that very function/class). If that is the concern, I can make counter_factory's default value None and check for None only in constructor. Still I will keep BaseCounter as a no-op implementation and if no counter_factory is passed to the class, use instances of BaseCounter to initialize member counters. Please let me know which way you prefer (so in that case BaseCounterFactory will become CounterFactoryInterface with no implementation but BaseCounter will be kept the way it is).

For the record, I went with the second option that I suggested to make sure this is safe. The code is not as clean as it used to be but I think that is fine. If you have more comments, please let me know and I will fix in future PRs.

arostamianfar · 2018-03-05T22:31:53Z

gcp_variant_transforms/libs/processed_variant.py


 _FIELD_COUNT_ALTERNATE_ALLELE = 'A'
+# Counter names
+_VARIANT_COUNTER = 'variant_counter'


Consider creating a class for this to group them together. You can also remove the _COUNTER suffix in that case (we use this pattern in other files like BigQuery constants).

bashir2

Thanks for the comments, PTAL.

bashir2 · 2018-03-06T05:14:00Z

gcp_variant_transforms/libs/beam_util.py

@@ -0,0 +1,97 @@
+# Copyright 2018 Google Inc.  All Rights Reserved.


I thought we will have more little Beam related things that do not warrant a separate file, but I also see your concern about "util bags". For now, I changed this to metrics_util (as a minimum this can include other metrics too, not just counters) and we can rename again depending on future needs (it is probably not a great idea to create a separate file+test-file for each little util thing as well).

bashir2 · 2018-03-06T05:20:47Z

gcp_variant_transforms/libs/beam_util.py

+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+"""Wrapper for Beam classes, e.g., Metrics.


bashir2 · 2018-03-06T05:20:57Z

gcp_variant_transforms/libs/beam_util.py

+from apache_beam.metrics.metric import MetricsFilter
+
+_METRICS_NAME_SPACE = 'VT_metrics_name_space'
+_COUNTERS = 'counters'


bashir2 · 2018-03-06T05:36:42Z

gcp_variant_transforms/libs/beam_util.py

+class BaseCounter(object):
+  """The interface of counter objects which does nothing.
+
+  This also acts as a nop implementation.


Yes, there is value in this no-op implementation and it is to avoid checking for None (null) everywhere in the code where counters are used. This is the Null object pattern.

bashir2 · 2018-03-06T05:40:40Z

gcp_variant_transforms/libs/beam_util.py

+    if query_result[_COUNTERS]:
+      counter = query_result[_COUNTERS][0]
+      return counter.committed
+    return 0


Let's keep it simple for now and return 0, there is very subtle difference between None and 0 in this context and let's leave this until there is a real use for this. Also this will happen, when for example counter.inc() has never been called on that counter, it does not mean that it is not referenced anywhere in the code for example (that's why I said the difference is very subtle).

bashir2 · 2018-03-06T05:41:07Z

gcp_variant_transforms/libs/beam_util.py

+    return 0
+
+
+class BaseCounterFactory(object):


Same reason as before: Null object pattern.

bashir2 · 2018-03-06T05:41:40Z

gcp_variant_transforms/libs/processed_variant.py


 _FIELD_COUNT_ALTERNATE_ALLELE = 'A'
+# Counter names
+_VARIANT_COUNTER = 'variant_counter'


bashir2 · 2018-03-06T05:44:06Z

gcp_variant_transforms/libs/processed_variant.py

+      header_fields,  # type: vcf_header_parser.HeaderFields
+      split_alternate_allele_info_fields=True,  # type: bool
+      annotation_fields=None,  # type: List[str]
+      counter_factory=beam_util.BaseCounterFactory()


What is mutable in BaseCounterFactory? As I said this is exactly to avoid checking for "None" everywhere these objects are accessed.
BTW, that gotchas link was mentioned in another review comment between us recently, remember? :-)

bashir2 · 2018-03-06T06:22:41Z

BTW, main changes since last review can be seen in this commit (barring the beam_util->metrics_util rename).

nmousavi

LGTM and few minor comments which I leave them to you to decide. Nice Work!

bashir2

Thanks for the comments. PTAL.

bashir2 · 2018-03-06T20:13:12Z

gcp_variant_transforms/libs/beam_util.py

+_METRICS_NAME_SPACE = 'VT_metrics_name_space'
+
+
+class BaseCounter(object):


So as discussed offline, the benefit of BaseCounter is that (i) as an interface it documents the intended API of Counter implementations (we can also impose it to some extent in Python with "types" we are adding) and (ii) Having a base implementation let us implement the Null object pattern easily.

bashir2 · 2018-03-06T20:14:21Z

gcp_variant_transforms/libs/beam_util.py

+    """Extracts and returns the value of this counter.
+
+    Note that this goes through all counters every time it is called to find the
+    matching counter (see `query` implementation). So if the goal is to just


Done.
For now I just removed it.

bashir2 · 2018-03-06T20:20:56Z

gcp_variant_transforms/libs/beam_util.py

+
+
+class CounterFactory(BaseCounterFactory):
+  def create_counter(self, counter_name):


So in this case, again as discussed offline, I am making this a pure interface and removing the default implementation. I think the "fn obj" method you mentioned works too but I prefer to use interfaces to make it more similar to usual object oriented design patterns (the main advantage of the interface in this case is its documentation and pseudo-type enforcement).

bashir2 · 2018-03-06T20:39:02Z

gcp_variant_transforms/libs/processed_variant.py

+      header_fields,  # type: vcf_header_parser.HeaderFields
+      split_alternate_allele_info_fields=True,  # type: bool
+      annotation_fields=None,  # type: List[str]
+      counter_factory=beam_util.BaseCounterFactory()


For the record, I went with the second option that I suggested to make sure this is safe. The code is not as clean as it used to be but I think that is fine. If you have more comments, please let me know and I will fix in future PRs.

bashir2 · 2018-03-06T20:50:12Z

Nima, to see the changed since your last review, you can check this commit.

nmousavi

Second LGTM :-)

bashir2 · 2018-03-07T00:19:37Z

@nmousavi re. get_counter() that I said I removed it: FYI, after merging this into PR #126 I realized it is used for tests and they are valuable, so I kept the function in this PR. Sorry when you asked if it is used anywhere I forgot about that use case.

bashir2 · 2018-03-07T01:40:16Z

@nmousavi please ignore my last comment about get_counter(). It is not used in production code and I removed it as you suggested.

arostamianfar

Thanks for the changes, Bashir! Added a few more comments on the design (as this PR will form the basis of our counters, I want to ensure we have the best possible design).

arostamianfar · 2018-03-06T21:28:23Z

gcp_variant_transforms/libs/metrics_util.py

+
+
+class CounterFactory(CounterFactoryInterface):
+  def create_counter(self, counter_name):


nit: Please add a blank line before the def here as well.

arostamianfar · 2018-03-07T04:03:40Z

gcp_variant_transforms/libs/metrics_util.py

+class BaseCounter(object):
+  """The interface of counter objects which does nothing.
+
+  This also acts as a no-op implementation such that classes that need to


I think a better design is to make this an interface (i.e. raise NotImplementedError) and instead make a NoOp/NullCounter class that has all methods as pass. That way, you initialize the counters as NoOpCounter classes, which makes their functions more clear (usually "Base" implies an abstract class that shouldn't be used directly).
Having said that, I think ideally there shouldn't be any need for the null counter since you should be able to instantiate classes appropriately, but perhaps I'm missing something.

arostamianfar · 2018-03-07T04:06:45Z

gcp_variant_transforms/libs/metrics_util.py

+class CounterFactoryInterface(object):
+  """The interface for counter factories."""
+
+  def create_counter(self, _):


Please use the full variable name here instead of _ as the signature of the method should be clear in abstract classes.

arostamianfar · 2018-03-07T04:14:24Z

gcp_variant_transforms/libs/metrics_util.py

+from apache_beam.metrics.metric import MetricsFilter
+
+# The name space in which all metrics created by this class are.
+_METRICS_NAME_SPACE = 'VT_metrics_name_space'


nit: s/NAME_SPACE/NAMESPACE and s/name_space/namespace (I noticed that the Beam api has with_namespace, so we should be consistent).

arostamianfar · 2018-03-07T04:18:03Z

gcp_variant_transforms/vcf_to_bq.py

      known_args.split_alternate_allele_info_fields,
-      known_args.annotation_fields)
+      known_args.annotation_fields,
+      metrics_util.CounterFactory())


To clarify (as I don't know about the internals of Beam counters): if another module wants to use counters, does it need to use the same factory? If so, please instantiate this outside of this method so that it can be reused easily. If not, why even pass that in as an argument as it can be instantiated within the class? If it is solely used for testing, you can use python's patch feature instead of passing the argument in. This can also avoid the null counter case.

CounterFactory is completely stateless and can be instantiated many times.
The reason it is passed is exactly to avoid direct instantiation inside the ProcessedVariantFactory class to avoid tying it to a particular implementation. Instead, ProcessedVariantFactory only knows/expects the interface of the factory method with no information of what implementation is actually used.

I think this is the root of our difference on this design. Direct instantiation of classes in a constructor, specially those that we like to hide their implementation (e.g., Counters and its Factory in this case) is not a good idea. I shared this writing before in a review thread as well and I appreciate if you take a look (at least glance through it and check the last section before codes/comments which is "Fixing the flaw"). As I said before, I know that not all of it applies to Python but in general, I have found injecting factories a good design pattern to have modular code.

Now, you may disagree to the general pattern or the particular usage here. In either case, please let me know and I will reduce the whole beam_util module to a single CounterWrapper class, removing all other factory/interface/no no-op details (if I want to instantiate a particular implementation why even bother with factories?). I don't think that is a good design but let's move on. I don't believe there is a "best design" and I don't want this PR to be blocked more. I am fine either way.

Thanks for sharing the doc. Sorry I missed it originally. I like the factory design pattern and now see your point about keeping the constructor light. I'd still prefer to create one instance of the factory and passing that in to any module that wants to use counters (instead of each module creating their own instance in the method call), but feel free to leave as is for now.

arostamianfar · 2018-03-07T04:21:13Z

gcp_variant_transforms/libs/metrics_util.py

+import logging
+
+from apache_beam.runners import runner  # pylint: disable=unused-import
+from apache_beam.metrics import Metrics


nit: please import the metrics module instead of actual classes.

arostamianfar · 2018-03-07T04:27:45Z

gcp_variant_transforms/libs/metrics_util.py

+of classes in this module should be injected into library classes/methods
+instead of direct instantiation. For example:
+
+class CounterUser(object):


I think this example is confusing as the main way of using this module is like this?

factory = CounterFactory() my_counter = factory.create_counter('my_counter_name') my_counter.inc(4)

...or I'm not sure what your example is trying to demonstrate.

The pattern is "injecting the dependency" and that is what the comment said. I changed the example as I originally thought you want an example of the recommended pattern not how to use the counter. But if we don't want to inject the dependency (which you have suggested in other comments), I am not sure what the value of the factory class is and we should probably remove that too.

arostamianfar · 2018-03-07T04:37:29Z

gcp_variant_transforms/libs/processed_variant_test.py

 from gcp_variant_transforms.libs import processed_variant
 from gcp_variant_transforms.libs import vcf_header_parser

+class CounterMock(metrics_util.BaseCounter):


Have you considered using python's mock.patch feature instead? We use them here (I think we had more use cases that got deleted as part of some refactorings). It's pretty powerful and it's the 'pythonic' way of doing mocks.
If using patch is not feasible, then consider defining these under the testing/ dir so that they can be used by any module (and please rename them as MockCounter and MockCounterFactory).

No I did not consider that, thanks for pointing that out. From a quick glance, I think that can be used here too but I have not changed this here yet as I want to first resolve the bigger question on dependency injection and then I will make the modifications here accordingly.

arostamianfar · 2018-03-07T04:40:23Z

gcp_variant_transforms/libs/processed_variant_test.py

        processed_variant.AlternateBaseData(a) for a in ['A', 'TT']]
    self.assertEqual([proc_var_synthetic], [proc_var])
+    self.assertEqual(counter_factory.counter_map[
+        processed_variant._CounterEnum.VARIANT.value].get_value(), 1)


Consider creating an alias for _CounterEnum so that it becomes shorter and you don't need as much line breaks. We have adopted the style of importing _CounterEnum as CounterEnum to make it look 'public' for tests (that's the only exception for directly importing classes in our code).

This is already done in the third PR (#131), so I prefer to leave it for there to get less merge conflicts.

bashir2

Thanks for the comments. I have not addressed all because I want to make sure we are on the same page re. the design first. Once that is done I will make other changes accordingly.

PTAL.

To see the changes since last review, check this commit.

bashir2 · 2018-03-07T18:25:37Z

gcp_variant_transforms/libs/metrics_util.py

+import logging
+
+from apache_beam.runners import runner  # pylint: disable=unused-import
+from apache_beam.metrics import Metrics


bashir2 · 2018-03-07T18:28:39Z

gcp_variant_transforms/libs/metrics_util.py

+of classes in this module should be injected into library classes/methods
+instead of direct instantiation. For example:
+
+class CounterUser(object):


The pattern is "injecting the dependency" and that is what the comment said. I changed the example as I originally thought you want an example of the recommended pattern not how to use the counter. But if we don't want to inject the dependency (which you have suggested in other comments), I am not sure what the value of the factory class is and we should probably remove that too.

bashir2 · 2018-03-07T18:43:27Z

gcp_variant_transforms/libs/metrics_util.py

+from apache_beam.metrics.metric import MetricsFilter
+
+# The name space in which all metrics created by this class are.
+_METRICS_NAME_SPACE = 'VT_metrics_name_space'


bashir2 · 2018-03-07T18:52:46Z

gcp_variant_transforms/libs/metrics_util.py

+class BaseCounter(object):
+  """The interface of counter objects which does nothing.
+
+  This also acts as a no-op implementation such that classes that need to


bashir2 · 2018-03-07T18:57:22Z

gcp_variant_transforms/libs/metrics_util.py

+class CounterFactoryInterface(object):
+  """The interface for counter factories."""
+
+  def create_counter(self, _):


bashir2 · 2018-03-07T18:58:22Z

gcp_variant_transforms/libs/metrics_util.py

+
+
+class CounterFactory(CounterFactoryInterface):
+  def create_counter(self, counter_name):


bashir2 · 2018-03-07T19:01:16Z

gcp_variant_transforms/libs/processed_variant_test.py

        processed_variant.AlternateBaseData(a) for a in ['A', 'TT']]
    self.assertEqual([proc_var_synthetic], [proc_var])
+    self.assertEqual(counter_factory.counter_map[
+        processed_variant._CounterEnum.VARIANT.value].get_value(), 1)


This is already done in the third PR (#131), so I prefer to leave it for there to get less merge conflicts.

bashir2 · 2018-03-07T19:11:04Z

gcp_variant_transforms/vcf_to_bq.py

      known_args.split_alternate_allele_info_fields,
-      known_args.annotation_fields)
+      known_args.annotation_fields,
+      metrics_util.CounterFactory())


CounterFactory is completely stateless and can be instantiated many times.
The reason it is passed is exactly to avoid direct instantiation inside the ProcessedVariantFactory class to avoid tying it to a particular implementation. Instead, ProcessedVariantFactory only knows/expects the interface of the factory method with no information of what implementation is actually used.

I think this is the root of our difference on this design. Direct instantiation of classes in a constructor, specially those that we like to hide their implementation (e.g., Counters and its Factory in this case) is not a good idea. I shared this writing before in a review thread as well and I appreciate if you take a look (at least glance through it and check the last section before codes/comments which is "Fixing the flaw"). As I said before, I know that not all of it applies to Python but in general, I have found injecting factories a good design pattern to have modular code.

Now, you may disagree to the general pattern or the particular usage here. In either case, please let me know and I will reduce the whole beam_util module to a single CounterWrapper class, removing all other factory/interface/no no-op details (if I want to instantiate a particular implementation why even bother with factories?). I don't think that is a good design but let's move on. I don't believe there is a "best design" and I don't want this PR to be blocked more. I am fine either way.

bashir2 · 2018-03-07T19:31:56Z

gcp_variant_transforms/libs/processed_variant_test.py

 from gcp_variant_transforms.libs import processed_variant
 from gcp_variant_transforms.libs import vcf_header_parser

+class CounterMock(metrics_util.BaseCounter):


No I did not consider that, thanks for pointing that out. From a quick glance, I think that can be used here too but I have not changed this here yet as I want to first resolve the bigger question on dependency injection and then I will make the modifications here accordingly.

arostamianfar

Thanks for the clarifications, Bashir. I think this looks good. Just a few nits and one comment about making it easier for other modules to use the counters.

arostamianfar · 2018-03-08T16:01:08Z

gcp_variant_transforms/vcf_to_bq.py

      known_args.split_alternate_allele_info_fields,
-      known_args.annotation_fields)
+      known_args.annotation_fields,
+      metrics_util.CounterFactory())


Thanks for sharing the doc. Sorry I missed it originally. I like the factory design pattern and now see your point about keeping the constructor light. I'd still prefer to create one instance of the factory and passing that in to any module that wants to use counters (instead of each module creating their own instance in the method call), but feel free to leave as is for now.

arostamianfar · 2018-03-08T16:03:10Z

gcp_variant_transforms/libs/metrics_util.py

+    """Subclass implementations should do increment by `n`."""
+    raise NotImplementedError
+
+class NoOpCounter(object):


nit: please use two blank lines before class defs.

arostamianfar · 2018-03-08T16:06:05Z

gcp_variant_transforms/libs/metrics_util.py

+
+This is an example of how to use the factory and counter objects:
+
+factory = CounterFactory()


nit: please put this block in triple backquotes (I believe they will get translated to actual code blocks once we generate pydocs).

arostamianfar · 2018-03-08T16:15:07Z

gcp_variant_transforms/libs/metrics_util.py

+    """Subclass implementations should do increment by `n`."""
+    raise NotImplementedError
+
+class NoOpCounter(object):


This should inherit from CounterInterface?

Indeed! And of course Python is totally okay with it either way :-)

arostamianfar · 2018-03-08T16:23:02Z

gcp_variant_transforms/libs/processed_variant.py

    self._split_alternate_allele_info_fields = (
        split_alternate_allele_info_fields)
    self._annotation_field_set = set(annotation_fields or [])
+    if counter_factory:


Considering that we do want to keep the NoOp counters, what do you think of creating a NoOpCounterFactory as well that returns the NoOpCounter? You can then just have a line counter_factory = counter_factory or NoOpCounterFactory() and you don't need two cases anymore. This pattern can be applied to any other module that wants to use counters as well. P.S. "by induction", you can make NoOpCounter private as well in this pattern :)

I have already done this in the third PR because dealing with null objects was getting too ugly there. But did not want to add it back here since you asked for its removal :-) Now that we are on the same page even here, I added it back.

bashir2

Thanks for the comments. PTAL.

To view only the changes since last review, please check this commit.

bashir2 · 2018-03-08T19:56:06Z

gcp_variant_transforms/libs/metrics_util.py

+
+This is an example of how to use the factory and counter objects:
+
+factory = CounterFactory()


bashir2 · 2018-03-08T19:57:35Z

gcp_variant_transforms/libs/metrics_util.py

+    """Subclass implementations should do increment by `n`."""
+    raise NotImplementedError
+
+class NoOpCounter(object):


bashir2 · 2018-03-08T19:57:54Z

gcp_variant_transforms/libs/metrics_util.py

+    """Subclass implementations should do increment by `n`."""
+    raise NotImplementedError
+
+class NoOpCounter(object):


Indeed! And of course Python is totally okay with it either way :-)

bashir2 · 2018-03-08T20:02:47Z

gcp_variant_transforms/libs/processed_variant.py

    self._split_alternate_allele_info_fields = (
        split_alternate_allele_info_fields)
    self._annotation_field_set = set(annotation_fields or [])
+    if counter_factory:


I have already done this in the third PR because dealing with null objects was getting too ugly there. But did not want to add it back here since you asked for its removal :-) Now that we are on the same page even here, I added it back.

bashir2 · 2018-03-08T20:09:53Z

gcp_variant_transforms/vcf_to_bq.py

      known_args.split_alternate_allele_info_fields,
-      known_args.annotation_fields)
+      known_args.annotation_fields,
+      metrics_util.CounterFactory())


bashir2 · 2018-03-08T20:23:27Z

gcp_variant_transforms/libs/processed_variant_test.py

 from gcp_variant_transforms.libs import processed_variant
 from gcp_variant_transforms.libs import vcf_header_parser

+class CounterMock(metrics_util.CounterInterface):


Following up on a comment that I left to be resolved after design agreement: Since we agreed to keep injecting the factory, I think this solution is superior over patch. The name Mock is really poorly chosen for these, so I renamed them to Spies following this nomenclature. Also I chose to keep them here as module privates for now (as the only user is this module). Once we have a second usage for them we should move them to the testing directory.

arostamianfar

LGTM! Thanks, Bashir!

…nters.

bashir2 · 2018-03-08T21:00:13Z

Please ignore the "Closed" message, it was accidental. There was a recent commit on master which I had to merge, so now it needs another approval.

bashir2 changed the title ~~Adds counters processed_variant and creates a wrapper for Beam counters.~~ Adds counters to processed_variant and creates a wrapper for Beam counters. Feb 28, 2018

bashir2 requested review from arostamianfar and nmousavi February 28, 2018 21:44

bashir2 mentioned this pull request Mar 1, 2018

Extends variant annotation alt matching. #126

Merged

bashir2 removed the request for review from arostamianfar March 2, 2018 17:49

nmousavi reviewed Mar 2, 2018

View reviewed changes

arostamianfar reviewed Mar 2, 2018

View reviewed changes

nmousavi reviewed Mar 2, 2018

View reviewed changes

bashir2 commented Mar 2, 2018

View reviewed changes

arostamianfar suggested changes Mar 5, 2018

View reviewed changes

bashir2 commented Mar 6, 2018

View reviewed changes

nmousavi previously approved these changes Mar 6, 2018

View reviewed changes

bashir2 dismissed nmousavi’s stale review via 4cc953f March 6, 2018 20:46

bashir2 force-pushed the alt_annotation_review branch from 96282ca to 4cc953f Compare March 6, 2018 20:46

bashir2 commented Mar 6, 2018

View reviewed changes

nmousavi previously approved these changes Mar 6, 2018

View reviewed changes

bashir2 dismissed nmousavi’s stale review via 6e8f6a2 March 7, 2018 01:39

bashir2 force-pushed the alt_annotation_review branch from 4cc953f to 6e8f6a2 Compare March 7, 2018 01:39

bashir2 mentioned this pull request Mar 7, 2018

Adds support for --minimal option of VEP with related schema chagnes. #131

Merged

arostamianfar suggested changes Mar 7, 2018

View reviewed changes

bashir2 force-pushed the alt_annotation_review branch from 6e8f6a2 to 73ad0e3 Compare March 7, 2018 19:49

bashir2 commented Mar 7, 2018

View reviewed changes

arostamianfar suggested changes Mar 8, 2018

View reviewed changes

bashir2 force-pushed the alt_annotation_review branch from 73ad0e3 to f78f9c0 Compare March 8, 2018 20:40

bashir2 commented Mar 8, 2018

View reviewed changes

arostamianfar previously approved these changes Mar 8, 2018

View reviewed changes

bashir2 closed this Mar 8, 2018

bashir2 force-pushed the alt_annotation_review branch from f78f9c0 to b8a6c8c Compare March 8, 2018 20:53

Adds counters to processed_variant and creates a wrapper for Beam cou…

d0d9a87

…nters.

bashir2 reopened this Mar 8, 2018

bashir2 dismissed arostamianfar’s stale review via d0d9a87 March 8, 2018 20:57

arostamianfar approved these changes Mar 8, 2018

View reviewed changes

bashir2 merged commit 32781f6 into googlegenomics:master Mar 8, 2018

bashir2 deleted the alt_annotation_review branch March 20, 2018 18:47

		_METRICS_NAME_SPACE = 'VT_metrics_name_space'


		class BaseCounter(object):



		class CounterFactory(BaseCounterFactory):
		def create_counter(self, counter_name):

		@@ -0,0 +1,97 @@
		# Copyright 2018 Google Inc. All Rights Reserved.



		class CounterFactory(CounterFactoryInterface):
		def create_counter(self, counter_name):


		This is an example of how to use the factory and counter objects:

		factory = CounterFactory()

Adds counters to processed_variant and creates a wrapper for Beam counters. #125

Adds counters to processed_variant and creates a wrapper for Beam counters. #125

Uh oh!

Conversation

bashir2 commented Feb 28, 2018

Uh oh!

coveralls commented Feb 28, 2018 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Pull Request Test Coverage Report for Build 403

💛 - Coveralls

Uh oh!

bashir2 commented Feb 28, 2018

Uh oh!

bashir2 commented Feb 28, 2018

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

nmousavi Mar 2, 2018 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

nmousavi Mar 2, 2018 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

nmousavi Mar 2, 2018 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

nmousavi Mar 6, 2018 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

nmousavi left a comment

Choose a reason for hiding this comment

Uh oh!

bashir2 left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

coveralls commented Feb 28, 2018 •

edited

Loading

nmousavi Mar 2, 2018 •

edited

Loading

nmousavi Mar 2, 2018 •

edited

Loading

nmousavi Mar 2, 2018 •

edited

Loading

nmousavi Mar 6, 2018 •

edited

Loading
