Zed80

Grant Searle's SimpleZ80 implemented on Gowin FPGA (Tang Tano 20K)

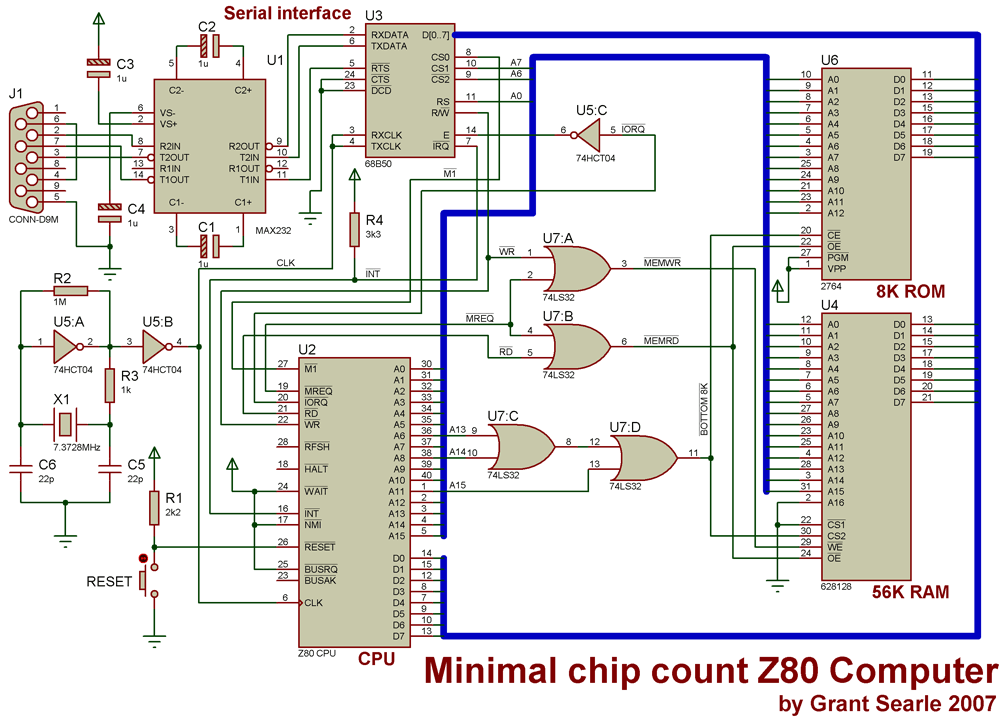

Zed80 is an FPGA implementation of Grant Searle's computer built around Z80, the Motorola 6850 ACIA and a ROM/RAM. The schematic is shown below:

ACIA 6850

The Asynchronous Communications Interface Adapter(ACIA) Mototola 6850 is implemeted as a just-enough Verilog module that talks to an FTDI UART-USB dongle.The only supported UART mode as of now is 8N1.

Pins on the Tang Nano 20K

Pin Number	Function	Description
73	UART_RX	Z80 receive
74	UART_TX	Z80 transmit
75	nRTS	Z80 requests to send
15	HEARTBEAT	LED0 flashes about 0.4Hz
88	areset	Active high reset connected to button Key 1 on board
10	clk29	29.491MHz clock from Clock 1 of Aux-PLL on board.

Setting Up Clock on Tang Nano 20K

See Sipeed wiki

Z80 Verilog Code

The core used is Guy Hutchison's TV80. The negative-edge triggerred top module tv80n is used. The only change I made was to change all flops to use synchronous reset.

ROM Code

The Intel hex format ROM code from Grant Searle's site had to be converted to the format the Gowin synthesis understands for preloading into the 8kB ROM implementation.

Simulation

Simulation uses the Verilog netlist output of the Gowin synthesis tool. The simulation tool is Icarus Verilog.

The file is named ./impl/gwsynthesis/zed80.vg.

$ export GOWINPATH="/path/to/Gowin IDE installation"

$ cd sim

$ make

This will compile and simulate the ROM binary. The output VCD file can be viewed on GTKWave.

Implementation

Open zed80.gprj in Gowin IDE and run the bitstream generation flow. The default build generates a bit file usable for analysis on the logic analyzer/oscilloscope tool: ./impl/pnr/ao_0.fs. Use the programmer to upload the bit file to the FPGA.

Connecting to a PC's Serial Port

Connect using 8N1 at 19200 baud. Here the command $ minicom -b 19200 -D /dev/ttyUSB0 is used.
