how-to: add placement rules guide #2246

rleungx · 2020-02-18T04:48:23Z

What is changed, added or deleted?

This PR adds the Placement Rules related document.

What is the related PR or file link(s)?

N/A

Which TiDB version(s) does your changes apply to?

3.1/dev

disksing · 2020-02-18T05:59:36Z

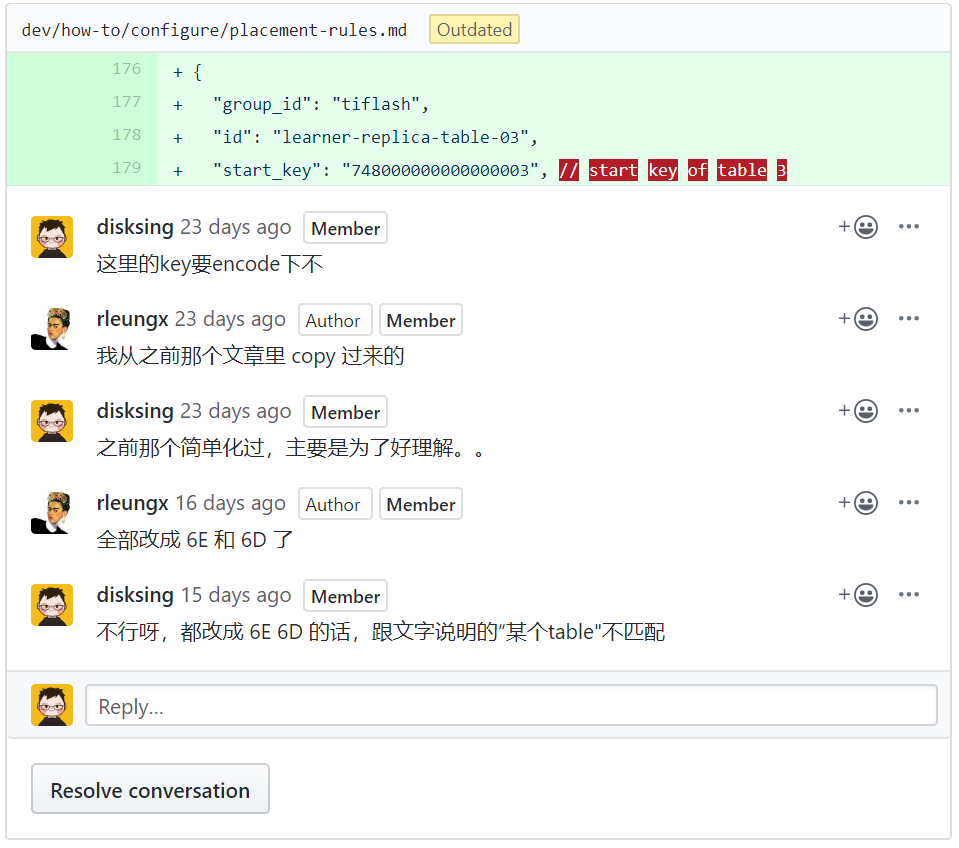

dev/how-to/configure/placement-rules.md

+{
+  "group_id": "tiflash",
+  "id": "learner-replica-table-03",
+  "start_key": "748000000000000003", // start key of table 3


这里的key要encode下不

我从之前那个文章里 copy 过来的

之前那个简单化过，主要是为了好理解。。

全部改成 6E 和 6D 了

不行呀，都改成 6E 6D 的话，跟文字说明的“某个table"不匹配

yikeke · 2020-02-23T04:50:04Z

After this PR merges, sre-bot will automatically cherry-pick this PR to the release-3.1 branch (the needs-cherry-pick-xxx label will trigger the behavior). FYI. @rleungx @disksing

disksing · 2020-02-24T02:58:37Z

how-to/configure/placement-rules.md

+  "count": 2,
+  "label_constraints": [
+    {"key": "zone", "op": "in", "values": ["bj1", "bj2"]},
+    {"key", "disk", "op": "notIn", "values": ["hdd"]}


Suggested change

{"key", "disk", "op": "notIn", "values": ["hdd"]}

{"key": "disk", "op": "notIn", "values": ["hdd"]}

how-to/configure/placement-rules.md

TomShawn · 2020-02-24T03:39:04Z

how-to/configure/placement-rules.md

+>> config set enable-placement-rules true
+```
+
+开启后会根据之前的副本配置默认生成一条规则，下面的生成的规则对应于之前版本的 `max-replicas=3,location-labels=[zone,rack,host]` 配置：


之前版本具体是哪个版本之前的呢？

Suggested change

开启后会根据之前的副本配置默认生成一条规则，下面的生成的规则对应于之前版本的 `max-replicas=3,location-labels=[zone,rack,host]` 配置：

开启后会根据之前的副本配置默认生成一条规则。下面的生成的规则对应之前版本的 `max-replicas=3,location-labels=[zone,rack,host]` 配置：

@rleungx 请明确一下之前版本。

how-to/configure/placement-rules.md

TomShawn · 2020-02-24T03:42:53Z

how-to/configure/placement-rules.md

+
+### group_id
+
+标识规则的创建者，不同创建者之间互不影响


这部分改为列表形式是否更好？每一个字段为一个列表项目。+ group_id：标识规则的创建者。不同创建者之间互不影响。

Suggested change

标识规则的创建者，不同创建者之间互不影响

标识规则的创建者。不同创建者之间互不影响。

TomShawn · 2020-02-24T06:14:57Z

how-to/configure/placement-rules.md

+
+*注意* 由于不同的 Rule 调度时单独计算，只能保证 default 规则的 3 副本按照 `location-labels` 隔离，meta 规则的 2 副本也隔离，而不能防止 default 规则的副本和 meta 规则的副本被调度在一起。
+
+可以通过 default 规则的范围拆分成 2 个，key range 分别为 `["", "6D")` 和 `["6E", "")`，然后把 meta 规则的 `count` 调整为 5，让 meta 数据只适配一条 5 副本的规则，实现 `location-label` 的隔离。


Suggested change

可以通过 default 规则的范围拆分成 2 个，key range 分别为 `["", "6D")` 和 `["6E", "")`，然后把 meta 规则的 `count` 调整为 5，让 meta 数据只适配一条 5 副本的规则，实现 `location-label` 的隔离。

可以通过 default 规则的范围拆分成 2 个 key range，分别为 `["", "6D")` 和 `["6E", "")`，然后把 meta 规则的 `count` 调整为 `5`，让 meta 数据只适配一条 5 副本的规则，实现 `location-label` 的隔离。

TomShawn · 2020-02-24T06:18:01Z

how-to/configure/placement-rules.md

+}
+```
+
+### 场景二：5 副本按 2-2-1 的比例放置在 3 个数据中心，且第 3 个中心不调度 Leader


Suggested change

### 场景二：5 副本按 2-2-1 的比例放置在 3 个数据中心，且第 3 个中心不调度 Leader

### 场景二

场景描述：5 副本按 2:2:1 的比例放置在 3 个数据中心，且第 3 个中心不调度 Leader。

TomShawn · 2020-02-24T06:24:41Z

how-to/configure/placement-rules.md

+
+每个数据中心对应一条规则，通过 `count` 设置副本数，通过 `role` 标识副本角色（是否需要 `leader`）。由于每个规则对应的副本都使用 `label_constraints` 约束在单个数据中心内了，`location_labels` 只需配置 `rack`，`host` 两级。
+
+### 场景三：为某个 table 添加 2 个 TiFlash 副本


Suggested change

### 场景三：为某个 table 添加 2 个 TiFlash 副本

### 场景三

场景描述：为某个 table 添加 2 个 TiFlash 副本。

TomShawn · 2020-02-24T06:25:39Z

how-to/configure/placement-rules.md

+}
+```
+
+该规则指定添加的角色为 `learner`，并且通过 `label_constraints` 被用于筛选 `engine` 的类型，指定 `engine` 类型为 `tiflash`。


Suggested change

该规则指定添加的角色为 `learner`，并且通过 `label_constraints` 被用于筛选 `engine` 的类型，指定 `engine` 类型为 `tiflash`。

该规则指定添加的角色为 `learner`，并且通过 `label_constraints` 筛选 `engine` 的类型，指定 `engine` 类型为 `tiflash`。

TomShawn · 2020-02-24T06:26:21Z

how-to/configure/placement-rules.md

+
+该规则指定添加的角色为 `learner`，并且通过 `label_constraints` 被用于筛选 `engine` 的类型，指定 `engine` 类型为 `tiflash`。
+
+### 场景四：为某个 table 在有高性能磁盘的北京节点添加 2 个 Follower 副本


Suggested change

### 场景四：为某个 table 在有高性能磁盘的北京节点添加 2 个 Follower 副本

### 场景四

场景描述：为某张表在有高性能磁盘的北京节点添加 2 个 Follower 副本。

rleungx · 2020-02-25T11:11:24Z

PTAL @disksing @TomShawn

TomShawn · 2020-03-05T03:12:41Z

LGTM
@disksing PTAL again, thanks!

lilin90 · 2020-03-06T08:01:17Z

how-to/configure/placement-rules.md

+{{< copyable "shell-regular" >}}
+
+```bash
+>> config set enable-placement-rules true


Suggested change

>> config set enable-placement-rules true

config set enable-placement-rules true

IANTHEREAL · 2020-03-11T14:54:23Z

how-to/configure/placement-rules.md

+
+## 开启 Placement Rules
+
+可通过 pd-ctl 设置 `enable-placement-rules` 为 `true` 开启 Placement Rules。


pd-ctl 使用文档 link 一下？

IANTHEREAL · 2020-03-11T15:51:34Z

how-to/configure/placement-rules.md

+
+{{< copyable "" >}}
+
+```json


我运行后我没看到这条规则，怎么看？

使用 pd-ctl 的 config show 没有看到相关配置

使用 curl 通过 GET 命令才看到

IANTHEREAL · 2020-03-11T16:01:34Z

how-to/configure/placement-rules.md

+
+以下部分介绍添加 Placement Rules 的典型场景。
+
+### 场景一


典型场景能不能把之行的命令直接贴一下，要不我还要自己转换 json 。。。

disksing · 2020-03-12T06:52:17Z

这个comment还没有处理

IANTHEREAL · 2020-03-12T07:06:15Z

how-to/configure/placement-rules.md

+  "start_key": "6D",
+  "end_key": "6E",
+  "role": "voter",
+  "count": "2",


[root@4 bin]# curl -X POST -H "Content-Type: application/json" --data @data.json http://172.16.5.204:2379/pd/api/v1/config/rule { "code": "input", "msg": "json: cannot unmarshal string into Go struct field Rule.count of type int", "data": { "Value": "string", "Type": {}, "Offset": 101, "Struct": "Rule", "Field": "count" } }

IANTHEREAL · 2020-03-12T07:13:00Z

how-to/configure/placement-rules.md

+{
+  "group_id": "pd",
+  "id": "meta",
+  "start_key": "6D",


"start key should be encoded in table mode: insufficient bytes to decode value"

Signed-off-by: Ryan Leung <rleungx@gmail.com>

This reverts commit b2208b9, reversing changes made to e50d22e.

This reverts commit 922e368.

Signed-off-by: Ryan Leung <rleungx@gmail.com>

lilin90 · 2020-03-12T08:51:33Z

@rleungx It seems that some comments haven't been resolved yet.

TomShawn · 2020-03-17T01:55:42Z

@GregoryIan @disksing PTAL again, thanks!

IANTHEREAL · 2020-03-17T08:53:01Z

还有两个建议

提供方法怎么便捷的查询到一些用户常用的 start key & end key，比如某 table
案例太单薄，操作有风险，需要提供更详细的学习文档，或者更加惊醒的提示。可能会因为误操作 placement rule 而导致的数据丢失

rleungx · 2020-03-19T11:46:37Z

@disksing PTAL

disksing · 2020-03-23T04:44:56Z

No body is satisfied with this document. Closing it, I'll write it later.
