Match Matplotlib best-legend placement [mpl compatibility]

[sselvakumaran]

Summary

• score legend(loc="best") against the measured legend box from _legend_layout, not a linear guess from row count and label length
• resolve best after the figure is built, against the displayed view rather than the raw data extent
• replace the mean-fractional-occupancy metric and its 0.02 tie band with Matplotlib's raw vertex counts, first-empty-candidate-wins, lower-code-breaks-ties
• thread borderaxespad into scoring, so candidates are inset from the plot edge as offsetbox._get_anchored_bbox insets them
• resolve every legend loc through one canonical table instead of substring-matching left/right, so an unresolved "best" can no longer silently centre the legend

This is stacked on #254 (agent/legend-layout-gallery-compat).

Root cause

_best_legend_loc estimated the legend's footprint arithmetically:

box_h = min(0.6, 0.10 + 0.07 * rows)     # -> 0.17
box_w = min(0.6, 0.12 + 0.03 * max_len)  # -> 0.30

On examples/pdsh/pdsh_04_09_text_and_annotation.ipynb cell 23 (real examples/pdsh/data/births.csv, pandas passing loc="best" to both engines) that is a 0.30 x 0.17 candidate against a real 0.097 x 0.083 — 3x too wide and 2x too tall. The inflated upper-right candidate reached back to x=0.70 and down to y=0.83, swallowing the late-summer peak (21 sampled vertices); the inflated upper-left candidate stopped at x=0.30 and stayed empty. Upper left won a corner Matplotlib gives to upper right at badness 0.

Comparing directly against Legend._find_best_position surfaced three more departures, each independently able to pick the wrong corner:

Departure	Effect
Scored the raw data extent, not the displayed view	The engine pads an autoranged view, so a mark that reaches the top in data space does not reach it on screen. This alone put sin(x) over 0..20 in upper right where Matplotlib says lower left.
Mean fractional occupancy under a 0.02 tie band	Flattened decisive gaps into ties. Matplotlib compares raw integer counts: 2 vertices out of 1000 disqualify a corner; a 0.002 mean does not.
borderaxespad never reached scoring	Every candidate sat flush against the plot edge; Matplotlib insets the container on all four sides before anchoring.

Containment is now strict and unclipped, mirroring Bbox.count_contains — a point outside the view is outside every candidate instead of being pinned onto the nearest edge and counted there.

Reusing #254's measurement rather than adding an estimator

_legend_layout (python/xy/_svg.py) already derives the real box from the legend font size and label extents, and is the geometry the SVG and raster exporters lay out with. _legend_footprint calls it. Nothing measures the legend twice, so when #248's 0308c98 DejaVu glyph advances reach this stack the scoring inherits them for free — checked by simulation, and this shape set stays at 7/10.

Base choice. #254, not #248 or main. The scoring consumes two things only #254 provides: a font-relative measured box (_legend_font_size, text_h, font-relative pads) and borderaxespad resolved to pixels on the wire (border_pad). #248 alone has neither. Nothing here rebases or force-pushes #248 or #254.

Where the fix lives, and the one core change

The placement fix is entirely in the pyplot shim (python/xy/pyplot/_axes.py) — no non-pyplot chart changes placement. "best" is a shim concept and is still resolved before the wire.

The substring-match guard is a core change, and it changes non-pyplot behaviour: xy.legend(loc=...) now raises ValueError on anything outside Matplotlib's ten anchored location names, where it previously accepted any string and centred the legend for anything containing neither left nor right. "best" is rejected there too — placement is not computed at that layer. The shared static geometry (_legend_layout) refuses the same values as a second line of defence.

This is a behaviour change for a caller who was passing a bogus loc and getting a centred legend. It is not a rendering change for anyone else: all ten valid names keep their exact geometry, asserted against the plot box in test_every_valid_loc_places_the_box_where_it_used_to. Nothing in the repo passed an invalid legend loc (the loc="top"/"bottom" uses are ax.table, not legends), and the full suite is unchanged.

Validation

Measured parity, matplotlib 3.11.1

Read out of Legend._find_best_position per figure, with its per-candidate badness. The three-up below is the reported figure; the table is tests/pyplot/test_best_legend_placement.py.

Data shape	matplotlib 3.11.1	before (#254 head)	after
births seasonal curve (the report)	upper right	upper left ❌	upper right ✅
data in upper right	upper left	upper left ✅	upper left ✅
data in upper left	upper right	upper right ✅	upper right ✅
few entries, short labels	upper right	upper right ✅	upper right ✅
full-amplitude oscillation	lower left	upper right ❌	lower left ✅
centre-band oscillation	center left	center right ❌	center left ✅
diagonal band, long labels	upper left	upper left ✅	upper left ✅
data filling the axes	upper left	upper left ✅	lower right ❌
scatter cluster, upper right	upper left	upper left ✅	upper right ❌
many entries, long labels	lower left	upper left ❌	center ❌
	10/10	6/10	7/10

Honest accounting: net +1, not +3. Three shapes are fixed and two regressed. The two that regressed matched by accident — an oversized candidate box happened to disqualify the same corner Matplotlib rejects for a real reason. I am not claiming this generalises beyond the shapes measured.

What the residual three actually are

All three turn on one or two vertices, and two of them are not the scoring model. The measured box is pixel-accurate against Matplotlib — a one-row legend is 25.41 px here against Matplotlib's 25.4477 px — but xy lays out a 564x428 plot box where Matplotlib's default axes rect is 496x369.6 (640x480 figure), so the same box is ~12% narrower and ~14% shorter as a fraction, and knife-edge candidates fall the other way.

Substituting Matplotlib's axes rect as the denominator lifts parity 7/10 → 9/10, which test_residual_divergence_is_attributable_to_the_plot_rect pins as executable evidence. I deliberately did not adopt that: it would place legends by a rect the exporters never use (a corner Matplotlib deems clear may not be clear at xy's actual size), it would hardcode Matplotlib's default subplot params and break under subplots_adjust/add_axes, and it would need undoing once the frame-geometry work converges the two. It resolves for free then.

The last one, data_fills_axes, is a genuine tie: Matplotlib scores upper left and lower right both at 2 of 400 vertices and breaks it by location code. The shim's slightly different box separates the tie and takes the other member.

Remaining departures from Matplotlib's badness, all recorded in spec/api/styling.md: text and patch extents are counted as a single anchor point rather than a bbox overlap (and skipped when the coordinate is a date string); there is no segment-crossing term; occupancy is scored from at most 4096 strided vertices per series, weighted back up (§28).

A test that was asserting the shim, not Matplotlib

test_center_right_legend_loc_reaches_spec expected center right. matplotlib 3.11.1 scores that figure center left 20 against center right 36 — a decisive win for the left band, not a tie. The old 0.02 tie band over mean fractional occupancy is what flattened it. Renamed and corrected to test_center_band_legend_loc_reaches_spec.

Suites

• tests/pyplot: 574 passed, 76 failed — the same 76 failing on this PR's base, file for file (all FileNotFoundError on the absent python/xy/static/ bundles). Zero regressions, zero newly-failing.
• rest of tests/: 1289 passed, 125 failed, 5 collection errors — again identical to base, file for file. The core legend(loc=...) validation breaks nothing.
• 24 new tests in tests/pyplot/test_best_legend_placement.py; 15 of them fail on base.
• ruff check / ruff format --check (0.15.8, the pinned version) clean; pre-commit run --all-files all hooks pass.
• ty check: 16 diagnostics, byte-identical to base — none new.

Not verified

• No TypeScript change, and none typechecked. npm/node are unavailable here and python/xy/static/ does not exist, so node js/build.mjs cannot run. The browser client's _positionLegend still substring-matches loc; it is now unreachable with a bad value because core rejects it at construction, so I left the TS alone rather than ship an unbuildable edit. If a reviewer wants the client hardened symmetrically, that needs a tree with the toolchain.
• The 76+125 pre-existing failures are inherited, not investigated.
• Parity is claimed only for the ten shapes in the table.

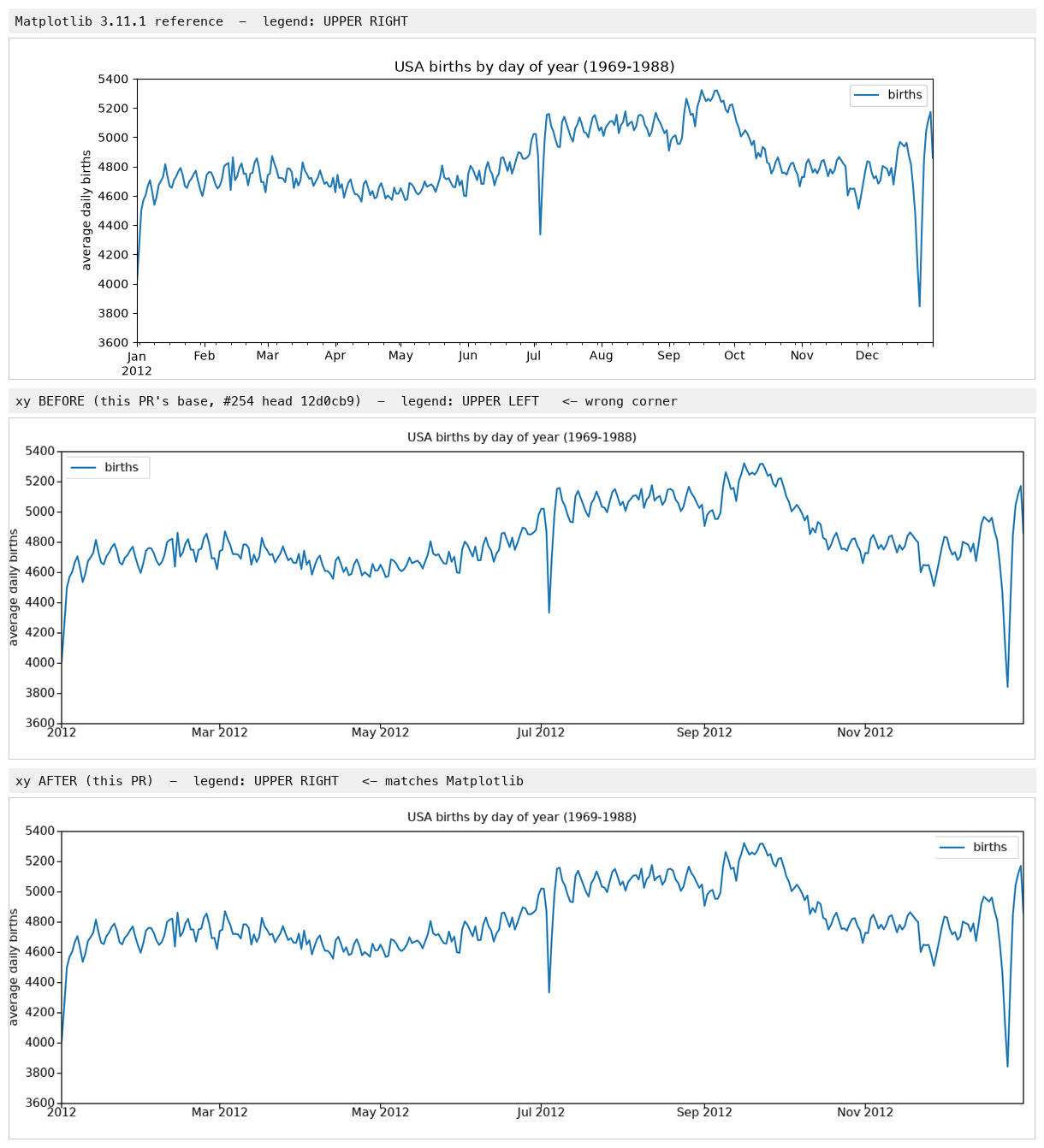

Three-up: Matplotlib reference / before / after

Committed separately as temporary review evidence, to be dropped before merge (as in 3bd48f2, b8fb1d9, c90ad45).

Both xy panels came from one tree with one native core, toggling only the Python under test, so this PR is the only variable. This PR touches no src/. xy panels are downscaled from savefig's 2400x800 to the reference's 1200x400.

Provenance was verified rather than assumed, because a Python-only before/after is exactly the shape that can silently measure the wrong tree:

• xy.__file__ resolves inside this worktree, not the shared .venv (whose _xy.pth points at the main checkout).
• dyld enumeration (_dyld_image_count/_dyld_get_image_name) reports exactly one libxy_core image mapped, at this worktree's target/release/libxy_core.dylib, sha256 d79858dd12c2d4b0… — asked of the loader, not inferred from XY_NATIVE_LIB.
• src/ tree 69e331f4 at HEAD and unmodified in the working tree, so the native core is provably constant across both panels — the correct control for a Python-only change (asserting the two dylibs differ would be the confound here, not the control).
• The guard was given two negative controls and fired on both: the main checkout's stale dylib (ABI 37 against this tree's ABI_VERSION = 40) and a byte-identical ABI-40 copy placed outside the worktree, which trips the path assertion rather than the ABI net.

The other visible differences in the xy panels are not this PR's and are not claimed as fixed: the x tick labels (2012 / Mar 2012 against Matplotlib's centred month names), the savefig 2x scale (#206), and the wider plot rect discussed above.
