midi2cpp

MIDI 2.0 engine for embedded systems

C++17, callback-first, static-by-default, depends on midi2, MIT. From DIY to professional products.

The library

midi2cpp is the layer where a sketch meets the protocol. Plug a board into the laptop, write five lines of C++, flash, and the device appears on the bus as a USB MIDI 2.0 endpoint with full Capability Inquiry, Property Exchange, and 32-bit resolution.

Underneath, midi2 (the portable C99 core) handles parsing, dispatch, and reassembly. midi2cpp adds the C++ ergonomics: callbacks, board glue, ready-made USB descriptors. The board does the talking; the sketch tells it what to say.

Dependencies

midi2cpp draws a clear line between what the library declares and what stays the caller's job:

Exactly one declared dependency: midi2. The C99 core lives in its own repo, is versioned independently, and is resolved by whichever package manager fits the host build:
- Arduino Library Manager: depends=midi2 (>=0.3.4) in library.properties.
- PlatformIO Registry: dependencies."sauloverissimo/midi2": "^0.3.4" in library.json.
- ESP-IDF Component Manager: idf_component.yml declaration plus midi2 in REQUIRES.
- CMake: find_package(midi2 0.3.4 CONFIG) first, falls back to FetchContent_Declare(midi2 GIT_TAG v0.3.4).
No submodules. git clone is the install. No --recurse-submodules, no half-initialised state.
No transport library pulled in. TinyUSB, Teensy native USB, PIO-USB, libDaisy USBMidi: all caller-supplied. The library does not include <Arduino.h>, pico/time.h, esp_timer.h, or any USB header.
No clock or RNG dependency. Caller injects millis / time_us_64 / esp_timer_get_time and random / get_rand_32 / esp_random through public hooks. Unset hooks degrade silently, no missing-symbol link errors.

git clone https://github.com/sauloverissimo/midi2cpp.git
cmake -B build && cmake --build build && ctest --test-dir build

Three commands. The first cmake configure pulls midi2 once via FetchContent (or picks it up from a system install via find_package); subsequent rebuilds and tests run offline. Anywhere C++17 + CMake reach: Linux, macOS, Windows, embedded cross-toolchains for ARM/RISC-V/Xtensa.

Quickstart

midi2cpp is platform-agnostic: it parses, dispatches, and assembles UMP, and it leaves USB transport, clock, and entropy to the caller. The sketch wires four hooks to its platform's USB MIDI driver; the library does the rest.

#include <midi2cpp.h>
using namespace midi2;

m2device midi;
m2ci     ci(midi);

// 1. Outbound UMP. Forward to the platform's USB MIDI write API.
void plat_write(const uint32_t* words, size_t count) {
  // tud_midi_n_stream_write(0, (uint8_t*)words, count * 4);  // TinyUSB
  // usbMIDI.sendUMP(words, count);                           // Teensy native
  // ...
}

// 2. Monotonic millisecond clock. Used by the JR Heartbeat.
uint32_t plat_now() { return millis(); }

// 3. Entropy source for MUID. Caller picks (esp_random / get_rand_32 / etc).
uint32_t plat_rng() { return random(); }

void setup() {
  Serial.begin(115200);

  midi.setWriteFn(plat_write);
  midi.setNowFn(plat_now);
  midi.setMounted(true);
  midi.setAltSetting(1);   // 1 = MIDI 2.0 stream
  midi.begin();
  midi.enableJRHeartbeat(500);

  ci.setRngFn(plat_rng);
  static const uint8_t mfrId[3] = {0x7D, 0x00, 0x00};  // educational prefix
  ci.begin(mfrId, /*family*/ 0x0001, /*model*/ 0x0001, /*version*/ 0x00010000);
  ci.addPropertyStatic("DeviceInfo",
    "{\"manufacturer\":\"midi2cpp\",\"model\":\"hello\"}");

  midi.onNoteOn([](uint8_t /*g*/, uint8_t ch, uint8_t n, uint16_t v,
                   uint8_t /*at*/, uint16_t /*ad*/) {
    Serial.print("NoteOn ch="); Serial.print(ch);
    Serial.print(" note=");      Serial.print(n);
    Serial.print(" vel=");       Serial.println(v);
  });
}

void loop() {
  // 4. Inbound UMP. Pump RX from the platform's USB MIDI callback into the lib.
  uint32_t in[16];
  size_t n = /* read up to 16 UMP words from your USB driver */ 0;
  if (n) midi.feedRx(in, n);

  midi.task();   // dispatches reassembled SysEx, fires heartbeat
}

The four hooks (setWriteFn, feedRx, setNowFn, setMounted + setAltSetting) are the entire platform contract. When an injection point is left unset the corresponding feature degrades safely (no transport, frozen MUID, no heartbeat).

What you get

USB MIDI 2.0 device, host, or both, depending on the board.
49 typed UMP callbacks: notes, CCs, RPN/NRPN, per-note expression, Flex Data, Stream messages.
MIDI-CI out of the box: Discovery, Profile negotiation, Property Exchange (with Subscribe/Notify), Process Inquiry.
Static-by-default. The hot path is allocation-free; init-time new only inside m2bridge for the per-slot tables. Fits a Cortex-M0+.
Pay-as-you-go: only the modules called by the sketch end up in the binary.

Three shapes

Class	Role	Status
`m2device`	USB MIDI 2.0 device, board enumerates as a MIDI peripheral on a host (DAW, OS)	available
`m2host`	USB MIDI 2.0 host, board exposes a USB-A port and reads attached MIDI devices	available
`m2bridge`	Host + device, both ports active; route, group-rewrite, dynamic FB names, MIDI 1.0 alt 0 uplift	available

Same callback API across the three. m2bridge composes m2device + m2ci + m2host and adds a multi-slot Stream Discovery responder, raw UMP forward with per-slot group window rewrite, and an internal ByteStreamConverter per slot for MIDI 1.0 alt 0 upstream devices. Reference platform glue at examples/esp32-p4-devkit-bridge2-midi2; the older examples/esp32-p4-devkit-bridge-midi2 and examples/adafruit-feather-rp2040-bridge-midi2 keep the same role with the slot table + responder carried inline, until they migrate to m2bridge.

Boards

Validated on real hardware against forks and PRs maintained internally while the upstream merges are pending. midi2cpp is one of several integrations of the underlying midi2 C99 core; concrete recipes for boards that use midi2cpp ship under examples/, one per role (device, host, bridge). The Status column names the override each test required.

Board	MCU	Device	Host	Bridge	Transport	Status
ESP32-S3 DevKitC-1	ESP32-S3	✅	-	-	TinyUSB	TinyUSB PR #3571, recipe in `esp32-s3-devkitc-usb-midi2`
Arduino Nano ESP32	ESP32-S3	✅	-	-	TinyUSB	TinyUSB PR #3571, recipe in `arduino-nano-esp32-midi2`
Waveshare ESP32-P4-WIFI6-DEV-KIT	ESP32-P4	✅	✅	✅	TinyUSB	TinyUSB `experiment/midi-coexistence` branch (alt-walk bcdMSC defer for MIDI 1.0 + 2.0 host coexistence) on top of PR #3571 + mandatory `LP_SYS.usb_ctrl` PHY swap on the device side, recipes in `esp32-p4-devkit-usb-midi2` (device, INT PHY, OTG_FS), `esp32-p4-devkit-host-midi2` (host, UTMI PHY, OTG_HS) and `esp32-p4-devkit-bridge-midi2` (dual-stack bridge, inline glue) and `esp32-p4-devkit-bridge2-midi2` (same role on top of `m2bridge`, PID 0x4095)
LilyGo T-Display S3	ESP32-S3	✅	-	-	TinyUSB	TinyUSB PR #3571, recipe in `t-display-s3-midi2` (Tier A receiver with on-board ST7789 piano roll). Hardware validated 2026-05-01: enumerates `cafe:4094` as `TDisplayS3`, `Group 1 (Main)` visible to ALSA, NoteOn/Off lights piano keys live
T-Display S3 AMOLED	ESP32-S3	✅	✅	-	-	TinyUSB PR #3571
Teensy 4.1	i.MX RT1062	✅	✅	-	-	direct consumer of midi2 (Teensy core fork, native USB MIDI 2.0 with AS0 + AS1)
Raspberry Pi Pico	RP2040	✅	-	-	TinyUSB	TinyUSB PR #3571, recipe in `examples/rp2040-midi2`
Waveshare RP2040 Pi Zero	RP2040	✅	-	-	TinyUSB	TinyUSB PR #3571, recipe in `examples/waveshare-rp2040-midi2`
Adafruit Feather RP2040 USB Host	RP2040	✅	✅	✅	TinyUSB, PIO-USB	TinyUSB PR #3571 + Pico-PIO-USB `675543b` (handshake delay fix), recipes in `adafruit-feather-rp2040-host-midi2` and `adafruit-feather-rp2040-bridge-midi2`
RP2040 Pro Micro (Tenstar Robot)	RP2040	✅	-	-	TinyUSB	TinyUSB PR #3571, deterministic UMP emitter for Windows MIDI Services testing in `rp2040-promicro-ump-test-bench`
Waveshare RP2350-USB-A	RP2350	✅	✅	✅	TinyUSB, PIO-USB on GP12/GP13	TinyUSB PR #3571 + Pico-PIO-USB `675543b` + R13 hardware mod for host mode (desolder the 1.5 kΩ pull-up on USB-A D+), recipes in `waveshare-rp2350-usb-a-midi2` (device) and `waveshare-rp2350-usb-a-bridge-midi2` (bridge)
SparkFun Pro Micro RP2350	RP2350	✅	-	-	TinyUSB	TinyUSB PR #3571, recipe in `sparkfun-promicro-rp2350-midi2`
Raspberry Pi Pico 2	RP2350	✅	✅	-	-	TinyUSB PR #3571
ESP32-C6-DevKitC-1	ESP32-C6		-	-	BLE-MIDI 1.0 + ESP-NOW	ESP32_Host_MIDI v6.0.x (BLE GATT visibility regressions still being iterated; the chip has no USB-OTG so the wireless transports are the only path here). Recipe in `esp32-c6-devkitc-multi-midi2` (Tier B wireless, no PID consumed).
nRF52840 Pro Micro (Nice!Nano class)	nRF52840	✅	-	-	TinyUSB	TinyUSB native CMake build (PR #3571 fork via FetchContent + `hw/bsp/family_support.cmake`, BSP `feather_nrf52840_express` upstream), recipe in `nrf52840-promicro-midi2` (Tier B). Hardware validated 2026-04-30 on Nice!Nano: enumerates `cafe:40F1`, `Group 1 (Main)` visible to ALSA, Per-Note PB vibrato + chromatic walk + RPN/NRPN streaming live
Seeed XIAO SAMD21	SAMD21	✅	-	-	TinyUSB	TinyUSB native CMake build (PR #3571 fork via FetchContent + `hw/bsp/family_support.cmake`, BSP `seeeduino_xiao` upstream), recipe in `xiao-samd21-midi2` (Tier C). Hardware validated 2026-04-30: enumerates `cafe:40F0`, `Group 1 (Main)` visible to ALSA, chromatic walk + CC sweep streaming live
T-PicoC3	RP2040 + ESP32-C3	✅	-	-	-	TinyUSB PR #3571

Three override sources cover everything: TinyUSB PR #3571 (the bulk of the matrix, USB MIDI 2.0 device + host driver), Pico-PIO-USB at SHA 675543b (PR #186 "reduce handshake delay", required for MIDI 2.0 host enumeration over PIO-USB; predates the next tagged release), and a local Teensy core fork (native USB MIDI 2.0 with AS0 + AS1 alt settings). Each will retire from the Status column as it merges into its respective upstream.

Recipes by build system

20 recipes ship under examples/, grouped by build path:

Build system	Count	Recipes
Pico SDK	8	`rp2040-midi2`, `waveshare-rp2040-midi2`, `sparkfun-promicro-rp2350-midi2`, `waveshare-rp2350-usb-a-midi2`, `waveshare-rp2350-usb-a-bridge-midi2`, `adafruit-feather-rp2040-host-midi2`, `adafruit-feather-rp2040-bridge-midi2`, `rp2040-promicro-ump-test-bench`
ESP-IDF	7	`arduino-nano-esp32-midi2`, `esp32-s3-devkitc-usb-midi2`, `esp32-p4-devkit-usb-midi2`, `esp32-p4-devkit-host-midi2`, `esp32-p4-devkit-bridge-midi2`, `esp32-p4-devkit-bridge2-midi2`, `t-display-s3-midi2`
PlatformIO + ESP32_Host_MIDI	3	`esp32-c6-devkitc-multi-midi2`, `esp32-s3-devkitc-host-midi2`, `t-display-s3-shield-host-midi2`
TinyUSB native CMake	2	`xiao-samd21-midi2`, `nrf52840-promicro-midi2`

By role: 10 device, 4 host, 4 bridge, 1 multi-transport (BLE + ESP-NOW, no USB PID), 1 deterministic UMP test bench.

Coming soon

Xiao Renesas RA4M1 (TinyUSB device, board on the bench)

Install

Arduino IDE

Listed on the Arduino Library Manager. The IDE install path: search the manager, click Install. The dependency on midi2 is resolved automatically.

Manual install (mirror, or while the manager index is propagating):

git clone https://github.com/sauloverissimo/midi2cpp.git ~/Arduino/libraries/midi2cpp

Then install midi2 via Library Manager (search midi2, click Install).

PlatformIO

Published on the PlatformIO Registry:

lib_deps = sauloverissimo/midi2cpp @ ^0.3.1

Or pin by git tag:

lib_deps =
  https://github.com/sauloverissimo/midi2cpp.git#v0.3.1

Either way, midi2 is resolved transitively via the manifest declaration in library.json.

ESP-IDF component

Published on the ESP Component Registry. Two install paths, depending on whether midi2cpp comes from the registry or lives inside the project tree:

Via the Component Manager (recommended):

# main/idf_component.yml
dependencies:
  idf: ">=5.0"
  sauloverissimo/midi2cpp: ">=0.3.1"

midi2 is pulled transitively through midi2cpp's manifest. idf.py reconfigure drops both into managed_components/.

As a local component (vendoring pattern, useful when iterating on the wrapper):

# from your IDF project root
git clone https://github.com/sauloverissimo/midi2cpp.git components/midi2cpp

Then declare midi2 in main/idf_component.yml:

dependencies:
  idf: ">=5.0"
  sauloverissimo/midi2: ">=0.3.4"

main/CMakeLists.txt lists midi2cpp in its idf_component_register(... REQUIRES midi2cpp ...) block. The seven ESP-IDF recipes under examples/ ship working templates for device, host and bridge roles.

CMake FetchContent

include(FetchContent)
FetchContent_Declare(
    midi2cpp
    GIT_REPOSITORY https://github.com/sauloverissimo/midi2cpp.git
    GIT_TAG        v0.3.1
)
FetchContent_MakeAvailable(midi2cpp)

midi2cpp cascades the dependency on midi2 to the parent project: find_package(midi2 0.3.4 CONFIG) is tried first, falling back to FetchContent_Declare(midi2 GIT_TAG v0.3.4) if no install is found.

Git submodule

git submodule add https://github.com/sauloverissimo/midi2cpp.git external/midi2cpp

Manual vendor

Download the midi2cpp and midi2 repositories side by side. Add midi2/dist/ and midi2cpp/src/ to includes. Compile midi2/dist/midi2.c, midi2cpp/src/midi2_device.cpp, midi2cpp/src/midi2_ci.cpp, and the host/bridge .cpp files you need alongside the project. No package manager required at build time, but the two repos must travel together.

API at a glance

m2device midi;

midi.begin();

// Inbound: Arduino-style, just the channel, note, velocity.
midi.onNoteOn ([](uint8_t ch, uint8_t note, uint16_t vel) { /* ... */ });
midi.onNoteOff([](uint8_t ch, uint8_t note, uint16_t vel) { /* ... */ });
midi.onCC     ([](uint8_t ch, uint8_t idx, uint32_t val) { /* ... */ });
midi.onPitchBend([](uint8_t ch, uint32_t val) { /* ... */ });

// Outbound: same shape, no group prefix, 32-bit values.
midi.noteOn (0, 60, 0xC000);
midi.noteOff(0, 60);
midi.cc     (0, 7, 0x80000000);
midi.pitchBend(0, 0x80000000);

midi.task();

Async, callback-first, copy-paste-ready. Same shape as MIDI 1.0 Arduino libraries, with MIDI 2.0 resolution underneath.

Need full spec fidelity? Every callback and sender has a verbose form that exposes Group, MIDI 2.0 attribute type/data, and other Multi-Group Endpoint controls; see midi2_device.h. The simple and verbose forms share storage; the latest setter wins.

Architecture

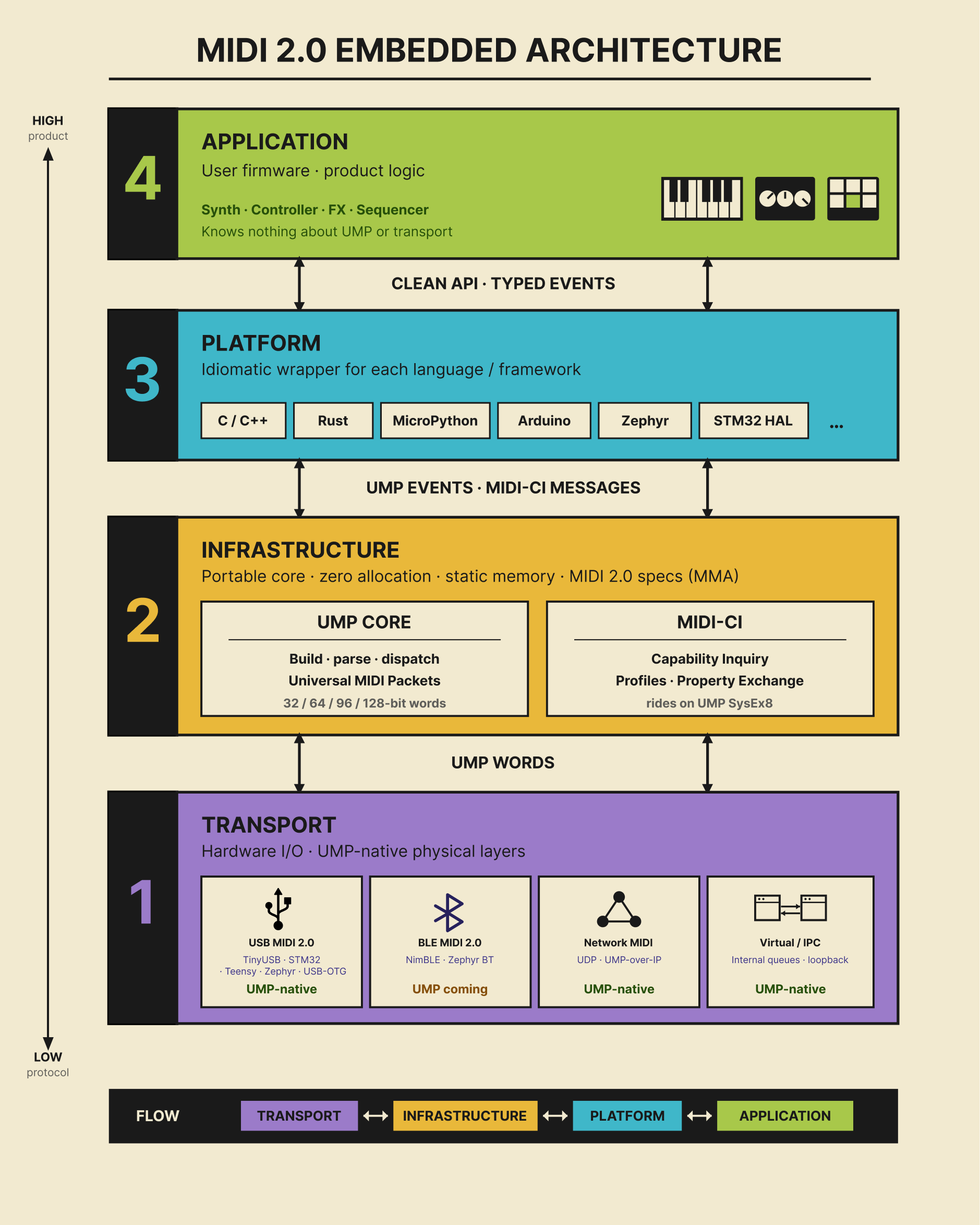

midi2cpp: platform layer of a 4-layer MIDI 2.0 stack:

The sketch touches the top. The rest is invisible until needed.

What this library is not

The boundary is drawn so the wrapper stays focused. A few things deliberately do not belong here.

Not a low-level UMP parser. That is midi2. midi2cpp wraps it and adds C++ ergonomics; if a project wants zero-overhead C with no callbacks, linking midi2 directly is the right move.
Not a synthesizer. UMP arrives, callbacks fire, the sketch decides what to play. Sound generation is application territory.
Not a desktop library. It targets MCU boards. It compiles on desktop for tests, but the API and memory model assume embedded constraints.
Not opinionated about transport. TinyUSB, native USB (Teensy), PIO-USB (RP2350), STM32 HAL (Daisy), BLE: midi2cpp does not bring any of them with it. The sketch wires whichever transport its platform already ships.

Sponsor

You can sponsor midi2cpp at GitHub Sponsors. Sponsorship funds boards for cross-platform validation, spec access, and continued maintenance.

About

midi2cpp is created and maintained by Saulo Veríssimo. It is the C++17 sibling of midi2, originally extracted from USBMIDI2 work in arduino-esp32-uac and validated across the boards listed above.

Specifications and trademarks

The MIDI 2.0 specifications referenced here are copyright of the MIDI Association and available at https://midi.org/midi-2-0.

"MIDI" is a registered trademark of the MIDI Manufacturers Association (now MIDI Association). "MIDI 2.0", "MIDI-CI", and "UMP" are terms defined by the MIDI Association in the public specifications.

License

MIT. Free for commercial and open-source use, in any context.
