Sega Master System (mastersystem)

Emulator Details

Emulator	Retroarch
Core	Genesis GX Plus
Core Name	lr-genesis_plus_gx
ArkOS Details	Christians GitHub
EASYROMS Folder	mastersystem
Linux Path	/roms/mastersystem
BIOS File	/bios/bios_E.sms
BIOS File	/bios/bios_U.sms
BIOS File	/bios/bios_J.sms

---

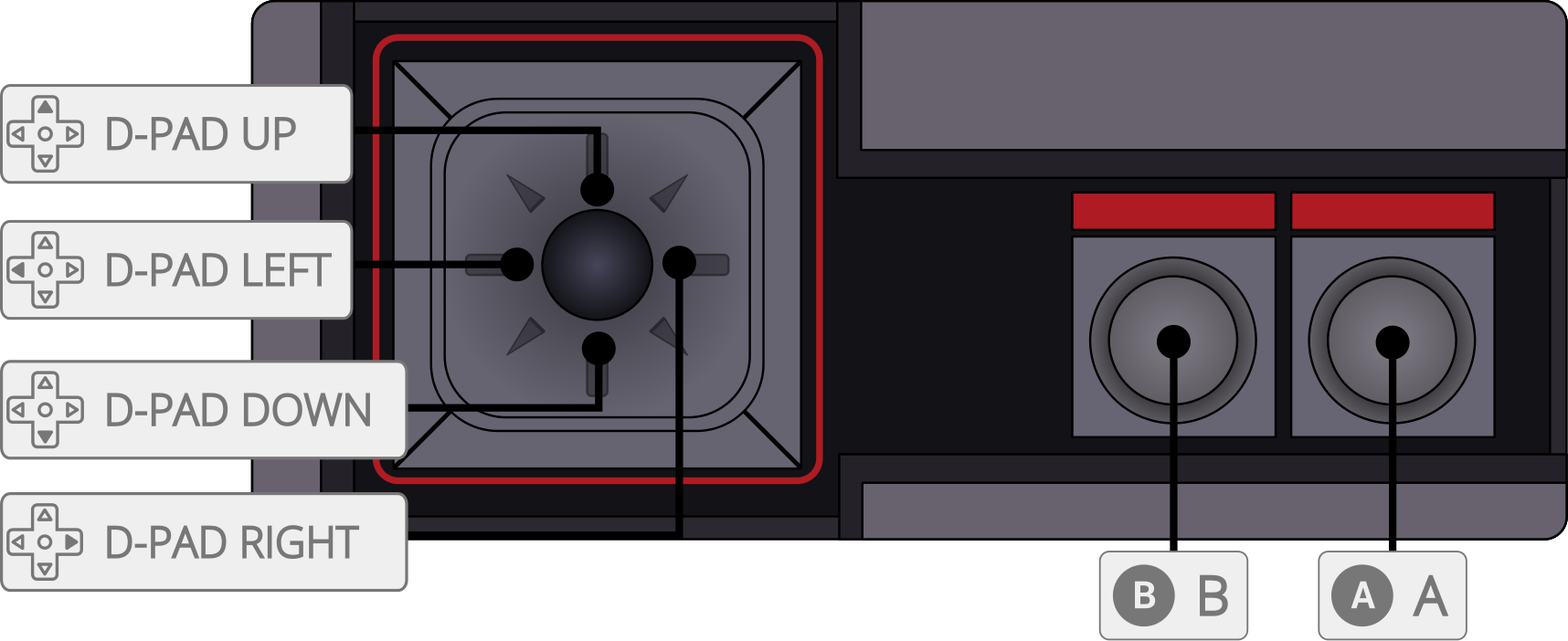

Controls

Emulator Game Controls

Master System	G80CA-MB
A Button	Y Button (Left)
B Button	B Button (Bottom)
D-Pad Up	D-Pad Up
D-Pad Down	D-Pad Down
D-Pad Left	D-Pad Left
D-Pad Right	D-Pad Right

Emulator Controls

Action	Key/Combination
Retroarch Menu	Function
Quit Retroarch	Start + Select
Save State	Select+ B Button
Load State	Select + A Button
Prev State	Select + Y Button
Next State	Select + X Button
Fast Fwd	Select + D-Pad Right
Rewind	Select + D-Pad Left

---

Retroarch Core options

Genesis GX Plus Core Options

/home/ark/.config/retroarch/retroarch-core-options.cfg

genesis_plus_gx_add_on = "auto"
genesis_plus_gx_addr_error = "enabled"
genesis_plus_gx_aspect_ratio = "auto"
genesis_plus_gx_audio_eq_high = "100"
genesis_plus_gx_audio_eq_low = "100"
genesis_plus_gx_audio_eq_mid = "100"
genesis_plus_gx_audio_filter = "disabled"
genesis_plus_gx_bios = "disabled"
genesis_plus_gx_blargg_ntsc_filter = "disabled"
genesis_plus_gx_bram = "per bios"
genesis_plus_gx_cart_bram = "per cart"
genesis_plus_gx_cart_size = "4meg"
genesis_plus_gx_cd_latency = "enabled"
genesis_plus_gx_cd_precache = "disabled"
genesis_plus_gx_cdda_volume = "100"
genesis_plus_gx_enhanced_vscroll = "disabled"
genesis_plus_gx_enhanced_vscroll_limit = "8"
genesis_plus_gx_fm_preamp = "100"
genesis_plus_gx_force_dtack = "enabled"
genesis_plus_gx_frameskip = "disabled"
genesis_plus_gx_frameskip_threshold = "33"
genesis_plus_gx_gg_extra = "disabled"
genesis_plus_gx_gun_cursor = "disabled"
genesis_plus_gx_gun_input = "lightgun"
genesis_plus_gx_invert_mouse = "disabled"
genesis_plus_gx_lcd_filter = "disabled"
genesis_plus_gx_left_border = "disabled"
genesis_plus_gx_lock_on = "disabled"
genesis_plus_gx_lowpass_range = "60"
genesis_plus_gx_md_channel_0_volume = "100"
genesis_plus_gx_md_channel_1_volume = "100"
genesis_plus_gx_md_channel_2_volume = "100"
genesis_plus_gx_md_channel_3_volume = "100"
genesis_plus_gx_md_channel_4_volume = "100"
genesis_plus_gx_md_channel_5_volume = "100"
genesis_plus_gx_no_sprite_limit = "disabled"
genesis_plus_gx_overclock = "100"
genesis_plus_gx_overscan = "disabled"
genesis_plus_gx_pcm_volume = "100"
genesis_plus_gx_psg_channel_0_volume = "100"
genesis_plus_gx_psg_channel_1_volume = "100"
genesis_plus_gx_psg_channel_2_volume = "100"
genesis_plus_gx_psg_channel_3_volume = "100"
genesis_plus_gx_psg_preamp = "150"
genesis_plus_gx_region_detect = "auto"
