Enable linkify in the Log component

[AlanGreene]

Changes

Convert URLs to clickable links by setting the linkify prop
on ansi-to-react.

Submitter Checklist

These are the criteria that every PR should meet, please check them off as you
review them:

• Includes tests (if functionality changed/added)
• Includes docs (if user facing)
• Commit messages follow commit message best practices

See the contribution guide
for more details.

[tekton-robot]

[APPROVALNOTIFIER] This PR is NOT APPROVED

This pull-request has been approved by:
To complete the pull request process, please assign alangreene
You can assign the PR to them by writing /assign @alangreene in a comment when ready.

The full list of commands accepted by this bot can be found here.

Details

Needs approval from an approver in each of these files:

• OWNERS

Approvers can indicate their approval by writing /approve in a comment
Approvers can cancel approval by writing /approve cancel in a comment

[Megan-Wright]

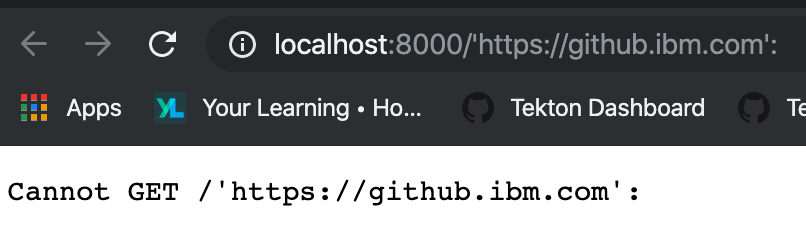

@AlanGreene Adam asked me to have a look at this since he's pretty busy.... code looks ok but tested out your branch and a link in the logs to github.ibm.com took me to this address:

....so not sure it's working as intended? Thoughts?

[AlanGreene]

hrmm that's definitely unexpected... can you share the raw log content (i.e. from the API response)?

[Megan-Wright]

@AlanGreene
{"apiVersion":"tekton.dev/v1alpha1","kind":"TaskRun","metadata":{"annotations":{"kubectl.kubernetes.io/last-applied-configuration":"{\"apiVersion\":\"tekton.dev/v1alpha1\",\"kind\":\"Task\",\"metadata\":{\"annotations\":{},\"name\":\"build-push\",\"namespace\":\"tekton-pipelines\"},\"spec\":{\"inputs\":{\"params\":[{\"default\":\"./git-source/Dockerfile\",\"description\":\"The path to the dockerfile to build\",\"name\":\"pathToDockerFile\"},{\"default\":\"./git-source\",\"description\":\"The build context used by Kaniko (https://github.com/GoogleContainerTools/kaniko#kaniko-build-contexts)\",\"name\":\"pathToContext\"}],\"resources\":[{\"name\":\"git-source\",\"type\":\"git\"}]},\"outputs\":{\"resources\":[{\"name\":\"builtImage\",\"type\":\"image\"}]},\"steps\":[{\"args\":[\"build\",\"-f\",\"$(inputs.params.pathToDockerFile)\",\"-t\",\"$(outputs.resources.builtImage.url)\",\"$(inputs.params.pathToContext)\"],\"command\":[\"docker\"],\"image\":\"docker\",\"name\":\"build\",\"volumeMounts\":[{\"mountPath\":\"/var/run/docker.sock\",\"name\":\"docker-socket\"}]},{\"args\":[\"push\",\"$(outputs.resources.builtImage.url)\"],\"command\":[\"docker\"],\"image\":\"docker\",\"name\":\"push\",\"volumeMounts\":[{\"mountPath\":\"/var/run/docker.sock\",\"name\":\"docker-socket\"}]}],\"volumes\":[{\"hostPath\":{\"path\":\"/var/run/docker.sock\",\"type\":\"Socket\"},\"name\":\"docker-socket\"}]}}\n"},"creationTimestamp":"2020-01-08T13:15:00Z","generation":1,"labels":{"tekton.dev/eventlistener":"tekton-webhooks-eventlistener","tekton.dev/pipeline":"simple-pipeline","tekton.dev/pipelineRun":"simple-pipeline-run-h25g2","tekton.dev/pipelineTask":"build-simple","tekton.dev/task":"build-push","tekton.dev/triggers-eventid":"9npvc","webhooks.tekton.dev/gitBranch":"foo","webhooks.tekton.dev/gitOrg":"megan-wright","webhooks.tekton.dev/gitRepo":"knative-helloworld","webhooks.tekton.dev/gitServer":"github.ibm.com"},"name":"simple-pipeline-run-h25g2-build-simple-bnfh4","namespace":"tekton-pipelines","ownerReferences":[{"apiVersion":"tekton.dev/v1alpha1","blockOwnerDeletion":true,"controller":true,"kind":"PipelineRun","name":"simple-pipeline-run-h25g2","uid":"b33c46ed-67e2-4ed0-98ec-b580952d324a"}],"resourceVersion":"19277","selfLink":"/apis/tekton.dev/v1alpha1/namespaces/tekton-pipelines/taskruns/simple-pipeline-run-h25g2-build-simple-bnfh4","uid":"039f746d-49b1-4e9f-8ad2-4028012a62c8"},"spec":{"inputs":{"resources":[{"name":"git-source","resourceRef":{"name":"git-source-wqmfd"}}]},"outputs":{"resources":[{"name":"builtImage","paths":["build-simple/builtImage"],"resourceRef":{"name":"docker-image-wqmfd"}}]},"podTemplate":{},"serviceAccountName":"tekton-dashboard","taskRef":{"kind":"Task","name":"build-push"},"timeout":"1h0m0s"},"status":{"completionTime":"2020-01-08T13:15:37Z","conditions":[{"lastTransitionTime":"2020-01-08T13:15:37Z","message":"\"step-build\" exited with code 1 (image: \"docker-pullable://docker@sha256:f01089cb69ada00d5d27e3b77c7b0703974c48881abf16a548cbd7f5cfbb5df0\"); for logs run: kubectl -n tekton-pipelines logs simple-pipeline-run-h25g2-build-simple-bnfh4-pod-da3bed -c step-build","reason":"Failed","status":"False","type":"Succeeded"}],"podName":"simple-pipeline-run-h25g2-build-simple-bnfh4-pod-da3bed","startTime":"2020-01-08T13:15:00Z","steps":[{"container":"step-build","imageID":"docker-pullable://docker@sha256:f01089cb69ada00d5d27e3b77c7b0703974c48881abf16a548cbd7f5cfbb5df0","name":"build","terminated":{"containerID":"docker://7b4b6dd684d88799c70bde8bc02733a200b0fb64abfc1759d7275d6e40c52398","exitCode":1,"finishedAt":"2020-01-08T13:15:35Z","reason":"Error","startedAt":"2020-01-08T13:15:25Z"}},{"container":"step-push","imageID":"docker-pullable://docker@sha256:f01089cb69ada00d5d27e3b77c7b0703974c48881abf16a548cbd7f5cfbb5df0","name":"push","terminated":{"containerID":"docker://a9fbfa1f23b9778c35b93477d9944de6dccf473e60849b4187afb427ec85704b","exitCode":1,"finishedAt":"2020-01-08T13:15:36Z","reason":"Error","startedAt":"2020-01-08T13:15:28Z"}},{"container":"step-git-source-git-source-wqmfd-z74p6","imageID":"docker-pullable://gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/git-init@sha256:ce917a4a8f41a811c485fafec0f92774df3e09316da1d35e5a01e9e95a313f1e","name":"git-source-git-source-wqmfd-z74p6","terminated":{"containerID":"docker://3dec85e2aab096ff7792bb7f4e31372e93750745299727f6332b2ba2e6d23ef7","exitCode":1,"finishedAt":"2020-01-08T13:15:35Z","reason":"Error","startedAt":"2020-01-08T13:15:06Z"}},{"container":"step-image-digest-exporter-57whd","imageID":"docker-pullable://gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/imagedigestexporter@sha256:10cc6e64fbb28ad87c1a95d7300caa4545fba7903996128198077cd65ca45f0e","name":"image-digest-exporter-57whd","terminated":{"containerID":"docker://8f247d6801850a45e36a76b6d8a18181cd3c410db3bbf3a21c11f1c3040ff75e","exitCode":1,"finishedAt":"2020-01-08T13:15:37Z","message":"2020/01/08 13:15:37 Skipping step because a previous step failed\n","reason":"Error","startedAt":"2020-01-08T13:15:33Z"}},{"container":"step-create-dir-builtimage-9g2hk","imageID":"docker-pullable://busybox@sha256:6915be4043561d64e0ab0f8f098dc2ac48e077fe23f488ac24b665166898115a","name":"create-dir-builtimage-9g2hk","terminated":{"containerID":"docker://c5ca3b7ddfff48437eaac9176406cf300a79a4f56217eb33e63375b6ea9fac20","exitCode":0,"finishedAt":"2020-01-08T13:15:34Z","reason":"Completed","startedAt":"2020-01-08T13:15:06Z"}}]}}

[AlanGreene]

@Megan-Wright can you provide the raw log content (or a stripped down version showing the affected lines) where you're seeing this issue? i.e. the response to /proxy/api/v1/namespaces/<namespace>/pods/<pod_name>/log?container=<container_name>

[Megan-Wright]

Hi Alan

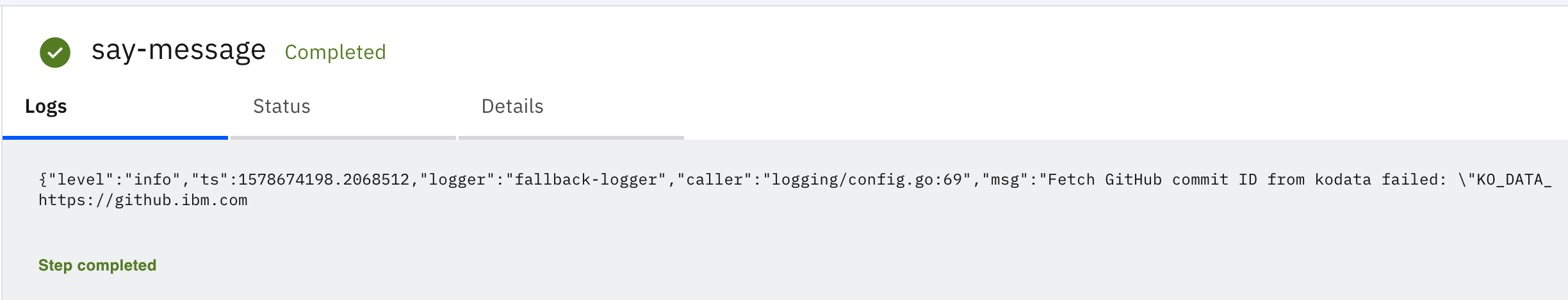

I've got a URL in the logs here that isn't converted into a link, when I ran the triggers example simple-pipeline. It's not what you were asking about but thought I should mention it

[AlanGreene]

Thanks for providing the logs @Megan-Wright, they confirmed my suspicions.

When using ansi-to-react with the linkify prop it expects URLs to be surrounded by whitespace. If the URL is surrounded by single quotes for example, it renders an anchor tag with href relative to the current page's URL as it's including the quotes, e.g. the http://localhost:5000/'https://github.ibm.com': example above

Looking at the ansi-to-react code, it appears they're doing the link parsing themselves rather than using a well-tested library such as https://www.npmjs.com/package/linkify-it. They're using a regex and some simple string splitting to attempt to extract URLs. Even with support for non-whitespace surround chars this results in a less than ideal outcome.

I've tested a number of samples that break when using the current linkify prop against linkify-it and a few other libraries, all produce far better results.

Closing this PR for now, but I'll try to put together a prototype using linkify-it in ansi-to-react instead of their current approach to confirm it works and passes their existing tests. Once we have that we can see if it's something they'd be willing to accept as a PR, or if we need to fork / look for an alternative.
