08. Genuine ST Link guide
Use this page for mode:
[C] C45 / Genuine ST-Link
This mode is for genuine ST-LINK adapters with a working reset pin.
Connect normal SWD signals:
SWDIOSWCLKGND- target voltage reference is required
Also connect the genuine ST-LINK reset pin to the MCU nRST line continuously. On these VCUs, nRST is available at capacitor C45.
A genuine adapter can control reset directly, so the user does not need to manually short C45 to GND during a countdown.
Run option 2 first:
[2] Run Full Memory Dump (128 KB)
If the dump works and verify-style reads are stable, flashing is much less likely to fail because of wiring.

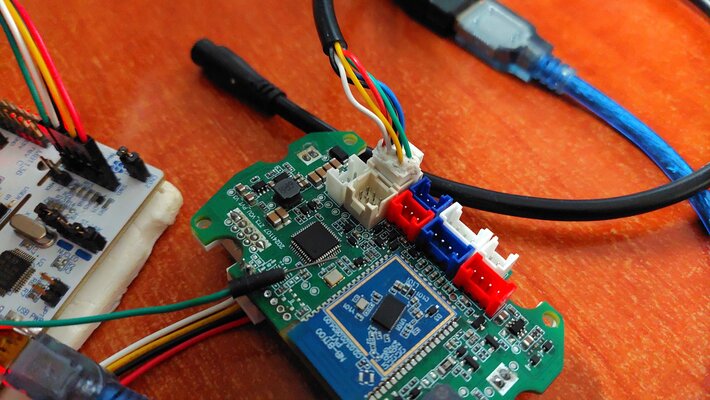

For this I used the st-link part from a cheap Nucleo board (~20 Euros).

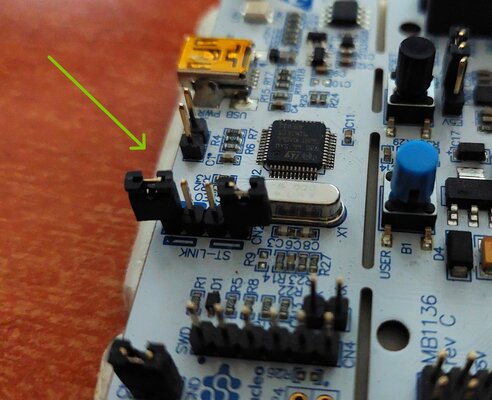

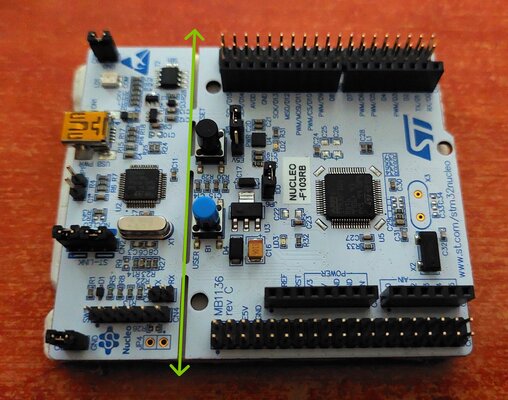

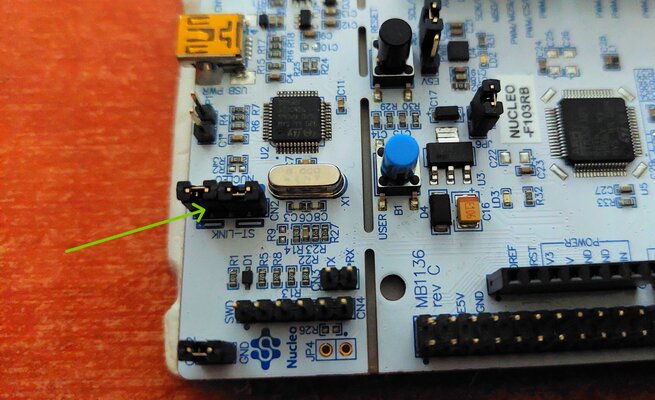

The left part is the st-link part and you need to remove those two jumpers,
to work with external devices.

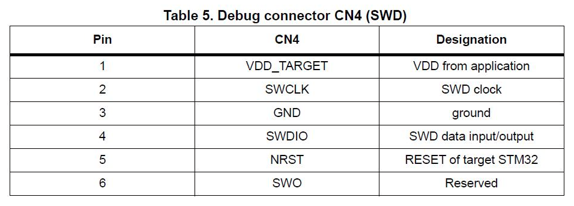

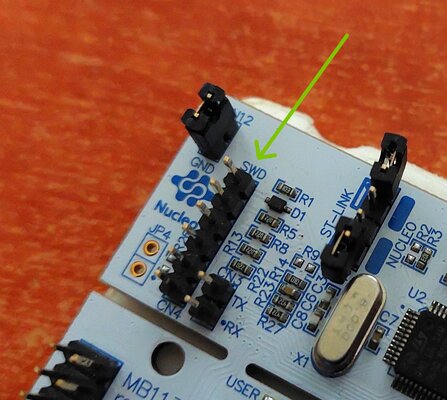

Those are the SWD pins and the pinout table (top pin is #1).

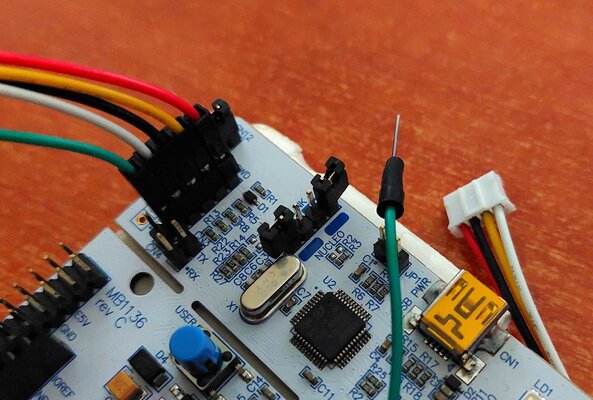

Red cable does not provide power to the dashboard.
It measures the voltage of the target's 3.3V line.
You have to connect this at the dashboard's SWD 3.3V pin
and give power from the main connector.
Yellow, Black & White are SWCLK, GND & SWDIO respectively.

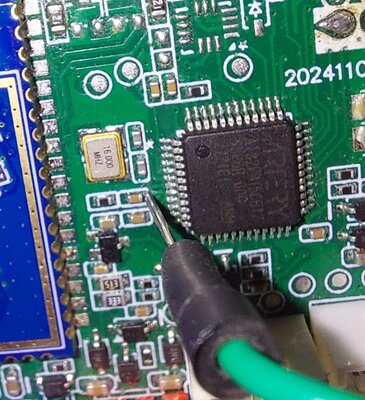

Green is the reset (NRST) and you need to connect this to the C45 capacitor.
