Project Description

open in Eclipse Che

This project is an application with both front-end and back-end. It is structured into four main modules: core, file, springboot and ui.

• The core module contains the main logic of the application.
• The file module is responsible for file handling.
  • The files are stored in user.home
• The springboot module is responsible for the Rest API.
• The ui module contains all the user interface related code.

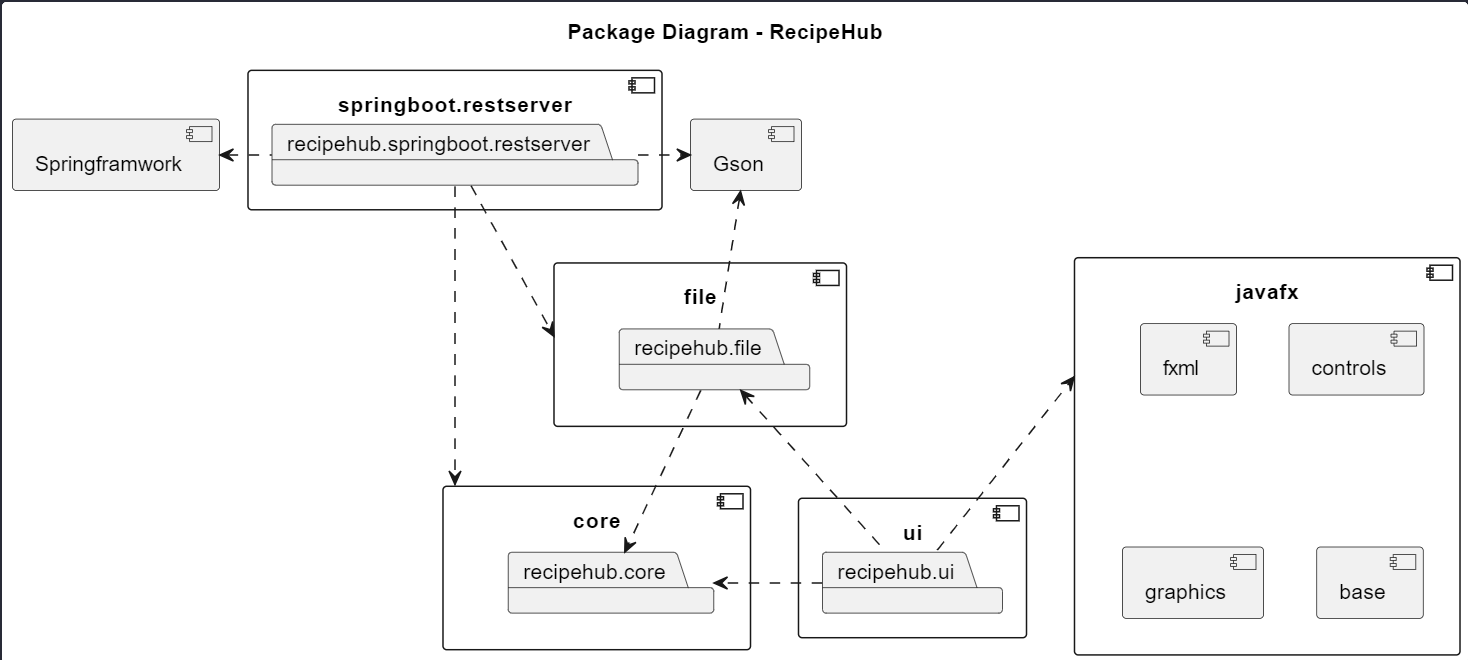

Package diagram for RecipeHub project

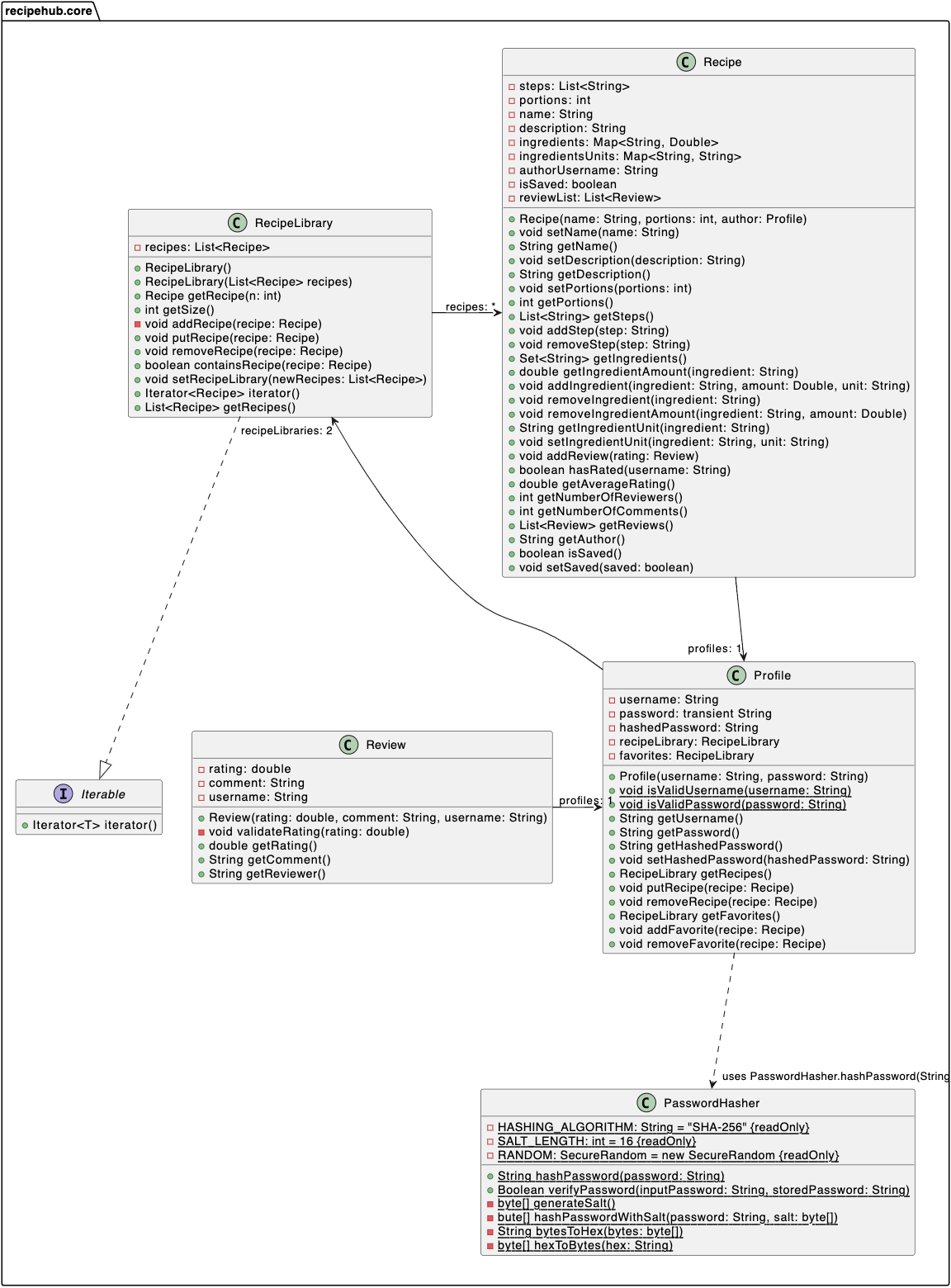

Class diagram for core module

Requirements

These are the requirements for the project:

• Java version: 17.0.5
• Maven version: 3.9.4
• JavaFX version: 17.0.2
• JUnit version: 5.7.2
• TestFX version 4.0.16-alpha
• Hamcrest version 2.2
• Mockito version 5.5.0
• JaCoCo version 0.8.7
• FontAwesomeFX-FontAwesome version 4.7.0-9.1.2
• Checkstyle version 3.2.0
• Spotbugs 4.7.3.6

Dependencies

These are the dependencies for the project:

• JavaFX
• TestFX
• JUnit
• GSON
• Maven
• JaCoCo
• Mockito
• Hamcrest
• FontAwesomeFX-FontAwesome
• Checkstyle
• Spotbugs
• Log4j
• Springboot framework

Instructions

• To run the project, navigate to the recipehub directory and use the command mvn clean install.
• After the build is successful, you can navigate to the ui-directory and run the application using the command mvn javafx:run.
• To run the tests, use the command mvn test in the recipehub directory. This will run all the tests in the project.
• To generate a test coverage report, use the command mvn jacoco:report. The report can be found in the target/site/jacoco/index.html file.
• To pack the project as an app use the command mvn javafx:jlink -f ui/pom.xml. Then use the command mvn jpackage:jpackage -f ui/pom.xml. Follow the instructions from your computer, and the application will appear in your applications.
• For instructions on how to run the project with the Rest API, see the restapi.md file.

Directory Structure

The following figure shows the directory structure of the project:

└───recipehub
    ├───core
    │   └───src
    │       ├───main
    │       │   └───java
    │       │       └───core
    │       │           -- The Profile- Recipe- and RecipeLibrary-classes are in this package.
    │       │           -- They are responsible for the main logic of the application.
    │       └───test
    │           └───java
    │               └───core
    │                   -- The testfiles for the core module are located in this file.
    │
    ├───file
    │   └───src
    │       │───main
    │       │   └───java
    │       │       └───file
    │       │           -- The file-handling for the project is located in this file.
    │       └───test
    │           └───java
    │               └───file
    │                    -- The testfiles for the file module are located in this file
    │
    ├───springboot
    │   └───restserver
    │       └───src
    │           │───main
    │           │   └───java
    │           │       └───springboot
    │           │           └───restserver
    │           │               -- The Rest API for the project is located in this file.
    │           └───test
    │               └───java
    │                   └───springboot
    │                       └───restserver
    │                           -- Tests for the restserver module are located in this file.
    └───ui
        └───src
            ├───main
            │   ├───java
            │   │   └───ui
            │   │       -- The controllers used in the project is located in this file.
            │   └───resources
            │       ├───ui
            │       │    -- This is where the fxml-files and style.css for the UI are located.
            │       │
            │       └───images
            │            -- This is where the images used in the UI are located.
            └───test
                └───java
                    └───ui
                        -- The testfiles for the ui module are located in this file.
