Hdrp/update decal handles pivot #3001

RSlysz · 2021-01-06T16:39:02Z

Purpose of this PR

This PR add the missing customizable pivot to Decals. It is required for placement snapping and finely tuning rotation point.
This contains the following changes:

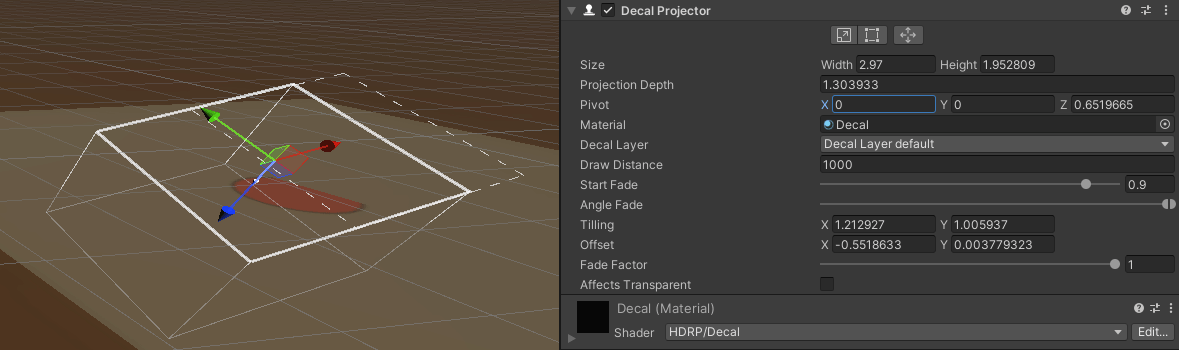

Add Pivot in the inspector. Modifying it will decal the projection box from the transform point.

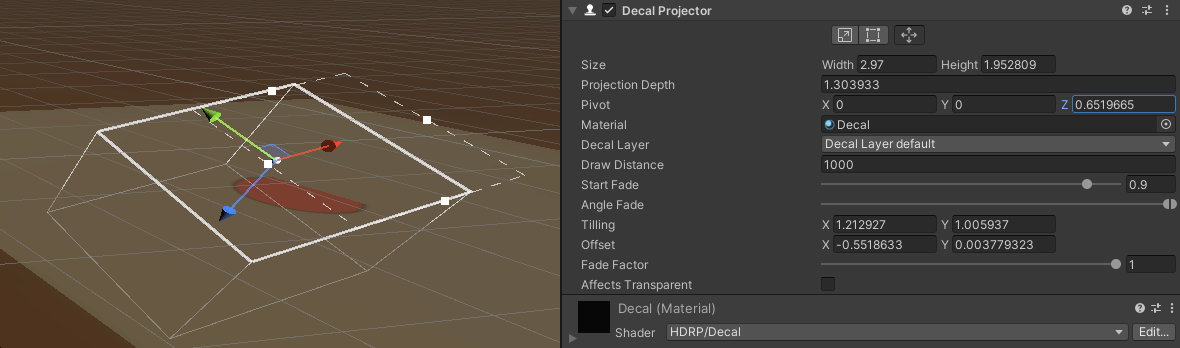

Add pivot and UV edit mode. In this mode, you can modify the pivot without moving the box position. It will automatically adapt transform position for the box to remain still.

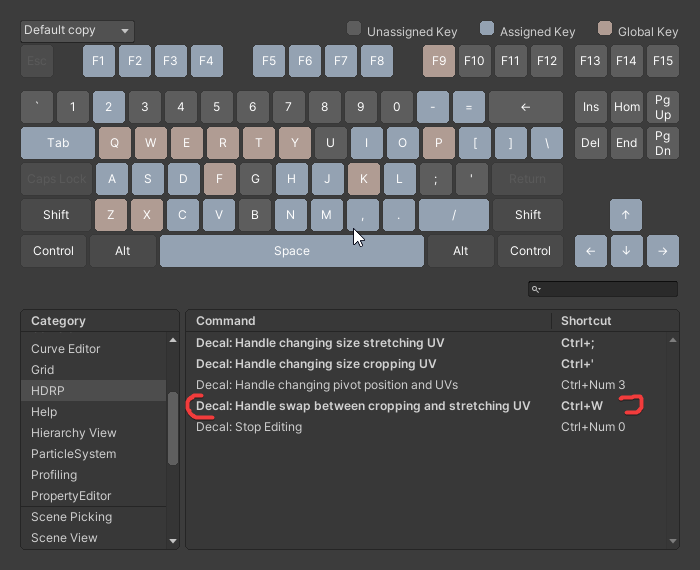

Add customizable shortcut key for this new edit mode.

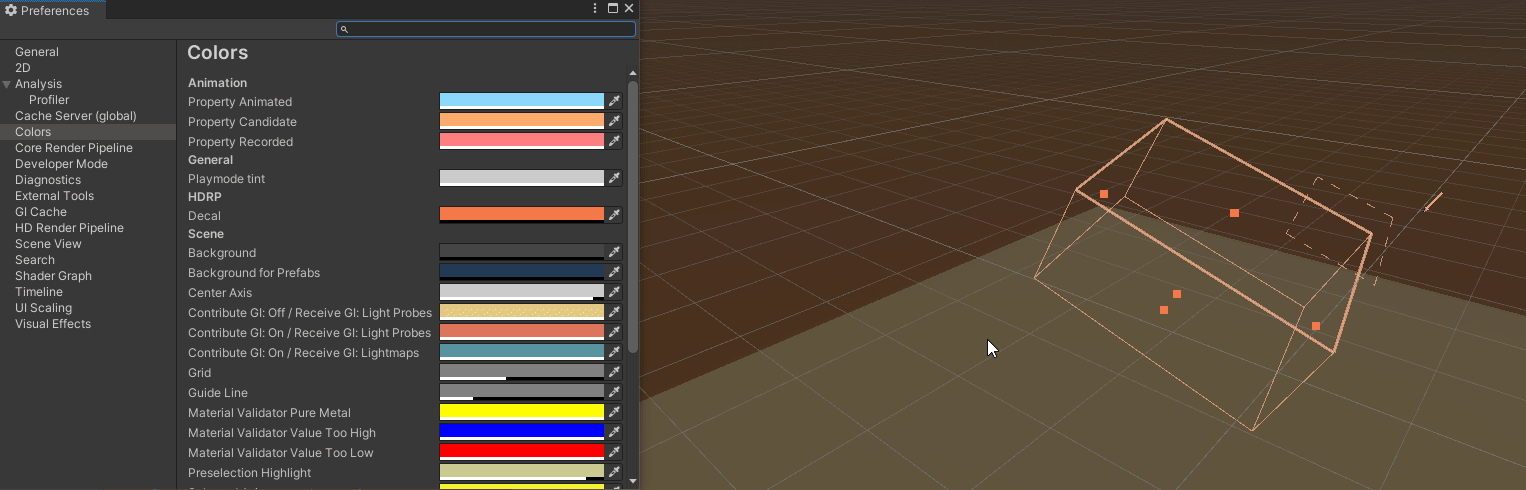

Add customizable color for the Decal's Gizmo / Handle. The main point here is to be able to select different intensity which is really useful when dealing with dark environment/ really bright environment.

This also fix:

Testing status

Tested the handles of previous edit mode and new edit mode with

pivot not at (0,0,0)
transform not at position (0,0,0)
transform with a random rotation
size different than (1,1) and projection depth different than 1
In all above cases, it seams to behave correctly.

Tested that changing the Transform's rotation make the projection volume rotate around the pivot as intended.

Tested color and face intensity change along the color set in the preference.

Tested Undo/Redo on edition by handle of the pivot point (with new edit mode)

Comments to reviewers

ColorPref are internal and cannot be directly used. I kinda hacked it by using them with reflection and Activator. It is not a nice integration but it seams to work. Particularly because the color list seams to be updated each time the window is enabled. So AFAIK what I have done should work fine.

Also, the default color provided to the ColorPref is the same than now. So this should not change on users at update without them actively modifying it.

To do this I had to tweek a little the HierarchicalBox used also for DensityVolume and ReflectionProbe's gizmo/handle. The change is minor and should not affect the behaviour of those.

All modification are only on the Editor manipulation side. So there is no actual change of the projection volume computation code. Which means that there is no need to migrate any data, they should still work fine. Though a test on that could be nice to be 100% sure.

@SeanPuller for awareness

@qa After discussion with @MaddalenaUnity , the color is not under HDRP but under Scene

com.unity.render-pipelines.core/Editor/Gizmo/HierarchicalBox.cs

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DecalProjectorEditor.cs

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DisplacableRectHandles.cs

com.unity.render-pipelines.high-definition/Editor/Material/Decal/ProjectedTransform.cs

SeanPuller · 2021-01-07T09:45:13Z

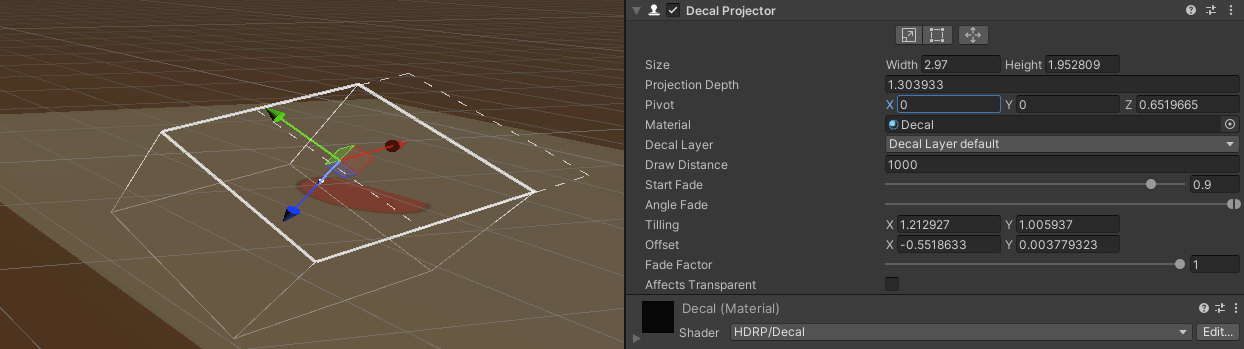

Bug with modifying Z Projection depth and resetting Z pivot
https://user-images.githubusercontent.com/43151199/103877398-4f158a80-50d5-11eb-845a-428a8f7aedb4.mp4

For better placment with prefabs

RSlysz · 2021-01-08T09:26:39Z

Last commits are feedbacks from @SeanPuller . He will do another pass soon.
So for reviewers, I'll tell you when code will be stable.
And meanwhile I'll add the missing documentation.

RSlysz · 2021-01-11T08:58:58Z

Ok no more change beside the documentation.

Remaining work (keeping ratio when scaling) will be in another PR for clarity.

JordanL8 · 2021-01-11T16:03:13Z

com.unity.render-pipelines.high-definition/Documentation~/Decal-Projector.md

-|![](Images/DecalProjector4.png)|**Crop**|Crops the decal with the projector box. This changes the size of the projector box but not the UVs of the Material. This crops the decal.|
+|![](Images/DecalProjector3.png)|**Scale**|Scales the decal with the projector box. This changes the UVs of the Material to match the size of the projector box. This stretches the decal. The Pivot remains still.|
+|![](Images/DecalProjector4.png)|**Crop**|Crops the decal with the projector box. This changes the size of the projector box but not the UVs of the Material. This crops the decal. The Pivot remains still.|
+|![](Images/DecalProjector5.png)|**Pivot / UV**|Move the pivot without moving the projection box. This alter the transform position.<br />Also, set the UV used on the projected texture.|


Moves the decal's pivot point without moving the projection box. This changes the transform position.
Note this also sets the UV used on the projected texture.

JordanL8 · 2021-01-11T16:05:04Z

com.unity.render-pipelines.high-definition/Documentation~/Decal-Projector.md

 | ----------------------- | ------------------------------------------------------------ |
 | **Size**                | The size of the projector influence box, and thus the decal along the projected plane. The projector scales the decal to match the **Width** (along the local x-axis) and **Height** (along the local y-axis) components of the **Size**. |
 | **Projection Depth**    | The depth of the projector influence box. The projector scales the decal to match **Projection Depth**. The Decal Projector component projects decals along the local z-axis. |
+| **Pivot**               | The offset position of the transform regarding the projection box. Adjusting X and Y allows to make rotation of the projected texture around a specific position, while Z allows to have a specific offset in depth. |


The offset position of the transform regarding the projection box. To rotate the projected texture around a specific position, adjust the X and Y values. To set a depth offset for the projected texture, adjust the Z value.

JordanL8 · 2021-01-11T16:06:04Z

com.unity.render-pipelines.high-definition/Documentation~/Decal-Projector.md

 * A box that describes the 3D size of the projector; the projector draws its decal on every Material inside the box.

-* An arrow that indicates the direction the projector faces.
+* An arrow that indicates the direction the projector faces. This arrow is on the pivot point.


The base of this arrow is on the pivot point.

^^
Assumed its the base, ignore this comment if it isn't

alex-vazquez

Good code overall :). I found minor things that I think you should double check before merging.

alex-vazquez · 2021-01-18T14:06:03Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DisplacableRectHandles.cs

+        }
+
+        /// <summary>Draw the rect.</summary>
+        public void DrawRect(bool dottedLine = false, float sickness = .0f, float screenSpaceSize = 5f)


I think you meant thickness instead of sickness ?

alex-vazquez · 2021-01-18T15:35:53Z

com.unity.render-pipelines.core/Editor/Gizmo/HierarchicalBox.cs

+        {
+            m_MonochromeFillColor = color;
+            material.color = m_MonochromeFillColor;
+            color.a = 1f;


In DisplacableRectHandles.baseColor we also have the same alpha values, can have them declared somewhere? Just in case we want to change them will be equal in both places. Maybe a static function SetAlphaHandleValues()?

alex-vazquez · 2021-01-18T15:45:31Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DisplacableRectHandles.cs

+                        {
+                            if (min[axis] > max[axis])
+                            {
+                                // Control IDs in m_ControlIDs[0-3[ are for positive axes


Typo on the comment: [0-3]

alex-vazquez · 2021-01-18T15:48:45Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/ProjectedTransform.cs

+                if (!(obj is PositionHandleIds))
+                    return false;
+
+                var o = (PositionHandleIds)obj;


You can avoid this second cast if you do:

if (!(obj is PositionHandleIds o)) return false;

alex-vazquez · 2021-01-18T16:01:13Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DecalProjectorEditor.cs

+                // UV
+                using (new Handles.DrawingScope(Matrix4x4.TRS(decalProjector.transform.position + decalProjector.transform.rotation * (decalProjector.offset - .5f * decalProjector.size), decalProjector.transform.rotation, Vector3.one)))
+                {
+                    Vector2 UVSize = new Vector2(


You should name it uvSize as it is a local variable

alex-vazquez · 2021-01-19T10:01:48Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DisplacableRectHandles.cs

+                        switch (theChangedEdge)
+                        {
+                            case NamedEdge.Left:
+                                if (rightPosition.x < leftPosition.x)
+                                    leftPosition.x = rightPosition.x;
+                                if (topPosition.y < bottomPosition.y)
+                                    topPosition.y = bottomPosition.y = center.y;
+                                break;
+                            case NamedEdge.Right:
+                                if (rightPosition.x < leftPosition.x)
+                                    rightPosition.x = leftPosition.x;
+                                if (topPosition.y < bottomPosition.y)
+                                    topPosition.y = bottomPosition.y = center.y;
+                                break;
+                            case NamedEdge.Top:
+                                if (topPosition.y < bottomPosition.y)
+                                    topPosition.y = bottomPosition.y;
+                                if (rightPosition.x < leftPosition.x)
+                                    rightPosition.x = leftPosition.x = center.x;
+                                break;
+                            case NamedEdge.Bottom:
+                                if (topPosition.y < bottomPosition.y)
+                                    bottomPosition.y = topPosition.y;
+                                if (rightPosition.x < leftPosition.x)
+                                    rightPosition.x = leftPosition.x = center.x;
+                                break;
+                        }


Same here, another method will improve readability

EnsureEdgesFacingOutside();

alex-vazquez · 2021-01-19T10:22:28Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DecalProjectorEditor.cs

 using UnityEngine;
-using UnityEngine.Rendering;
 using UnityEngine.Rendering.HighDefinition;
 using UnityEditor.ShortcutManagement;
 using static UnityEditorInternal.EditMode;
+using UnityEditor.IMGUI.Controls;
+using System;
+using System.Collections.Generic;
+using System.Reflection;
+using System.Linq.Expressions;


Can you sort usings statements?

alex-vazquez · 2021-01-19T10:28:52Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DecalProjectorEditor.cs

+                }
+                else
+                {
+                    Quaternion arrowRotation = Quaternion.LookRotation(Vector3.down, Vector3.right);


Where are you using arrowRotation? I can not see it.

alex-vazquez · 2021-01-19T11:54:43Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DecalProjectorEditor.cs

+            // PrefColor is the type to use to have a Color that is customizable inside the Preference/Colors panel.
+            // Sadly it is internal so we must create it and grab color from it by reflection.
+            Type prefColorType = typeof(Editor).Assembly.GetType("UnityEditor.PrefColor");
+            s_ColorPref = Activator.CreateInstance(prefColorType, new object[] { "HDRP/Decal", k_GizmoColorBase.r, k_GizmoColorBase.g, k_GizmoColorBase.b, k_GizmoColorBase.a });


I think @MaddalenaUnity wants to unify the colors under Rendering, could you double check?

alex-vazquez · 2021-01-19T11:56:01Z

com.unity.render-pipelines.high-definition/Editor/Material/Decal/DecalProjectorEditor.cs

+                // Pivot
+                using (new Handles.DrawingScope(fullColor, Matrix4x4.TRS(Vector3.zero, decalProjector.transform.rotation, Vector3.one)))
+                {
+                    EditorGUI.BeginChangeCheck();
+                    Vector3 newPosition = ProjectedTransform.DrawHandles(decalProjector.transform.position, .5f * decalProjector.size.z - decalProjector.offset.z, decalProjector.transform.rotation);
+                    if (EditorGUI.EndChangeCheck())
                    {
-                        needToRefreshDecalProjector = true;
+                        Undo.RecordObjects(new UnityEngine.Object[] { decalProjector, decalProjector.transform }, "Decal Projector Change");

-                        // Both the DecalProjectorComponent, and the transform will be modified.
-                        // The undo system will automatically group all RecordObject() calls here into a single action.
-                        Undo.RecordObject(decalProjector.transform, "Decal Projector Change");
+                        decalProjector.offset += Quaternion.Inverse(decalProjector.transform.rotation) * (decalProjector.transform.position - newPosition);
+                        decalProjector.transform.position = newPosition;
+                    }
+                }


Instead of //Pivot, I think it will be clearer if you add it's own method. this also applies to //UV

alex-vazquez

Good improvements, thank you :)

RSlysz · 2021-01-21T11:33:34Z

@TomasKiniulis Above commit add missing public API to change pivot by script. Also add an helper to resize and use the pivot as center of the transformation.

RSlysz · 2021-01-22T10:22:09Z

@TomasKiniulis > Add requested fallback when we switch edit mode and UV/Pivot is selected, we fallback on first edit mode now.

TomasKiniulis

Verified the bugfixes and checked through the changes. Pivot and UV adjustment gizmos feels like a great addition for decals!

Some findings:

Depth is adjusted from from center when value is moved to 0 - which discussing with @RSlysz hard to do anything about, but could be adjusted in next QoL improvements pr, filed a ticket here: https://fogbugz.unity3d.com/f/cases/1308338/
Aside from pressing undo, there's no way to reset pivot position without changing position where decal is projected
"Modify the UV" button could benefit with an additional position gizmo(or a dot in the middle)
which would benefit if could be improved in future PRs

More info here: https://confluence.unity3d.com/display/HDRP/Update+Decal+Handles+Pivot
