Raspberry Pi Touch Screen Ground Station

These instructions are to build a Raspberry Pi Touch Screen Ground Station based on the Fox-in-a-Box v4 disk image.

If images on this page fail to load, you can download this PDF.

Video

Here is a video of this.

Parts

Here's what you need:

• Raspberry Pi 4 (or Raspberry Pi 5) Single Board Computer. Any RAM amount is fine.
• Micro SD card with Fox-in-a-Box v4 disk image (FIABv4)
• Sunfounder 7" Touch Screen with Speakers
• RTL-SDR radio dongle
• Antenna for RTL-SDR
• USB extender cable
• Raspberry Pi power supply
• Wireless mouse
• two AAA batteries for mouse

Here's how the parts look:

Steps

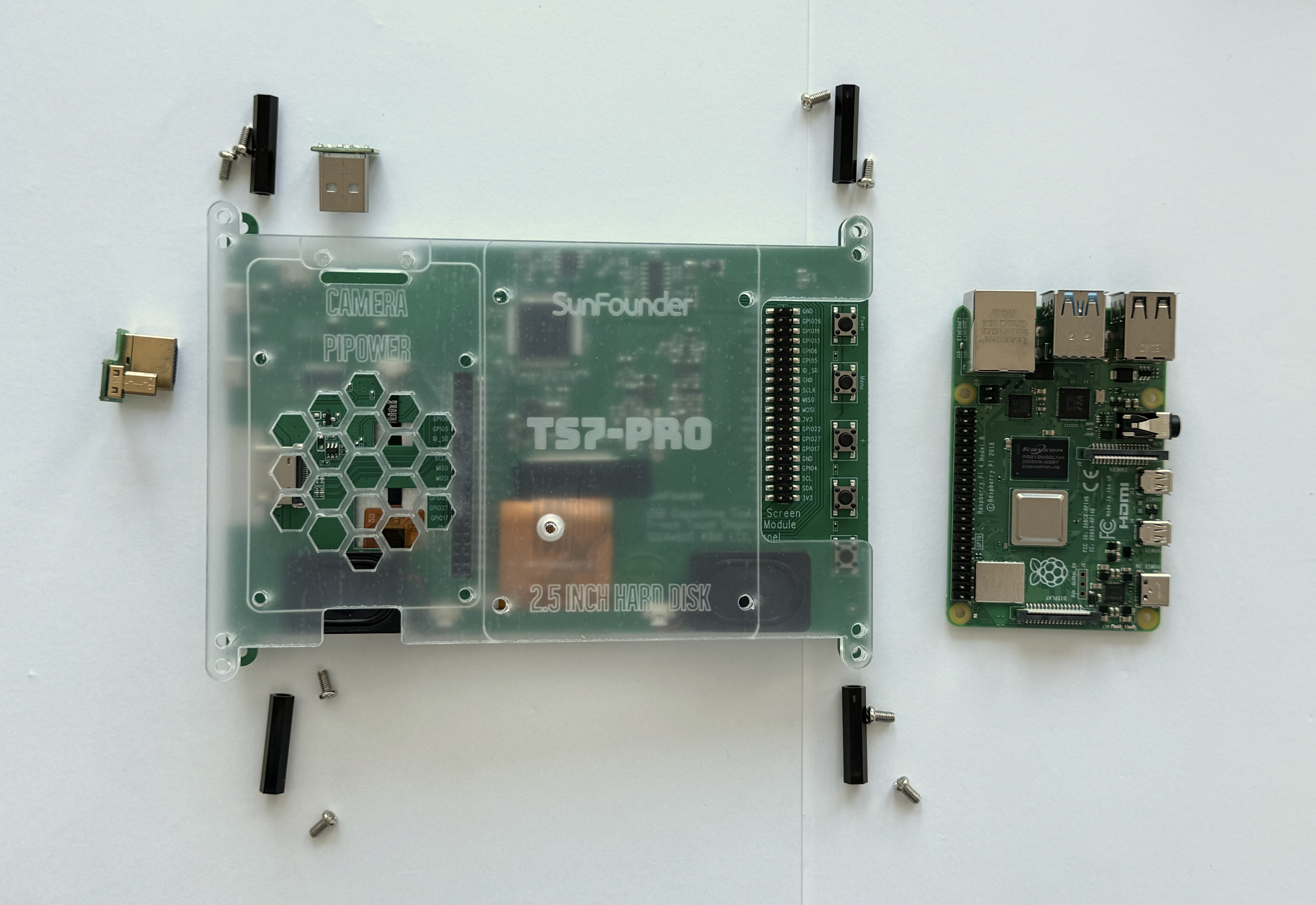

Here's the parts to put together the Touchscreen:

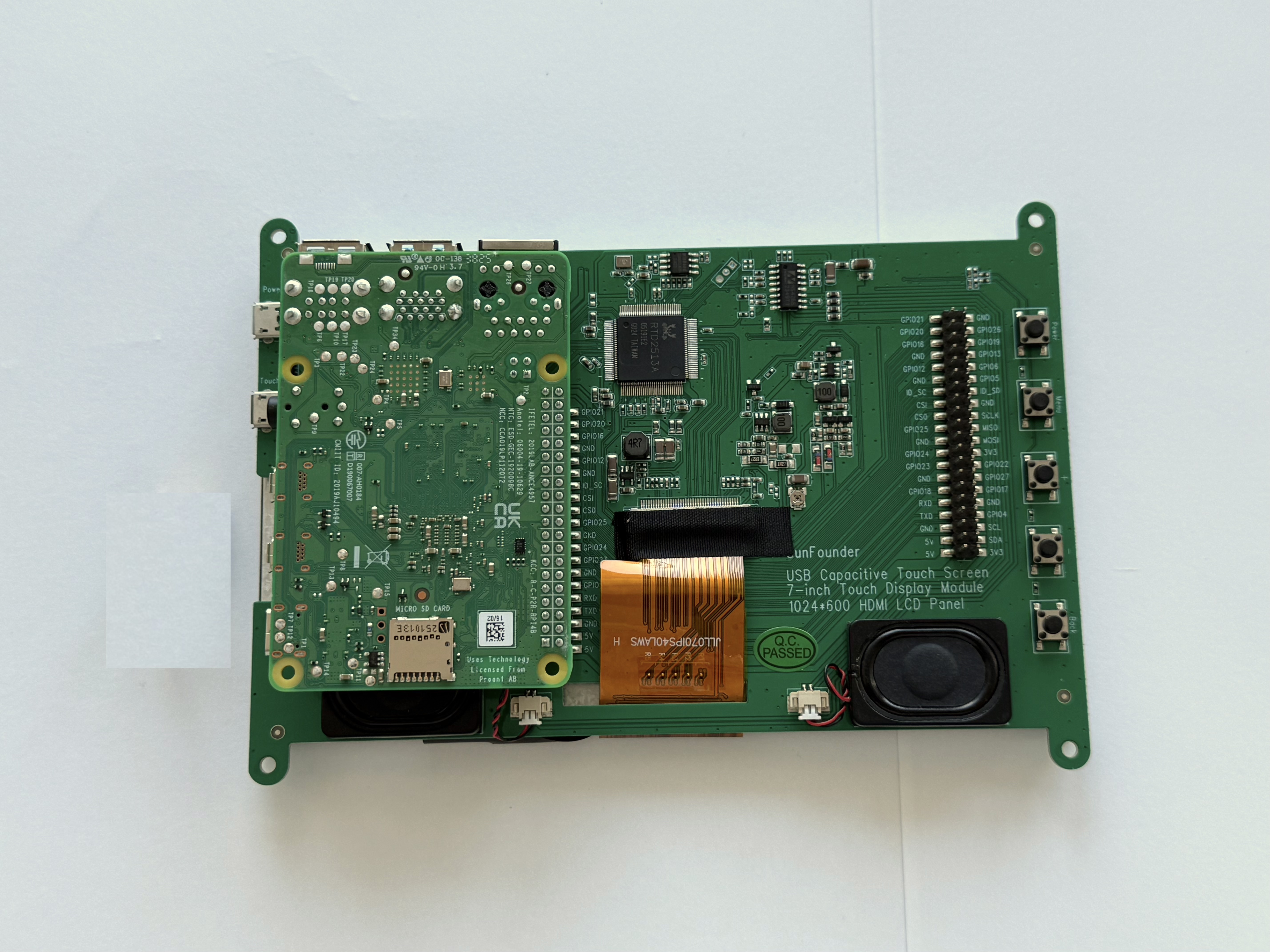

The first step is to plug the Pi 4 (or Pi 5) into the back of the touch screen:

Here's how it looks:

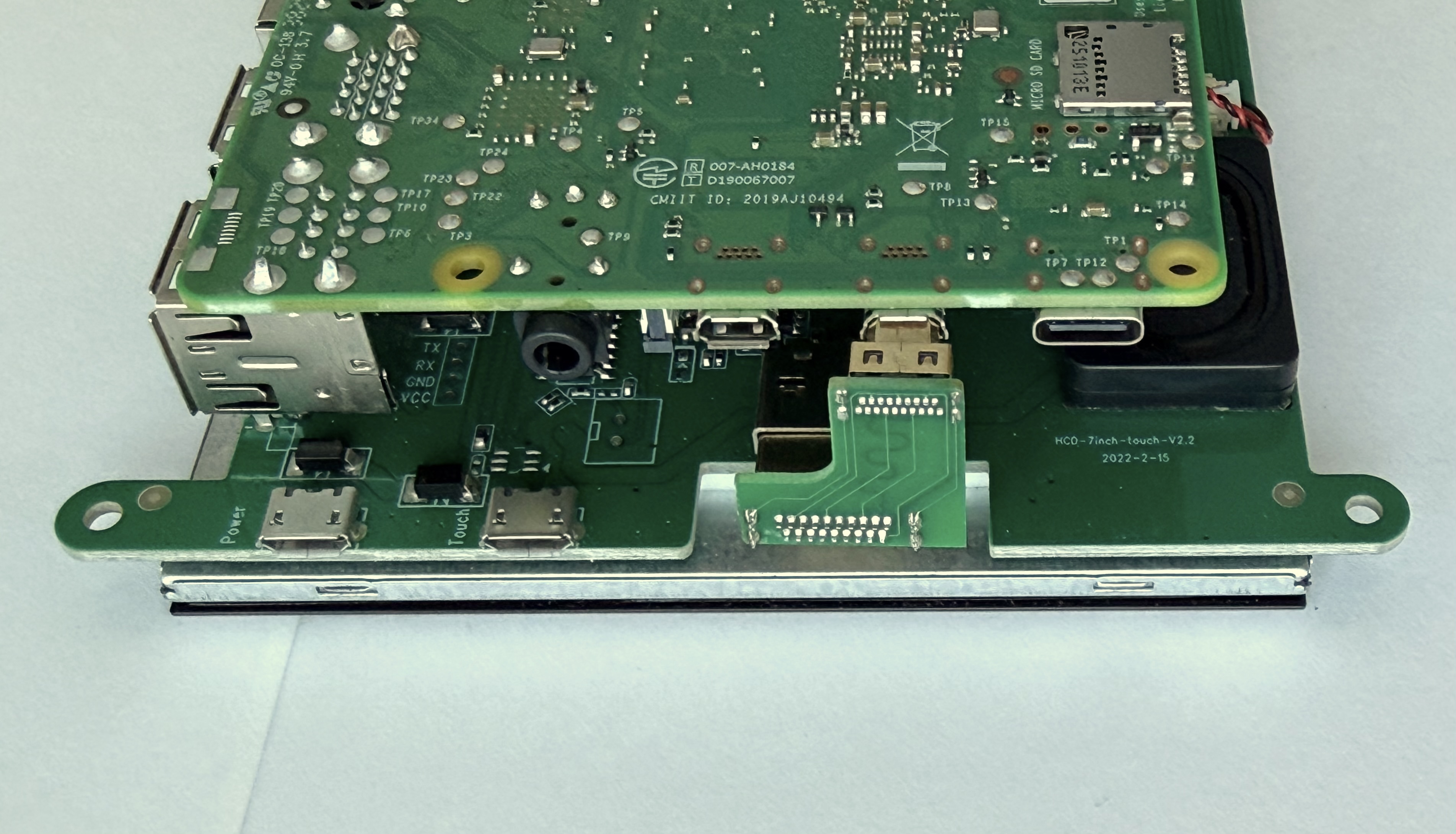

Next plug the HDMI adapter and the USB adapter into the Pi and the touch screen as shown:

Next, attach four nylon standoffs to the touchscreen back using four screws:

Here's how it looks:

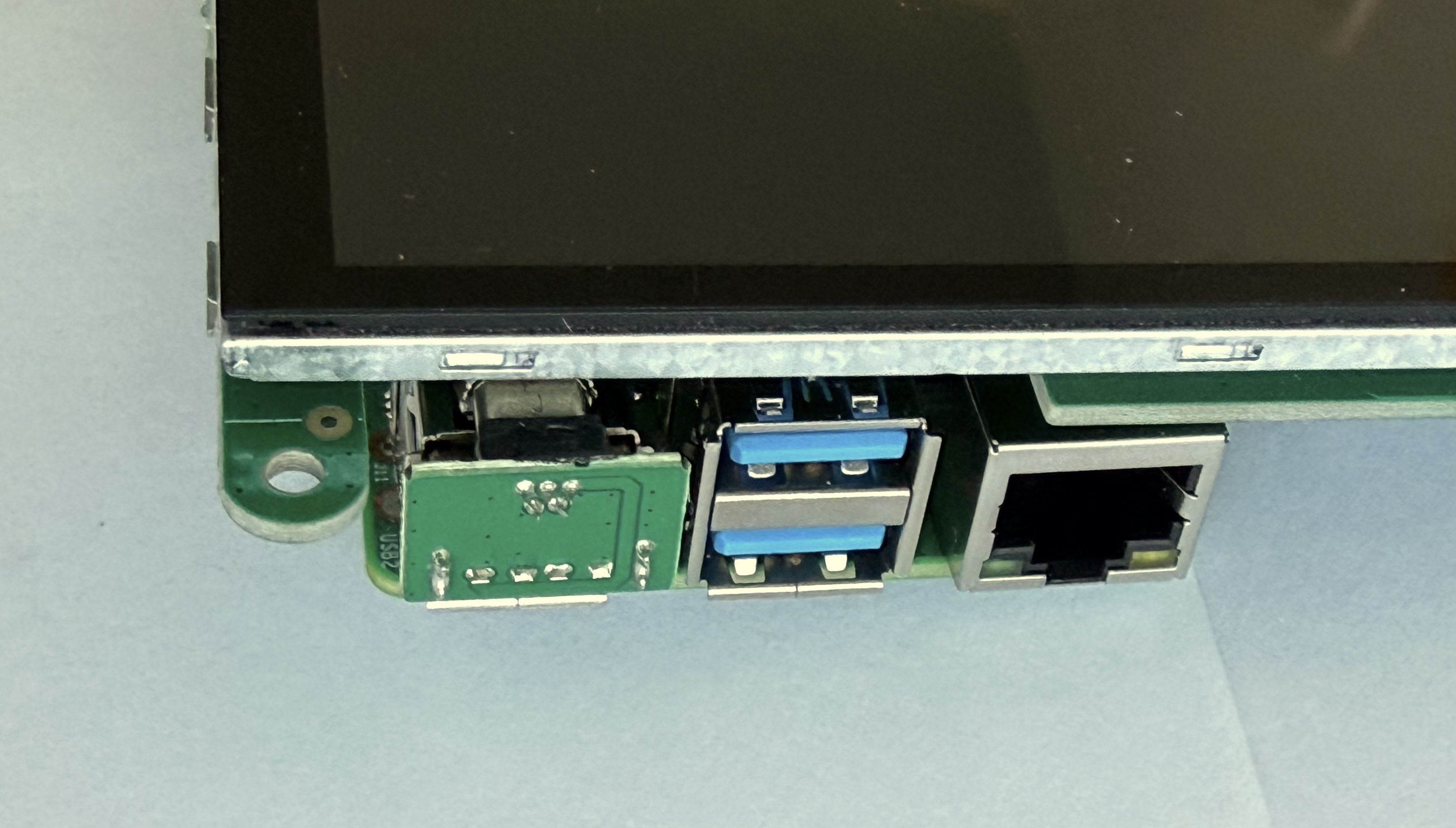

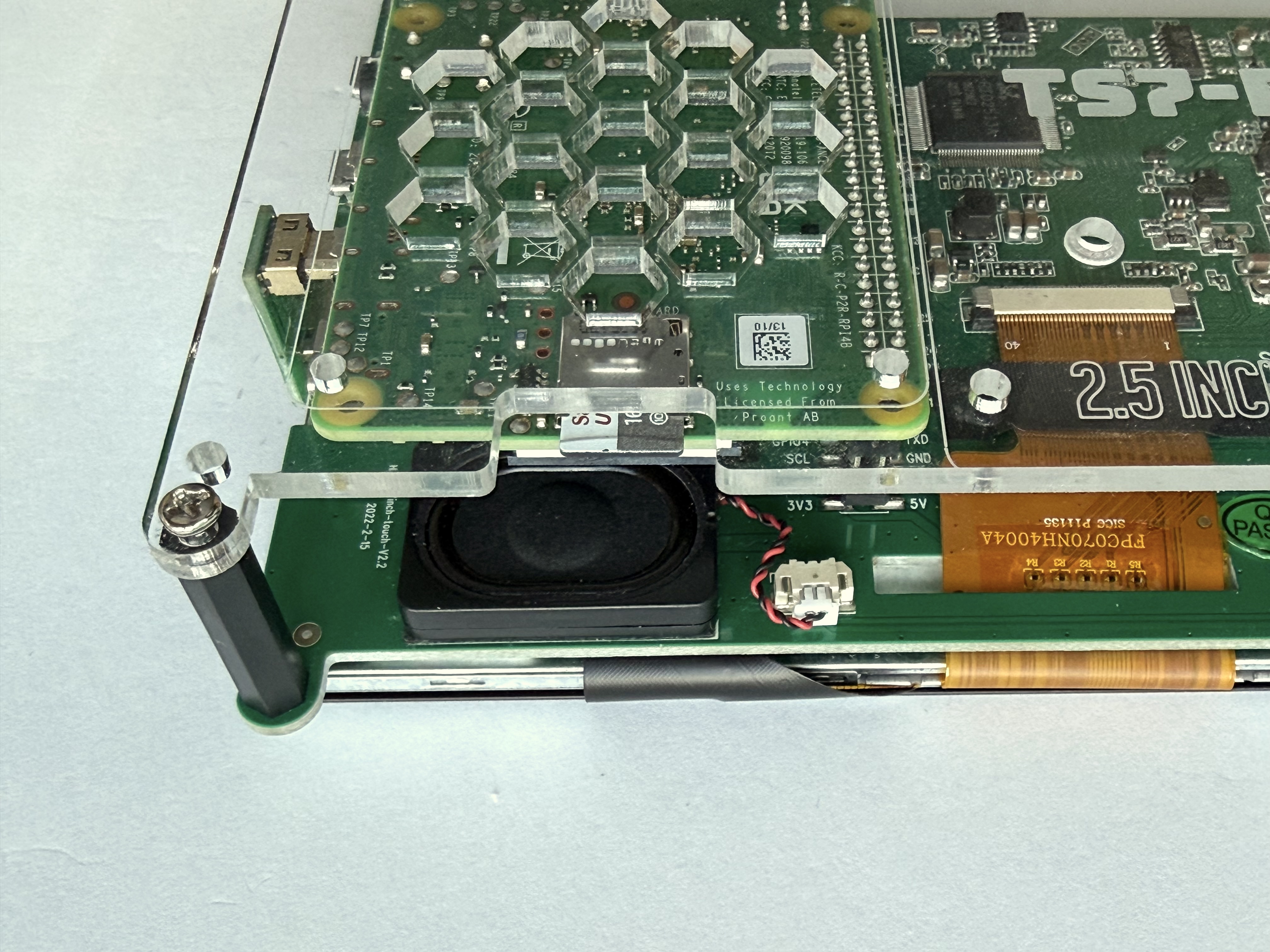

Then place the screen on top and secure with four screws:

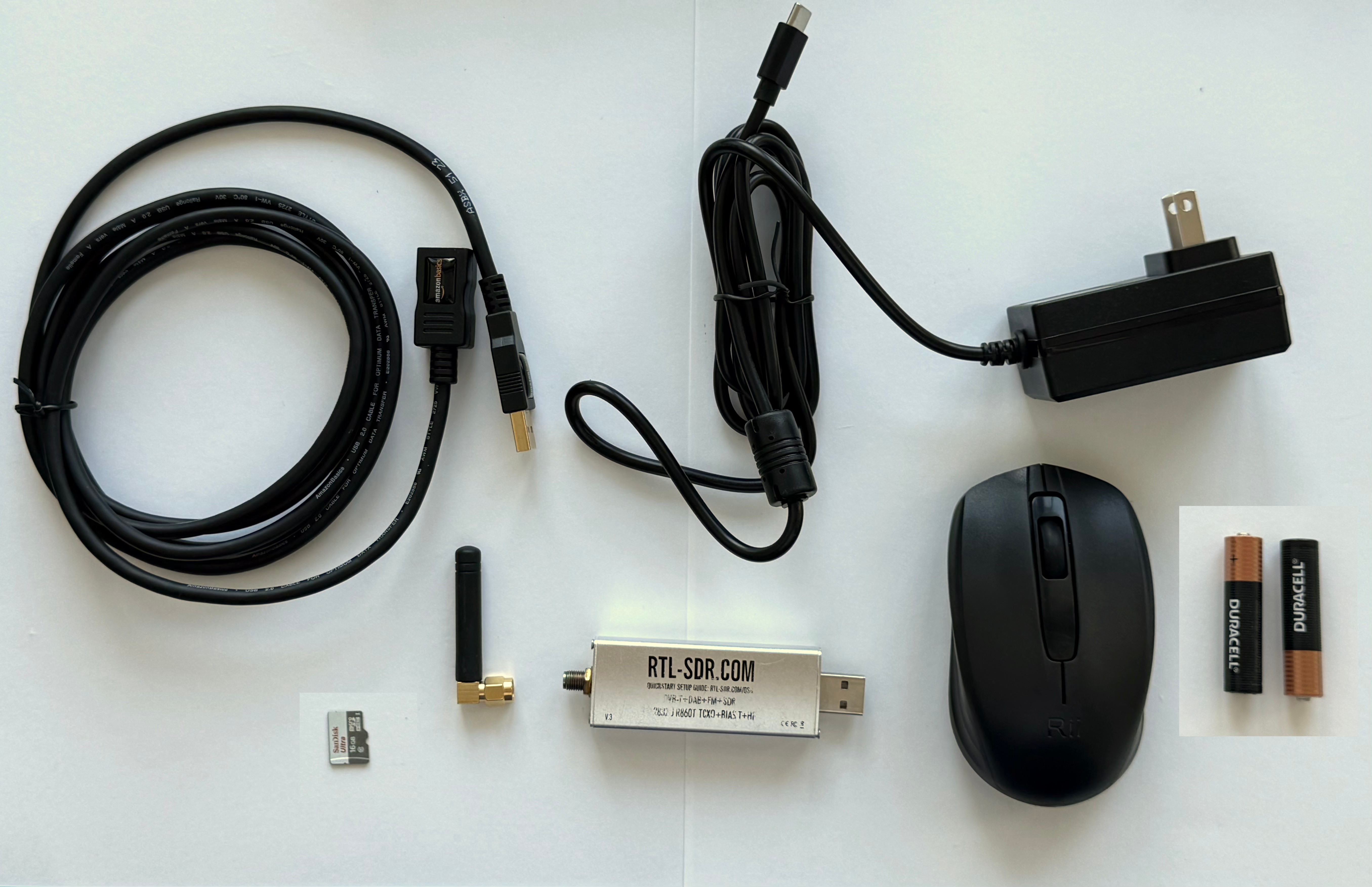

Here are the rest of the parts that we will plug in:

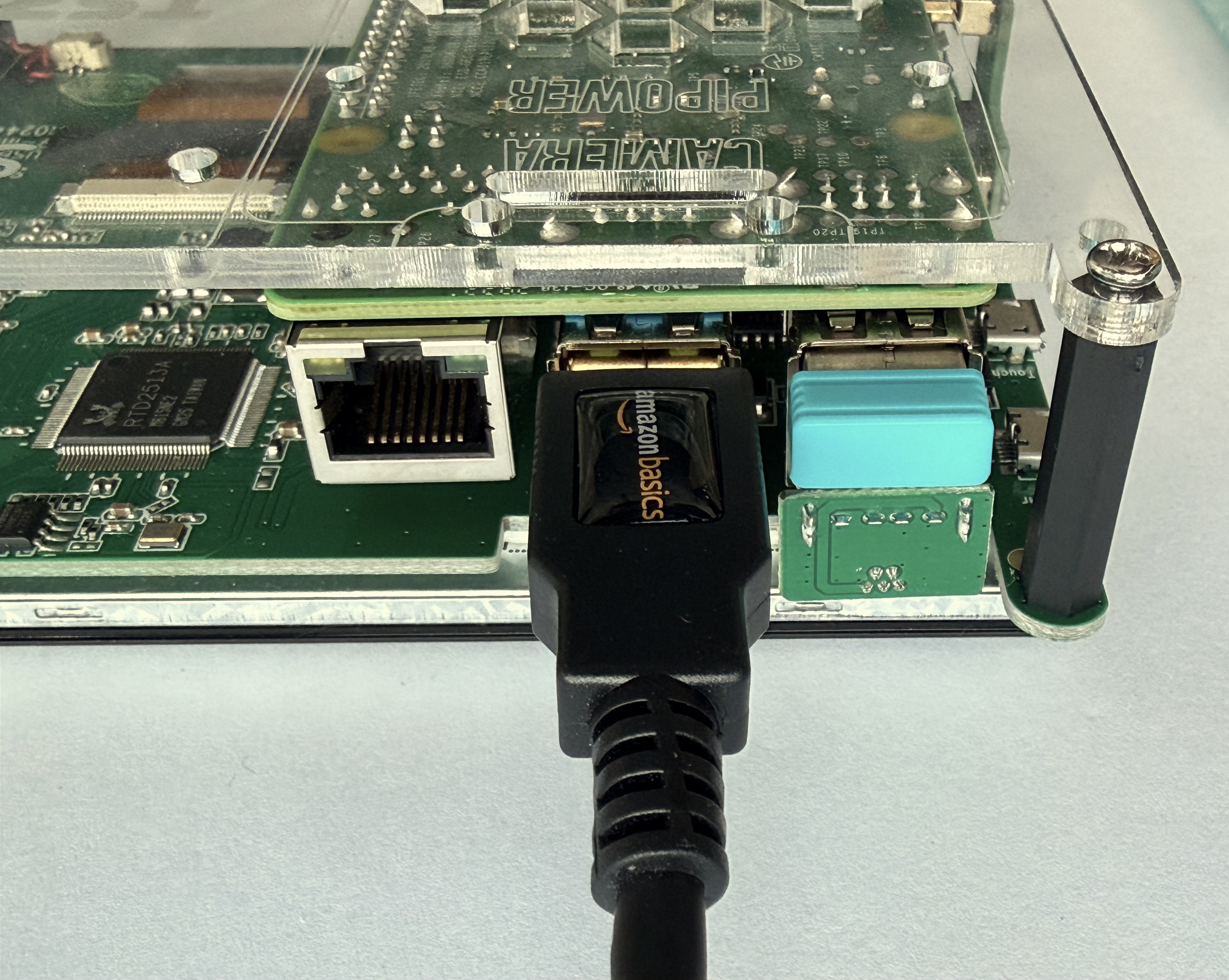

Start with the USB extender cable:

Then plug the RTL-SDR into the USB cable and screw the SMA antenna into the RTL-SDR:

Flip the mouse upside and remove the plastic cover:

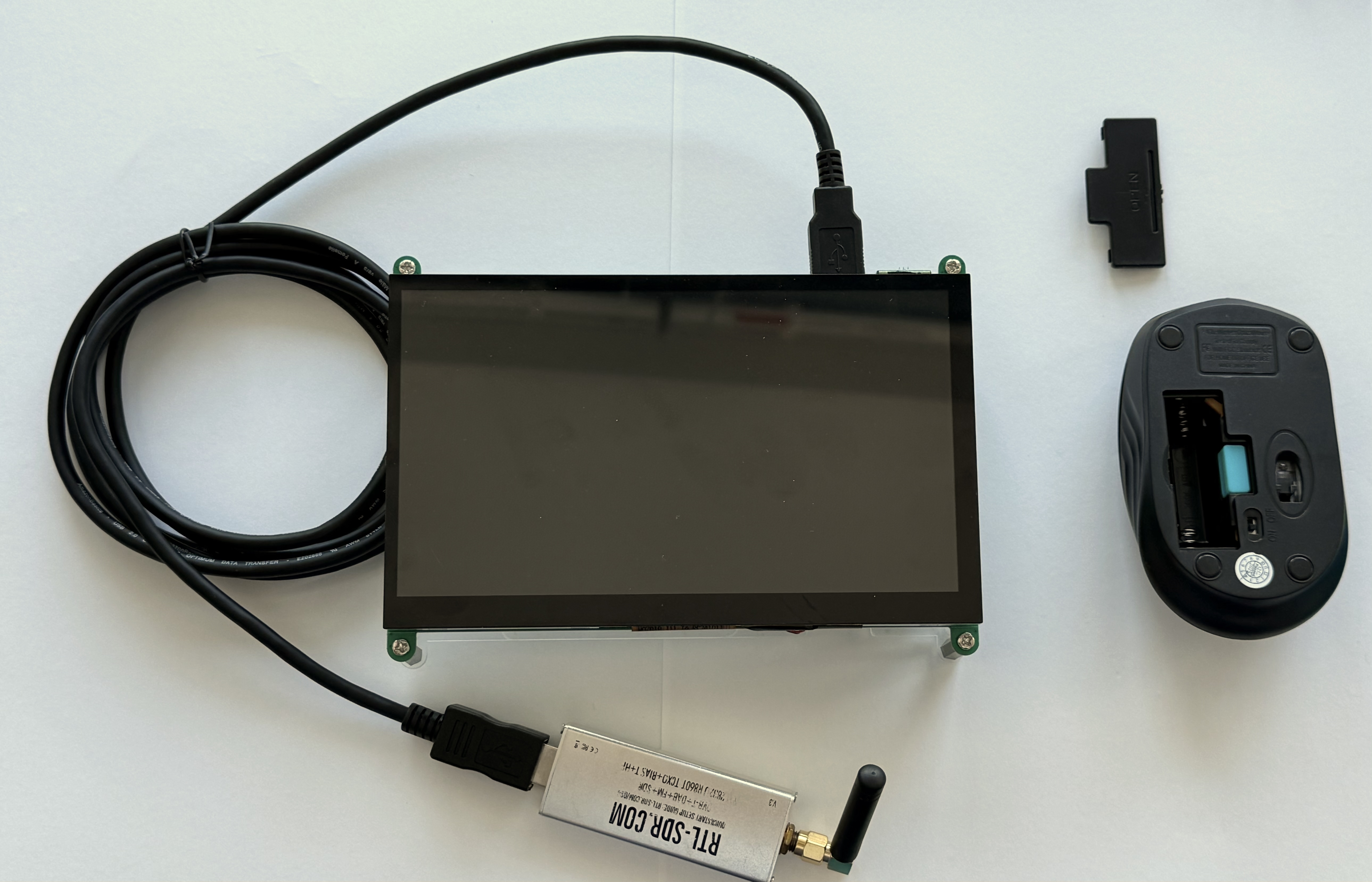

Unplug the colored USB receiver and plug it into a USB port on the Pi:

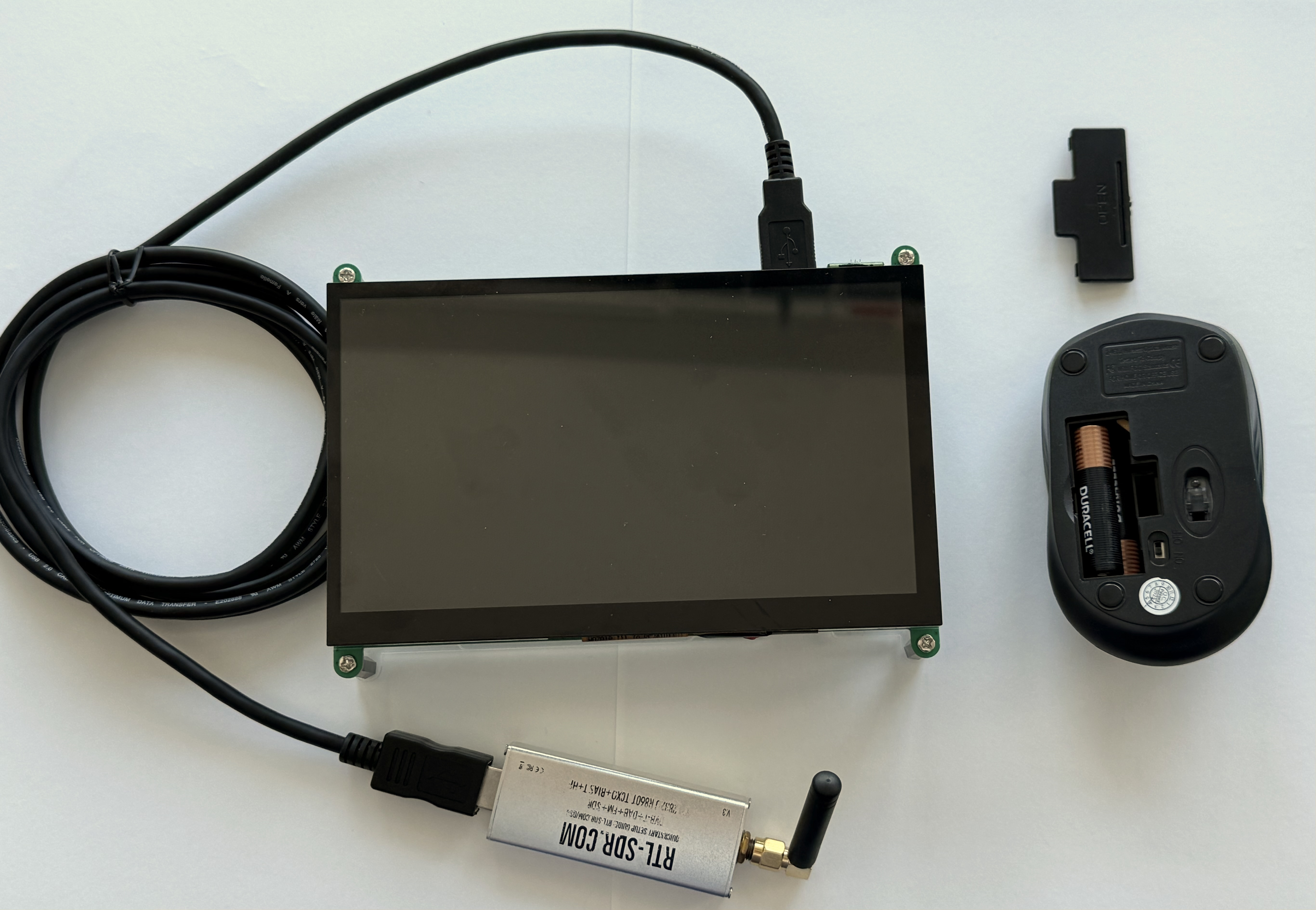

Put two AAA batteries into the mouse:

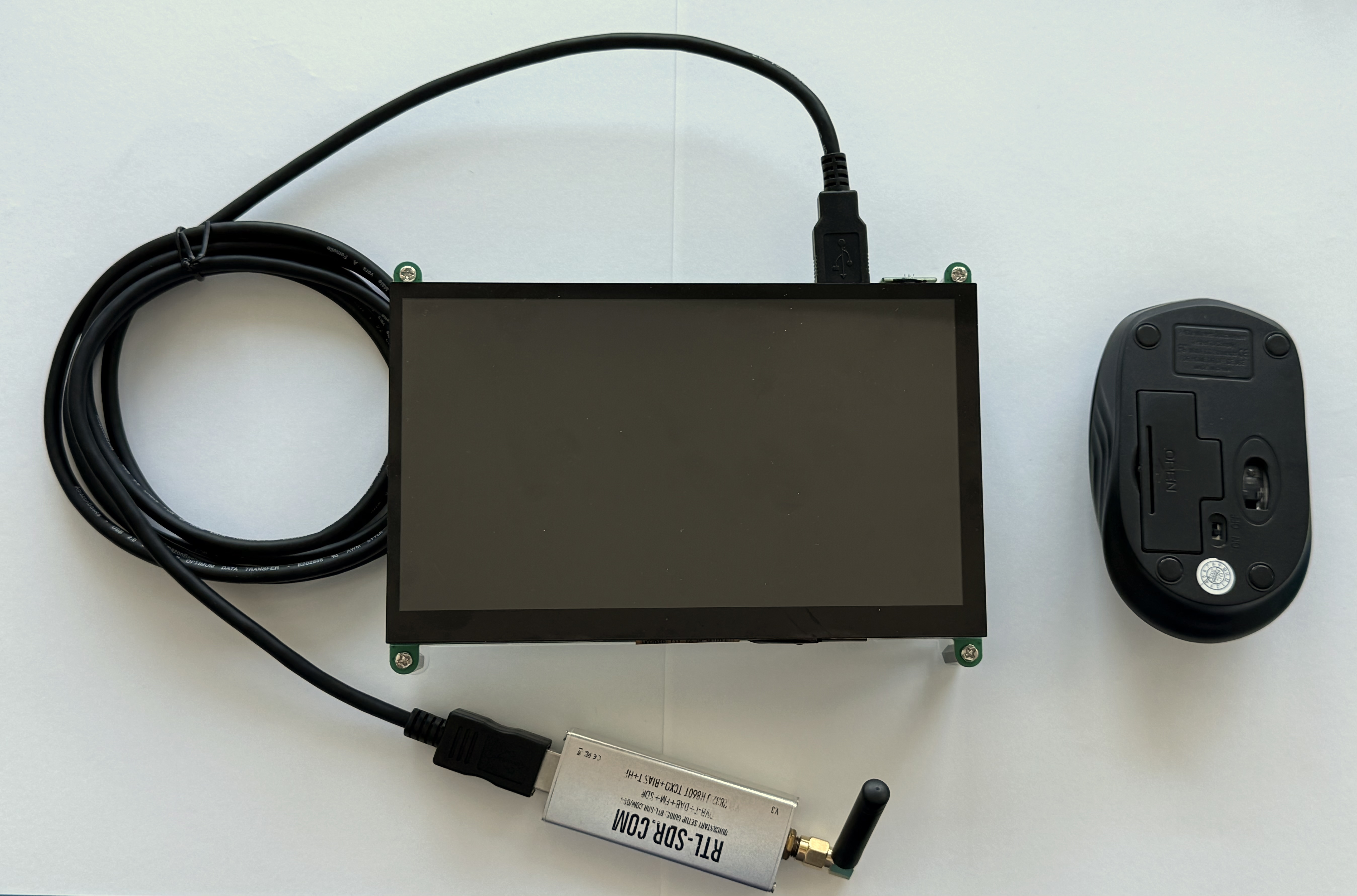

Put the cover back on and slide the switch to the ON position:

Plug the micro SD card into the Pi:

Plug the USB-C power supply into the Pi:

Power up the Pi and you will see the AMSAT background then FoxTelem will run:

The Ground Station is now ready to use!

Here's how to turn off the Find Signal setting in FoxTelem. In FoxTelem, Go under the menu for File / Settings then uncheck the box next to Find Signal then click Save. Here's a video showing how to turn off Find Signal.

When your Raspberry Pi is connected to the internet, type these three commands to update the software to the latest:

    cd
    cd CubeSatSim
    git pull

Here's a video of testing it.
