Token Protection 1008 evidence

This page captures reproduction proof of the Conditional Access Token Protection "unbound / 1008" signal — the same signature the customer (Desjardins) reported for the second, non-interactive sign-in arriving from the Croesus AWS backend.

What 1008 means

Token Protection records a TokenProtectionStatusDetails object on the sign-in event with a signInSessionStatus (bound or unbound) and a signInSessionStatusCode:

  • 0 = bound: the token is cryptographically tied to the device (device-bound refresh token / PRT).
  • 1008 = unbound: "the request is unbound because the client isn't integrated with the platform broker, such as Windows Account Manager (WAM)." A process that presents a bearer token without device/broker binding evaluates as unbound — exactly the shape attributed to a server-side token replay.

Captured evidence (this tenant)

Sign-in logs for the Croesus demo application show both states on the same user and source IP — a device-bound sign-in (code 0) and an unbound sign-in (code 1008):

Time (UTC) User App to resource IP signInSessionStatus code
2026-07-06T20:59:42Z emknafo@microsoft.com Croesus GPD Central SPA (mock) to Croesus GPD Central API (mock) 172.200.70.89 bound 0
2026-07-06T21:29:54Z emknafo@microsoft.com Croesus GPD Central SPA (mock) to Croesus GPD Central API (mock) 172.200.70.89 unbound 1008

The bound baseline (code 0) versus the unbound line (code 1008) is the reproduction of the customer's reported signature.

Portal evidence

Microsoft Entra admin center, Sign-in logs, filtered on Token Protection - Sign In Session StatusCode equals 1008. The single matching interactive sign-in is the Croesus demo flow.

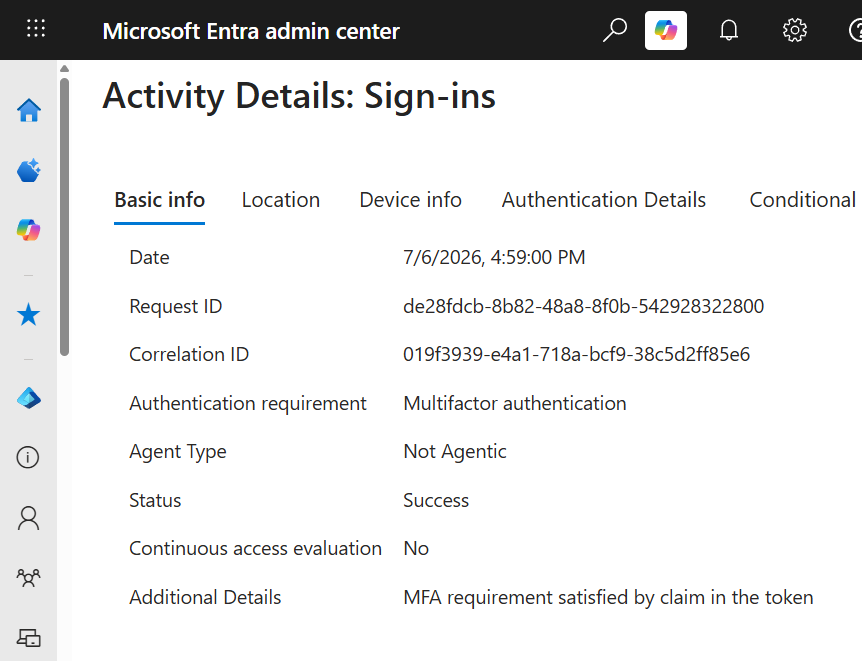

The sign-in event basic info (date, request id, correlation id, status):

Sign-in Activity Details basic info for the Croesus 1008 event

The identity: guest user Emmanuel Knafo (emknafo@microsoft.com, B2B collaboration) signing in to the Croesus app:

Sign-in Activity Details user identity for the Croesus 1008 event

The Token Protection verdict on the resource leg — Unbound (statusCode: 1008) — against resource Croesus GPD Central API (mock) (bc6338a5-...) in the demo tenant (aa93b9d9-...), from a Browser client:

Sign-in Activity Details showing Token Protection Sign In Session Unbound statusCode 1008

This is the same unbound / 1008 signal the customer reported, captured live in the Entra portal for the Croesus reproduction.

KQL to reproduce

Run against the croesus-law Log Analytics workspace (Entra sign-in logs are streamed via a diagnostic setting):

SigninLogs
| where TimeGenerated > ago(3d)
| where AppDisplayName startswith "Croesus"
| extend tp = parse_json(TokenProtectionStatusDetails)
| project TimeGenerated, UserPrincipalName, AppDisplayName, ResourceDisplayName,
          IPAddress, ResultType,
          bind = tostring(tp.signInSessionStatus),
          code = tostring(tp.signInSessionStatusCode),
          CorrelationId
| order by TimeGenerated asc

Filter to just the unbound signal:

SigninLogs
| where TimeGenerated > ago(7d)
| extend tp = parse_json(TokenProtectionStatusDetails)
| where tostring(tp.signInSessionStatusCode) == "1008"
| project TimeGenerated, UserPrincipalName, AppDisplayName, ResourceDisplayName, IPAddress

Also inspect non-interactive sign-ins (the leg attributed to the server-side replay):

AADNonInteractiveUserSignInLogs
| where TimeGenerated > ago(7d)
| where isnotempty(TokenProtectionStatusDetails)
| extend tp = parse_json(TokenProtectionStatusDetails)
| where tostring(tp.signInSessionStatusCode) == "1008"
| project TimeGenerated, UserPrincipalName, AppDisplayName, ResourceDisplayName, IPAddress

Report-only Token Protection policy

A Conditional Access policy croesus-demo-token-protection is provisioned in report-only mode so it surfaces the token-binding evaluation into the sign-in logs without blocking anyone:

  • state: enabledForReportingButNotEnforced (report-only)
  • session control: secureSignInSession.isEnabled = true (Require token protection for sign-in sessions)
  • client app types: mobileAppsAndDesktopClients
  • platforms: windows, macOS, iOS
  • resource: Office 365 Exchange Online
  • scoped to a single test user with a break-glass exclusion

The policy is created and torn down by scripts/provision-ca-policy.sh and scripts/teardown-ca-policy.sh (reversible).

Wrong versus right

  • The unbound (1008) line is the fingerprint of a token that is not device/broker bound — the behavior of a server-side replay of a user token.
  • The correct pattern (On-Behalf-Of) mints a fresh, audience-bound token from a confidential client, which does not present as an unbound replay. See API reference for the live /api/me (OBO) and gated /api/replay operations.

Portal path for screenshots

Microsoft Entra admin center to Monitoring to Sign-in logs to the flagged entry to Basic info to "Token Protection - Sign In Session" (shows Bound or Unbound with the status code). Filter by application "Croesus GPD Central SPA (mock)" and the timestamps above.
