Add option to display onscreen time even while running content (refactoring of PR #7475)

[Ryunam]

Description

This commit consists of a refactoring of PR #7475, originally made by @grimpunch to address feature request #6890. This was a request I had opened for an option to have a persistent display of the current time onscreen, even while running content.

Compared to the initial implementation, this accomplishes the following:

• the duplication of the entries that were mentioned by @RobLoach has been avoided altogether;
• the option has been integrated into the Show FPS / Show Memory widget, so that it follows the same font style / size and reacts to the same scaling options;
• the option also works independently from the Show FPS / Show Memory widgets. Users can choose to mix and match between displaying FPS, memory and the current time (or possibly all of these at the same time);
• I have also provided some translations for the newly-added menu entry and corresponding sublabel.

Naturally all credits go to @grimpunch for the original code that is now in retroarch.c. I merely refactored the original work, updated it to fit the current RetroArch codebase and fixed a few remaining issues that were described in the other thread.

---

A few pics of how it looks (this is with the custom font and size that I chose for my notifications, which appears a bit tiny in these screenshots. By default the text will use the same font and size of the FPS indicator):

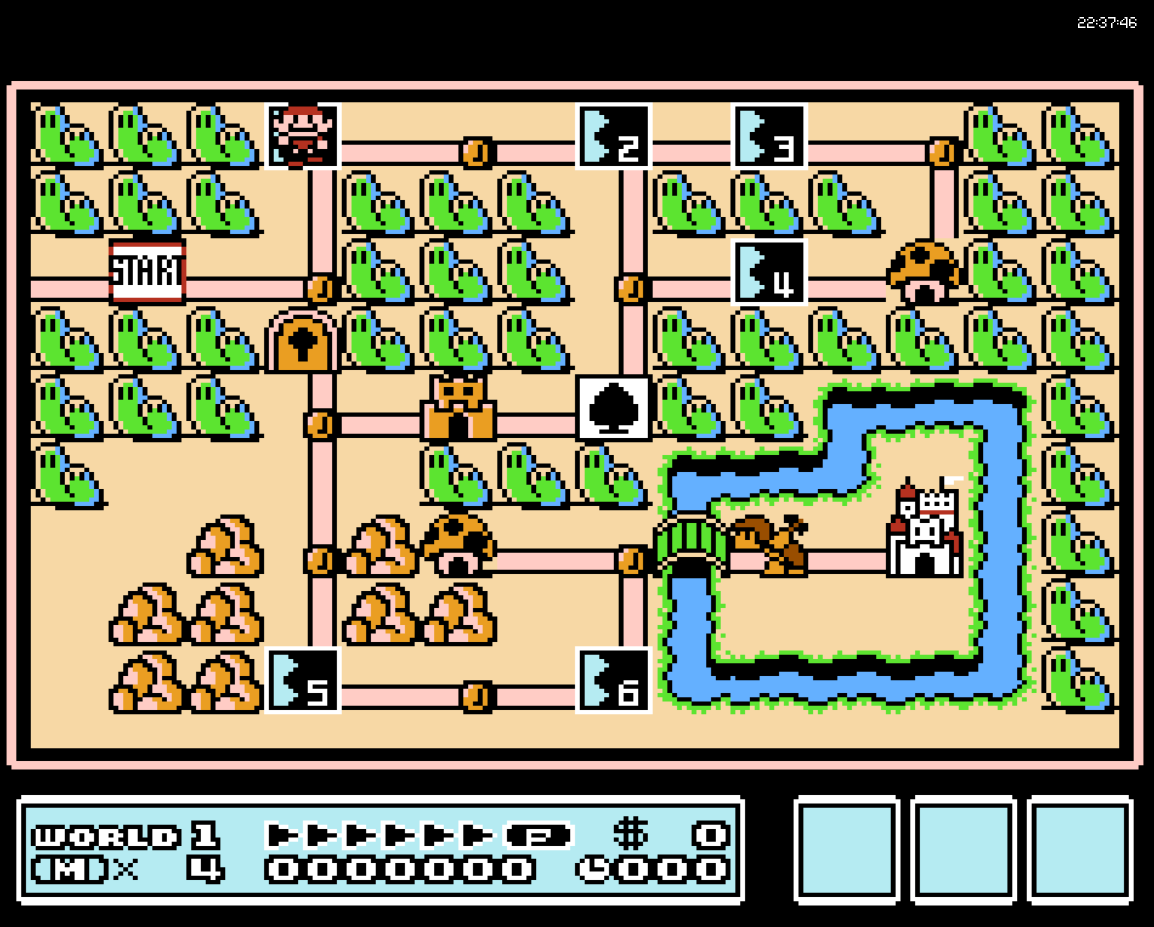

With only Onscreen Time enabled:

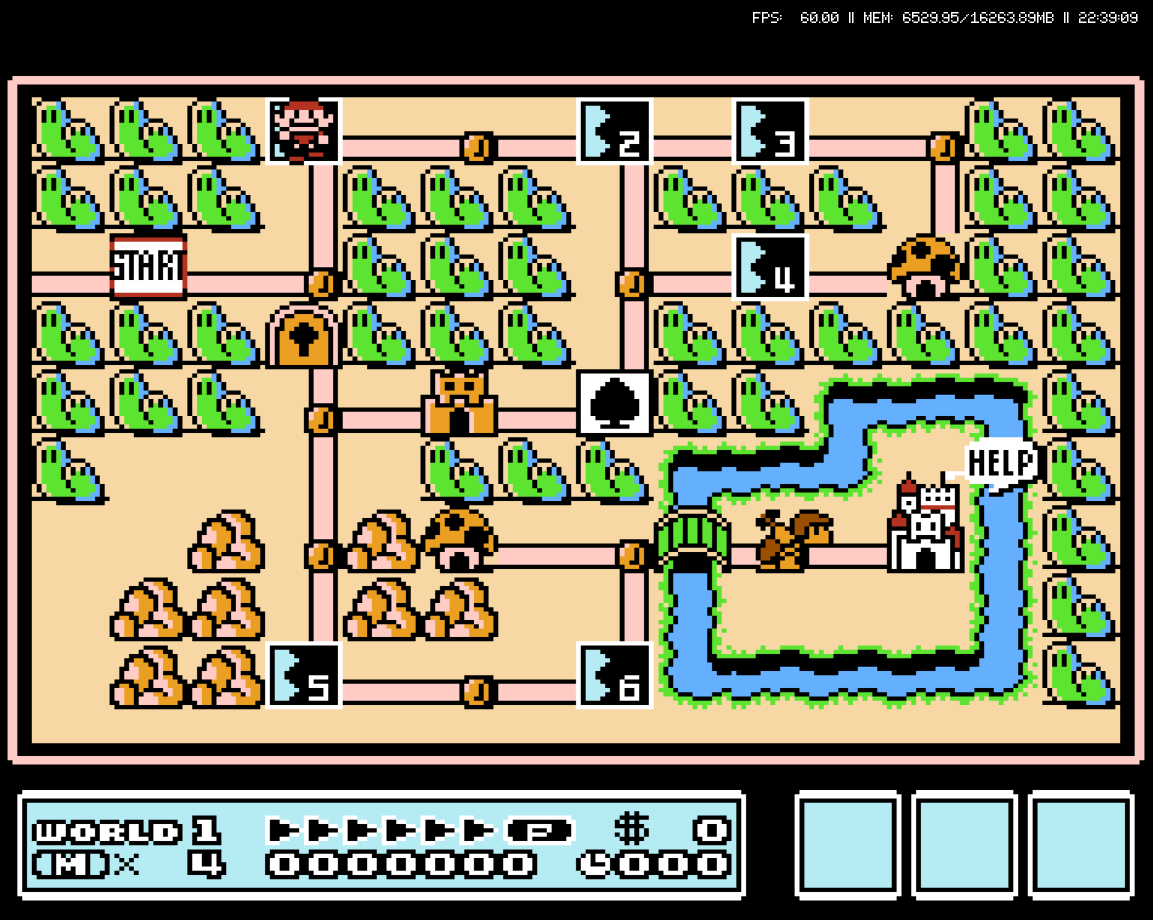

With FPS, Memory and Onscreen Time enabled:

Related Issues

#6890

Related Pull Requests

Serves as a replacement for #7475

[lgtm-com]

This pull request introduces 1 alert when merging 05a427f into 6642868 - view on LGTM.com

new alerts:

• 1 for Use of potentially dangerous function

[inactive123]

I'm posting this message on @jdgleaver's behalf since for whatever reason he wasn't able to post this message here -

---

This PR is a nice idea!

It would be good to implement this as an independent widget, but I understand that doing so would be a tall order. Could probably be done in a separate PR, anyway.

The one issue I see is the code here - I would be reluctant to call strftime(osd_time, sizeof(osd_time), "%H:%M:%S", localtime(&time_)); on every frame (it's slow, and involves a mutex lock and filesystem access).

For menu stuff we normally call this:

RetroArch/menu/menu_driver.h

Line 473 in 6642868

void menu_display_timedate(gfx_display_ctx_datetime_t *datetime);

...which caches the result and only updates when required - but this would mean you'd have to use the current menu time display format, so if you want a fixed "%H:%M:%S" then it's probably not appropriate...

I guess you could add a new static global osd time string, and update it here once per second if onscreen_time_show is true...?

[Ryunam]

Hi! I would like to work on this a bit more, rebase it and apply @jdgleaver’s suggestions that we also discussed on Discord. For the time being I will close this so as to avoid excessive cluttering. I’ll submit a new PR when all the requested changes have been implemented.

[rbreaves]

Feel like this needs revisiting - been something like 4-5 years since this was last looked at and still nothing comparable has been merged. I do appreciate the work that has already been done on this - gives someone the opportunity to update it and get it merged.

I do think the default for the time formatting though might ought to exclude seconds imo and/or allow the user to set the time formatting. I think one real & large use case for this is average users that just want to know what time it is while gaming - not just speed runners.
