Network and mocking

Network & HTTP mocking

The Network and Mocks views only see traffic that flows through MauiInspectorHttpHandler — a standard DelegatingHandler you add to your HttpClient pipeline. Everything routed through it is recorded with full request/response bodies and can be mocked, delayed, failed or paused at a breakpoint; anything that bypasses it stays invisible to the inspector.

Plain HttpClient — the parameterless constructor brings its own HttpClientHandler:

using Immons.Tools.Maui.Inspector;

var client = new HttpClient(new MauiInspectorHttpHandler());

Keeping your existing handler chain — pass it as the inner handler. The inspector sees the request first (so a mock short-circuits the whole chain), then your handlers run unchanged:

var client = new HttpClient(
    new MauiInspectorHttpHandler(
        new AuthTokenHandler(new HttpClientHandler())));

IHttpClientFactory / typed clients / Refit — register it with MauiInspectorHttpHandler.ForClientFactory. Do not new the handler here: the factory requires InnerHandler to be left unassigned and the constructors assign it, so AddHttpMessageHandler(() => new MauiInspectorHttpHandler()) throws an InvalidOperationException on the first request. ForClientFactory() leaves it unassigned:

var api = builder.Services.AddHttpClient<GitHubApiClient>(
    client => client.BaseAddress = new Uri("https://api.github.com"));

#if DEBUG
api.AddHttpMessageHandler(MauiInspectorHttpHandler.ForClientFactory);
#endif

The same IHttpClientBuilder call works for named clients (AddHttpClient("api")) and Refit registrations (AddRefitClient<IGitHubApi>()). Register it last so the inspector sits outermost and records exactly what your other handlers (auth headers, retries) produced. The #if DEBUG guard matches the Debug-only PackageReference from Packages — release builds compile without the inspector at all.

Logs — stream ILogger output into the panel's Logs view:

// register AFTER any ClearProviders()
builder.Logging.AddMauiInspector();

The Network and Mocks views

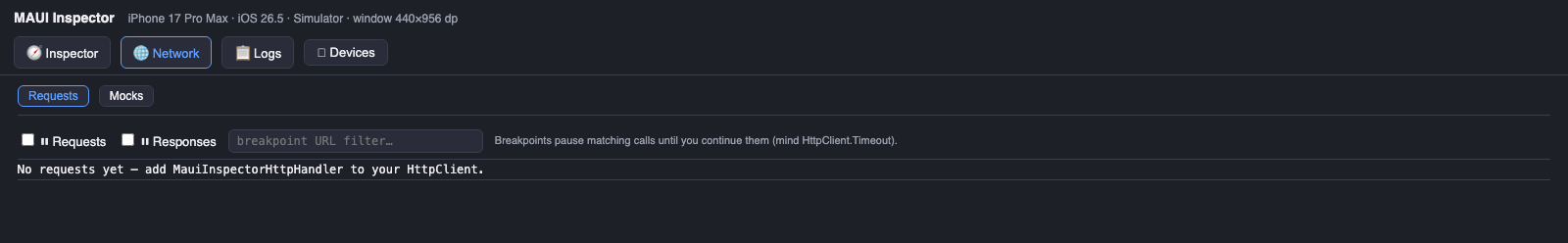

Network — requests, breakpoints and bodies

Every call that goes through MauiInspectorHttpHandler is recorded in an aligned table (time · status · method · URL · duration · size · matched rule) with full request and response bodies (click a row to expand). Breakpoints pause matching requests or responses so you can edit the body or status and continue — Proxyman-style, but inside the process, so TLS and certificate pinning are none of your concern.

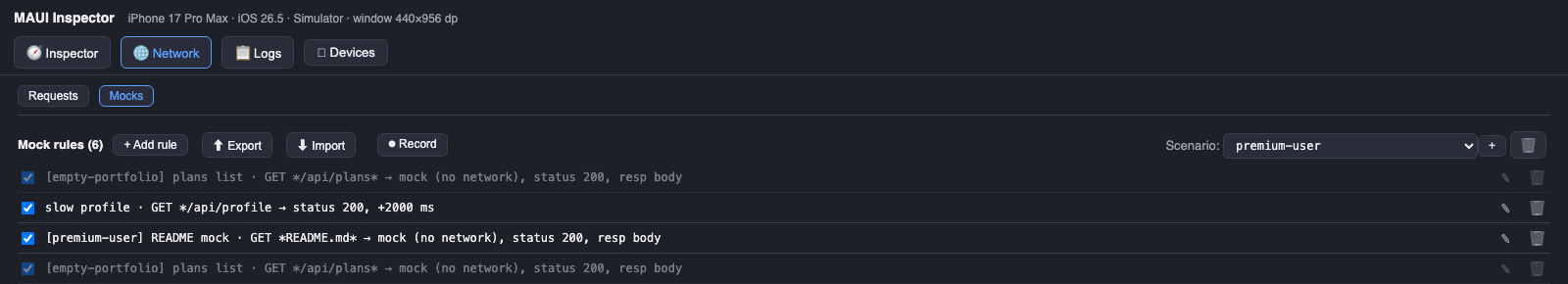

Mocks — rules, scenarios and recording

Rules match on method + URL pattern (the most specific rule wins) and can replace the request or response body, force a status, add a delay, simulate a timeout or a network error, or answer completely without the network. Group them into scenarios ("premium user", "empty portfolio", "force update"), switch the active one from a picker, or hit ⏺ Record, click through a flow and turn the whole request path into a replayable scenario. Rules survive app restarts, so even a version check fired on startup is already mocked.

Feature summary

• Recording — method, status, timing, size and full request/response bodies for every call through MauiInspectorHttpHandler, with a filter over method/URL/status/tag and a 🧹 Clear button to start from a clean slate.
• Mock rules — method + URL pattern (substring or * wildcard; the most specific rule wins) → replace request/response body, force a status, delay, simulate timeout/network error, or answer entirely without the network.
• Scenarios — named rule groups; a rule can belong to many, one picker switches the active one, and rules of the active scenario outrank global ones. The same picker has an off entry that suspends mocking entirely — global rules included — so you can compare against the real API and switch back without touching a single rule. It is remembered across restarts.
• Recording into a scenario (⏺) — record a flow, stop, and every unique call becomes a no-network rule tagged with the new scenario.
• Breakpoints (⏸) — pause requests and/or responses matching a filter, edit body/status, continue or abort.
• Portable — the whole state (scenarios + rules) exports/imports as one JSON file and persists on the device between runs; the browser also keeps a per-app backup and restores it after a reinstall.
• Scenarios reach your code — MauiInspector.IsScenarioActive("offline") / MauiInspector.ActiveScenario let debug builds fake what HTTP interception cannot see (an MSAL sign-in, a native SDK, a sensor), so one picker can put the whole app offline.

Offline testing

HTTP interception covers everything that goes through MauiInspectorHttpHandler, but not what happens outside your process — an MSAL/OAuth sign-in runs in the system browser, and libraries with their own HttpClient bypass the handler until you route them through it (.WithHttpClientFactory(…) for MSAL). The scenario API bridges that gap:

#if DEBUG
if (MauiInspector.IsScenarioActive("offline"))
{
    // skip the real sign-in; every API call is answered by the scenario's rules
    var user = await _users.CreateUser("offline-token");
    return new AuthenticationResult(AuthenticationStatus.Authenticated, user);
}
#endif

Recipe: ⏺ Record a full flow once online → ⏹ Stop and name it offline → add the snippet above → from then on selecting that scenario runs the whole app with no network and no login.
