Test Engine

Test Engine

serp::test_engine is a component testing framework built on top of Google Test. It gives service-level tests a managed event loop, controlled service lifecycle, async reply capture, and structured assertion helpers — without requiring a live transport or a full process deployment.

---

Availability

The test engine is included in the serp-dev package and is enabled by building with:

SERP_BUILD_TEST_ENGINE=ON

CMake target: Serp::test_engine

target_link_libraries(my_tests PRIVATE Serp::test_engine GTest::gtest_main)

The test engine is a development dependency. Do not link it into production binaries.

---

Key Classes

serp::TestRunner

The central fixture helper. It:

• Creates and owns an EventLoop for the test.
• Manages the full service lifecycle (initialize → test → deinitialize).
• Enforces per-test timeouts so a stalled async call fails the test rather than hanging the suite.
• Provides waitFor() to block the test thread until an async reply arrives.

serp::ReplyHolder<T>

A typed capture object for async replies. Pass reply.callback() wherever a service method expects its reply callback. Call runner.waitFor(reply, timeout) to block until the reply arrives, then assert on reply.value().

serp::PromiseTest

Validation helpers for asserting on string-typed or structured replies using check types:

Check type	Meaning
EQUAL	Exact string match
START	Reply starts with the given prefix
END	Reply ends with the given suffix
CONTAIN	Reply contains the given substring
REGEX	Reply matches a regular expression
JSON	Reply parses as JSON and matches the expected structure

---

Basic Test Pattern

#include <serp/test_engine/TestRunner.hpp>
#include <gtest/gtest.h>

class MyServiceTest : public testing::Test {
protected:
    serp::TestRunner runner;
    std::shared_ptr<MyService> service;

    void SetUp() override {
        service = runner.create<MyService>();
        runner.initialize();
    }

    void TearDown() override {
        runner.deinitialize();
    }
};

TEST_F(MyServiceTest, BasicMethod) {
    auto reply = serp::ReplyHolder<std::string>();

    service->greet("world", reply.callback());

    runner.waitFor(reply, std::chrono::seconds(2));

    EXPECT_EQ(reply.value(), "Hello, world!");
}

Key points:

• runner.create<MyService>() constructs the service on the test event loop, not on a real service thread. The service behaves exactly as it would in production but is driven by the test runner.
• runner.initialize() calls onInitialize() on all created services and blocks until they complete.
• runner.deinitialize() calls onDeinitialize() on all services and blocks until they complete.
• runner.waitFor(reply, timeout) pumps the event loop until the reply arrives or the timeout expires. If the timeout expires, the test fails with a descriptive message.

---

Testing Multiple Reply Values

ReplyHolder captures the most recent value. For testing a sequence of replies, use multiple holders or assert inside the callback:

TEST_F(MyServiceTest, SequentialCalls) {
    auto r1 = serp::ReplyHolder<int>();
    auto r2 = serp::ReplyHolder<int>();

    service->add(2, 3, r1.callback());
    runner.waitFor(r1, std::chrono::seconds(1));
    EXPECT_EQ(r1.value(), 5);

    service->multiply(4, 6, r2.callback());
    runner.waitFor(r2, std::chrono::seconds(1));
    EXPECT_EQ(r2.value(), 24);
}

---

Idle Checking

Verify that the event loop is not blocked or stalled after an operation:

TEST_F(MyServiceTest, EventLoopIdle) {
    service->triggerBackgroundWork();

    runner.waitIdle(std::chrono::milliseconds(500));
    // Event loop processed all queued callbacks within 500ms
}

waitIdle() returns once no more callbacks are pending on the test event loop. Use it to ensure that a triggered operation has fully completed before asserting on side effects.

---

Mocking Dependencies

Services that depend on other services can be tested with generated mock objects:

class MyServiceTest : public testing::Test {
protected:
    serp::TestRunner runner;
    std::shared_ptr<MockDependencyService> mockDep;
    std::shared_ptr<MyService> service;

    void SetUp() override {
        // Create mock before the service that depends on it
        mockDep = runner.create<MockDependencyService>();
        service = runner.create<MyService>(mockDep);

        // Set expectations before initialize()
        EXPECT_CALL(*mockDep, fetchData(testing::_, testing::_))
            .WillOnce(testing::InvokeArgument<1>(42));

        runner.initialize();
    }

    void TearDown() override {
        runner.deinitialize();
    }
};

Mocks are generated from SerpIDL interfaces alongside the real service stubs. The generated mock class follows the Google Mock naming convention (Mock<InterfaceName>).

---

Method Receive / Invoke Simulation

TestRunner can simulate inbound calls to a service without a real transport client:

TEST_F(MyServiceTest, SimulatedInboundCall) {
    auto reply = serp::ReplyHolder<std::string>();

    // Drive the service as if a remote caller invoked the method
    runner.invoke(*service, &MyService::processRequest, "input_data", reply.callback());

    runner.waitFor(reply, std::chrono::seconds(2));
    EXPECT_EQ(reply.value(), "processed: input_data");
}

This dispatches the call on the test event loop, exactly as the transport layer would in production.

---

Structured Assertions with PromiseTest

TEST_F(MyServiceTest, JsonReply) {
    auto reply = serp::ReplyHolder<std::string>();

    service->getStatus(reply.callback());
    runner.waitFor(reply, std::chrono::seconds(1));

    serp::PromiseTest::check(reply.value(),
        serp::CheckType::JSON,
        R"({"status":"ok"})");
}

TEST_F(MyServiceTest, PrefixCheck) {
    auto reply = serp::ReplyHolder<std::string>();

    service->getVersion(reply.callback());
    runner.waitFor(reply, std::chrono::seconds(1));

    serp::PromiseTest::check(reply.value(),
        serp::CheckType::START,
        "v2.");
}

---

CMake Integration

find_package(Serp REQUIRED COMPONENTS test_engine)
find_package(GTest REQUIRED)

add_executable(my_service_tests
    component_test/MyServiceTest.cpp
)

target_link_libraries(my_service_tests PRIVATE
    my_service_lib
    Serp::test_engine
    GTest::gtest_main
)

include(GoogleTest)
gtest_discover_tests(my_service_tests)

---

Example Project

See serp-demo/component_test/ in the serp-demo repository for a complete working example including service setup, mock injection, and reply capture.

---

Generated Tests from Sequence Diagrams

Everything above is for tests you write by hand. The generator can also produce real, runnable component tests directly from sequence diagrams — specs/services/<group>/<service>/sequences/*.suml — the same serp::TestRunner machinery underneath, but the fixture, mocks, and assertions are all generated, not written.

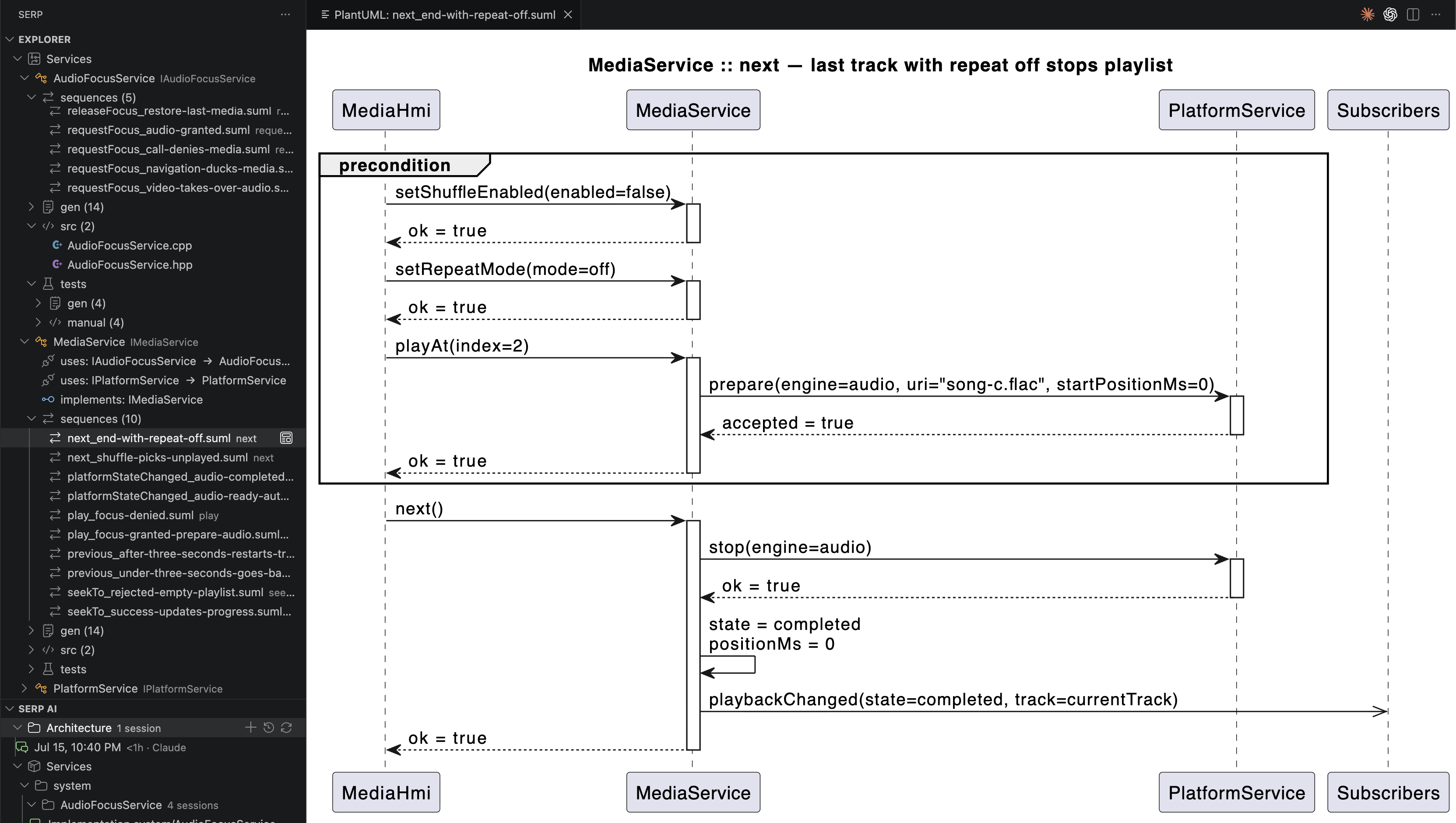

A sequence diagram is a behavioral contract: one trigger (a method call, an incoming notification, or a property change), participants classified as the component-under-test, a mocked dependency, or an external actor, and an ordered message exchange between them — including precondition ... end setup blocks for steps that establish state before the actual trigger being tested:

For each service, the generator emits, as a sibling tree — not mixed in with your own hand-written tests — under gen/tests/services/<group>/<service>/:

• <Service>Fixture.hpp/.cpp — one shared <Service>Test : public ::testing::Test fixture: a serp::TestRunner, one generated <Dep>Mock per uses: dependency (each dependency interface's static create() factory is overridden to return the mock — that's the dependency-injection point), and the real hand-written src/ class as the component under test.
• one <trigger>Test.cpp per sequence file (e.g. playTest.cpp, nextTest.cpp) — one or more TEST_F(<Service>Test, <scenario_name>) blocks that drive the CUT and assert the full ordered message sequence via TestRunner::expect(...), not just the final return value.

TEST_F(CarMediaManagerTest, play_granted_fresh_play)
{
    mCUT->Init()->getValue();
    mCUT->PlaybackChanged.connect([this](const PlaybackState& state, const std::optional<TrackInfo>& track) {
        mTestRunner->receive("PlaybackChanged.connect", state, track);
    });

    auto reply = mCUT->Play("track_01");

    mTestRunner->expect(_CL_, "CarAudioManager::requestFocus(CarMediaManager, 0", FocusDecision::granted, serp::CheckType::START);
    mTestRunner->expect(_CL_, "PlaybackChanged.connect(", {}, serp::CheckType::START);
    // ...
}

A real GTest executable + add_test() is generated per service (previously the target was always a library, never runnable directly), and every service now unconditionally links Serp::command and globs a user-owned commands/ folder for Command-backed sequence implementations.

Turning it off: the SERP AI Settings toggle "Generate tests during generation" (and the equivalent checkbox in SERP AI Configuration) controls whether this runs at all — disabling it passes --no-sequence-tests to generation.

Drift between a diagram's trigger and the real interface member is a warning (SERP070) during validate, not a hard error — it only becomes a hard error at generate-workspace time.

---

See Also

• Services and Lifecycle — lifecycle callbacks that TestRunner drives
• Methods — method signatures your tests call
• Runtime and Debug Tools — interactive debugging complement to automated tests
• Explorer — where generated (gen) and manual tests show up per service
• Implementation Runs — the service-implementation/sequence-implementation workflows that these generated tests validate against
