accessing a process rate parameter

[wilbertdew]

Hi All,

I would like to use the process rate parameter for endosomal clearance in the reactions building block, is this possible?
I have checked the "create process parameter" checkbox, and I can see the process rate parameters in each organ in the simulation (under neighborhoods) and I can also plot them. However I cannot find it in the reactions building block. Does anyone know how I can do this? I can find the process rate parameter in the reactions building block for the paracellular absorption, which is a transport that has already the process rate parameter generated in the default large molecule mice model that I exported to Mobi. I believe the issue is that I need to update the reactions building block in such a way that it recognizes what I have done in the passive transport building block. I have already tried to do this by creating a new simulation but no luck. Thanks in advance for the help!
Wilbert

P.S. I am working with version 8

[Yuri05]

ProcessRate parameters are created in the simulations only, not in the building blocks.
However you still can use them in the formulas, but you need to create such a reference manually.

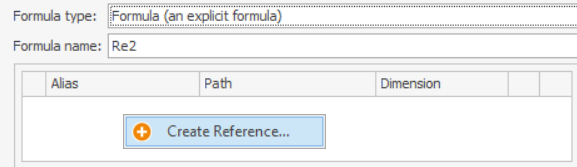

For this: right click on the References area of the formula and select Create Reference...

This will create an empty reference like below:

Now enter the alias and the path of your ProcessRate-parameter manually and set the dimension.

• Path can be absolute or relative
• Dimension is either Amount per time (for amount based projects) or Concentration per time (for conc based projects)

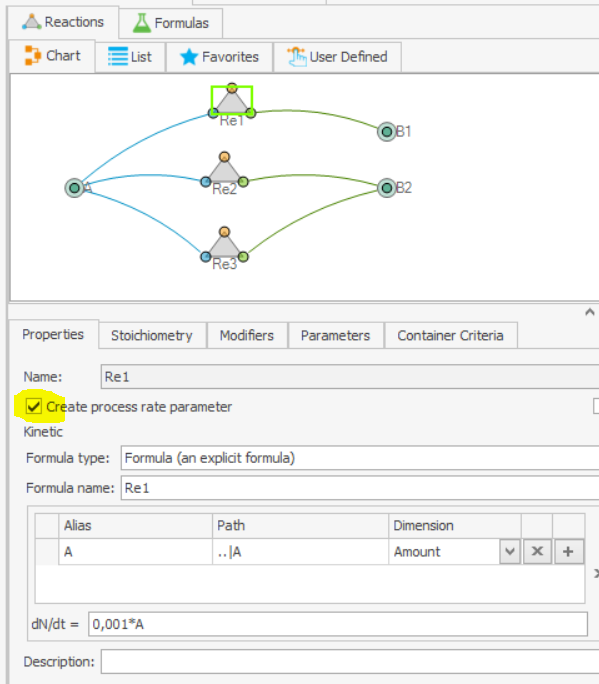

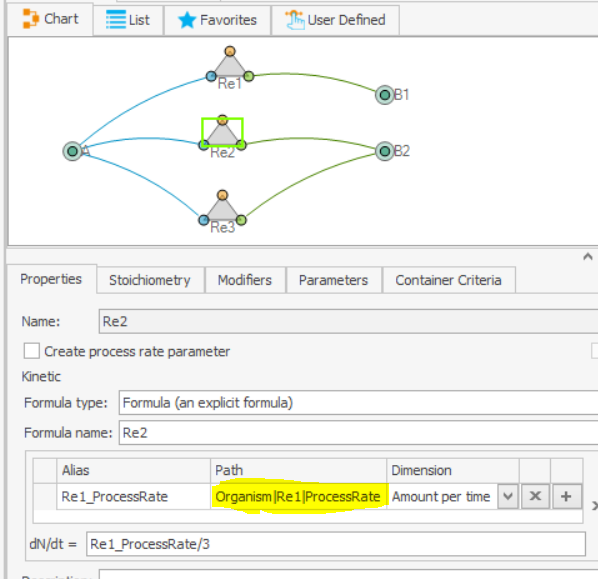

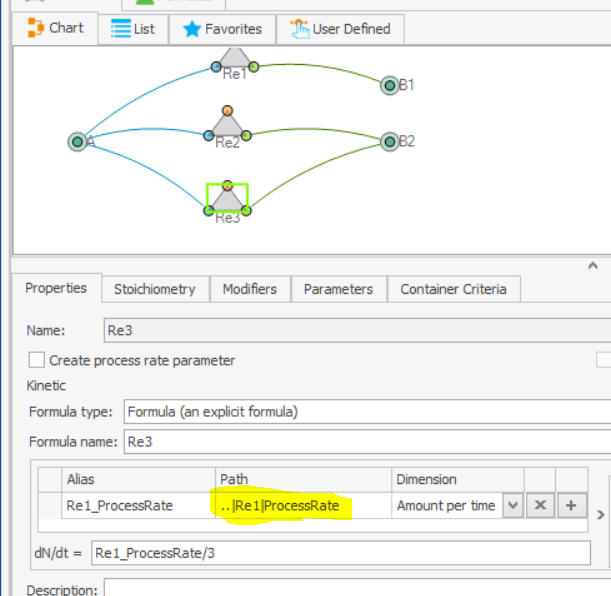

Attached you can find an example with 3 reactions. Reactions RE2 and RE3 use the process rate parameter of the reaction RE1 in their kinetics definition (in RE2 it's referenced via absolute path, in RE3 via relative path).

Example_ProcessRate.zip

[wilbertdew]

Thanks @Yuri05, that was really helpful!
