First shader

Your first shader in 10 minutes

Create an animated blue-to-orange gradient with a speed slider, two presets, and an image you can save.

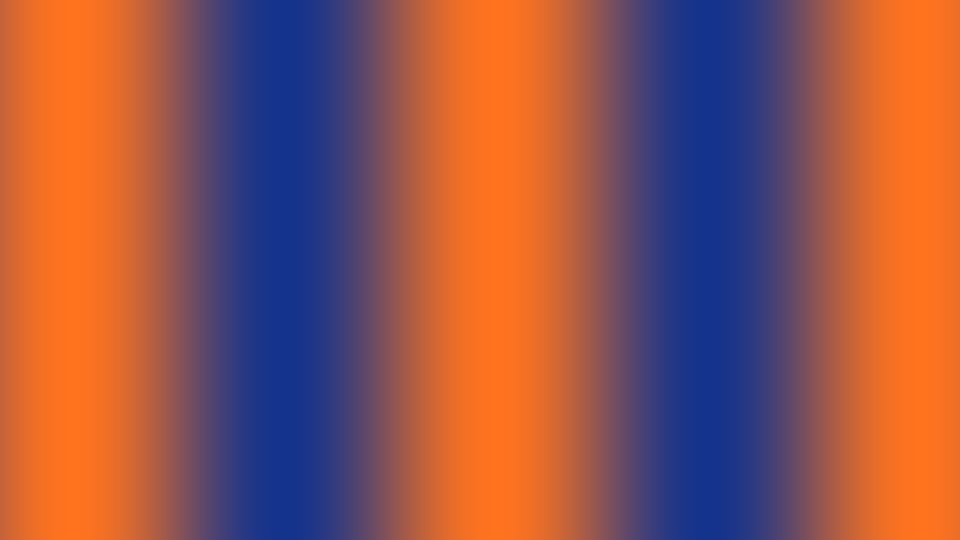

The image is a WebGL render of the tutorial source at 960 × 540, Speed 1, time 0.5 seconds, with post-processing bypassed.

Works with: Web and Windows Desktop, v1.5.0 and development builds. On Web, sign in and verify your email first. The steps use English UI labels.

Prefer to start with the finished project? Download the tutorial bundle, save it as first-shader.json, and import it using Import & export. Choose the mode that keeps both copies if a shader with the same ID already exists. The bundle includes both presets.

1. Create a project

Open New shader… from the app menu or the command palette (Ctrl+K). Name it First Shader and choose Create.

The new shader starts with a working template. Open the editor and inspector if they are hidden; Workspace explains the panels.

2. Add a speed slider

In the editor, open Config. Replace its contents with this JSON array:

[
  {
    "key": "speed",
    "type": "number",
    "label": "Speed",
    "default": 1,
    "min": 0,
    "max": 3,
    "step": 0.05
  }
]

A Speed slider appears in the inspector's Controls tab. Shadergrove connects the key speed to the GLSL uniform u_speed.

The old template may temporarily report missing controls while you replace its code in the next step.

3. Replace the Image pass

Open the Image document and replace its GLSL with:

precision highp float;

uniform vec2 iResolution;
uniform float iTime;
uniform float u_speed;

varying vec2 vUv;

void main() {
  vec2 uv = vUv;
  uv.x *= iResolution.x / iResolution.y;

  float wave = 0.5 + 0.5 * sin(uv.x * 8.0 + iTime * u_speed);
  vec3 blue = vec3(0.08, 0.20, 0.55);
  vec3 orange = vec3(1.0, 0.45, 0.12);

  gl_FragColor = vec4(mix(blue, orange, wave), 1.0);
}

Leave the Vertex document as supplied by the template.

You should see vertical bands moving across the preview. Move Speed from 0 to 3: zero stops this animation; larger values make it move faster. The app's Pause action freezes the clock for the whole shader.

For the plain gradient shown by this code, bypass the Post-processing master switch. You can turn it back on later and experiment with the effects rack.

4. Change one thing

Change uv.x * 8.0 to uv.x * 16.0.

The bands become narrower. The shader recompiles as you edit. If the code fails to compile, the last valid preview keeps running; look at the editor diagnostics, fix the line, and continue.

Restore 8.0 if you want to match the downloadable project.

5. Save two presets

First, save the shader with Ctrl+S and wait for the saved indicator. This stores the new Config schema before you create presets against it.

Set Speed to 0.4, open Presets, use its save action, and name the preset Calm.

Set Speed to 2 and save another preset named Fast. Select either preset to restore its value.

For this exercise, leave Also capture the render settings unchecked. That option also saves the effects chain; applying a preset that carries it changes the shader's render settings.

Use Save shader or Ctrl+S and wait for the saved indicator. Saving a parameter preset and saving your shader source are separate actions.

6. Keep an image and a portable project

Use Capture image to save a PNG of the current frame. You can pause first to choose a frame.

Use Export shader… to keep a portable JSON copy of the saved project, controls, presets, and assets. Save the shader before exporting so your latest source and render settings are included.

A PNG captures the appearance of one frame. The JSON bundle lets you reopen and edit the project.

Try next

• Add a color control and use its vec3 u_<key> uniform to choose a band color.
• Add Bloom or Vignette in Post-processing.
• Duplicate the shader before trying a different formula.
• Follow Plugins and integrations to work with Shadertoy or Wallpaper Engine.

If the preview is missing or saving is blocked, see FAQ.
