Composed-page books

A walk through the Sandbox with a school textbook made of composed pages: build a page template, fill it from the Markdown, label a map, translate the page, fix text that does not fit, select on the page and in the text, then draw a tree with connectors, notes on a map with pointers and a key, a grid of photo cards and a module library for a series

Generated from docs/composed-page-books-en.mdx (updated 2026-10-20). Read it on postext.dev, where it is also available in Spanish, Catalan, Portuguese, French, German, Italian, Chinese, Japanese and Arabic. To change this page, edit the MDX and run pnpm wiki in apps/web.

In short

This page teaches, step by step, how to make a school textbook page in the Sandbox: a page with a title band, some text and coloured boxes. You start from a finished example book and add one more page to it. First you draw the page as a template, then you pour the text into it from the Markdown, then you name the places on a map and translate the page into another language. Then you see what to do when a text is too long for its box and how to jump between the page and its text. The last steps draw a tree of boxes joined by lines, notes that point at places on a map, a page of photo cards and a set of blocks that the books of a series can share.

You build one page of a textbook from a template, fill it with text from the Markdown, label a map, translate the page and fix what does not fit; then you add a tree, notes on a map, a page of photo cards and a module library.

A page of a school textbook is a set of boxes: a title band, a text, a box for a definition, a box for an activity, a map. Postext lays such a page out from a page template that holds the boxes (its frames), and the Markdown only says which words go in which frame. This page walks through the whole job in the Sandbox, on a book that already exists, and adds one page to it. The reference pages say what each field and each line of Markdown does; here you do each thing once, in order, and see what it changes: Composed pages for the Markdown, Configuration › Composed pages for the template, Sandbox: composed pages for the screens.

You need a browser and nothing else. Every step happens in the Sandbox, and what you change stays in your browser.

1. Open the book

The book is Our river, a unit of a Year 3 textbook that the Cookbook publishes as recipe Nº 156. The river, the towns and the pictures are invented for it. It has nine pages, with a painted map across two facing ones, and it comes in Spanish, Catalan and English.

Open it in the Sandbox. The first visit adds it to Books as one of your own books, so you can change it freely; with lang=es or lang=ca in the link you get the other editions. If you come back to the same link later, the Sandbox asks whether to open your copy or to replace it with the published one.

Two things to know before you touch anything:

• The bar above the preview has a switch with Content and Design. In Content mode you edit words, in the Text panel or on the page. In Design mode you edit page templates and styles, and the text is read only. Alt+Shift+M (⌥⇧M on a Mac) switches between them.
• The Text panel shows one chapter of Markdown. Each composed page is a block that starts with ::::page{template="…"} and ends with four colons. Click some words on a page in the preview and the caret goes to them in the Markdown.

2. Make a page template

The new page will be a review page: a title band, a short text under it and two boxes, one to recall what was learned and one to try. It needs a template with four frames.

1. Switch to Design and open the Design panel on the left. Choose Page & columns, then Page templates. The list shows each template of the book with a drawing of its frames.
2. Press New. A template called New template opens. Give it the ID review (the name the Markdown will use) and the Name Review page (what this panel shows). The ID takes lowercase letters, digits and dashes.
3. The template starts with one frame, text, that Takes the page's loose text. Make it the title band: Name (slot): title; Box style: portada, the blue band the book already uses for its titles; switch Takes the page's loose text off; Takes: Level 1, so that this frame receives the page's first # heading.
4. Press Add frame. The new frame opens below the list of frames. Name (slot): text, and switch Takes the page's loose text on: whatever the page writes outside a frame goes here.
5. Add a frame. Name (slot): remember. Box style: dato, a tinted box with a tab. Smallest height: 30 mm, so that the box keeps a good size when its text is short.
6. Add a last frame. Name (slot): try. Box style: actividad, a box with a stripe down its side. Smallest height: 30 mm.
7. In text, remember and try set Width to Up to the edge and Height to Its content: they then fill the width of the page and are as tall as their text.
8. Under Groups press Add group. Name it column, leave it Stacked and set Space between frames to 6 mm. Under Members, in page order tick the four frames. Tick them in the order they go, the title first: the list numbers the members and the arrows move one up or down. A group lays its frames one under the other and moves the ones below when a frame grows, so a longer text in the first box pushes the second box down instead of running over it.

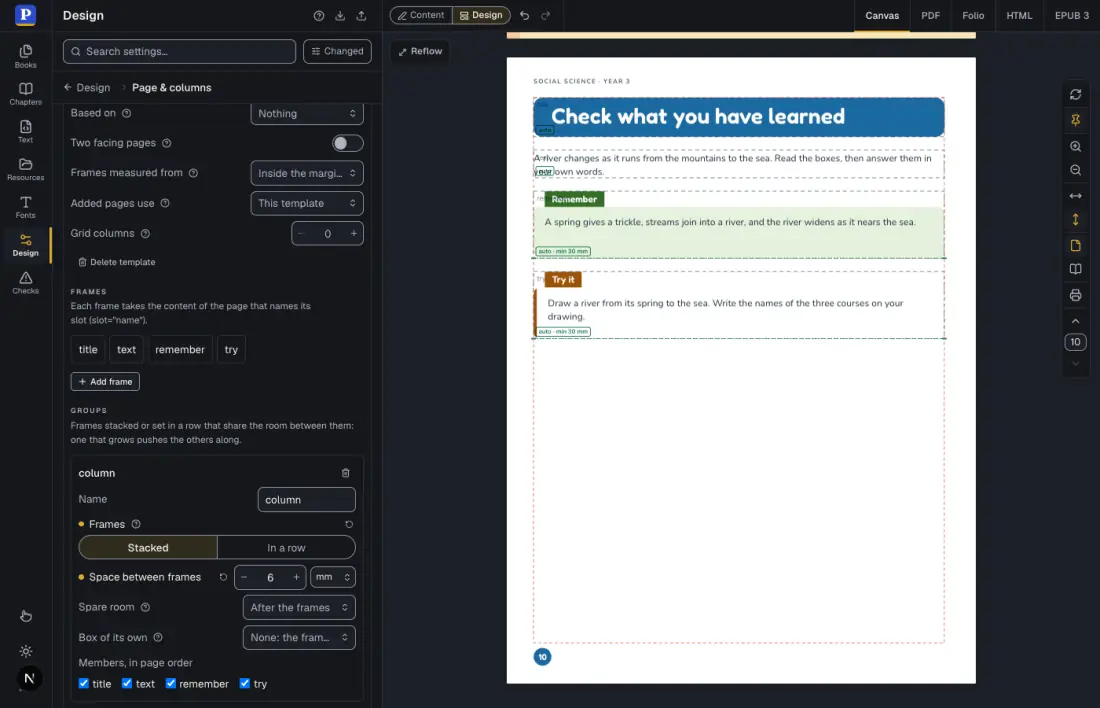

The template: four frames and one group. On the page, the dashed boxes are the frames and the green labels say how each one is sized.

The template has no words in it. Nothing you set says what the title is or what the boxes contain; the box style gives a frame its look, and the group gives the frames their order. There are other ways to the same template. In Design mode you can draw a frame on an empty spot of a composed page with the mouse and move or resize the frames you have (see Sandbox: composed pages); Duplicate copies a template to change it; Save layout as template turns a composed page you like into a new template.

3. Fill the page from the Markdown

1. Switch to Content, open the Text panel and press Ctrl+End (Cmd+↓ on a Mac) to go to the end of the chapter.
2. Press Composed page in the toolbar of the Text panel. A picker lists the page templates of the book, each drawn as its empty frames. Choose Review page.
3. The Sandbox writes the page for you, one empty frame per slot, and selects the word title of the heading. Type the title over it.

::::page{template="review"}
# Check what you have learned

A river changes as it runs from the mountains to the sea. Read the boxes, then answer them in your own words.

:::frame{slot="remember" label="Remember"}
A spring gives a trickle, streams join into a river, and the river widens as it nears the sea.
:::

:::frame{slot="try" label="Try it"}
Draw a river from its spring to the sea. Write the names of the three courses on your drawing.
:::
::::

The heading goes to the frame that takes level 1, the paragraph that follows it to the frame that takes the loose text, and each :::frame to the frame of its slot. The label is the text on the tab of a box. The page is on the canvas as page 10, after the nine of the unit: a composed page always starts a new page.

The page in the Markdown and on the canvas.

Notice what the Markdown does not say: no position, no size, no colour. Those belong to the template, and the same Markdown laid out with another template would look different.

4. Label the map

Pages 6 and 7 hold a painted map across the spread. Its words are not part of the picture. Each name on it is a line of the Markdown, inside the :::figure of the map:

:::figure{resource="mapa" slot="mapa"}
::label[Spring]{at="nacimiento"}
::label[Molinar]{at="molinar"}
::label[Lower course]{at="bajo"}
:::

at names an anchor: a point of the picture, defined once in the picture's resource and shared by every language. To add the stone bridge of Molinar:

1. In the Text panel go to the map's figure (search for at="bajo") and add a line under the last label: ::label[Stone bridge]{at="bridge"}.
2. Open Checks. The list has a Label at an unknown anchor entry for page 6: the picture has no anchor called bridge. Press the pin button on the entry, Place the anchor bridge on the picture.
3. A dialog shows the map with the anchors it has. The name bridge is picked under Labels without an anchor. Click the picture where the bridge stands.
4. Set the Label style of the new anchor to pueblo, the style of the towns, and press Save.

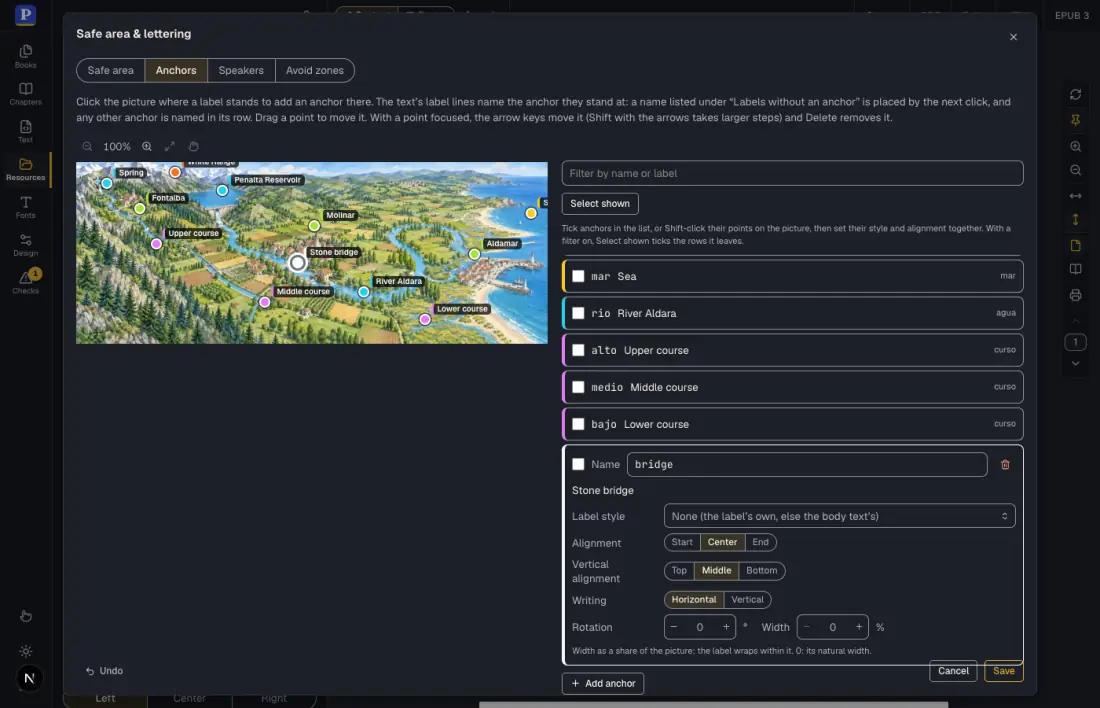

A click on the picture adds the anchor; its label style makes it look like the names of the towns.

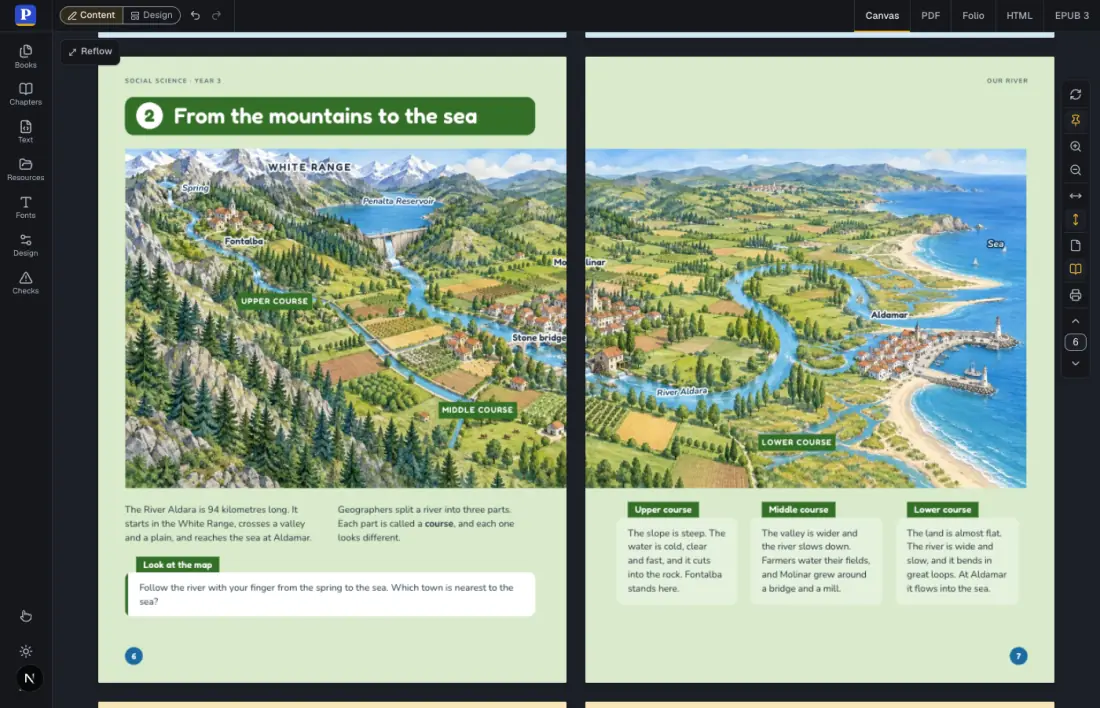

The label is set at the point you clicked, in the book's own fonts.

The word Stone bridge is Markdown; the point is part of the picture. When you translate the page, the same anchor gets another word.

5. Translate the page

A translation is the same template with other words. The Sandbox holds it as another edition of the same book: a toolbar at the left edge of the canvas switches between the editions, and the Checks panel reads all of them (see Editions of a book). That toolbar shows when the pointer reaches the edge, and its pin button keeps it open. To make one:

1. Open Books, press ⋯ on your book and choose Add a language…. Pick the language and press Add and open. The Sandbox copies the edition on screen into a new one, sets its Document language to the language you picked and opens it. Hyphenation, quotation marks and the words the engine writes itself (such as Continued at the cut of a box) follow that language. The text is still the original's.
2. In the Text panel translate the words and leave the rest.

You translate	You leave as it is
The text of headings, paragraphs and lists	The four colons, the word page and the template="…" of the opening line
The label="…" of a frame	The slot="…" of a frame
The text in the brackets of ::label[…], ::alt[…] and ::caption[…]	The at="…" of a label and the resource="…" of a figure

The pictures, the anchors, the boxes and their colours come along with the copy and need no work. A copy of the review page in Spanish looks like this:

::::page{template="review"}
# Repasa lo aprendido

Un río cambia mientras baja de las montañas al mar. Lee los recuadros y respóndelos con tus propias palabras.

:::frame{slot="remember" label="Recuerda"}
Un manantial da un hilo de agua, los arroyos se unen en un río y el río se ensancha al acercarse al mar.
:::

:::frame{slot="try" label="Inténtalo"}
Dibuja un río desde su manantial hasta el mar. Escribe en tu dibujo el nombre de los tres cursos.
:::
::::

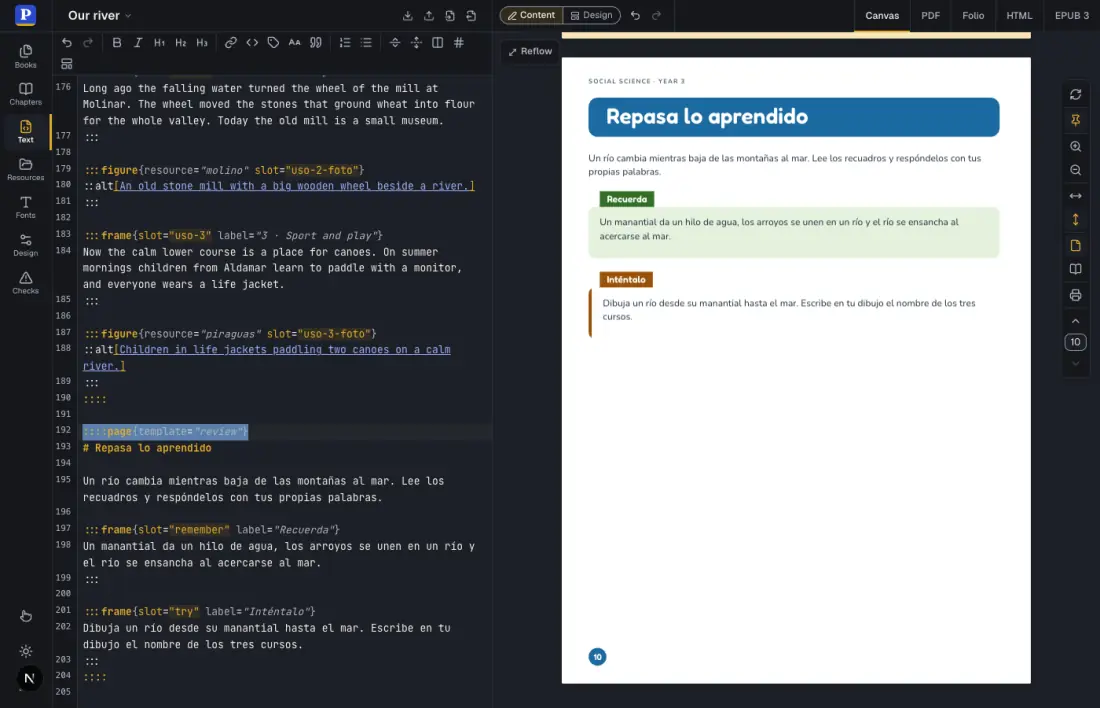

The translated page: the template is the same, the words are not.

6. Review what does not fit

Words differ in length from one language to the next, and a box that held the English text may not hold the Spanish one. The Checks panel finds those frames. To see one, paste three or four more paragraphs of any text into the remember frame of the translated page, so that it holds more than the page has room for.

The page now shows the frame outlined in red with a band under its foot that says how much is missing (26 mm short). In Checks, under Composed pages, the entry Text does not fit its frame says what the layout tried before giving up (more room from the frames around, then smaller text) and lists the ways out as buttons:

• let the text shrink to 82.5 % lets the text of this frame go down to that size. It suits a few lines too many.
• continue it on the next page sends what does not fit to a page added after this one. It suits a longer text.
• cut about 495 characters changes nothing. It selects the text of the frame and tells you how much to cut.

A button that changes the template (and so every page set with it) asks first and names the setting. Press Change it. The page is laid out again, the box ends with the word that marks the cut (Continúa) and the rest runs on at the head of an added page. Cmd/Ctrl+Z takes the change back. Reflow, in the same toolbar at the edge of the canvas, opens What moved and why: the frames whose size or place the layout changed to fit their content, with the reason in words.

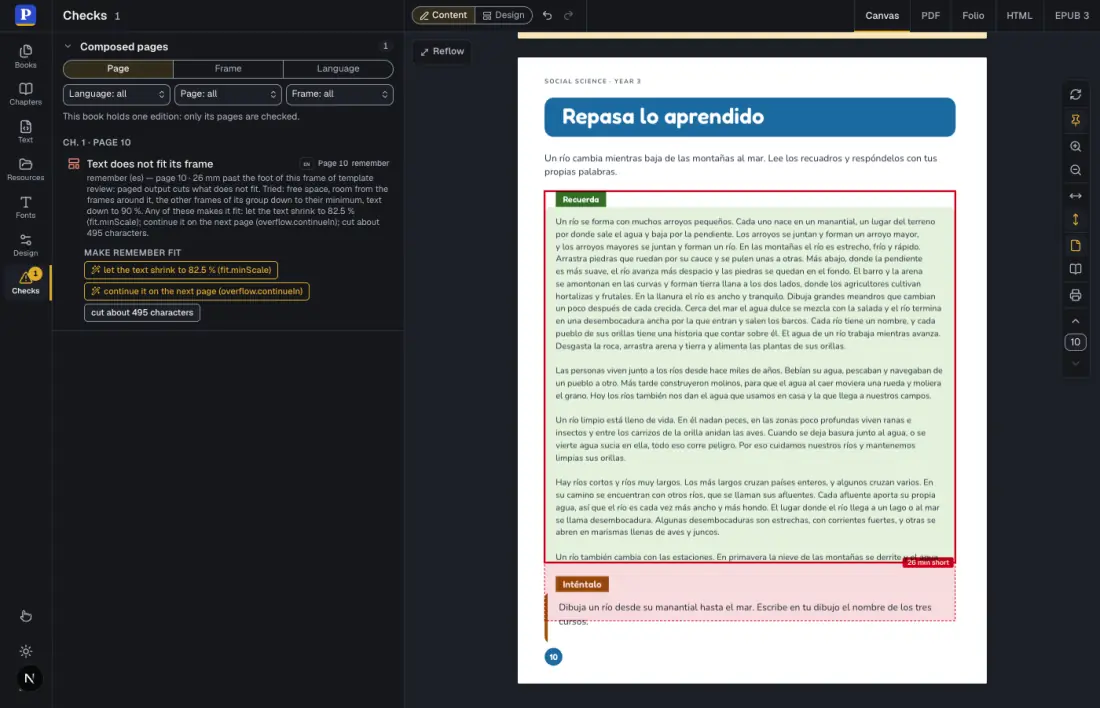

A frame that does not fit, and the fixes the layout worked out for it.

7. Select on the page and in the text

The page and its Markdown follow each other.

• From the page to the text. Click on the words of a frame: the caret goes to that paragraph in the Text panel, and a path under the preview names where you are (Page 10 › column › try › paragraph 1). In Design mode the same click picks the frame for the template editor instead.
• From the text to the page. Put the caret in a paragraph: the paragraph and the frame that holds it are outlined on the page, and the same path says where they are.
• From a check. Click an entry of the Checks panel and the Sandbox takes you to the page, picks the frame and puts the caret at its text. In a book with several editions it switches to the edition that has the problem.

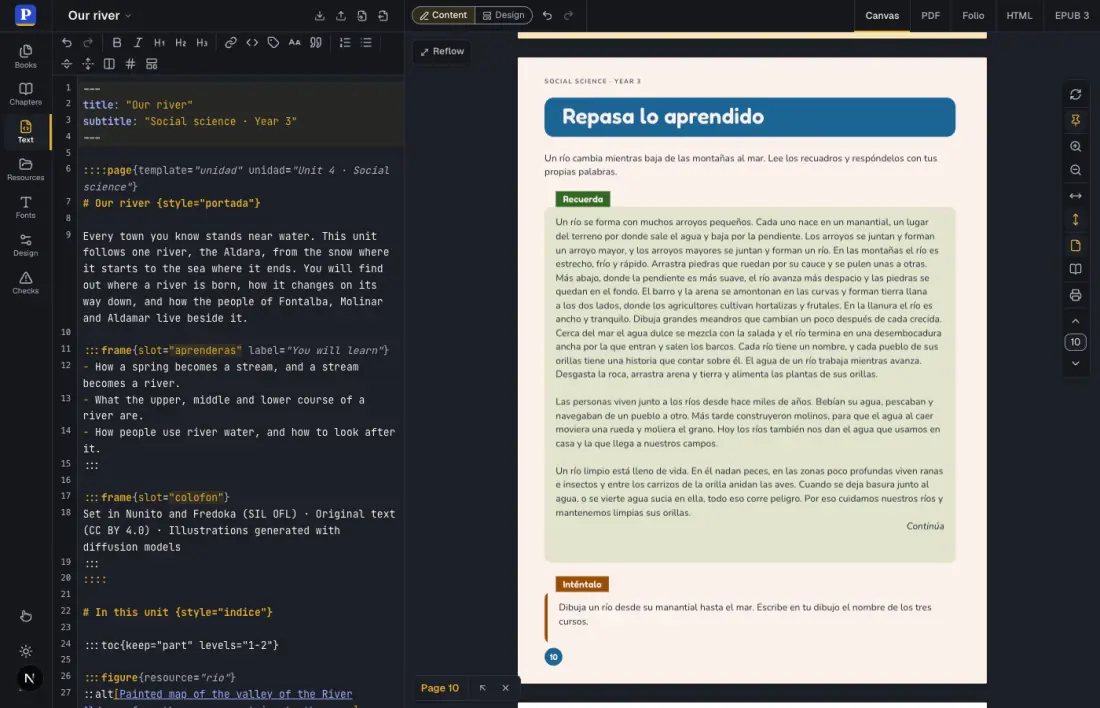

A click on the page puts the caret in its Markdown, and the path under the preview says which frame it is.

8. Draw a tree with connectors

A tree of ideas, an org chart and a timeline are boxes joined by lines. In Postext the boxes are frames and the lines are connectors: lines of the template's decoration that join frames. A connector is drawn after the frames have their final boxes, so it follows a box that grows with a longer text or with the words of another language, and the template needs no picture of the lines. You draw the tree once, as a module (a block of frames that any composed page can hold), and the Markdown says how many branches it has.

1. In Design, open Page & columns › Modules and press New module. A module called Module joins the list with one frame, text. Press its pencil (Edit module Module): the template editor opens in place, with the Module switch on.
2. Give it the ID tree and the Name Tree of ideas. Pick the frame text and make it the top of the tree: Name (slot) root, Box style dato, Width Up to the edge, Height Its content, and switch Takes the page's loose text off.
3. Press Add frame. Name (slot): branch; Box style: dato; Smallest height: 20 mm.
4. Under Groups press Add group. Name it branches and choose Grid: Columns 3, Gap between columns and Gap between rows 6 mm. Under Repeat a set of frames choose branch as the Main frame: the grid lays one branch per item the page gives it. Set Box of its own to Frame root, Relative position Below and Offset Y 12 mm, so the grid starts under the root whatever its height.
5. Under Decoration press Add connector. In its card set Starts at to Frame root and, under Goes to, press Every branch (the ends a line has are pressed). Set Route to Tree, Bend radius to 2 mm, Line width to 1.5 pt and End mark to Arrow. Pick on the page does the same with the mouse, in Design mode: click the frame the line starts from, then each frame it goes to; a second click takes an end out, and Escape ends the picking.

Now the words. Switch to Content and put the caret on the review page of section 3 in the Text panel. Back in Modules, the Page to insert into list names that page; press the insert button of Tree of ideas. The Sandbox writes a :::module{template="tree"} block before the page's closing fence, with an empty frame for each slot, and adds a group that takes modules to the template review, under its last frame, because it had none. Write the words into the empty frames:

:::module{template="tree"}
:::frame{slot="root"}
**A river** gives us
:::
:::frame{slot="branch"}
Water to drink and to water the fields
:::
:::frame{slot="branch"}
Power to turn a mill
:::
:::frame{slot="branch"}
A place to play and to paddle
:::
:::

Each :::frame{slot="branch"} is one branch. Copy one and the page has four boxes and four lines; take one out and it has two. The connector names branch[*], every branch the page has, so the lines follow the Markdown without a change to the module.

The tree: one root, a grid that repeats the branch, and one connector to every branch.

An org chart is the same module with other frames: a card for the head of the team, a grid that repeats a photo and a name, and a tree connector to every card. A timeline sets Bar position to 0: no bar, a drop from the strip of dates to each card.

9. Notes on a map, with pointers and a key

A page of notes round a map: each note has a line to the place it speaks of, the map has a key to its signs, and one name stands away from its point with a line back to it. None of these lines is part of the painting.

The book has the painting twice: mapa, with the names of pages 6 and 7, and rio, the same picture without anchors, set small on the contents page. This page uses rio, so the points you add to it do not move a name of the spread.

1. Make a page template as in section 2. ID map-notes, Name Map with notes. Its frames: title (Box style portada, Takes Level 1), text (Takes the page's loose text), map (Width Up to the edge), and note-1, note-2 and note-3 (Box style dato, Width 56 mm, Smallest height 26 mm). Stack title, text and map in a group column with 6 mm between frames, and lay the notes in a group notes In a row with 8 mm between them. Hang note-1 from Frame map, Below, 14 mm down.
2. Write the page at the end of the chapter:

::::page{template="map-notes"}
# Along the river

The map shows the valley of the Aldara. Each note tells you about one place on it: follow its line to find the place.

:::figure{resource="rio" slot="map"}
::label[Spring]{at="spring" style="agua"}
:::label{at="key" style="key"}
:icon[]{glyph="●" color="ink"} Town
:icon[]{line="solid" color="agua"} River
:icon[]{line="dashed" color="ink"} Path
:::
:::

:::frame{slot="note-1" label="The dam"}
The dam holds the water back in a lake. In dry months it lets some out, so the river never runs empty.
:::

:::frame{slot="note-2" label="Molinar"}
Molinar grew round its bridge and its mill. The mill wheel turned with the water of the river.
:::

:::frame{slot="note-3" label="Aldamar"}
At Aldamar the river meets the sea. Fishing boats leave the harbour every morning.
:::
::::

:::label{at="key" style="key"} is a label of several lines: each line is a row of the key. :icon[…]{…} is a symbol on the line: a glyph, a sample of a line, or a picture of the book. The Symbol for a label button of the Text panel's toolbar writes one at the caret, with its colour and size; the brackets hold what a screen reader says for it, and empty brackets mean the words beside it say it all. 3. Give the key its look. In Design › Figures & tables › Label styles press Add label style, set its id to key, its face to Fredoka at 10.5 pt, a white Plate with a Plate padding of 2.5 mm, an Outline and a Corner radius of 1.5 mm, and under Lines and key switch Key (legend) on. The symbols then stand in a column of their own and the words of every row start on one edge. 4. Place the points. Checks lists Label at an unknown anchor for spring and key. Press the pin button of one: the Anchors dialog of rio opens with both names under Labels without an anchor. Click the waterfall at the top left of the painting for spring, and the lower left corner for key; set the key's Alignment to Start and its Vertical alignment to Bottom, so it grows up and to the right of its point. Then click the dam, the mill and the harbour, and name the three new anchors dam, mill and harbour in their rows. 5. Set the name of the spring away from its point. Pick spring and, under Label and leader, switch Away from its point on. Drag the label's handle up into the sky and set Leader to On: the line from the label to the waterfall is drawn as you drag. Press Save. 6. Draw the pointers. In Design mode, pick note-1 on the page: a round grip shows beside the middle of its right side. Drag it onto the dam; the anchors of the map show while you drag, and the drop writes a connector from the note to the anchor dam with a dot at its end. Do the same from note-2 to mill and from note-3 to harbour. The frame's Pointers group lists them, and is the way to add or change one with the keyboard.

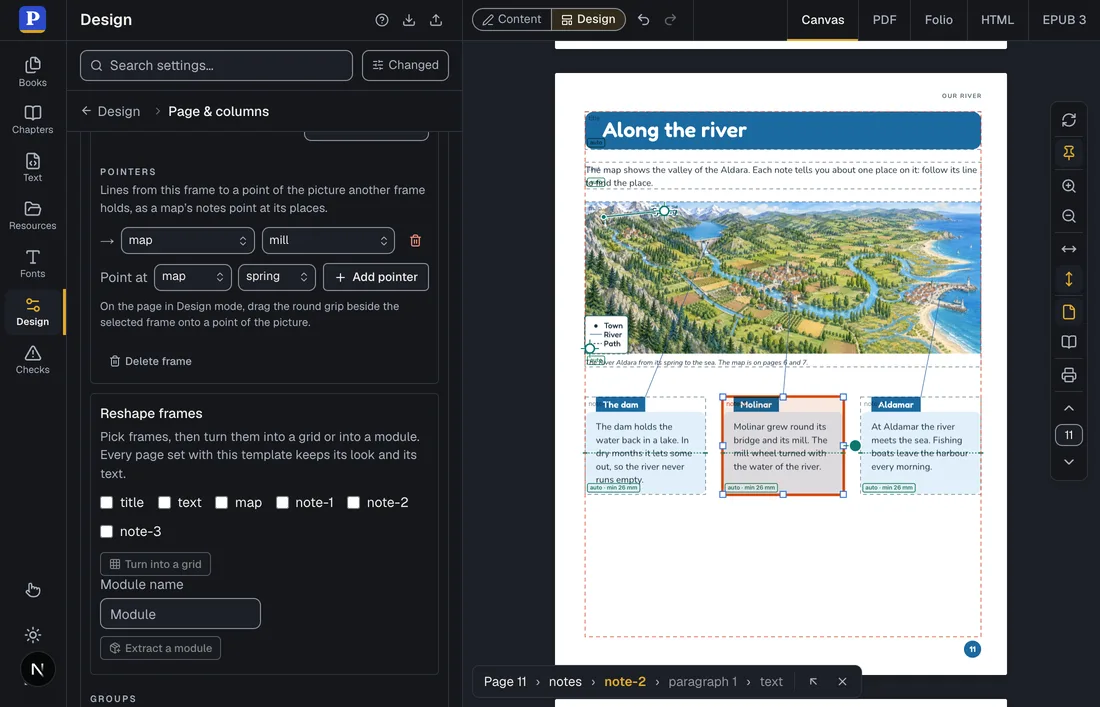

Each note points at an anchor of the picture; the key and the names are lines of the Markdown.

A pointer ends at the anchor's point of the picture, through its crop and scale, so it still finds the mill when the map is set smaller or cut to its safe area. It is painted over the frames, so it shows over the picture. A note placed on top of the map instead, with no room of its own, is listed by Checks as Frame under another frame, with the fixes (see Sandbox: composed pages).

10. A page of photo cards

A page of cards (photos with a caption under each, portraits with a name) is one card drawn many times. A grid that repeats a frame set draws the card once, and the page has as many cards as its Markdown writes.

1. Make a template photos (Name Photo cards) with title (portada, Level 1) and text (the loose text) stacked in a group column, 6 mm apart.
2. Add a frame photo: Box style foto, hung from Frame text, Below, 6 mm down. Add a frame caption: Box style dato, Width Its content, hung from Frame photo, Below, 2 mm down.
3. Add a group cards: Grid, Columns 3, Gap between columns 6 mm, Gap between rows 12 mm. Under Repeat a set of frames, Main frame photo, and tick caption under Frames that go with it. The main frame takes the width of a cell; the caption hangs from it as the template draws it.
4. Write the page:

::::page{template="photos"}
# People and the river

People use the river in many ways. Look at the photos and say what each person is doing.

:::frame{slot="photo"}
::resource{id="riego"}

:::frame{slot="caption"}
Watering the fields
:::
:::

:::frame{slot="photo"}
::resource{id="molino"}

:::frame{slot="caption"}
Grinding wheat
:::
:::

:::frame{slot="photo"}
::resource{id="piraguas"}

:::frame{slot="caption"}
Paddling a canoe
:::
:::

:::frame{slot="photo"}
::resource{id="limpieza"}

:::frame{slot="caption"}
Cleaning the banks
:::
:::
::::

Each :::frame{slot="photo"} is one card, and the :::frame{slot="caption"} inside it goes to the caption of that card. The cards fill the rows from the side where a line starts, so the fourth opens a second row. In Design mode the frames are named by their card: photo[2] and caption[2] are the second card.

The card is drawn once; the Markdown gives four, and the grid lays four.

A fifth photo takes the next cell; a seventh starts a third row. An edition in another language can have more cards or fewer with the same template. Most items caps the grid (what is past it goes to the loose text, and Checks lists More items than the grid holds), and Content that does not fit goes to A page added after this one on the main frame carries the rows that do not fit to an added page, whole.

11. A module library for a series

Page & columns › Modules is the book's module library. Each module is drawn with its frames and named by its id, with how many blocks of the Markdown use it on how many pages (1 block on 1 page for the tree), a pencil that opens it in the template editor, and the button that inserts it into the page chosen in Page to insert into. New module starts another. Renaming a module rewrites every :::module block that names it.

The library: each module, where the book uses it, and the way to insert it into a page.

A page takes modules in a group with Takes the page's modules on, one under another in the order of the Markdown. So the next page can hold a tree under a box, or two trees, with no new template: the Markdown says which blocks and in what order, the modules draw them.

Modules can also stand side by side. Set the modules group's Frames to In a row or Grid, or add a second group with Takes the page's modules on, choose the first one in Inside the group and tick its Modules it takes: each run of those modules in the Markdown becomes one row of the stack. A module's Width in its group, set in its editor, shows under its name in the library.

The books of a series (Our river for Year 3, Our coast for Year 4) share their modules by sharing the design:

• In the Sandbox. Start the next book as a copy of this one (Books, ⋯ on the book, Duplicate) and write its chapters; the templates, the modules and the styles come with the copy. For a book that exists already, Export in the header of the Design panel saves the design, and Import in the other book puts it in place of that book's design.
• From code. Keep the module templates in one file and add them to the pageTemplates of every book of the series:

// series/modules.js: the tree and the other modules of the series
export const seriesModules = [
  { id: 'tree', name: 'Tree of ideas', role: 'module', frames: [/* root, branch */], groups: [/* branches */],
    decoration: { elements: [{ kind: 'connector', id: 'connector-1', routing: 'tree', from: { to: '#root' }, to: [{ to: '#branch[*]' }] }] } },
];

// our-coast/config.js
import { seriesModules } from '../series/modules.js';
export const config = { /* … */ pageTemplates: [...seriesModules, ...pagesOfThisBook] };

A change to a module (a thicker line, another box style) then reaches every page of every book that uses it the next time the book is laid out, and the words stay in each book's Markdown.

What the Markdown says and what the design draws

The pages of sections 8 to 11 follow one rule. The Markdown says what goes on the page and how many: the words of each box, how many branches, notes, cards and rows of the key, which module comes first. The design draws each thing once: the boxes, their places, the lines between them, the look of the key, the size of a cell. That is why a translation needs no template of its own, why a page with five photos uses the template of a page with four, and why a series can share its modules. A template never holds the words of a page, and the Markdown never holds a position or a colour.

Where to go next

• Moving a book to composed pages: a book that keeps the text of its pages in its styles can have it moved into the Markdown.
• Composed pages: every attribute of the page fence (the four-colon block), the figure and the label lines, how a page is set and every warning with its fix.
• Configuration › Composed pages: every field of a template, a frame and a group, inheritance and spreads.
• Sandbox: composed pages: the screens for templates, frame styles, checks in every edition and fixes.
