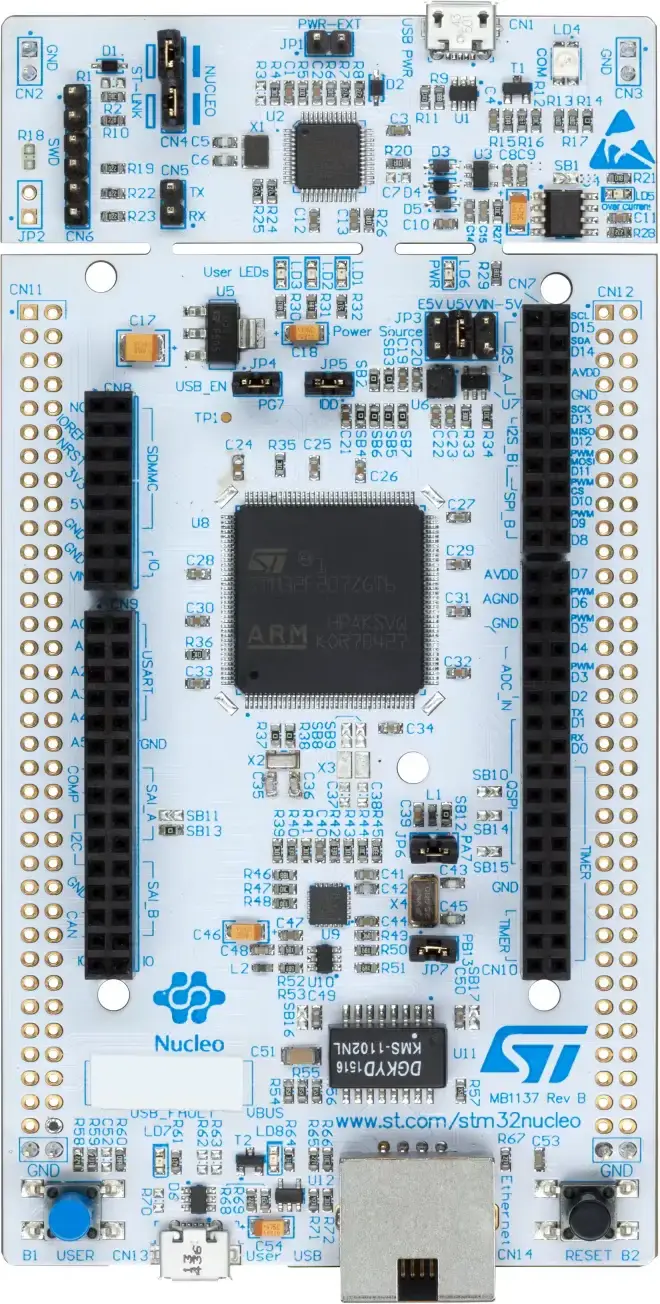

Nucleo F767ZI

• Quick overview
• Connections
  • Switches
    • Analog inputs
  • Rotary encoders
  • Potentiometers
  • FSRs
  • PWM outputs
  • Traffic indicators
  • I2C
  • DIN MIDI
  • Touchscreen
  • Bootloader switch
• Flashing
• Notes

Quick overview

• OpenDeck target name: nucleo_f767zi
• Power: USB
• MCU: STM32F767ZI
• MIDI: DIN
• OSC: Ethernet
• Traffic indicators: 2
• Digital inputs: 52
• Outputs: 14 (PWM / level control)
• Analog inputs: 17
• Board docs: ST Nucleo F767ZI
• Buy links:
  • Mouser
  • TME

Connections

Switches

Switch #	Pin 1	Pin 2
0	PC13	3V3
1	PD2	GND
2	PD3	GND
3	PD4	GND
4	PD5	GND
5	PD6	GND
6	PD7	GND
7	PE2	GND
8	PE3	GND
9	PE4	GND
10	PE5	GND
11	PE6	GND
12	PE7	GND
13	PE8	GND
14	PE9	GND
15	PE10	GND
16	PB6	GND
17	PB12	GND
18	PC10	GND
19	PC11	GND
20	PC12	GND
21	PD0	GND
22	PD1	GND
23	PD10	GND
24	PD11	GND
25	PE0	GND
26	PE1	GND
27	PE11	GND
28	PE12	GND
29	PE13	GND
30	PE15	GND
31	PF0	GND
32	PF1	GND
33	PF2	GND
34	PF11	GND
35	PF12	GND
36	PF13	GND
37	PF14	GND
38	PF15	GND
39	PG0	GND
40	PG1	GND
41	PG2	GND
42	PG3	GND
43	PG4	GND
44	PG5	GND
45	PG6	GND
46	PG7	GND
47	PG8	GND
48	PG9	GND
49	PG10	GND
50	PG14	GND
51	PG15	GND

Analog inputs

Switch #	Pin 1	Pin 1	Pin 2
52	A0	GND with 10k resistor	3V3
53	A1	GND with 10k resistor	3V3
54	A2	GND with 10k resistor	3V3
55	A3	GND with 10k resistor	3V3
56	A4	GND with 10k resistor	3V3
57	A5	GND with 10k resistor	3V3
58	PA0	GND with 10k resistor	3V3
59	PA4	GND with 10k resistor	3V3
60	PA5	GND with 10k resistor	3V3
61	PA6	GND with 10k resistor	3V3
62	PB1	GND with 10k resistor	3V3
63	PC2	GND with 10k resistor	3V3
64	PF4	GND with 10k resistor	3V3
65	PF6	GND with 10k resistor	3V3
66	PF7	GND with 10k resistor	3V3
67	PF8	GND with 10k resistor	3V3
68	PF9	GND with 10k resistor	3V3

Rotary encoders

Encoder #	Pin 1	Pin 2	Pin 3
0	PC13	GND	PD2
1	PD3	GND	PD4
2	PD5	GND	PD6
3	PD7	GND	PE2
4	PE3	GND	PE4
5	PE5	GND	PE6
6	PE7	GND	PE8
7	PE9	GND	PE10
8	PB6	GND	PB12
9	PC10	GND	PC11
10	PC12	GND	PD0
11	PD1	GND	PD10
12	PD11	GND	PE0
13	PE1	GND	PE11
14	PE12	GND	PE13
15	PE15	GND	PF0
16	PF1	GND	PF2
17	PF11	GND	PF12
18	PF13	GND	PF14
19	PF15	GND	PG0
20	PG1	GND	PG2
21	PG3	GND	PG4
22	PG5	GND	PG6
23	PG7	GND	PG8
24	PG9	GND	PG10
25	PG14	GND	PG15

Potentiometers

Potentiometer #	Pin 1	Pin 2	Pin 3
0	3V3	A0	GND
1	3V3	A1	GND
2	3V3	A2	GND
3	3V3	A3	GND
4	3V3	A4	GND
5	3V3	A5	GND
6	3V3	PA0	GND
7	3V3	PA4	GND
8	3V3	PA5	GND
9	3V3	PA6	GND
10	3V3	PB1	GND
11	3V3	PC2	GND
12	3V3	PF4	GND
13	3V3	PF6	GND
14	3V3	PF7	GND
15	3V3	PF8	GND
16	3V3	PF9	GND

FSRs

FSR #	Pin 1	Pin 2	Pin 2
0	3V3	A0	GND with 1k resistor
1	3V3	A1	GND with 1k resistor
2	3V3	A2	GND with 1k resistor
3	3V3	A3	GND with 1k resistor
4	3V3	A4	GND with 1k resistor
5	3V3	A5	GND with 1k resistor
6	3V3	PA0	GND with 1k resistor
7	3V3	PA4	GND with 1k resistor
8	3V3	PA5	GND with 1k resistor
9	3V3	PA6	GND with 1k resistor
10	3V3	PB1	GND with 1k resistor
11	3V3	PC2	GND with 1k resistor
12	3V3	PF4	GND with 1k resistor
13	3V3	PF6	GND with 1k resistor
14	3V3	PF7	GND with 1k resistor
15	3V3	PF8	GND with 1k resistor
16	3V3	PF9	GND with 1k resistor

PWM outputs

Note: current-limiting resistors are required in order to avoid damage to the board.

Output #	Anode	Cathode
0	PA8	GND
1	PA9	GND
2	PA10	GND
3	PE14	GND
4	PB10	GND
5	PB11	GND
6	PB5	GND
7	PC8	GND
8	PC9	GND
9	PD12	GND
10	PD13	GND
11	PD14	GND
12	PD15	GND
13	PB15	GND

Traffic indicators

The current nucleo_f767zi target maps transport traffic indicators to the on-board user LEDs:

Indicator	LED
DIN input	LD1 / PB0
DIN output	LD2 / PB7
BLE input	LD1 / PB0
BLE output	LD2 / PB7
Network input	LD1 / PB0
Network output	LD2 / PB7

I2C

Signal	Pin
Vcc	5V
GND	GND
SDA	PB9
SCL	PB8

DIN MIDI

This board doesn't have DIN MIDI connectors, so they have to be added to the board with the corresponding circuitry. Use this schematic:

MIDI In	MIDI Out
PC7	PC6

Touchscreen

Screen	Pin
Vcc	5V
GND	GND
Rx	PC6
Tx	PC7

Bootloader switch

Hold OpenDeck switch 0 / PC13 active while resetting or powering the board to enter the OpenDeck bootloader. This is the blue user button.

Flashing

To flash this board with the OpenDeck firmware, go to the OpenDeck configurator and follow the instructions.

Notes

DIN MIDI and touchscreen use the same UART pins on this board, so only one of them can be enabled at a time.
