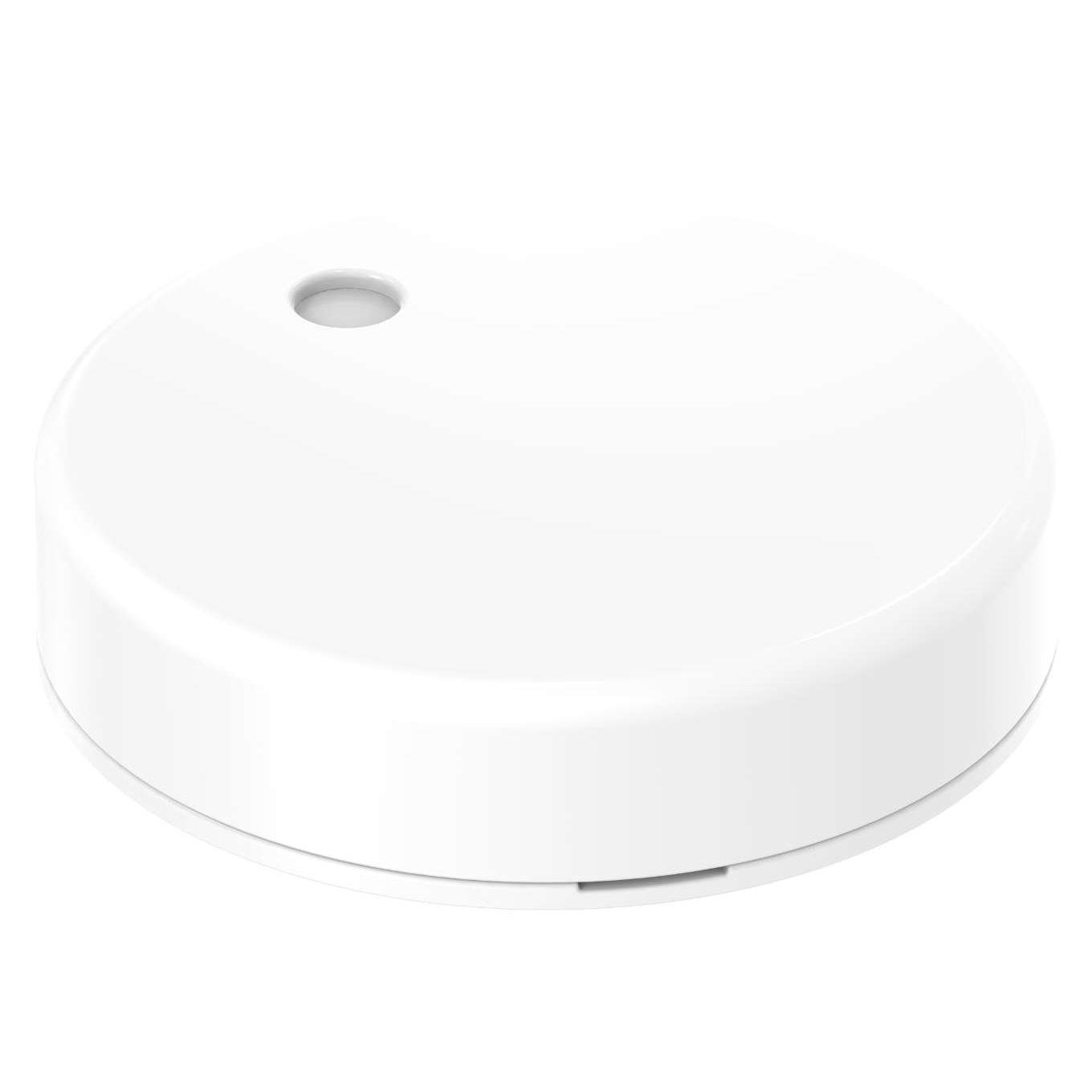

RuuviTag
RuuviTag is a wireless Bluetooth sensor node that measures temperature, air humidity, and movement.(Tech specs)
| Property | description | range of values | operations |
|---|---|---|---|
| temperature | temperature value (°C) |
operating range: -40 - 85
|
read |
| humidity | relative humidity (%RH) |
operating range: 0 - 95
|
read |
| pressure | Air pressure (hPa) |
operating range: 300 - 1100
|
read |
| acceleromter | 3-axis acceleration (g) |
unknown | read |
| battery voltage | read |
||
| txPower | read |
||
| movement counter | read |
||
| measurement sequence number | read |
- Connect to the RuuviTag by clicking the
Things and Resourcescategory and thenconnect via WebBluetooth. - Select
Ruuvi VXYZor the RuuviTag's mac address if you have an older firmware and clickPair. - (optional) Give the device a name.
- The device is now selectable on the
webBluetooth deviceblock in theThings and Resourcescategory.
