CodeSextant

A practical code navigation and change-impact tool for AI coding agents and human developers.

See the codebase

CodeSextant indexed its own repository for this WebGPU prototype. The published package exposes the graph through the CLI and HTTP API in text or JSON. The renderer is not included in the package.

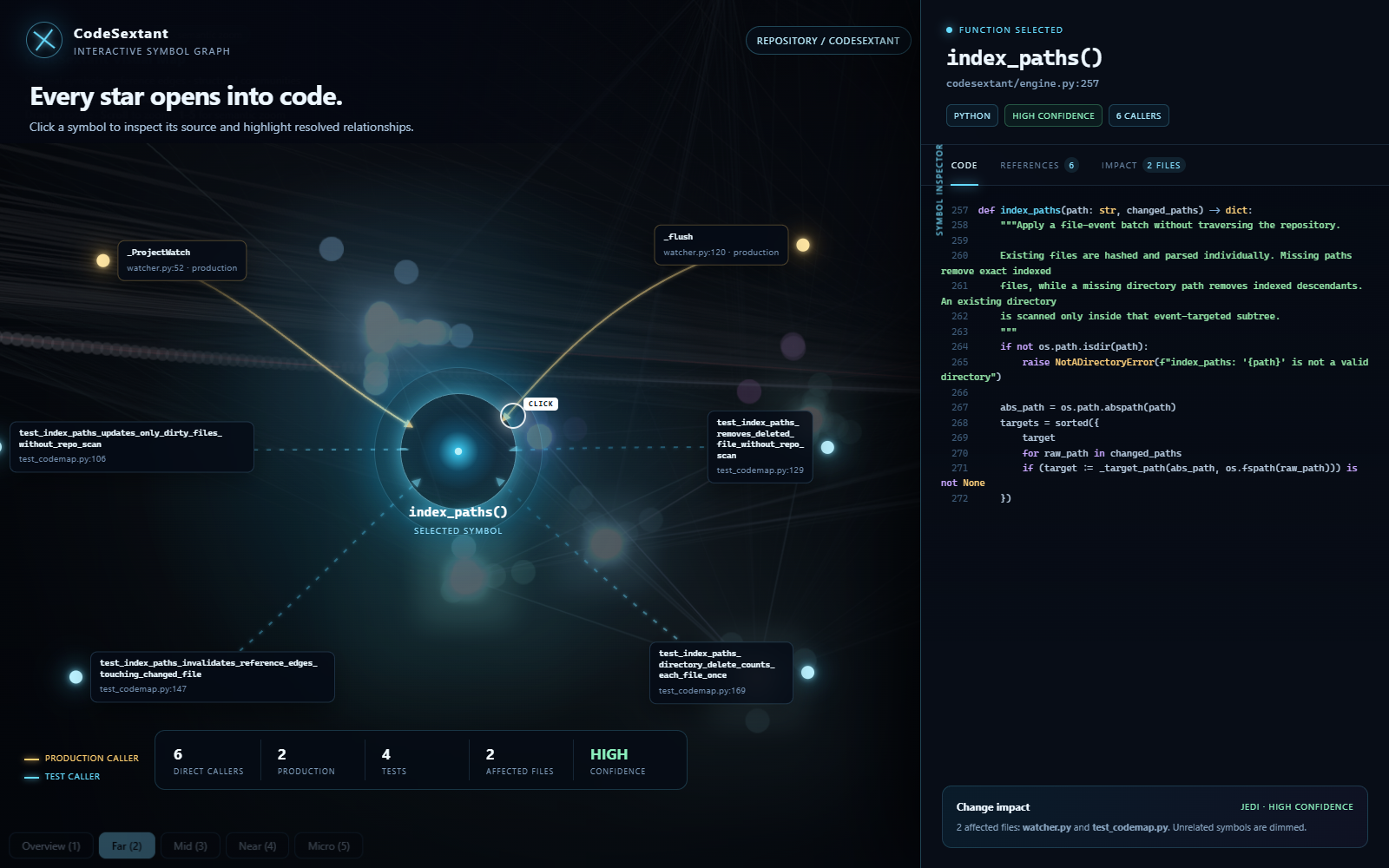

Each star is a symbol with a file, line number, and source snippet. Selecting one opens the code and highlights its direct callers while unrelated symbols fade. Production and test edges use separate styles.

The selected symbol is index_paths() at codesextant/engine.py:257. The inspector shows six high-confidence callers across two affected files.

CodeSextant builds a local graph of symbols and reference edges so agents and developers can trace callers, locate code, and estimate change impact before editing.

For AI agents, the index turns repository structure into targeted queries for the files and symbols worth reading. Developers can use the same graph through the CLI or HTTP API. The daemon updates it from native file events.

Python and TypeScript/JavaScript references are resolved through imports. Other supported languages return low-confidence name matches. CodeSextant runs locally without an API key and does not send source code off the machine.

Install · Open the GUI · Give it to an AI agent · Language support

Quick start

CodeSextant is tested on CPython 3.10 through 3.13.

python -m pip install codesextant
codesextant gui .

The second command indexes the current project, starts the local daemon, and opens the dashboard in your default browser. To connect an AI coding agent, also install the CodeSextant skill.

Platform support

The complete test suite runs on every push across Windows, macOS, and Linux with CPython 3.10, 3.11, 3.12, and 3.13.

Platform	Tested environment	Notes
Windows	GitHub-hosted Windows x64 runner	Use PowerShell, Command Prompt, or another terminal. Windows ARM64 and 32-bit are not covered by CI.
macOS	GitHub-hosted macOS runner	Intel and Apple Silicon dependency wheels are available, but CI covers the current hosted runner only.
Linux	GitHub-hosted Ubuntu runner	Other distributions may work when CodeSextant's binary dependencies provide compatible wheels.

The CLI works without a desktop. The GUI requires a local browser. Git is optional, but repositories with Git automatically respect .gitignore, .git/info/exclude, and global Git ignore rules during indexing.

Open the GUI

Run this from the project you want to inspect:

codesextant gui .

Use an absolute path if the project is elsewhere:

codesextant gui "C:\path\to\your\project"

The dashboard opens at http://127.0.0.1:8790/. It shows the daemon status and indexed projects. From a project row, use Reindex to apply source changes, Map to list important symbols, and References to inspect callers by symbol name.

The dashboard is the current GUI. The star map shown above is a separate prototype and is not included in the published package. See the getting started guide for headless use, daemon controls, and troubleshooting.

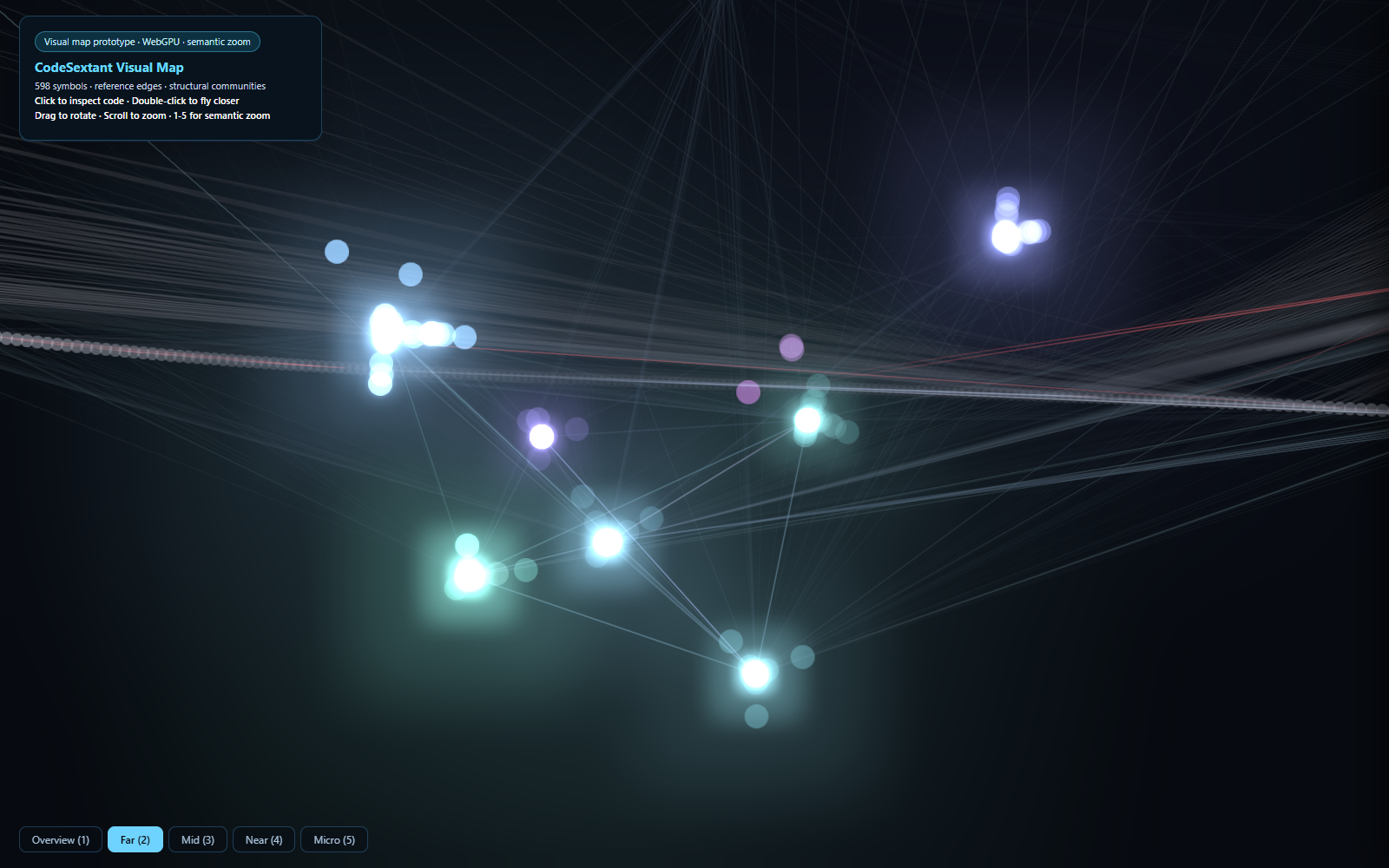

Visual map

The overview groups symbols by their reference edges. Tightly connected code forms compact constellations, while tangled coupling produces overlap and visual noise.

The prototype supports source inspection, rotation, semantic zoom, and navigation from the repository overview to an individual symbol. It does not yet normalize layouts across machines or aggregate modules for very large repositories.

Why use an index

Name matching cannot distinguish same-named symbols in different scopes. In collision-heavy repositories, searches for names such as handle, run, and Config can return many false positives. For Python and TypeScript/JavaScript, CodeSextant resolves imports and stores the graph in a shared local service.

How it works

Import resolution	Python uses jedi, and TS/JS uses ts-morph findReferences. Resolved references are high confidence, while name matches are low confidence and require source verification.
One shared daemon	A cross-process file lock and exclusive listen socket keep one process alive per machine. Claude Code, Cursor, the CLI, and HTTP clients can use the same instance. Projects have separate SQLite databases keyed by absolute repository path.
Language coverage	Python and TypeScript/JavaScript have import-resolved references. Go, Rust, C#, Java, C, C++, Kotlin, Swift, PHP, Ruby, Bash, and Lua use tree-sitter symbol extraction with low-confidence name-matched references.
Event-driven updates	Native file events send created, edited, moved, and deleted paths to the indexer. Full scans are reserved for initial indexing and recovery.
Local only	Runs without cloud calls or API keys. Source and index data stay on the machine.
Budgeted output	map uses weighted PageRank to return the most important N symbols that fit a token budget, rather than dumping the whole graph.

Give CodeSextant to your agent

The PyPI package includes the CodeSextant SKILL.md. Install it after pip install codesextant:

codesextant install-skill

The command detects Codex, Claude Code, and the open Agent Skills home on the current machine. To choose a skill root explicitly, pass it once or repeat it for several agents:

codesextant install-skill --target ~/.codex/skills
codesextant install-skill --target ~/.claude/skills

The installed layout is:

.agents/skills/codesextant/SKILL.md    # Codex and compatible agents
.claude/skills/codesextant/SKILL.md   # Claude Code

Keep the entry filename as SKILL.md. The containing codesextant directory is the skill name under the Agent Skills specification.

If an agent does not support skill directories, attach that one Markdown file and ask the agent to follow it before editing. The skill starts the shared daemon, binds the current repository, uses the map to narrow what should be read, checks references and impact before changes, and preserves confidence labels instead of treating name matches as confirmed callers.

Resolved TS/JS references require Node 20 or newer and npm install inside ts_bridge/, which is available only in the GitHub repository. The PyPI package resolves Python references and returns low-confidence name matches for TS/JS. Clone the repository if you need ts-morph resolution.

Commands

python -m codesextant index      <repo>                     # build or incrementally update the index
python -m codesextant gui        <repo>                     # index, start the daemon, and open the GUI
python -m codesextant map        <repo> [--budget N]        # most important symbols, within a token budget
python -m codesextant references <repo> <symbol> [--src-root R] [--def-path D]
python -m codesextant symbols    <repo> [--file F]
python -m codesextant status     <repo>
# any command takes --json for machine-readable output

Running the daemon without opening a browser:

codesextant gui . --no-browser
python -m codesextant.daemon ensure   # idempotent: starts one only if none is running
python -m codesextant.daemon ping     # strict liveness check (verifies /health brand, not just the port)
python -m codesextant.daemon stop

HTTP endpoints, all taking project=<absolute repo path>: GET /health /get_symbols /get_map /status (?fresh=1 to compare against git HEAD) /projects; POST /find_references /reindex.

On Windows, tools/register_windows_startup.ps1 registers the daemon to start on login (run it as administrator to get boot-time start as well). It is idempotent, so re-running it is safe. A supervisor task probes liveness every 5 seconds and restarts the daemon if it exits.

Architecture

┌── CodeSextant daemon (Python, port 8790, single instance, shared by local tools) ─┐
│   tree-sitter symbol extraction + jedi / ts-morph import resolution               │
│   incremental SQLite (content hash + git HEAD freshness) + weighted PageRank      │
│   per-project isolation: sha1(repo path) -> ~/.codesextant/<key>.db               │
│   HTTP API, plus a self-contained dashboard on GET /                              │
└───────────────────────────────────────────────────────────────────────────────────┘
        ▲ one daemon, many clients: CLI, agent skills, IDE webviews, HTTP clients

An exclusive socket and cross-process file lock keep one daemon alive per machine, so agents and developer tools share one graph instead of starting separate indexers.

Large cold map queries are served from a SQLite covering index plus a revision-checked JSON snapshot, with a small in-process LRU on top. Every snapshot is a cache keyed on index revision and query parameters; SQLite remains the only source of truth, and any change invalidates them.

Configuration

All settings are environment variables. Boolean flags accept 1/true/yes/on case-insensitively.

Variable	Default	Effect
CODESEXTANT_HOME	~/.codesextant	SQLite database directory
CODESEXTANT_PORT	8790	daemon port
CODESEXTANT_SUPERVISOR_INTERVAL_SEC	5	liveness probe interval, minimum 1
CODESEXTANT_MAP_TIMEOUT_SEC	60	client deadline for cold map queries only
CODESEXTANT_MAP_CACHE_SIZE	4	trimmed map results cached per DB revision
CODESEXTANT_NAMEGRAPH_MAX_FILES	adaptive	override the file-scan cap; adapts 12 to 5000 by symbol count when unset
CODESEXTANT_NAMEGRAPH_MAX_UNIQUE_EDGES	250000	hard cap so generated code cannot exhaust memory
CODESEXTANT_WATCH_ENABLED	on	filesystem watcher for proactive incremental indexing
CODESEXTANT_WATCH_DEBOUNCE_MS	2000	delay that combines a burst of file events into one dirty-path update
CODESEXTANT_TS_MORPH_DISABLED	off	force TS/JS to name matching
CODESEXTANT_TS_MORPH_TIMEOUT	30	ts-morph subprocess timeout, seconds
CODESEXTANT_GIT_FRESHNESS_DISABLED	off	stop comparing the index against git HEAD
CODESEXTANT_CSRF_GUARD	on	Origin check on POST endpoints (allows localhost, Tauri and IDE webviews; blocks cross-site)

A few lower-level language-inference knobs (CODESEXTANT_INFER_LANG_*) are documented in the source.

Testing

python -m pytest tests/ -q

The suite covers the daemon lifecycle, incremental indexing, map scalability, snapshot invalidation, and reference resolution across the supported languages.

Known limitations

• Reference lookup needs the right --src-root when the import root lives in a subdirectory (.../src). Get it wrong and high-confidence references are silently missed.
• When several symbols share a name, omitting --def-path means the first candidate definition wins, and high-confidence results may legitimately come back as zero. All candidates are listed so you can disambiguate.
• PageRank quality depends on how dense the reference edges are, and those accumulate as find_references is called. A freshly indexed repo produces a rougher map than one that has been queried for a while.
• High-confidence TS/JS resolution requires npm install in ts_bridge/, which is included only in the GitHub repository. PyPI installations return low-confidence name matches for TS/JS.
• Go and Rust use tree-sitter symbols and low-confidence name-matched references. Their imports are not resolved.
• Event-driven updates require the daemon to be running. After downtime or a missed event, status?fresh=1 checks the index against git HEAD and a reindex restores it.

Repository layout

Path	What it is
codesextant/	The Python implementation. This is what pip install codesextant gives you and what the docs above describe.
ts_bridge/	A small Node helper the Python side shells out to for ts-morph reference resolution. Git only; the pip package does not carry it.
tests/	Test suite for the Python implementation.
ts/	In-progress TypeScript rewrite. It is not imported by codesextant/ or included in the published package.

Licence

MIT. See LICENSE.

The name comes from the sextant, an instrument used to find a position when landmarks are out of sight.

The core is free and open source. A planned commercial edition will add a shared team index, multi-agent access controls and audit logs, private deployment, and supported integrations.
