Architecture

Architecture

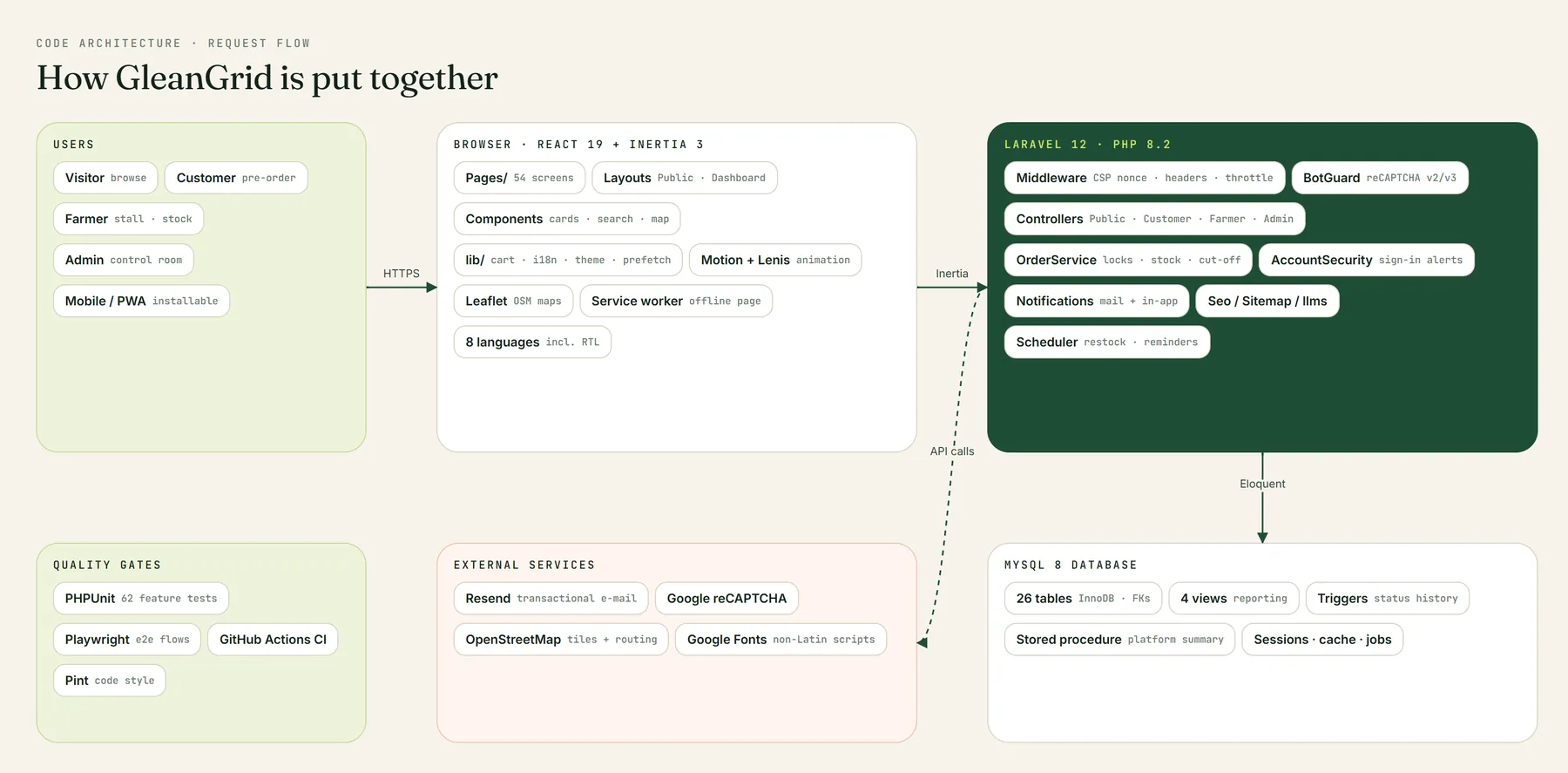

GleanGrid is a classic multi-tier web application (browser → web server → application → database), delivered as a single-page experience through Inertia.js: Laravel owns routing, auth, validation and data; React owns rendering. There is no separate public JSON API to secure.

flowchart LR
    B[Browser<br>React 19 + Inertia 3] -- HTTPS + XSRF --> MW
    subgraph Laravel 12
      MW[Middleware<br>SecurityHeaders · SetLocale · HandleInertiaRequests<br>auth · role · verified · farmer.approved · throttle] --> C[Controllers<br>validate + authorise]
      C --> S[Services<br>OrderService · CouponService · AccountSecurity · AssistantService]
      C --> SP[Support<br>Seo · Breadcrumbs · BotGuard · LegalContent · ImageUpload]
      S --> M[Eloquent models]
      S --> N[Notifications<br>queued, after commit]
    end
    M --> DB[(MySQL / MariaDB)]
    N --> Q[(Queue)] --> R[Resend e-mail]

Loading

Request flow

1. The first request returns full HTML: server-rendered <title>, meta tags and JSON-LD (from App\Support\Seo), plus the page's props as JSON.
2. React boots, reads the props and renders the page inside a persistent layout (PublicLayout or DashboardLayout) — header, footer, smooth scroll and cursor stay mounted.
3. Later clicks are XHR visits that return only JSON props. A delegated listener (resources/js/lib/prefetch.js) prefetches a link's props on hover, touch or focus and caches them for 30 s, so most visits render instantly from cache.
4. Mutations (POST/PUT/PATCH/DELETE) flush the prefetch cache so nothing stale is shown. Favourites use Inertia's optimistic updates and roll back automatically on failure.

Back end layout

Folder	Responsibility
app/Http/Controllers/{Customer,Farmer,Admin,Auth}	Thin controllers per role
app/Http/Middleware	SecurityHeaders (nonce CSP), EnsureRole, EnsureEmailVerified, EnsureFarmerApproved, SetLocale, HandleInertiaRequests (shared props)
app/Services	Business rules with transactions and locks: orders, coupons, account security, assistant
app/Support	Cross-cutting helpers: SEO, breadcrumbs, bot defence, legal copy, image re-encoding
app/Notifications	Platform notifications (database + mail), verification codes, security alerts
app/Console/Commands	gleangrid:llms, gleangrid:export-sql

Front end layout

Folder	Responsibility
resources/js/Pages	One React page per screen, grouped by role
resources/js/Layouts	PublicLayout, DashboardLayout, AuthLayout
resources/js/Components	UI kit (ui.jsx), widgets, cards, maps (lazy), charts (lazy), search palette, assistant, breadcrumbs, SEO head
resources/js/lib	i18n (lazy locales), cart store, theme, fly animation, prefetch, confirm dialogs, image compression, PWA
resources/js/i18n	Eight dictionaries (en bundled; others lazy-loaded)

Key design decisions

• Thin controllers, fat services — concurrency-sensitive logic is testable without HTTP.
• One source of truth per concern — SEO copy, breadcrumbs and legal text are defined once in PHP and reused for HTML, JSON-LD, React and llms.txt.
• Stateless web tier — sessions, cache and queue are driver-based (database by default; swap to Redis for horizontal scaling).
• Forgiving URLs — the 404 handler 301-redirects mixed-case paths (/Contact) and common aliases (/contact-us, /tos, /refund-policy) to the canonical page before giving up.
• Progressive loading — only English ships in the main bundle; maps, charts, the assistant and other languages are separate chunks loaded on demand.
