Scope settings

The Scope tab of ChipWhisperer Studio shows every setting of the connected ChipWhisperer scope as an editable tree, read directly from the hardware. This page explains how the tree works and which settings matter most for a first capture.

The Scope tab with the gain, adc and clock groups expanded

The settings tree: groups on the left, current values on the right, documentation on hover.

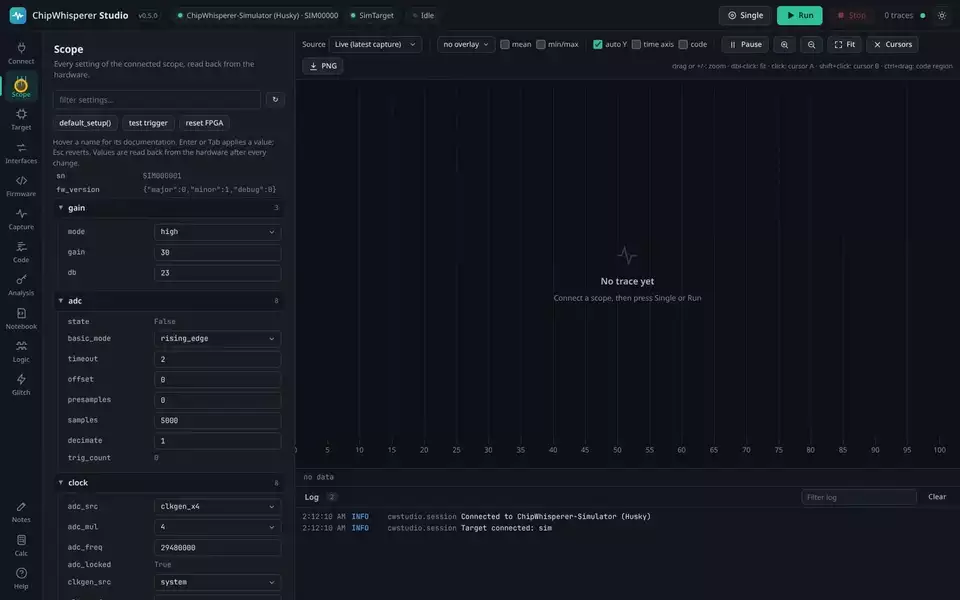

Browsing and searching the scope settings (animated)

How the settings tree works

Studio does not have a hand-written form for each scope model. Instead it asks the chipwhisperer library for the scope's settings (the same values you see when you print(scope) in Python) and builds the tree from them. That means Nano, Lite, Pro and Husky all work without special code, and new settings added to the library appear automatically.

For every setting Studio shows:

Part Meaning
Name The setting's name, for example samples inside the adc group. Hover over it to see the full path (adc.samples) and the documentation from the ChipWhisperer library.
Value box An editable field for settings you can change. Settings with a fixed set of choices (for example gain.mode or trigger.triggers) use a drop-down, and true/false settings use a True/False drop-down.
Plain text A read-only value, such as the serial number, firmware version, adc.trig_count or clock.adc_locked. These are information only.
Number on a group header How many settings the group contains. Click the header to open or close the group.

The adc, gain, clock, trigger and io groups start open; other groups (such as glitch) start closed.

Changing a value

  1. Click the value box and type the new value (or pick one from the drop-down).
  2. Press Enter or Tab, or click somewhere else, to apply it. Press Esc to cancel and go back to the current value.
  3. Studio sends the value to the scope and then reads it back from the hardware, so the box always shows what the scope really accepted. Some settings round your value (for example a clock frequency the PLL cannot hit exactly), and you will see the rounded value.

While you type, the box is outlined in amber (pending). After a successful change it flashes green (saved). If the scope rejects the value, the box turns red (error), the error message appears as a pop-up notification and as the box's tooltip, and the log at the bottom shows the details.

Studio converts what you type to the type of the current value: 5000 becomes a whole number for adc.samples, 25.5 a decimal for gain.db, and true, false, 1, 0, yes, no, on, off all work for true/false settings. Whole number settings also accept hexadecimal such as 0x10. Typing None sets a setting to nothing where that is allowed.

Filter and refresh

  • The filter settings box at the top narrows the tree to settings whose path or current value contains your text, for example glitch, trig or serial. Matching groups open automatically.
  • The refresh button (↻) reloads the whole tree from the scope. Values are also re-read automatically after every change you make, when you switch to the Scope tab, and after scope actions.

Scope actions

Three buttons above the tree run common scope operations:

Button What it does
default_setup() Runs ChipWhisperer's scope.default_setup(), which restores sensible defaults for capturing from a standard target (see the table below). Studio also runs this automatically when you connect with default_setup() ticked on the Connect tab.
test trigger Arms the scope and waits for one trigger without talking to the target, then reports whether it captured or timed out. Use it to check your trigger wiring and settings when you are using your own target firmware. A pop-up says "arm+capture done" or "arm+capture (timeout)".
reset FPGA Calls scope.reset_fpga() when the connected scope supports it. This is a recovery step if the scope stops responding correctly. Scopes without this function report an error.

The settings that matter most

The full list of settings is long and differs between scope models. The ChipWhisperer documentation is the complete reference for every one of them. This section covers the settings you will touch most often, with sensible starting values.

What default_setup() sets

On the CW-Lite and CW-Pro, ChipWhisperer's default_setup() sets the following (the Husky uses the same idea with its own clock settings):

Setting Value after default_setup() Why
gain.db 25 dB A good middle gain for the standard targets.
adc.samples 5000 Enough to cover the first round of a software AES on the standard targets.
adc.offset 0 Start recording right at the trigger.
adc.basic_mode rising_edge Trigger when the trigger line goes high.
trigger.triggers tio4 The standard targets raise TIO4 when their operation starts.
io.tio1 / io.tio2 serial_rx / serial_tx The target's UART, used by SimpleSerial.
io.tio4 high_z TIO4 is an input (the trigger).
io.hs2 clkgen Send the scope's generated clock to the target.
clock.clkgen_freq 7.37 MHz The standard target clock.
clock.adc_src (Lite, Pro) or clock.adc_mul (Husky) clkgen_x4 or 4 Sample at four times the target clock.

If captures stop working after experimenting, press default_setup() to get back to a known good state.

gain: input amplification

Setting What it does Suggested start
gain.db The amplifier gain in decibels. Higher gain makes small power variations bigger, but too much gain clips the signal (flat tops or bottoms in the waveform). 25, then adjust
gain.mode The amplifier's low or high gain range. Hover the name for the library's description of how it relates to gain.db on your scope. as set by default_setup()
gain.gain The raw gain register value that corresponds to gain.db. leave alone

Tip: Look at a single trace in the Waveform Viewer. If the trace hits the top or bottom of the scale, lower gain.db. If the interesting part only moves a tiny amount, raise it. Leaving some headroom is better than clipping, because clipped samples destroy the information CPA needs.

adc: what and when to record

Setting What it does Suggested start
adc.samples How many samples to record after the trigger (plus any presamples). More samples cover more of the operation but make captures and analysis slower. 5000
adc.offset How many samples to skip after the trigger before recording starts. Use it to move the capture window to a later part of the operation. 0
adc.presamples How many samples to keep from before the trigger. 0
adc.basic_mode Which trigger condition starts a capture: rising_edge, falling_edge, low or high. rising_edge
adc.timeout How long (in seconds) the scope waits for a trigger before giving up. Captures that time out are counted as timeouts in the Capture tab. as set by the library
adc.decimate Keep only every Nth sample, to record a longer time span with the same number of samples. 1
adc.trig_count Read-only: how long the trigger line was active during the last capture, in ADC clock cycles. Useful to see how long the target's operation takes. read only

clock: target clock and sample rate

Setting What it does Suggested start
clock.clkgen_freq The frequency of the clock the scope generates for the target. 7.37 MHz for the standard targets
clock.adc_src (Lite, Pro) Where the ADC's sample clock comes from, for example clkgen_x4 (four times the generated clock) or clkgen_x1. Sampling synchronously with the target clock gives very stable traces. clkgen_x4
clock.adc_mul (Husky) The Husky's equivalent: the ADC samples at adc_mul times the generated clock. 4
clock.freq_ctr Read-only: the measured frequency of the selected clock source. read only
clock.adc_locked / clock.clkgen_locked Read-only: whether the clock PLLs have locked. If a clock does not lock, captures are unreliable; run default_setup() again. read only

Studio reads the ADC sample rate from the clock settings to label the waveform's time axis and to convert cursor distances into time and frequency (see Waveform Viewer).

trigger: what starts a capture

Setting What it does Suggested start
trigger.triggers Which input line triggers the capture, for example tio4 (the standard target trigger), tio1 to tio3, nrst or sma. Some scopes accept combinations; see the library documentation. tio4
trigger.module On scopes that support advanced triggers (Pro, Husky), selects the trigger type, such as the basic edge trigger or pattern based triggers. basic

io: target connections

Setting What it does Typical value
io.tio1, io.tio2 Function of the target IO lines 1 and 2. For SimpleSerial they must be serial_rx and serial_tx. serial_rx, serial_tx
io.tio3, io.tio4 Other target IO lines; tio4 is normally the trigger input (high_z). high_z
io.hs2 What the high speed output HS2 carries: clkgen (the target clock), glitch (the clock with glitches inserted) or disabled. clkgen
io.nrst The target reset line. Set to low to hold the target in reset and back to high_z to release it. high_z
io.pdic, io.pdid Programming and debug lines, used for example by the XMEGA programmer. pdic can also reset some targets. high_z
io.target_pwr Switch the target's power on or off. Turning it off and on is a hard reset. True
io.glitch_hp, io.glitch_lp Enable the high power and low power crowbar MOSFETs used for voltage glitching. Leave them off unless you are voltage glitching. False

Tip: To reset the target by hand, set io.nrst to low, then back to high_z. A sweep in the Glitch tab can do this automatically after a crash.

glitch: the fault injection module

The glitch group is closed by default. Open it, or filter for glitch, when you want to inject faults.

A clock glitch sweep with the live result plot (animated)

The glitch group of the scope settings tree

The glitch module settings, reached by typing glitch into the filter box.

Setting What it does
glitch.clk_src The clock the glitch module works from: clkgen (the scope's generated clock, the usual choice), target (an external target clock) or pll (Husky).
glitch.output What the glitch module outputs: clock_xor (the clock with glitch pulses XORed in, for clock glitching), clock_or, glitch_only (just the pulses, for voltage glitching), clock_only or enable_only.
glitch.trigger_src When glitches are inserted: manual (only when triggered from software), ext_single (once per scope arm, when the external trigger fires, the usual choice), ext_continuous (every time the trigger fires) or continuous.
glitch.width The width of each glitch pulse. On the Lite and Pro this is a percentage of a clock period (roughly -49.8 to 49.8).
glitch.offset Where in the clock period the glitch starts, in the same units as width.
glitch.ext_offset How many clock cycles after the trigger the glitch is inserted. This picks which instruction you attack.
glitch.repeat How many consecutive clock cycles receive a glitch.
glitch.width_fine, glitch.offset_fine Fine adjustment of width and offset.

The Husky's glitch module works differently in the details (it uses a PLL and different units). Check the ChipWhisperer documentation for your scope. To sweep these values automatically, use the Glitch tab.

Husky extras

The ChipWhisperer-Husky exposes extra groups, such as its logic analyzer, trace interface, user IO header and ADC mode settings. They all appear in the tree and can be edited like any other setting. Several have their own controls as well: the logic analyser in the Logic tab, the USERIO header, the UART trigger, edge counter, ADC level trigger, sequencer and bit-banger in the Interfaces tab, and SWO trace in the Code tab's exact mode. See the ChipWhisperer documentation for what each setting does.

Choices the model does not have

The tree offers only what the connected ChipWhisperer supports: choices it lacks appear as (not available) with the reason, and writing them is refused. For example TIO4 cannot be serial_rx on any model, the CW-Lite has no trigger module choice, clock.adc_mul exists only on the Husky (the CW-Lite and Pro use clock.adc_src), and the Nano triggers on a rising edge of TIO4 only. See Protocols and Interfaces.

Changing settings from code

Everything in the tree can also be changed programmatically:

  • In a Notebook, scope.gain.db = 30 changes the same scope Studio is using.
  • Through the HTTP API: PUT /api/scope/settings with {"path": "gain.db", "value": 30}.
  • Through the MCP Server: the scope_set_setting and scope_set_settings tools.
