The Interfaces tab gathers everything that talks to the target other than capture: the target UART with a terminal, SimpleSerial, an SPI master (with SPI flash shortcuts), GPIO on the target pins, the Husky's USERIO header, capture triggers, the Husky bit-banger and 1-Wire, and JTAG/SWD debugging through OpenOCD. ChipWhisperer models differ a lot in what their hardware can do, so Studio checks the connected scope and enables only what it supports; everything else stays visible, disabled, with the reason. This page explains each section, lists what every model supports and where those facts come from.

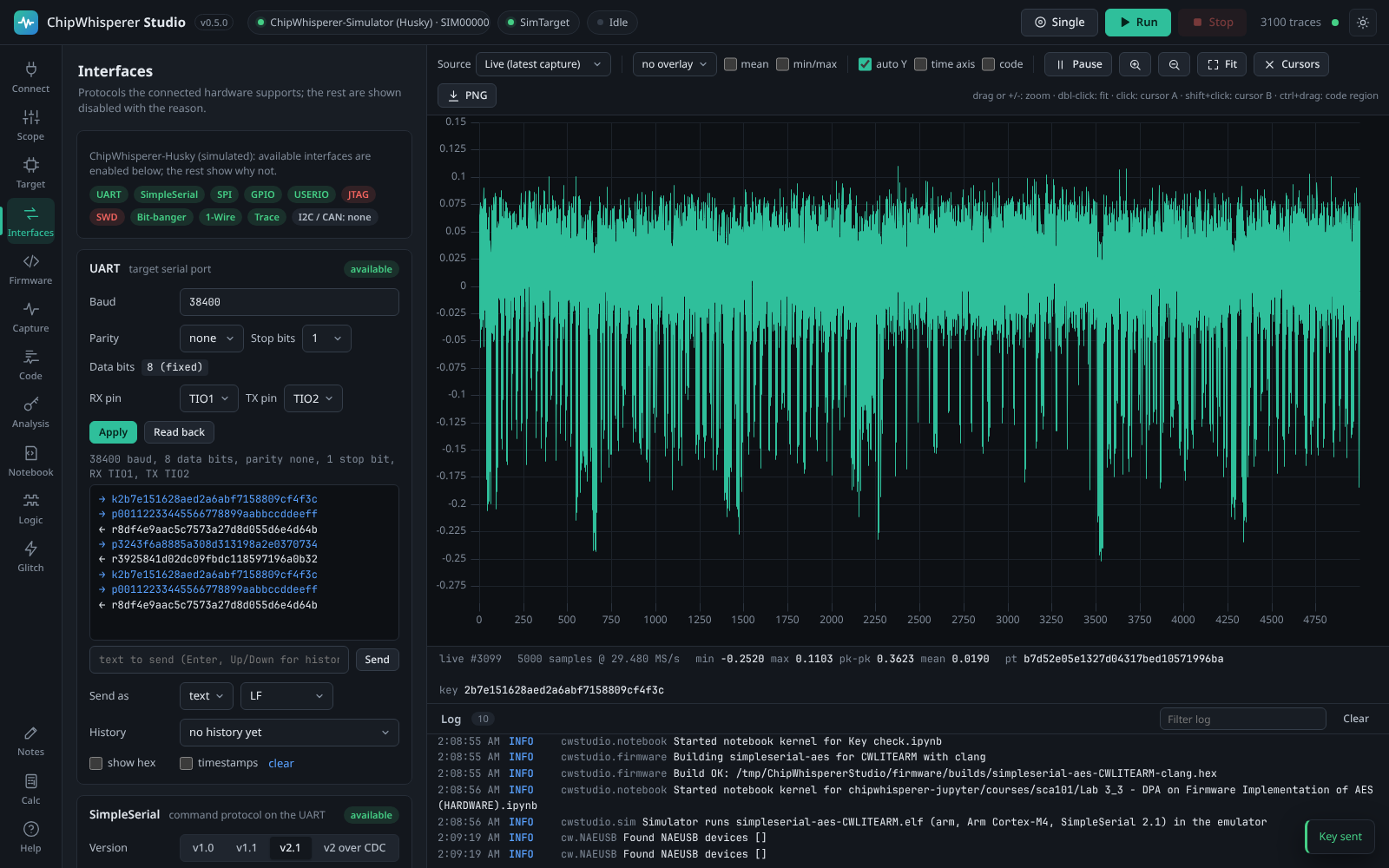

The Interfaces tab with the simulator posing as a Husky: the badges at the top show what is available, the UART card below has the terminal.

How Studio decides what is available

• The model. Studio reads the connected scope's type from the chipwhisperer library (Nano, Lite, Pro, Husky or Husky Plus). With the simulator, the model you choose under Simulate as on the Connect tab counts instead (see Simulate as).
• The scope firmware. Some features need a firmware feature that older scope firmware lacks: the SPI master (TARGET_SPI), JTAG and SWD (MPSSE), SWD on the Husky (HUSKY_PIN_CONTROL, SAM firmware 1.4 or newer) and the USB-CDC serial port (CDC). Studio asks the scope (scope.check_feature()) and says when the firmware is too old: update it with scope.upgrade_firmware() (for example in a Notebook cell), which is how the chipwhisperer library updates scope firmware; see NewAE's firmware page.
• The library. The Husky bit-banger and its 1-Wire helper exist only in ChipWhisperer's develop branch, not in the 6.0.0 release on PyPI that the standalone bundles and a plain pip install use. With 6.0.0 they show needs a Husky and a chipwhisperer library newer than 6.0.0. Install the library from NewAE's repository into a pip installation of Studio to use them.
• No scope connected: everything says connect a scope first. A scope type the Interfaces tab does not know (a CW305 or CW310 board connected as the scope, for example) says this scope type (...) is not supported by the Interfaces tab.

The same rules gate choices elsewhere in Studio: the Scope tab's settings tree offers only the trigger modules and pin modes the model has (for example TIO4 cannot be serial_rx, and clock.adc_mul exists only on the Husky), and the Target tab offers only the programmers the model can drive. Over the API, GET /api/capabilities returns the whole table for the connected scope, each entry as {available, reason, ...details}.

Capability matrix

What each ChipWhisperer supports, as Studio applies it. "fw" means the feature needs that scope firmware version or newer. The reason in the last column is what Studio shows when the feature is not available.

Target communication

Feature	Nano	Lite	Pro	Husky	Husky Plus	Reason shown when not available
Target UART (baud 500 to 2,000,000, parity none/odd/even/mark/space, 1, 1.5 or 2 stop bits, always 8 data bits)	yes	yes	yes	yes	yes
UART pin choice	fixed: RX TIO1, TX TIO2	RX on TIO1-3, TX on TIO1-4	as Lite	as Lite	as Lite	TIO4 cannot receive serial data
SimpleSerial 1.0, 1.1 and 2.1	yes	yes	yes	yes	yes
SimpleSerial 2 over the scope's USB-CDC port	fw 0.30	fw 0.30	fw 1.30	fw 1.0	yes	this firmware has no USB-CDC serial port
SPI master on the 20-pin header	no	fw 0.60	fw 1.60	fw 1.1	fw 1.0	the CW-Nano has no SPI pins
I2C, CAN, LIN	no	no	no	no	no	no ChipWhisperer has hardware for them (use the Logic analyser to decode them)

Programming

Programmer	Nano	Lite	Pro	Husky	Husky Plus	Reason shown when not available
STM32F (serial bootloader)	yes	yes	yes	yes	yes
XMEGA (PDI)	no	yes	yes	yes	yes	the CW-Nano programs STM32F targets only
AVR (ISP)	no	yes	yes	yes	yes	AVR ISP needs the SPI pins, which the CW-Nano does not have
SAM4S (SAM-BA)	no	yes	yes	yes	yes	SAM-BA programming is not supported on the CW-Nano
NEORV32, iCE40, XC7A35T (need the SPI master)	no	fw 0.60	fw 1.60	fw 1.1	fw 1.0	the CW-Nano has no SPI pins
OpenOCD (flash through JTAG/SWD)	no	as JTAG	as JTAG	as JTAG	as JTAG	as JTAG below

For the Nano, NewAE's documentation lists STM32F programming only; XMEGA and SAM-BA are marked unknown or untested in the library, so Studio does not offer them.

Debug and trace

Feature	Nano	Lite	Pro	Husky	Husky Plus	Reason shown when not available
JTAG through OpenOCD (MPSSE), 20-pin header	no	fw 0.60	fw 1.60	fw 1.1	fw 1.0	the CW-Nano's 20-pin header has no TCK/TDI/TDO (SPI) lines
SWD through OpenOCD (MPSSE)	no	fw 0.60	fw 1.60	fw 1.4	fw 1.4	as JTAG; on the Husky also SAM firmware 1.4 or newer
JTAG/SWD on the USERIO header	no	no	no	yes	yes
Arm trace (SWO and parallel, TraceWhisperer)	no	no	no	yes	yes	Arm trace needs a ChipWhisperer-Husky

The library lists the MPSSE feature for the Nano too, but the Nano has no SPI lines on its header, which JTAG needs, and NewAE's wiring documentation conflicts; Studio does not offer it. OpenOCD needs real hardware: with the simulator these entries say needs real hardware: OpenOCD cannot drive the simulator.

Triggers

Trigger	Nano	Lite	Pro	Husky	Husky Plus	Reason shown when not available
Edge or level on pins	TIO4 rising edge only	TIO1-4, nRST	adds SMA/AUX	adds SMA/AUX and USERIO D0-D7	as Husky	the CW-Nano triggers on a rising edge only
Pin combinations (OR, AND, NAND)	no	yes	yes	yes	yes	the CW-Nano triggers on TIO4 only
SAD (sum of absolute differences)	no	no	yes (128 samples)	yes	yes	SAD triggering needs a ChipWhisperer-Pro or Husky
UART byte pattern (I/O decode)	no	no	yes	no	no	the I/O decode trigger is a ChipWhisperer-Pro feature (the Husky has the UART trigger instead)
UART pattern rules	no	no	no	2 rules	8 rules	the UART pattern trigger needs a ChipWhisperer-Husky
Edge counter	no	no	no	yes	yes	edge counting needs a ChipWhisperer-Husky
ADC level	no	no	no	yes	yes	ADC level triggering needs a ChipWhisperer-Husky
Trigger sequencer (two triggers in order)	no	no	no	yes	yes	the trigger sequencer needs a ChipWhisperer-Husky
Arm trace trigger	no	no	no	yes	yes	Arm trace needs a ChipWhisperer-Husky
Bit-banger trigger	no	no	no	develop library	develop library	the bit-banger is on the Husky only
Trigger output	no	no	AUX	MCX	MCX	a trigger output needs a ChipWhisperer-Pro (AUX) or Husky (MCX)

NewAE's Pro documentation mentions an SPI decode trigger, but the library implements UART only; no ChipWhisperer has an SPI or I2C decode trigger.

Pins, bit-banging and logic capture

Feature	Nano	Lite	Pro	Husky	Husky Plus	Reason shown when not available
Drive target pins	TIO3, PDIC, PDID, nRST	TIO1-4, PDIC, PDID, nRST	as Lite	as Lite	as Lite
Read target pins back	no	TIO1-4	TIO1-4	TIO1-4, nRST, PDIC, PDID, MISO, MOSI, SCK	as Husky	the CW-Nano cannot read its pins back (its getters return fixed values)
USERIO header (D0-D7, CK) as GPIO	no	no	no	yes	yes	the USERIO header is on the Husky only
Bit-banger (synchronous data and clock)	no	no	no	USERIO pins, develop library	USERIO, TIO1-4, target_pwr, nRST, develop library	the bit-banger is on the Husky only
1-Wire (on the bit-banger)	no	no	no	develop library	develop library	as the bit-banger
Built-in logic analyser	no	no	no	9 signals, 16,376 samples	9 signals, 65,535 samples	the built-in logic analyser is on the ChipWhisperer-Husky; use the analog input or an external analyser
One digital line through the analog input	yes	yes	yes	yes	yes

See Logic Analyser for the logic capture sources.

Not supported by any ChipWhisperer

• I2C, CAN and LIN: there is no target-facing I2C master, sniffer or trigger, and nothing for CAN or LIN; the library's I2C code drives only internal chips (clock generators, the CW310 USB-PD controller). Decode these buses from a logic capture instead.
• SPI or I2C decode triggers, on any model.
• Smartcard (ISO 7816): removed from the library.
• Debugging from Python: use OpenOCD with GDB (below). The library's SWD helper on the bit-banger is meant for triggering, not as a debugger.
• Vendor bootloaders other than the programmers listed (LPC and others): through OpenOCD only.
• XON/XOFF flow control: CW310 only.

The Interfaces tab

The tab starts with the connected model ((simulated) for the simulator) and a badge per interface, green when available and red when not; hover a red badge for the reason. The sections follow in this order. Each has an available or not available badge; an unavailable section shows the reason and its controls are disabled, and single choices that do not apply (a pin, a trigger type) are disabled with the reason as a tooltip. The tab refreshes when it opens and whenever a scope or target connects or disconnects.

The same tab for a CW-Nano: no SPI master, and the trigger is fixed to a rising edge on TIO4.

UART and terminal

Baud (500 to 2,000,000, with common rates to pick from), Parity, Stop bits and the RX pin and TX pin. Data bits are always 8 on the ChipWhisperer's USART. Apply writes them to the connected target (or, without one, to the scope's USART) and Read back shows what is set. On models that can move the UART, a pin that was RX or TX before and is no longer used goes to high impedance.

The terminal below shows all serial traffic with the target in both directions (arrows mark sent and received data), including traffic from captures, notebooks and agents. Type text and press Enter to send it, choose Send as text or hex and the line ending (none, LF, CR or CR LF), and use Up and Down (or History) for the last 30 lines sent. show hex shows every byte in hex and timestamps adds the time to each line. The terminal needs a connected target. The Target tab has the same terminal.

SimpleSerial

Pick the protocol version (v1.0, v1.1, v2.1 or v2 over CDC) and press Connect target, then send commands: a one-character Command, a hex payload and the expected response length. v1.0 sends without waiting for an acknowledgement; v1.1 and v2.1 wait for it. Use v2.1 for current ChipWhisperer firmware (SS_VER_2_1). v2 over CDC talks SimpleSerial 2 through the scope's USB-CDC serial port instead of its USART, when the scope firmware has one. The simulator offers it like the model it stands in for, and its simulated target answers SimpleSerial v2.

SPI master and SPI flash

Choose the Clock (1 kHz to 20 MHz) and the chip select pin (CS: PDID, PDIC, TIO3 or TIO4) and press Enable. SCK, MOSI and MISO are the SPI pins of the 20-pin header; nRST is held high while SPI is on, and chip select goes low for each transfer. Transfer sends the hex bytes on MOSI and shows what came back on MISO; the table keeps the last 12 transfers. Toggle SCK sends 1 to 255 clock pulses with chip select high.

For SPI flash chips there are shortcuts: JEDEC ID (9f), Status (05) and Read 16 B @0 (03 00 00 00). Write enable (06), page program (02) and the erase commands (20, 52, d8, c7) are sent as plain transfers. The simulator answers as a Winbond W25Q128 (JEDEC ID EF 40 18, 16 MiB) and implements reads, writes, erases and the status register, so you can try a whole flash session without hardware.

GPIO

A table of the target pins with their mode and level, and High, Low and Hi-Z buttons for the pins the model can drive. Read reads the levels once, live reads them about twice a second while the tab is open. Reset pulse pulls nRST (or PDIC) low for 1 to 5000 ms and releases it, which resets most targets. The CW-Nano can drive pins but not read them (its card says drive only).

Husky USERIO

The Husky's USERIO header (D0 to D7 and CK). Each pin shows its level, an in/out switch and, for outputs, the level to drive. Direction and drive apply in the header's normal mode; Set normal switches the header back to it if a trace or debug mode was selected elsewhere. JTAG/SWD routing to this header is done by the OpenOCD section, and trace by NewAE's trace notebooks.

Triggers

Choose what starts a capture and press Apply trigger; the next capture uses it, and the Active line (also shown on the Capture tab) says what is set. Trigger types the model lacks are disabled with the reason.

Type	Settings
Edge / level on pins	One or more pins (TIO1-4, nRST, SMA/AUX, USERIO D0-D7, as the model allows), how to combine them (OR, AND, NAND) and the mode (rising edge, falling edge, high, low).
UART byte pattern (Pro I/O decode)	RX pin, baud (up to 1,000,000) and a pattern of up to 8 bytes, written as quoted text ('r') or hex (72 XX, where XX matches any byte). Triggers after the match.
UART pattern rules (Husky)	RX pin, baud, pattern, rule number (2 rules on the Husky, 8 on the Husky Plus), data bits (5 to 9), stop bits and parity. No don't-care bytes.
Edge counter (Husky)	Trigger after 1 to 65,536 edges on a pin.
ADC level (Husky)	Trigger when the analog signal crosses a level (-0.5 to 0.5, like trace values).
Trigger sequencer (Husky)	Two pins that must trigger in order, optionally within a window of ADC cycles.
SAD pattern match	A reference cut from the newest stored trace (from the given sample; 128 samples on the Pro) and a threshold: the capture triggers when the signal matches the reference closely enough.

all trigger settings in the Scope tab opens the full trigger settings, including the trigger outputs of the Pro and Husky. A trigger changed in the Scope tab shows on the Capture tab's trigger line too.

Bit-banger and 1-Wire

The Husky's bit-banger sends a synchronous bit pattern on a data pin with an optional clock on another pin, one bit per time slot (Clock div: an even number of ADC clock cycles per slot), and can release the data line in chosen slots and record what the target drives there. Enter the bits to Send and a Record mask (1 = release and record that slot) and press Send; the recorded bits come back. On the Husky the data and clock pins are the USERIO pins; the Husky Plus can also use TIO1-4, target_pwr and nRST.

1-Wire runs on the same hardware: Reset / presence checks whether a device answers, and Read ROM (0x33) reads its 64-bit ROM and shows the family code, serial number and whether the CRC is correct. The simulator has a DS18B20-style device (family 0x28) on the bus.

JTAG and SWD (OpenOCD)

Studio debugs and flashes targets through OpenOCD, using the scope as a JTAG or SWD adapter (its FTDI-compatible MPSSE mode). OpenOCD is installed like a compiler: press Install OpenOCD (about 3 MB, xPack OpenOCD 0.12.0, checked against a pinned SHA-256), or install it on the Firmware tab's Toolchains card. An openocd already on your PATH is used too.

1. Choose JTAG or SWD and the header: the 20-pin target header, or the Husky's USERIO header (standard 20-pin JTAG pinout).
2. Enable MPSSE. The scope re-enumerates as a debug adapter, so Studio releases it: capturing, the USB-CDC serial port and the native programmers are unavailable until you press Restore normal mode, which switches back and reconnects the scope. If Studio starts (or the scope is plugged in) while the scope is still in MPSSE mode, for example after Studio was closed with MPSSE on, Studio recognises it from its USB configuration (two vendor interfaces and no CDC port), shows a banner, and Restore normal mode brings it back.
3. Pick the Target configuration from OpenOCD's scripts (type to filter, for example stm32f3) and the ports (GDB 3333, telnet 4444, TCL 6666), then Start server.
4. Use the command box to run OpenOCD commands (targets, halt, reg, mdw 0x08000000 4, reset run), Flash a .hex, .elf or .bin (a .bin needs the flash address) with optional verify and reset, or connect GDB with target extended-remote localhost:3333.

Wiring on the 20-pin header: SCK to TCK/SWCLK, PDID to TMS/SWDIO, MISO to TDO, MOSI to TDI, PDIC to TRST. The adapter runs at about 500 kHz (fixed). OpenOCD needs real hardware; the simulator cannot act as a debug adapter.

Arm trace and programmers

Arm trace (Husky) explains how to capture SWO or parallel trace with NewAE's trace notebooks in the Notebook tab (SWO wiring: TMS to D0, TCK to D1, TDO to D2 on the USERIO header). The Code tab's exact mode uses SWO program counter sampling directly. Programmers lists every programmer with whether the connected model supports it, and links to the Target tab.

Simulate as

With Device set to Simulator on the Connect tab, Simulate as chooses which ChipWhisperer the simulator stands in for: Husky (the default), Husky Plus, Pro, Lite or Nano. Studio then offers exactly the protocols, triggers, programmers and settings of that model, so you can see what a Nano or a Pro can do before buying or borrowing one. The choice is remembered; over the API it is sim_model in POST /api/scope/connect. Connecting again with another model switches without disconnecting first.

The scope then appears as, for example, ChipWhisperer-Simulator (Husky). The simulated model also brings model-specific settings (only the Husky has clock.adc_mul and a logic analyser) and simulated devices behind the interfaces:

Interface	In the simulator
UART, SimpleSerial	The simulated target (see Simulator); baud, parity and stop bits are stored on it.
SPI master	A W25Q128 SPI flash (JEDEC ID EF 40 18) with a short text at address 0, reads, page program, erases and status register.
GPIO	Driven pins read back what is driven; undriven pins read their idle levels (TIO1-3, PDIC, PDID, nRST high; TIO4 low).
USERIO	Inputs show a slow counter; outputs read back their drive level.
Bit-banger, 1-Wire	A loopback (recorded slots that Studio drives echo the sent bit) and a DS18B20-style 1-Wire device.
Triggers	The simulated target drives its trigger on TIO4, as ChipWhisperer firmware does: a basic trigger that includes TIO4 fires, a trigger on other pins times out as it would on hardware. The special triggers (the Husky's UART pattern rules, the Pro's UART decode trigger, the edge counter, the ADC level, SAD and the trigger sequencer) are evaluated on what the simulated target really does: its serial traffic (it receives on TIO2 and sends on TIO1 at its baud rate, parity and stop bits) and its trigger pin, laid out in time like on the wire, so the capture starts where the trigger would fire on hardware. The default UART trigger (TIO1, pattern 'r') fires on the target's response. A trigger that never fires times out, with a log message saying why. SAD needs a captured trace first (its reference is cut from it), and with the default threshold of 10 it usually times out in the simulator because of the noise; raise the threshold. Only the Arm trace and bit-banger triggers are not simulated: they fall back to the TIO4 edge, with a warning in the log.
JTAG, SWD, OpenOCD	Not available (needs real hardware).
Logic analyser	The Husky models have a simulated built-in logic analyser; every model has the demo traffic source. See Logic Analyser.

Where the facts come from

Every rule above comes from NewAE's chipwhisperer library (paths relative to software/chipwhisperer/ in newaetech/chipwhisperer, develop branch) and its documentation:

Fact	Source
Scope type and per-model attributes (SAD, decode_IO on the Pro; LA, userio, bitbanger, UARTTrigger on the Husky)	capture/scopes/OpenADC.py (_getCWType, the attributes created in con()), capture/scopes/cwnano.py
Firmware features and minimum versions per product (TARGET_SPI, MPSSE, CDC, HUSKY_PIN_CONTROL)	hardware/naeusb/naeusb.py (feature table and check_feature)
UART settings, 8 data bits	hardware/naeusb/serial.py (USART.init), capture/targets/SimpleSerial.py, capture/targets/SimpleSerial2.py
Pin modes per TIO pin (TIO4 cannot receive), Nano's fixed TIO1/TIO2	capture/scopes/cwhardware/ChipWhispererExtra.py (GPIOSettings), capture/scopes/cwnano.py
Pin read back (tio_states, Husky-only pdic_state and others), Nano getters returning constants	capture/scopes/cwhardware/ChipWhispererExtra.py, capture/scopes/cwnano.py
SPI master and its pins (unused on the Nano)	hardware/naeusb/spi.py; docs Capture/20-pin-connector.md
Programmers	capture/api/programmers.py, hardware/naeusb/programmer_*.py, hardware/naeusb/bootloader_sam3u.py
MPSSE JTAG/SWD, wiring, 500 kHz	capture/scopes/OpenADC.py (enable_MPSSE), hardware/naeusb/naeusb.py; docs debugging.rst; NewAE's openocd/cw_openocd.cfg
Trigger modules per model, pins, combinations, Husky extras (edges, level, sequencer)	capture/scopes/cwhardware/ChipWhispererExtra.py (TriggerSettings, ProTrigger, HuskyTrigger)
Pro I/O decode trigger (UART only)	capture/scopes/cwhardware/ChipWhispererDecodeTrigger.py; docs Capture/ChipWhisperer-Pro.md
Husky UART trigger (2 or 8 rules)	capture/trace/TraceWhisperer.py (UARTTrigger)
SAD (128 samples on the Pro)	capture/scopes/cwhardware/ChipWhispererSAD.py
USERIO modes, bit-banger and 1-Wire (develop only)	capture/scopes/cwhardware/ChipWhispererHuskyMisc.py (USERIOSettings), capture/scopes/cwhardware/ChipWhispererHuskyBitBanger.py
Logic analyser (groups, depth 16,376 and 65,535, clock sources, triggers)	capture/scopes/cwhardware/ChipWhispererHuskyMisc.py (LASettings)
Arm trace	capture/trace/TraceWhisperer.py

Studio's own rules live in src/cwstudio/capabilities.py, and its tests check every entry of the matrix for each simulated model. These facts were checked against the library source; Studio has not yet been verified on every physical model, so please report anything your hardware does differently.

From the API and MCP

Action	HTTP API	MCP tool
What the connected scope supports	GET /api/capabilities	hardware_capabilities
State of every interface	GET /api/interfaces	interfaces_status
UART settings	GET / PUT /api/interfaces/uart	uart_configure
SimpleSerial	POST /api/interfaces/simpleserial/connect, /send	simpleserial_connect (then simpleserial)
SPI	POST /api/interfaces/spi/enable, /disable, /transfer, /toggle_sck	spi_enable, spi_disable, spi_transfer
GPIO	GET / PUT /api/interfaces/gpio, POST /api/interfaces/gpio/pulse	gpio_read, gpio_set, gpio_pulse
USERIO	GET / PUT /api/interfaces/userio	userio_set
Triggers	GET / PUT /api/interfaces/trigger	trigger_configure
Bit-banger, 1-Wire	POST /api/interfaces/bitbang, POST /api/interfaces/onewire	bitbang, onewire
OpenOCD	/api/interfaces/openocd/*	openocd_status, openocd_mpsse, openocd_start, openocd_stop, openocd_command, openocd_program

See HTTP API and MCP Server for the parameters.
