Video Tour

Video Tour

A walkthrough of every feature of ChipWhisperer Studio in a few minutes, recorded with the built-in simulator, so everything shown also works without hardware.

Each feature has a short clip below that plays by itself. The full captioned walkthrough is also available as one video:

Watch or download the video (MP4, 11.8 MB, 3:53)

Chapters

Time	Chapter	What you see
0:01	Introduction	What Studio is.
0:09	Connect	Pick the simulator (posing as a Husky) and connect the scope; the target connects with it.
0:20	Scope settings	The settings tree with its groups open, the glitch group opened with a click, and filtering by name.
0:31	Target I/O	Send a key and a plaintext with SimpleSerial and watch the serial terminal.

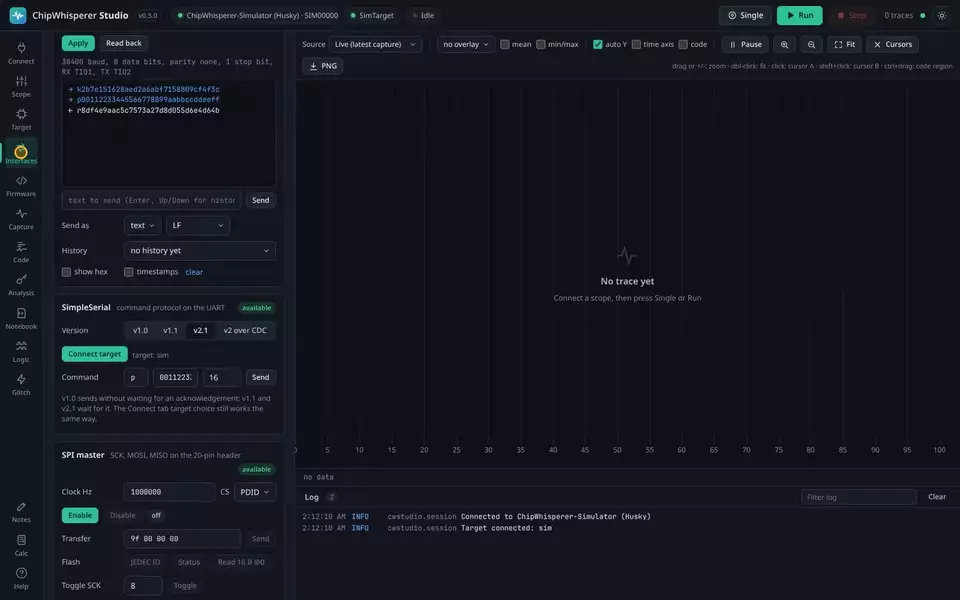

0:39	Interfaces	Read the simulated SPI flash's JEDEC ID, then simulate a CW-Nano and see SPI disabled with the reason.

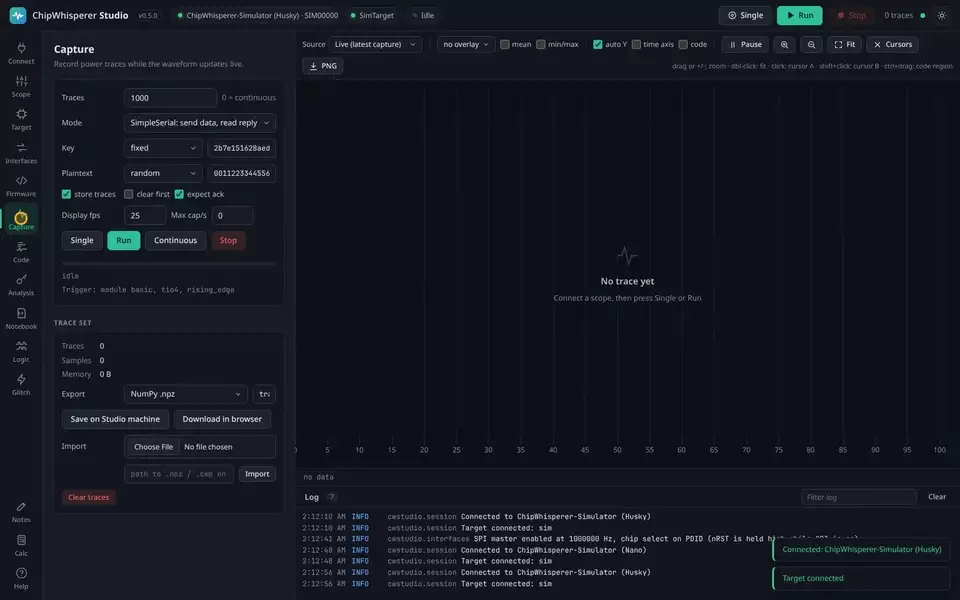

1:01	Capture	Capture 500 traces while the waveform updates live.
1:08	Waveform view	Overlay of the last 10 traces, the mean and the min/max envelope.
1:17	Cursors and zoom	Cursors A and B, the zoom in and zoom out buttons, the + and - keys, drag to zoom and Fit.
1:35	CPA key recovery	Run CPA and recover the AES key, then overlay the correlation on the waveform.
1:49	Glitch sweep	A clock glitch sweep over offset and width with the live result plot.
2:06	Firmware build	Build simpleserial-aes for CWLITEARM with clang.
2:18	Code on the waveform	The build runs in the simulator; build the code map, show the code band, Ctrl+drag a region and click a source line.
2:36	Notebooks	Run a notebook that captures through Studio and plots the mean trace.
2:48	Notebooks side by side	Open a second notebook in a pane on the right and run it in its own kernel.
2:55	Logic analyser	Capture the simulator's demo traffic, add decoders and zoom in on decoded UART, SPI and I2C.
3:11	Notes	Insert the CPA key into a note and preview the Markdown.
3:19	Calculator	Side-channel expressions and statistics between the waveform cursors.
3:32	AI agents (MCP)	The MCP setup for Claude and other agents.
3:38	Themes	Switch between the dark and light themes.
3:45	Get it	Where to download Studio.

Clips by feature

Connect

Scope settings

Target I/O

Interfaces

Capture

Waveform view

Cursors and zoom

CPA key recovery

Glitch sweep

Firmware build

Code on the waveform

Notebooks

Notebooks side by side

Logic analyser

Notes

Calculator

AI agents (MCP)

Themes

Making the video

The video is generated by tools/demo_video.py, which drives the real UI with Playwright and cuts each chapter into the clips above; see Development and Releases. Regenerate it after UI changes so it stays accurate.
