Screenshots
A tour of the OPNGMS console — a dark, instrument-grade "operations console" UI (Mantine v9 + IBM Plex), built for SOC/NOC workflows and localized into 12 languages (with full right-to-left support).
Images are served from the repository's
docs/ui/directory. Click any thumbnail to open it full size.

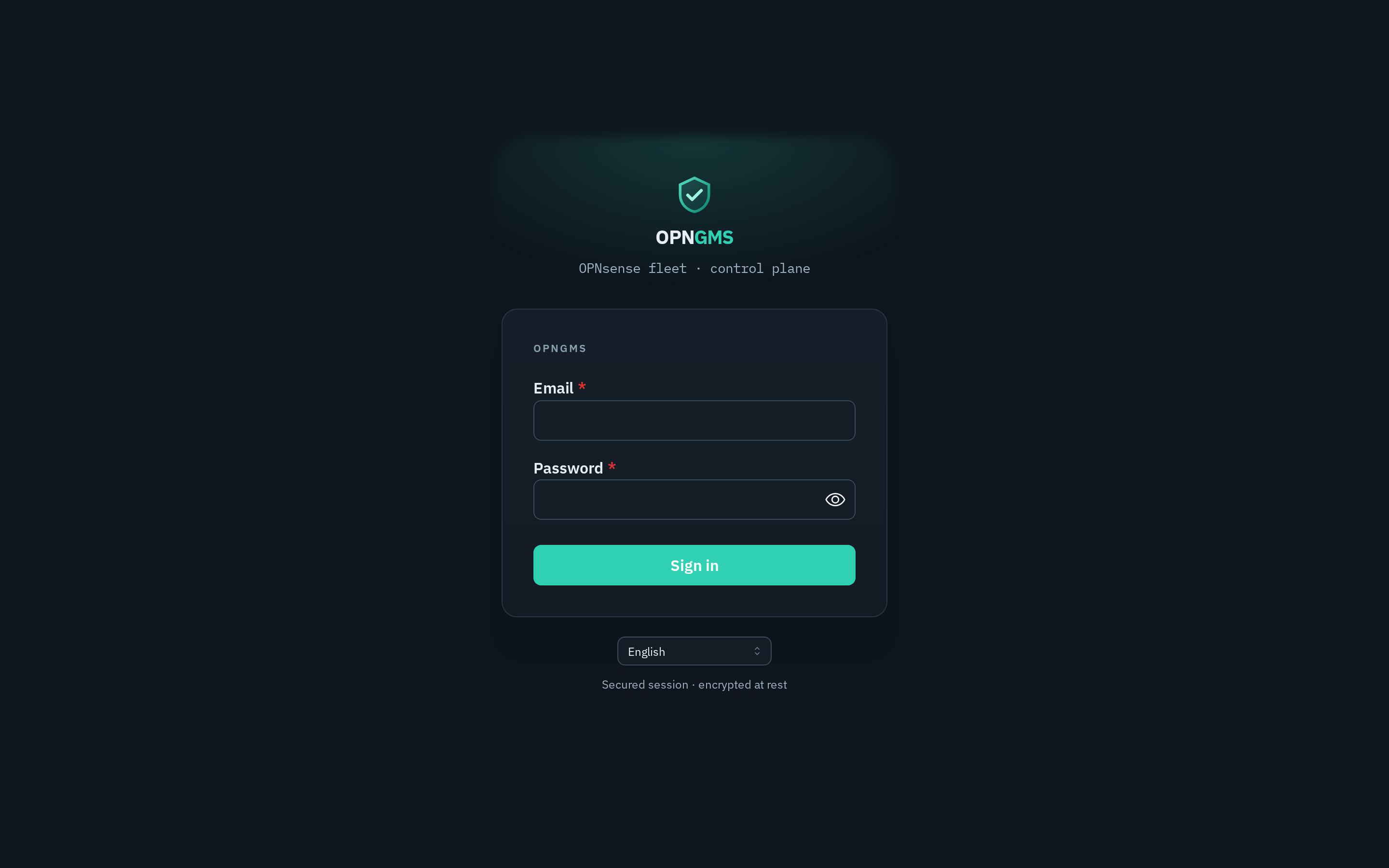

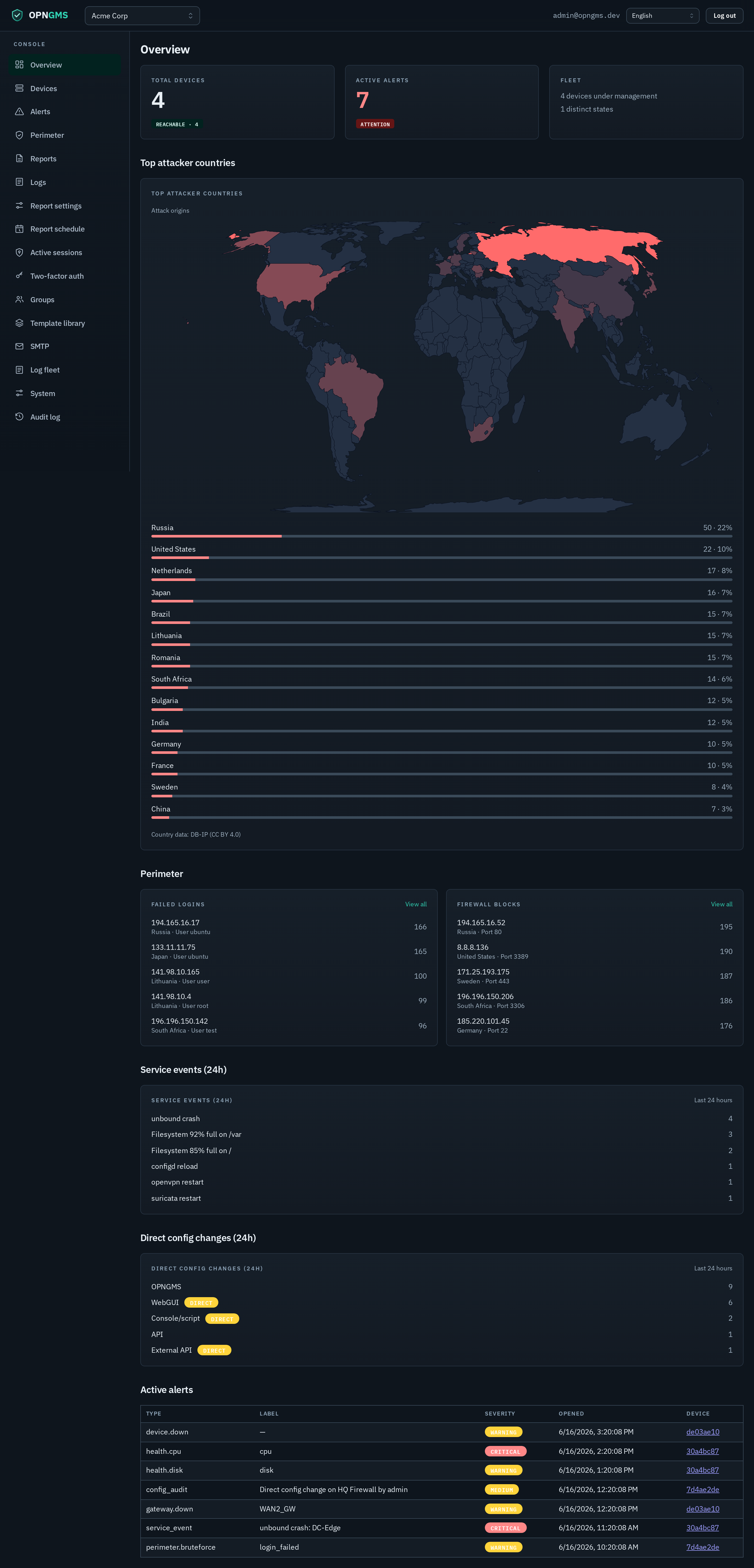

| Sign in | Fleet overview |
|---|---|
 |
 |

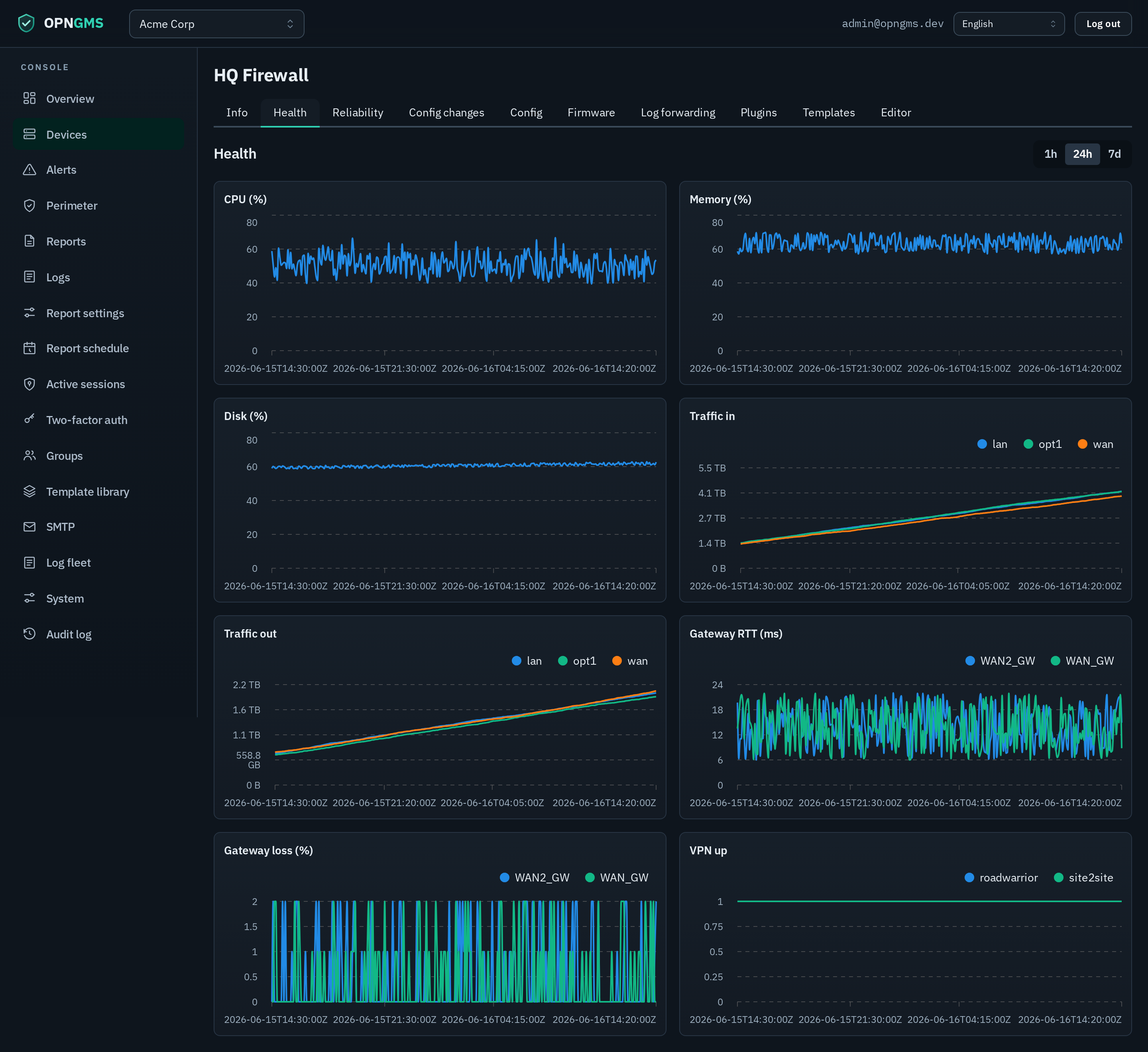

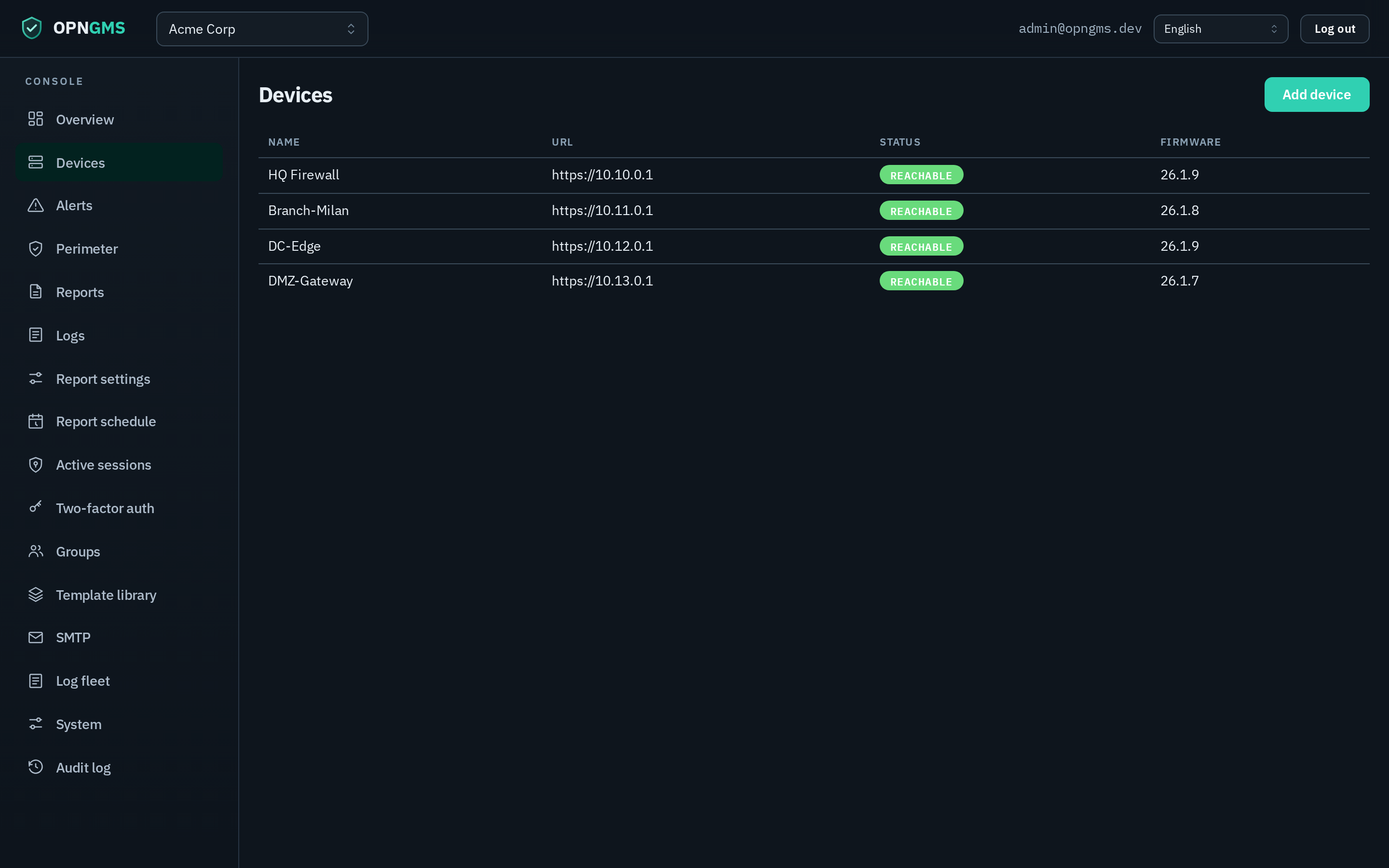

| Device inventory | Device health (live metrics, assigned interface names) |
|---|---|
 |
 |

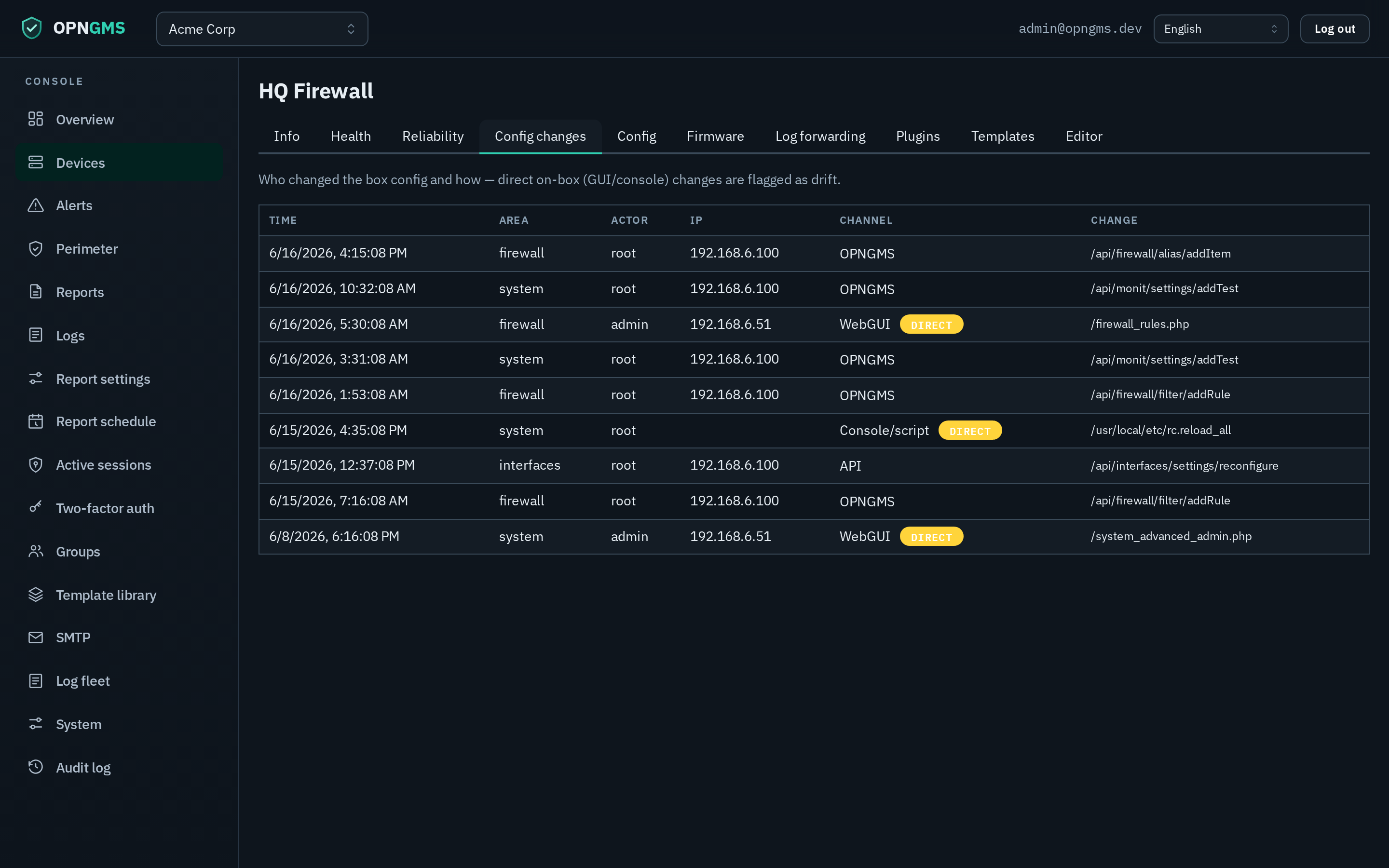

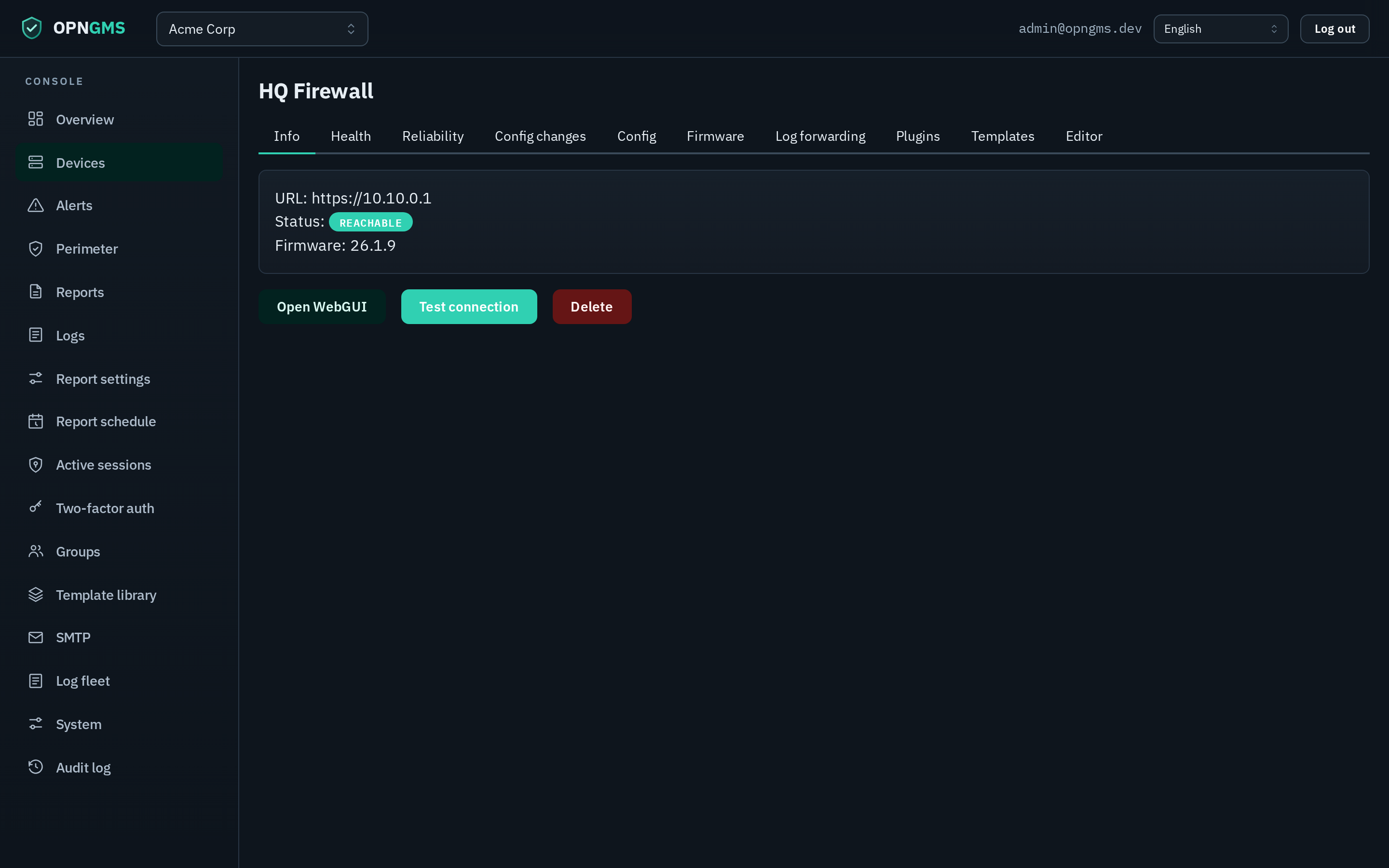

| Device detail (Info tab — URL/status/firmware, Open WebGUI / Test connection / Delete) | Config-change audit (channel attribution: OPNGMS / WebGUI / Console / External API, with Direct drift badges) |
|---|---|
 |
 |
| OPNsense-like editor | Editor — global search |
|---|---|
 |
 |

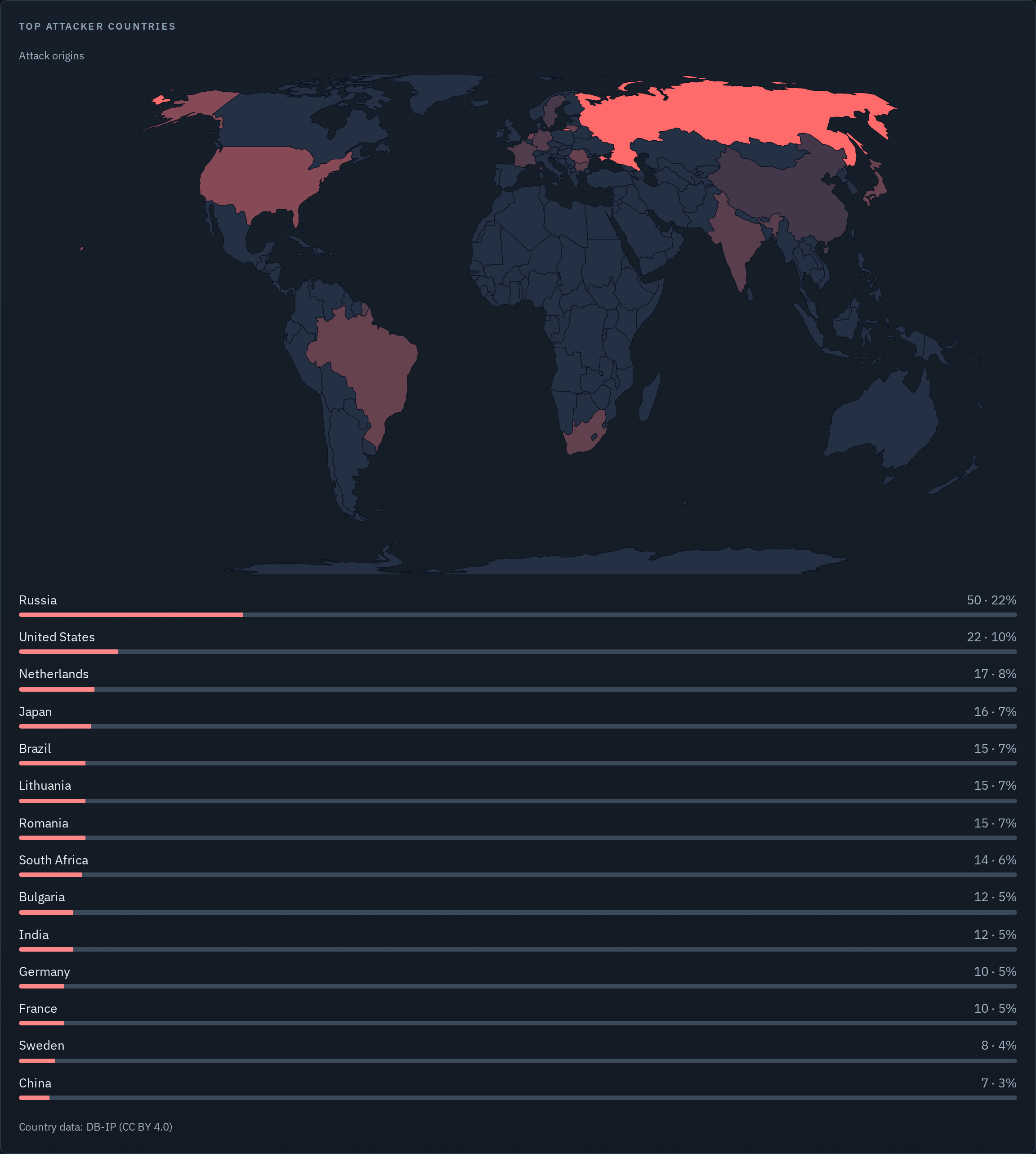

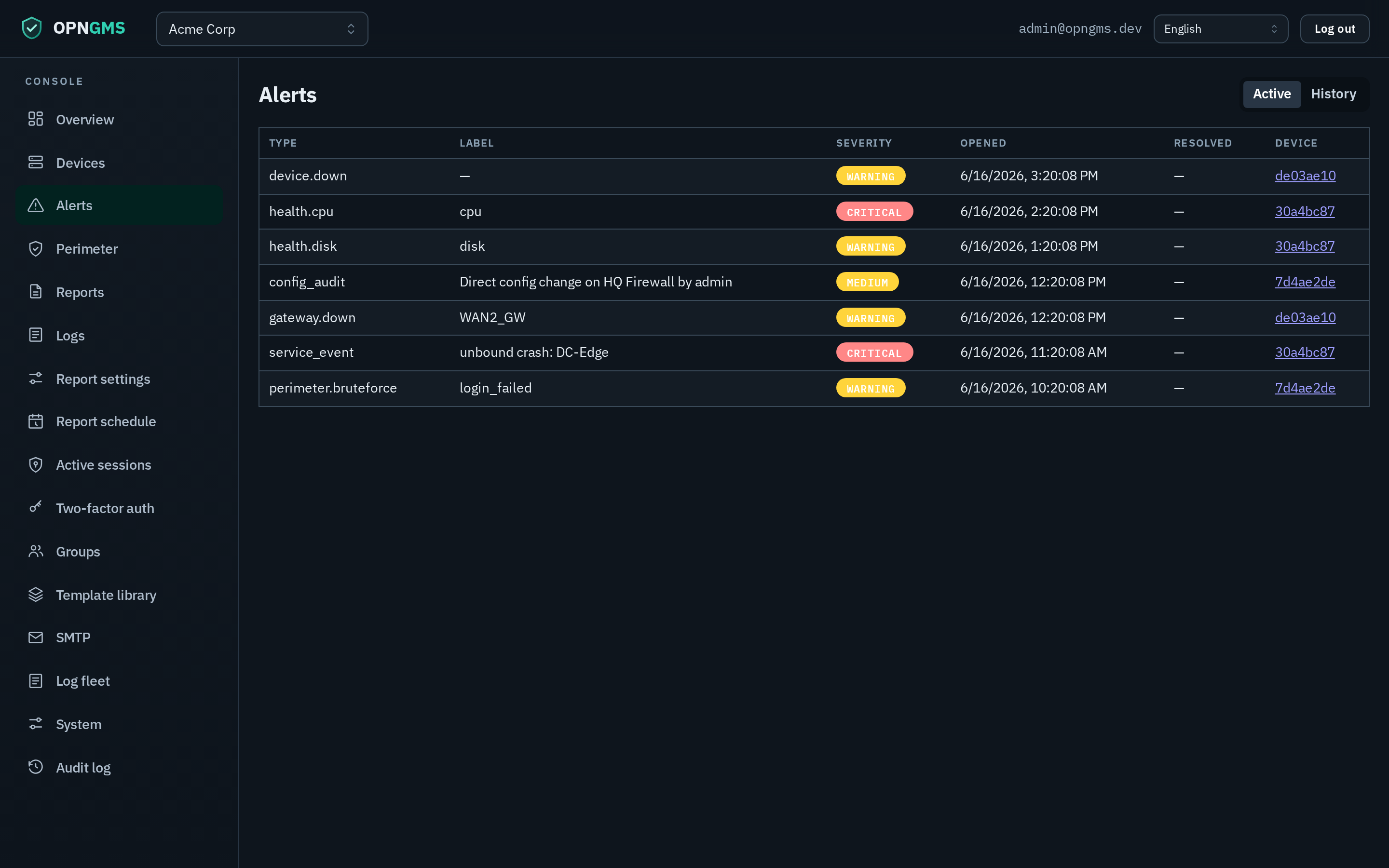

| Alerts | Top attacker countries (GeoIP) |
|---|---|
 |
 |

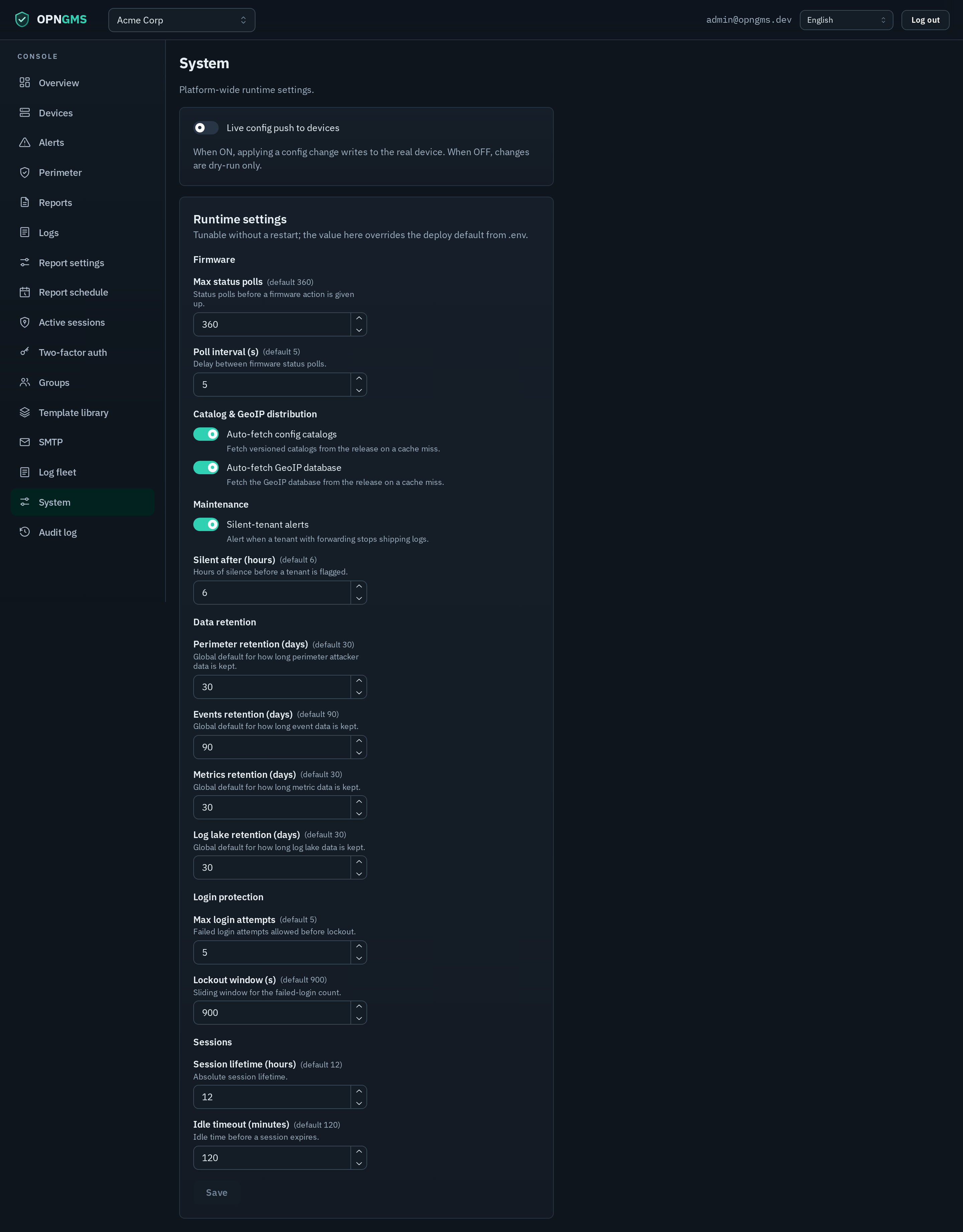

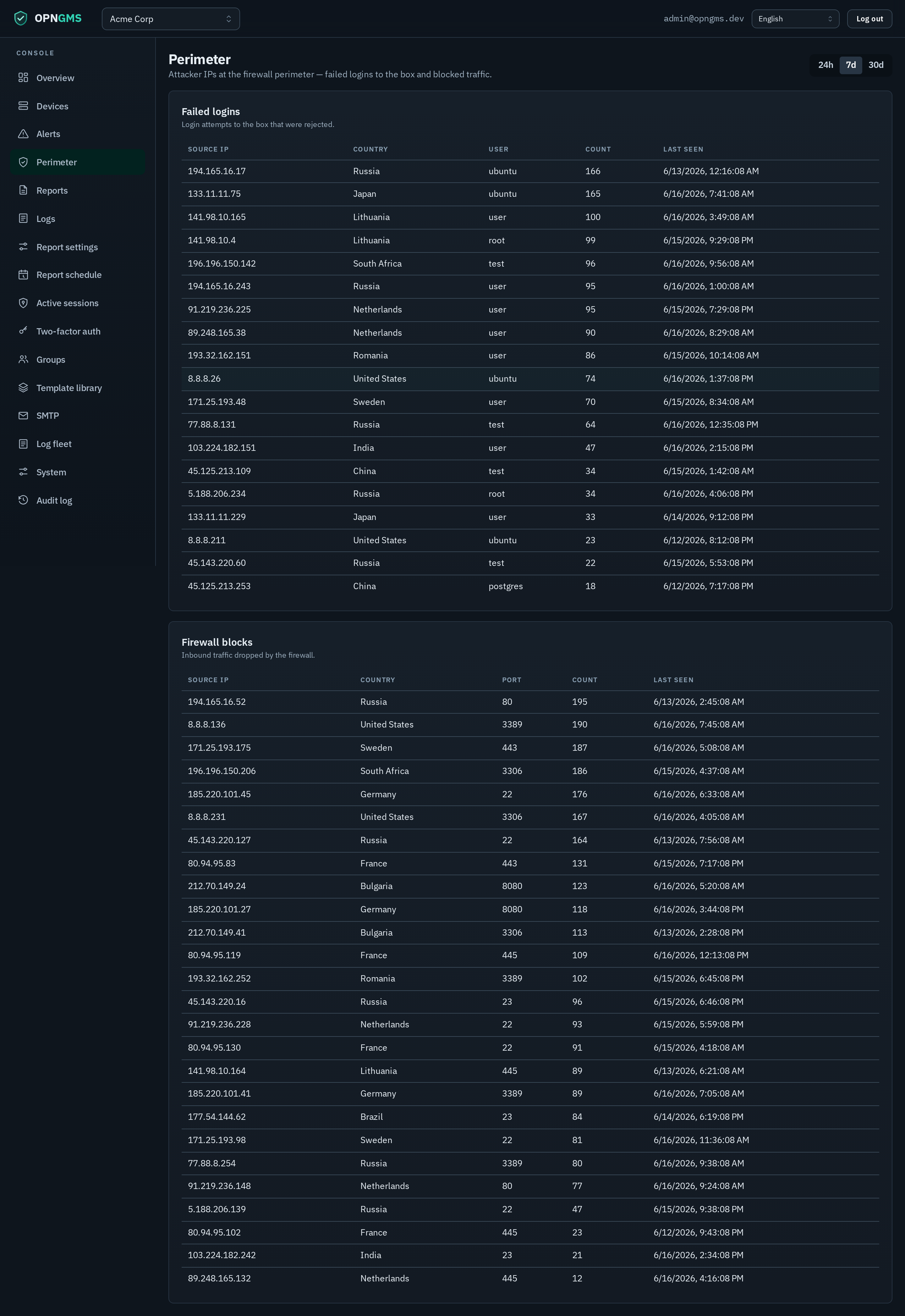

| Perimeter — ranked attacker IPs (failed logins & firewall blocks, 24h/7d/30d) | Runtime settings (System — live-editable, .env value as default) |
|---|---|
 |
 |

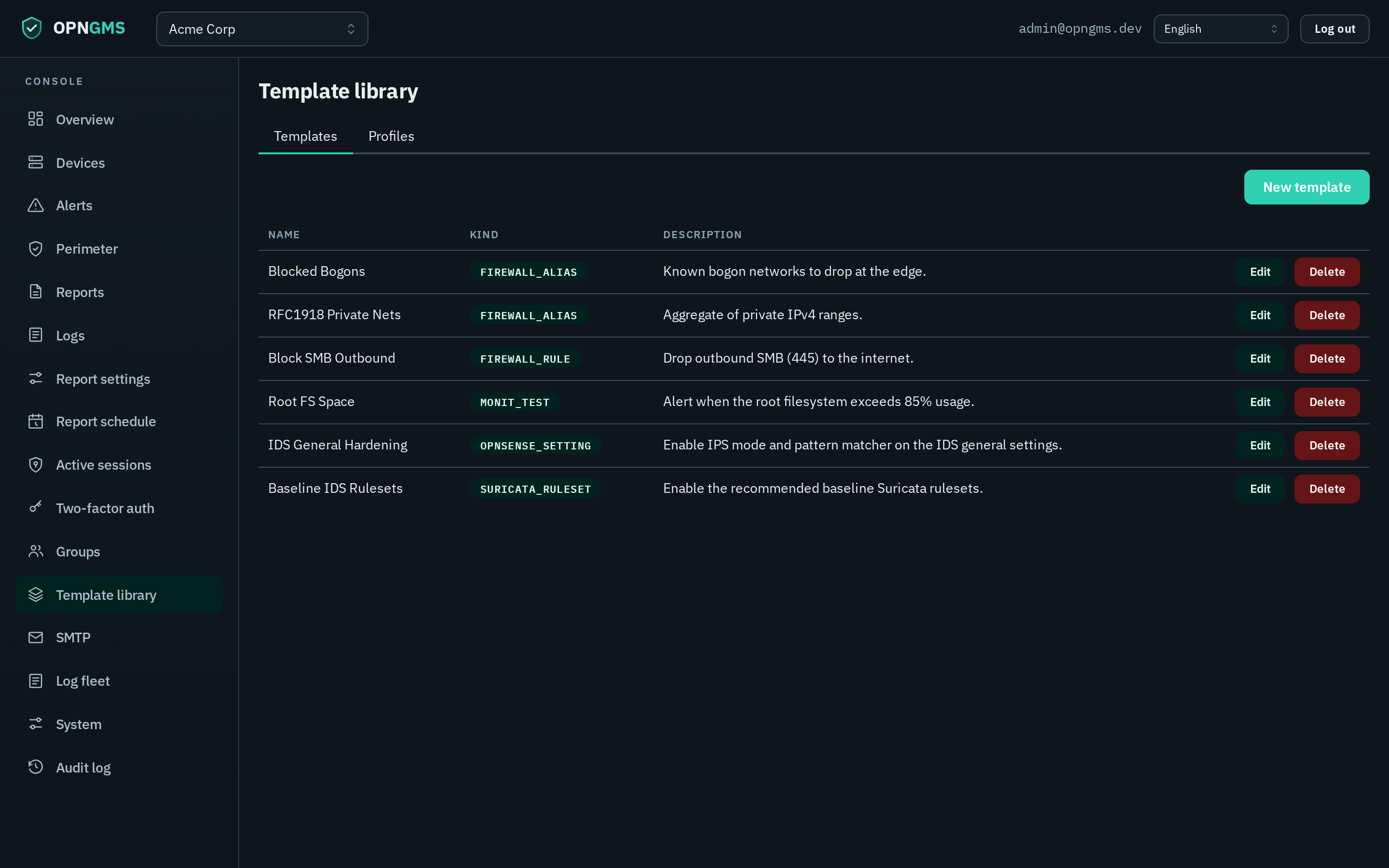

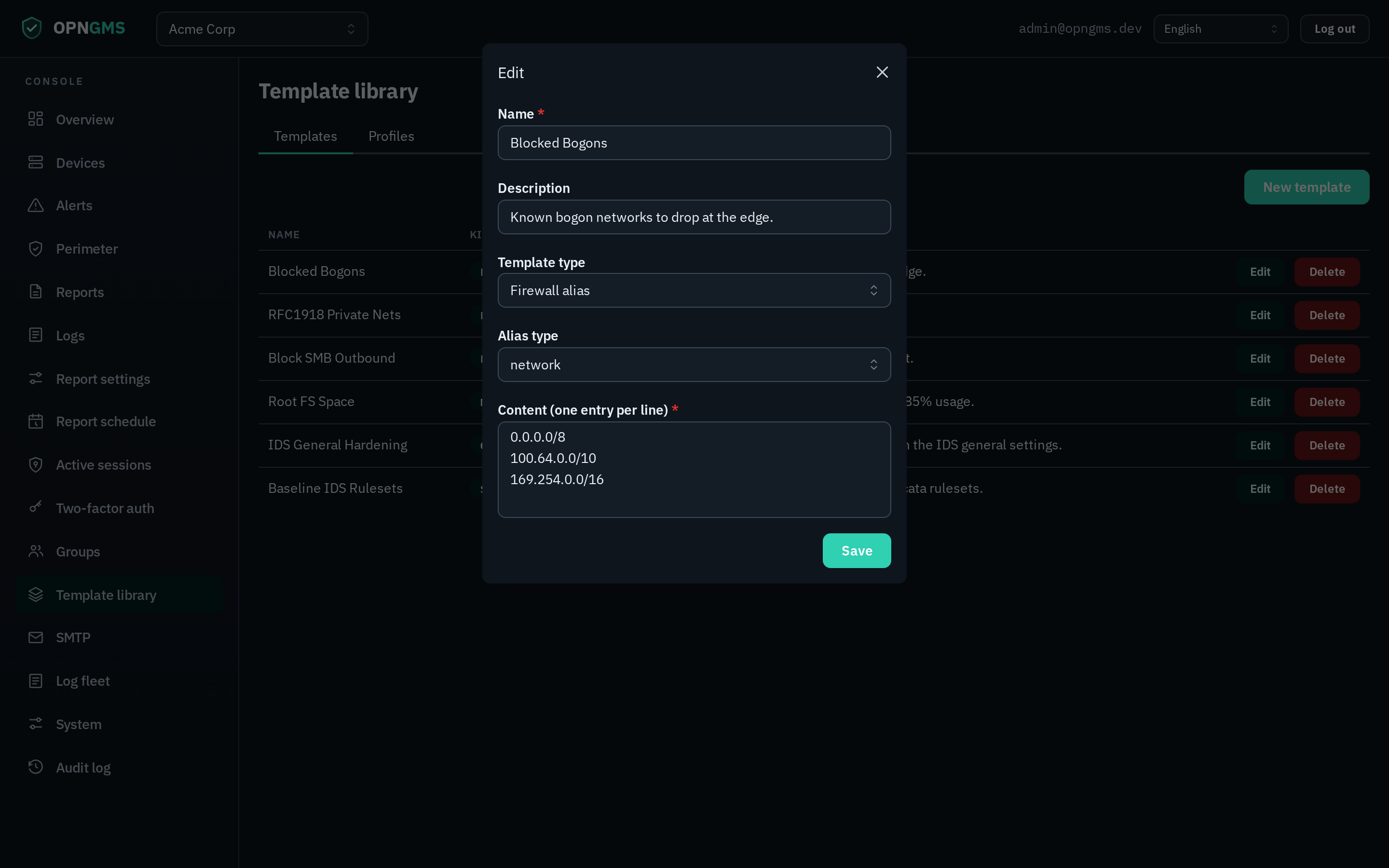

| Template library | Apply a template |
|---|---|
 |
 |

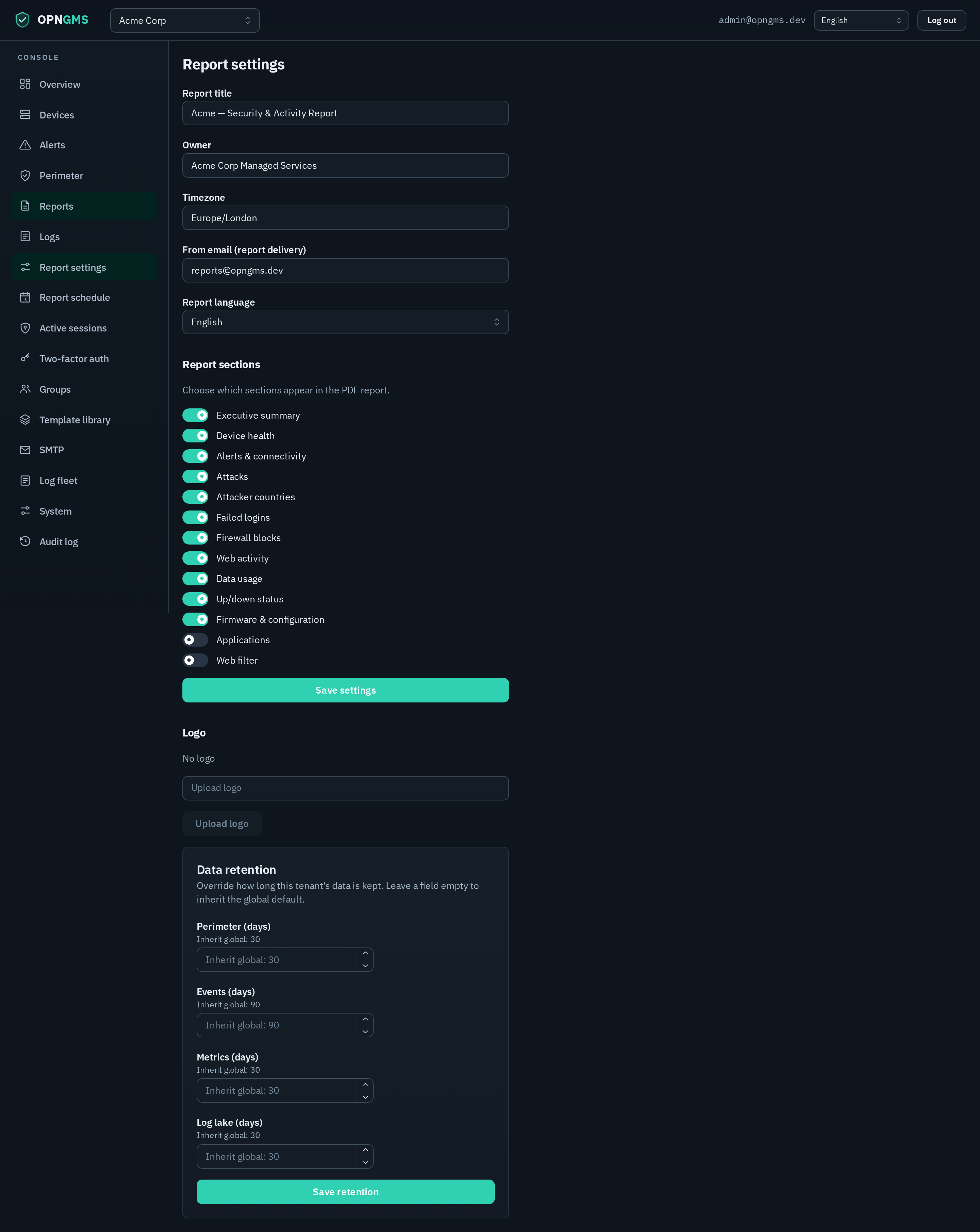

| Report delivery schedule (fleet + per-device) | Report settings — section toggles (incl. the perimeter sections) |
|---|---|
 |
 |

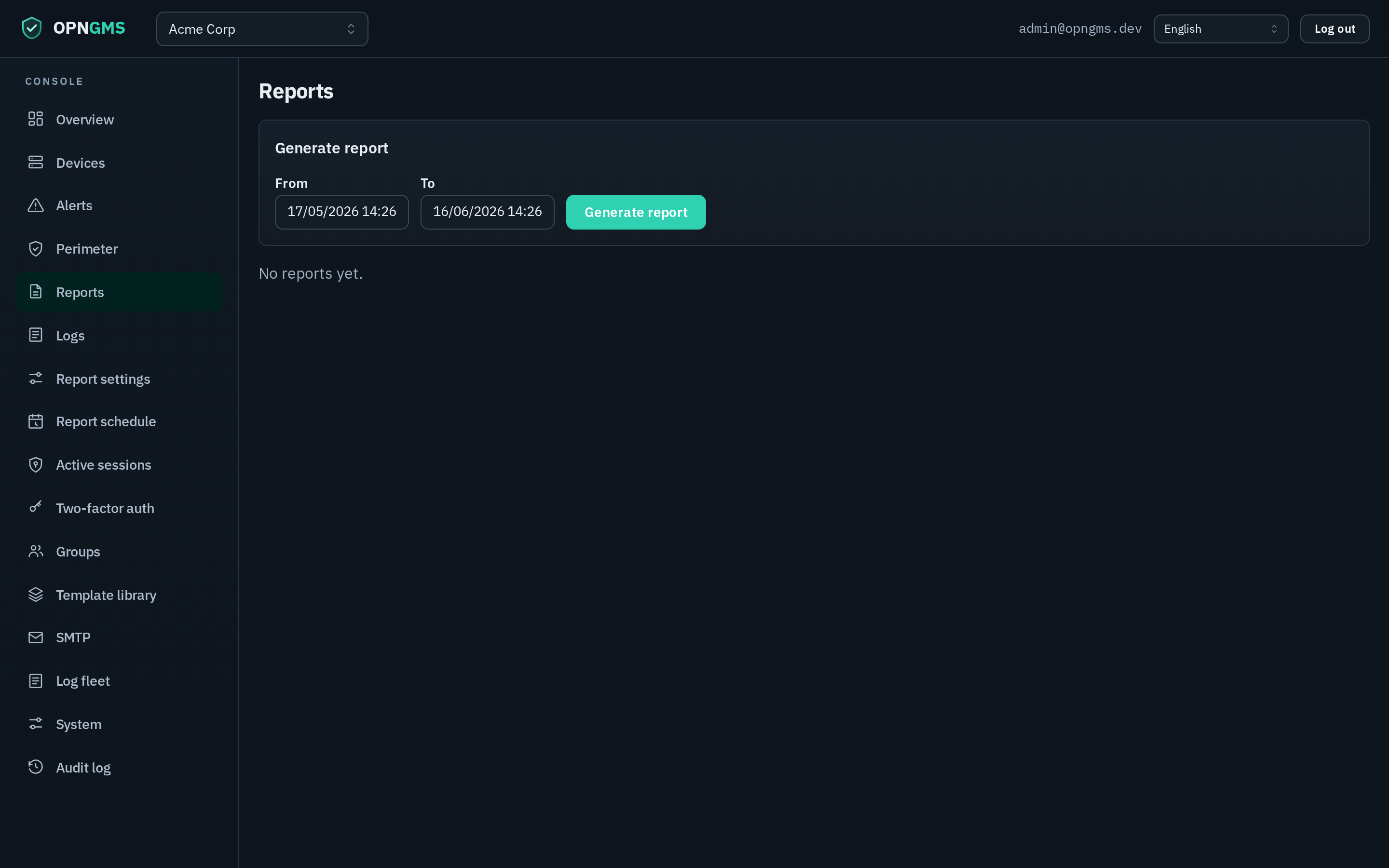

| Generated reports | SMTP delivery (superadmin) |
|---|---|
 |
 |

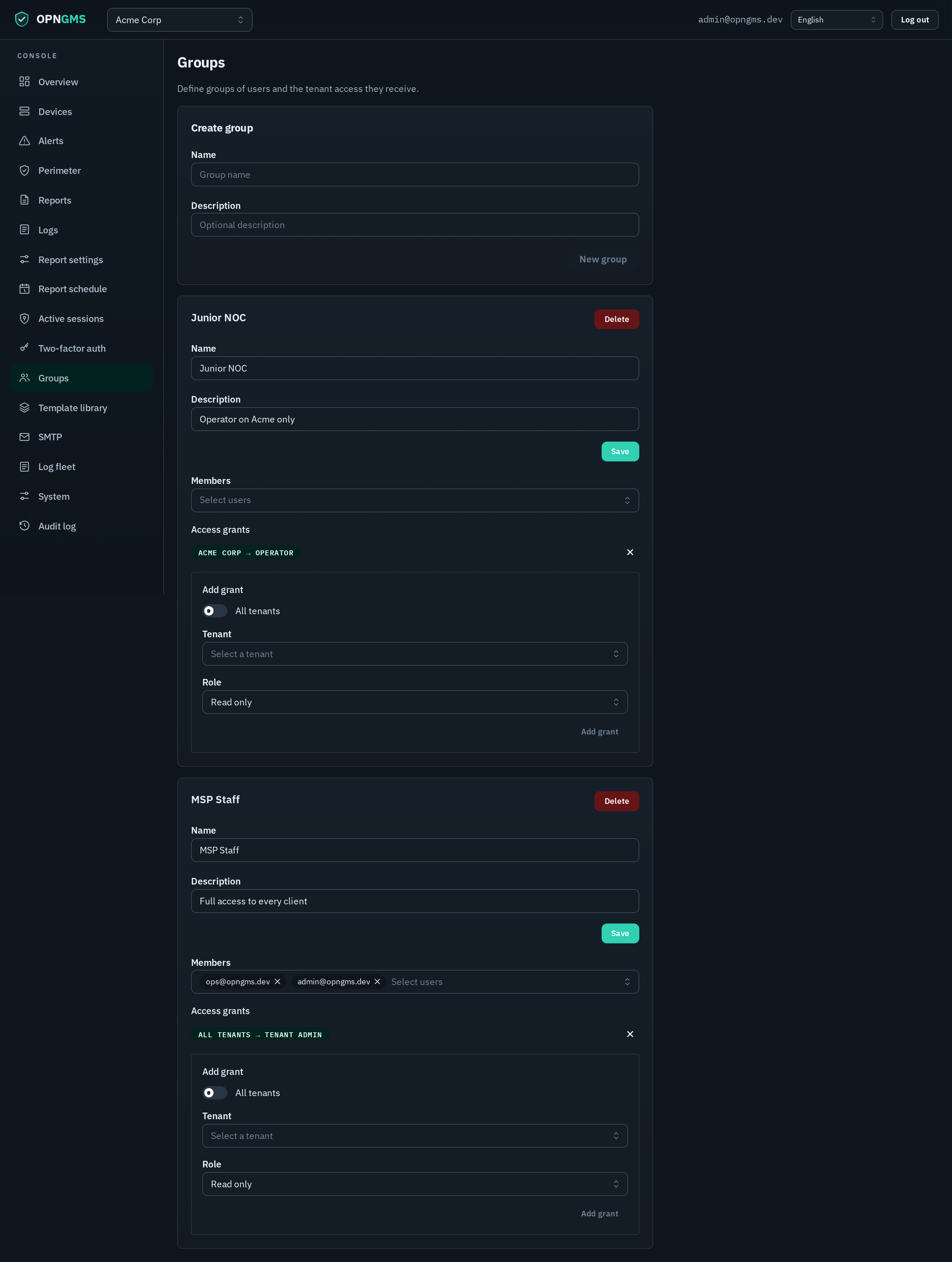

| Access groups (group-based RBAC) | System settings (incl. live runtime settings — firmware poll budget, catalog/GeoIP auto-fetch, silent-tenant detector, login brute-force limits, session TTL/idle) |
|---|---|
 |
|

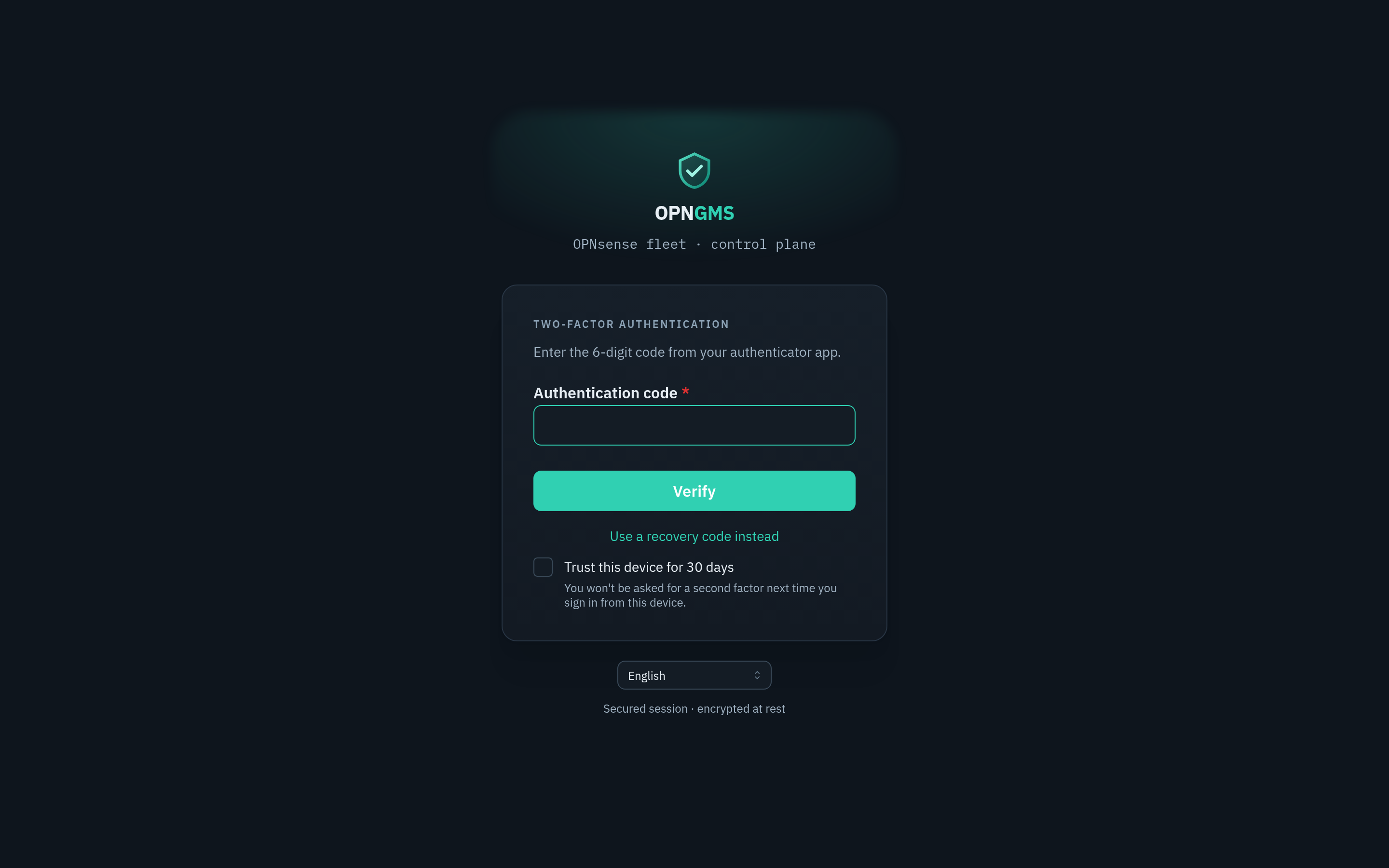

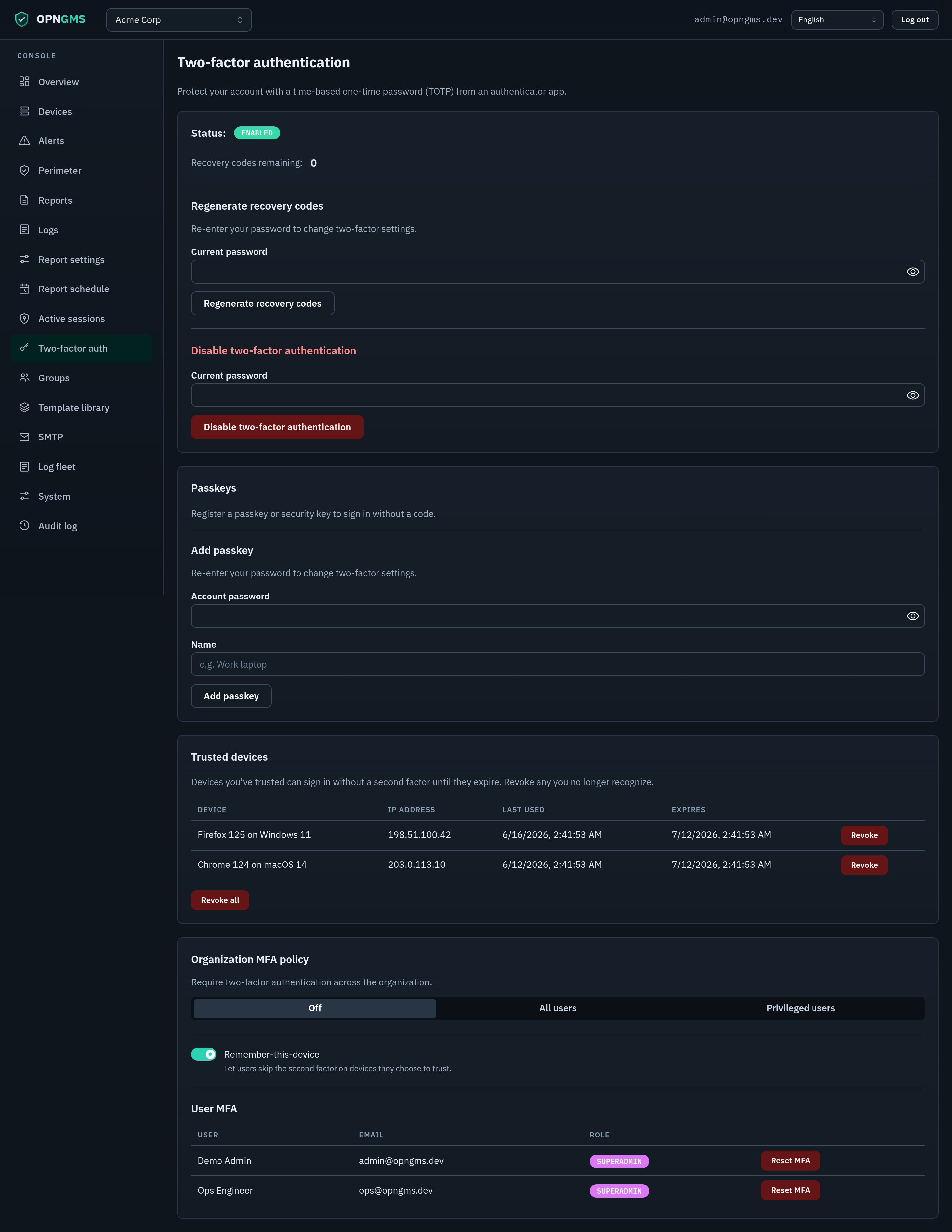

| Two-factor login (TOTP) | Two-factor settings & policy |
|---|---|
 |
 |

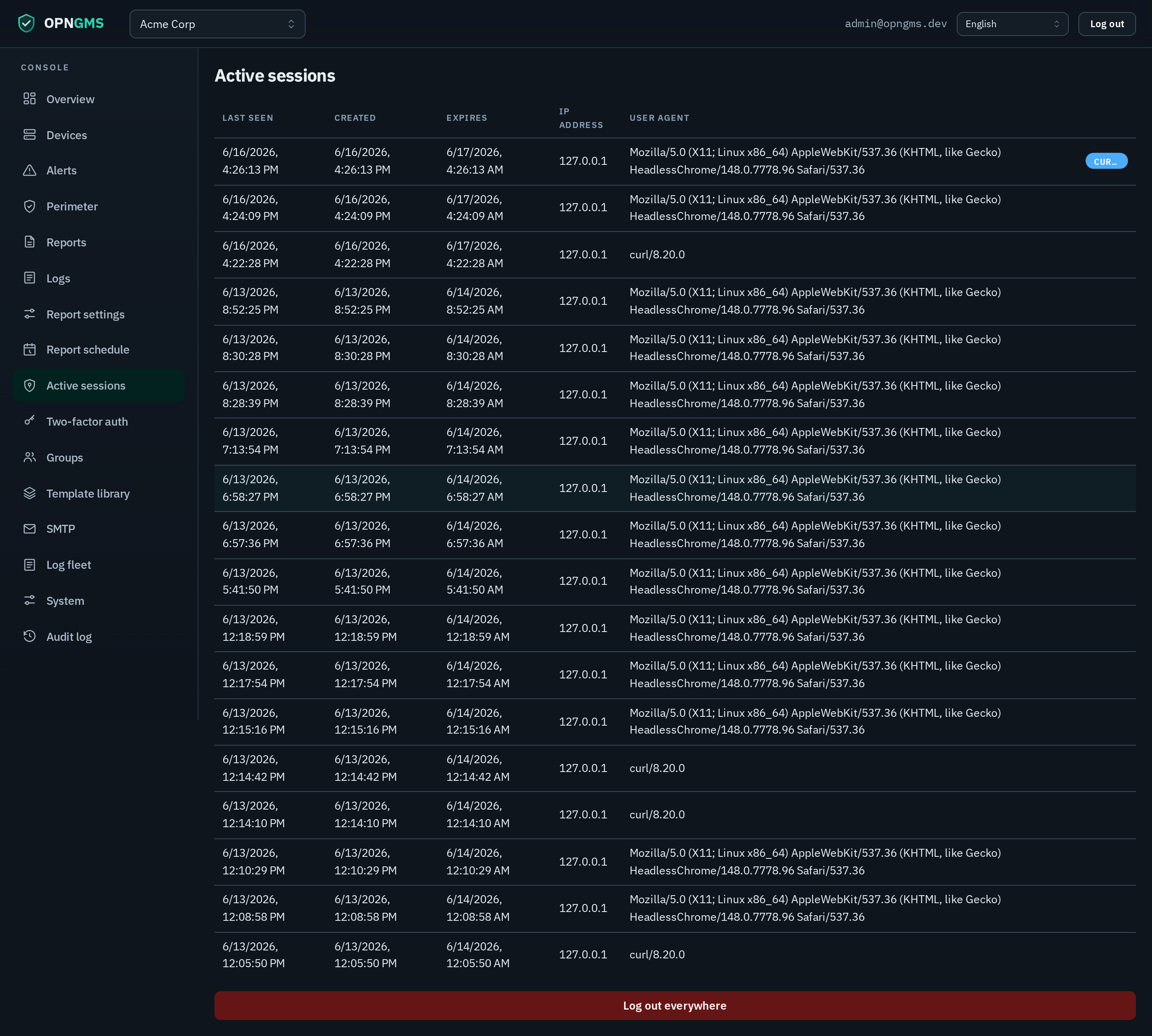

| Active sessions | |
|---|---|
 |

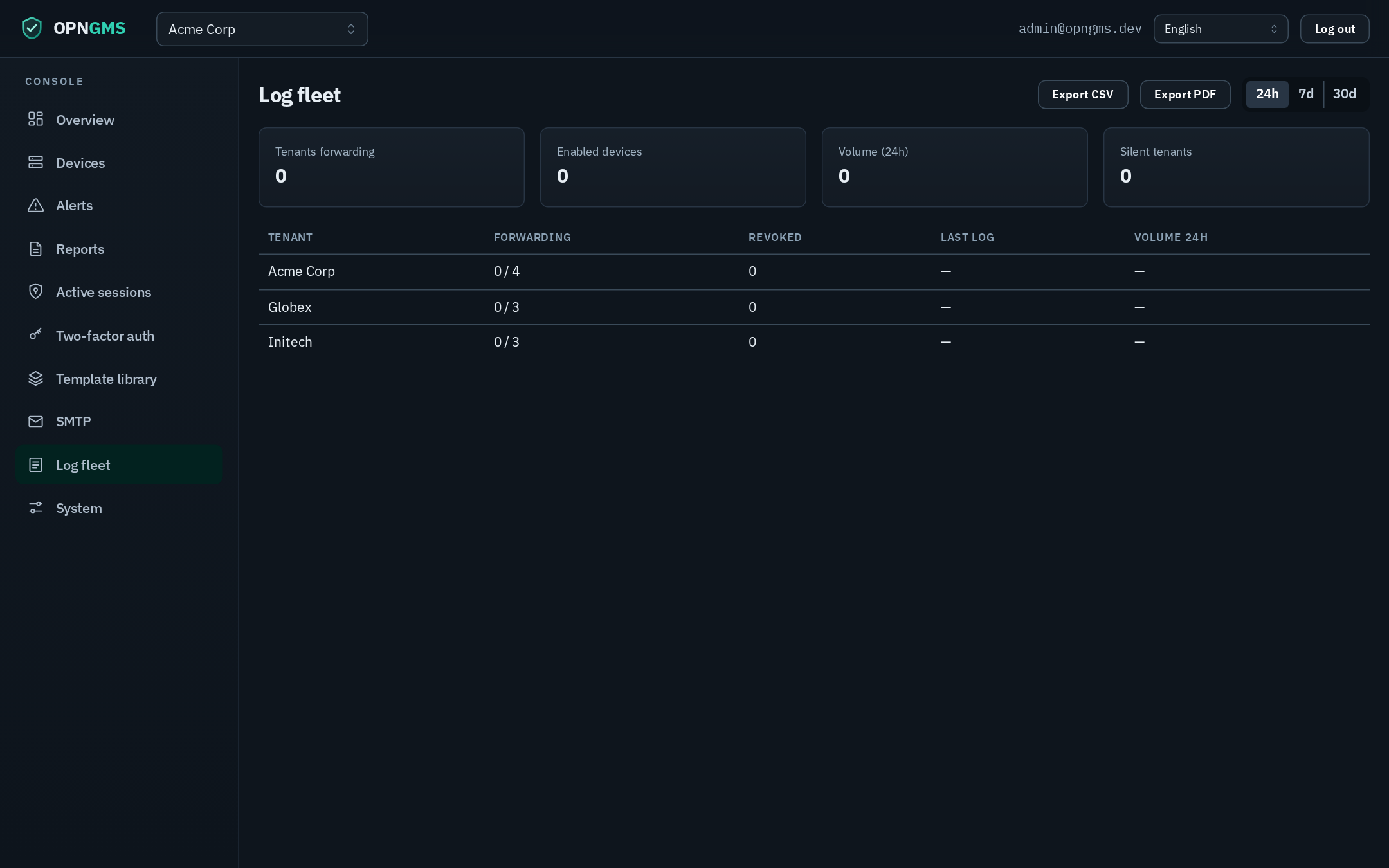

| Log fleet (cross-tenant) | |
|---|---|
 |

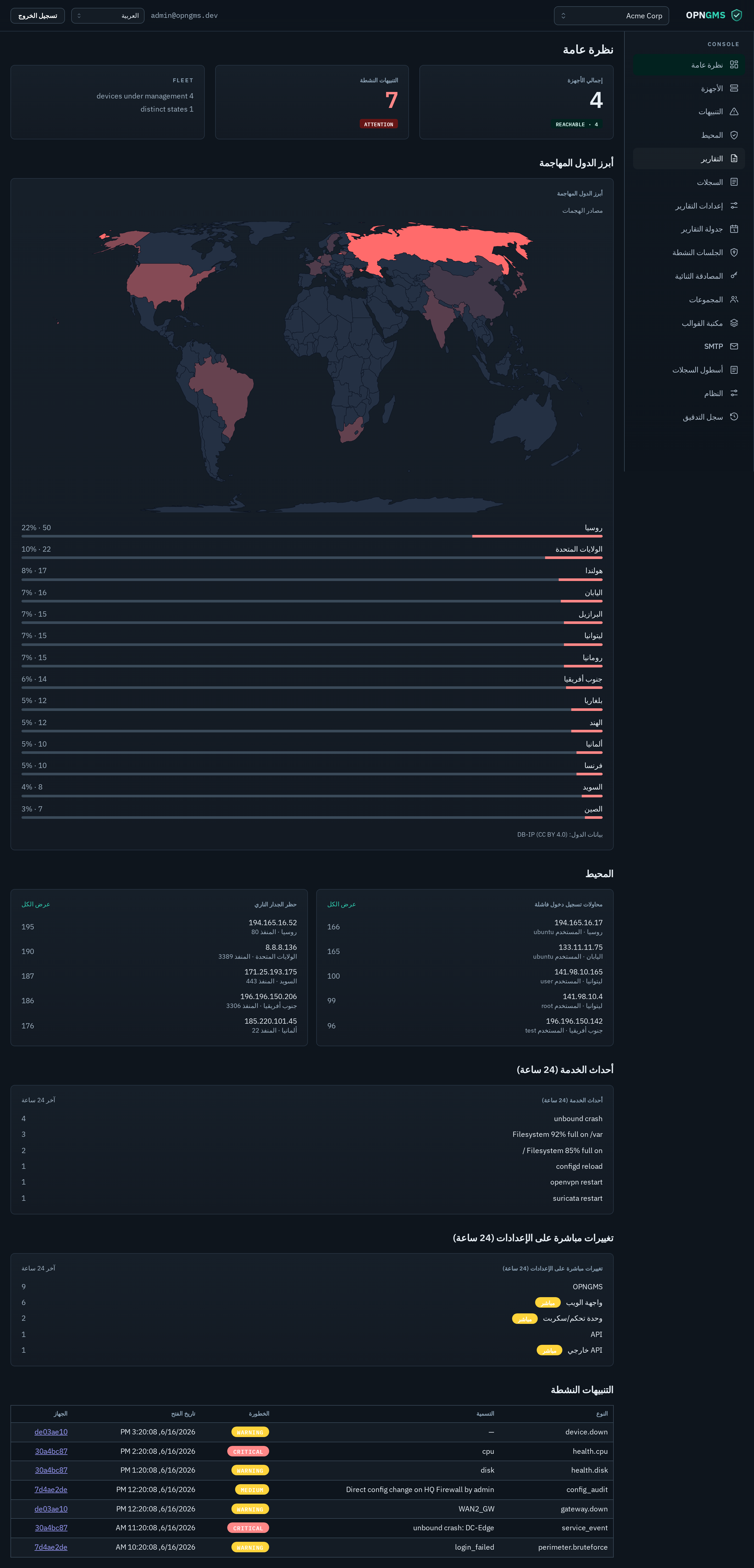

| Localized UI (Italian) | Right-to-left layout (Arabic) |
|---|---|
 |
 |
See also: sample PDF reports under docs/demo-reports/.
