Failover and Hotel Routing

🔀 Failover & Hotel Routing

Model Hotel has two related but distinct routing concepts: transparent failover and hotel routing. Together they ensure requests succeed even when individual providers are unreliable.

Architecture Overview

Failover Request Flow

Database Schema

`model_failover_groups` Table

CREATE TABLE model_failover_groups (
    id              UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    display_model   TEXT NOT NULL UNIQUE,        -- Base model name (e.g. "gpt-4o")
    display_name    TEXT,                        -- Human-readable label (optional)
    description     TEXT DEFAULT '',             -- Human-readable description
    priority_order  JSONB NOT NULL,              -- [uuid1, uuid2, uuid3] - ordered list of model UUIDs
    entry_enabled   JSONB DEFAULT '{}',          -- {uuid1: true, uuid2: false} - per-entry toggle
    group_enabled   BOOLEAN DEFAULT true,        -- Master toggle for entire group
    auto_created    BOOLEAN DEFAULT false,       -- true if auto-generated during discovery sync
    created_at      TIMESTAMPTZ DEFAULT now(),
    updated_at      TIMESTAMPTZ DEFAULT now()
);

Field Details:

Field	Type	Description
`display_model`	TEXT	Exact base model name used in `hotel/` requests. Matched after stripping org prefixes (e.g. `openai/`, `deepseek/`).
`priority_order`	JSONB	Array of model UUIDs in sequential failover order. First UUID = highest priority.
`entry_enabled`	JSONB	Map of `model_uuid → boolean`. Disabled entries are skipped during routing but preserved in priority order.
`group_enabled`	BOOLEAN	Master switch. When `false`, the entire group is skipped during `hotel/` resolution (returns 404).
`auto_created`	BOOLEAN	`true` if generated by `SyncAllModels` during discovery. Manual groups have `false`.

Indexes:

Unique index on display_model (enforces one group per base model name)
No additional indexes needed (lookups by display_model or id)

Related Tables

-- models table (references providers)
CREATE TABLE models (
    id            UUID PRIMARY KEY,
    provider_id   UUID REFERENCES providers(id) ON DELETE CASCADE,
    model_id      TEXT NOT NULL,              -- Full model ID (e.g. "openai/gpt-4o")
    enabled       BOOLEAN DEFAULT true,
    UNIQUE(provider_id, model_id)
);

-- providers table
CREATE TABLE providers (
    id            UUID PRIMARY KEY,
    name          TEXT NOT NULL,
    base_url      TEXT NOT NULL,
    encrypted_key BYTEA NOT NULL,             -- AES-256-GCM encrypted API key
    key_nonce     BYTEA NOT NULL,             -- Argon2id-derived nonce
    enabled       BOOLEAN DEFAULT true
);

Failover Groups

A failover group represents one logical model backed by multiple providers. When you request hotel/gpt-4o, the proxy looks up the failover group with display_model = 'gpt-4o' and tries providers in the configured priority order.

Bulk Provider Management

The Failover Groups page includes a Manage Providers button (next to "New Group") that opens a modal listing all providers. Disabling a provider in this modal disables all model entries belonging to that provider across all failover groups (including custom groups). If disabling a provider causes all entries in a group to be disabled, the group itself is also disabled. A toast notification reports how many groups were affected.

Group Lifecycle

Creation

Auto-Generation (Discovery Sync):

Failover groups are automatically created during model discovery sync (SyncAllModels):

Query all enabled models from enabled providers
Strip org prefixes (openai/, deepseek/, meta-llama/, etc.) to get base name
Group providers that share the same base name
Require 2+ providers - single-provider groups are automatically disabled
Set auto_created = true

// internal/failover/failover.go:SyncAllModels
func (r *Repository) SyncAllModels(ctx context.Context) (*SyncResult, error) {
    // 1. Query enabled models
    rows, _ := r.pool.Query(ctx, `
        SELECT m.id, m.model_id, m.provider_id, p.name
        FROM models m
        JOIN providers p ON m.provider_id = p.id
        WHERE m.enabled = true AND p.enabled = true
        ORDER BY m.model_id, p.created_at ASC
    `)

    // 2. Strip prefixes and group by base name
    baseToModels := make(map[string][]modelInfo)
    for rows.Next() {
        base := stripPrefix(modelID)  // "openai/gpt-4o" → "gpt-4o"
        baseToModels[base] = append(...)
    }

    // 3. Create groups with 2+ providers
    for base, models := range baseToModels {
        if len(models) <= 1 {
            r.disableAutoGroup(ctx, base)  // Disable single-provider groups
            continue
        }
        priorityOrder := extractUUIDs(models)
        r.UpsertWithConfig(ctx, base, priorityOrder, ...)
    }
}

Manual Creation (API):

POST /api/failover-groups
Content-Type: application/json
Authorization: Bearer $ADMIN_TOKEN

{
  "display_model": "gpt-4o",
  "display_name": "GPT-4 Omni",
  "description": "Multi-provider failover for GPT-4o",
  "entry_ids": [
    "uuid-of-openai-gpt4o-model",
    "uuid-of-deepseek-gpt4o-model",
    "uuid-of-zai-gpt4o-model"
  ]
}

Validation Rules:

Minimum 2 entries required for creation
display_model must be unique (conflict if exists)
display_name and description are optional

Configuration

Priority Ordering:

Providers are tried sequentially in priority_order array order. Reorder via API or UI drag-and-drop:

PUT /api/failover-groups/{group_id}
Content-Type: application/json

{
  "priority_order": [
    "uuid-3",  // Now first (highest priority)
    "uuid-1",
    "uuid-2"   // Now last
  ]
}

Per-Entry Enable/Disable:

Individual entries can be disabled without removing them from the group:

{
  "entry_enabled": {
    "uuid-1": true,
    "uuid-2": false,  // Skipped during routing
    "uuid-3": true
  }
}

Disabled entries:

Appear strikethrough in UI
Skipped during candidate selection
Preserved in priority order for re-enablement

Effective Entry State:

The per-entry toggle expresses intent; whether the router can actually use an entry also depends on the underlying model and provider being enabled. Each entry in API responses therefore carries model_enabled and provider_enabled alongside the toggle's enabled, and the UI greys out entries whose model or provider is disabled and badges them ("Model disabled" / "Provider disabled") even when the entry toggle is on. The toggle stays functional so intent is preserved for when the model comes back. In the group editor, entries that are no longer available are suffixed "(unavailable)" so they stay distinguishable from same-named available candidates.

Self-Heal on Discovery:

When a discovery scan disables a model (it left the provider's listing - e.g. a rename), the scan re-syncs that model's failover group the same way a manual sync would: the stale entry is pruned, and a group that drops below 2 enabled members is deleted (auto-created groups only). The changes are reported in the scan's discovery summary. See Model Discovery for the diff format.

Group-Level Toggle:

Master switch disables entire group:

{
  "group_enabled": false
}

When group_enabled = false:

hotel/{display_model} requests return 404
Group appears in UI but marked as disabled
Auto-generated groups are disabled if provider count drops below 2

Deletion

DELETE /api/failover-groups/{group_id}
Authorization: Bearer $ADMIN_TOKEN

Cascade Behavior:

Deleting a failover group does NOT delete underlying models or providers
Only the failover configuration is removed
Direct provider routing (e.g. openai/gpt-4o) continues to work

Hotel Routing

Hotel routing is explicit multi-provider routing via the hotel/ prefix. It gives you fine-grained control over which providers are used and in what order.

Using Hotel Routing

Prefix any model ID with hotel/:

curl -X POST http://localhost:8081/v1/chat/completions \
  -H "Authorization: Bearer $PROXY_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "hotel/gpt-4o",
    "messages": [{"role": "user", "content": "Hello!"}]
  }'

This resolves to the failover group named gpt-4o and tries providers in priority order.

Model Name Resolution

Exact Base Name Matching:

Hotel routing matches exact base names after stripping organization prefixes:

Request Model	Strips To	Matches Group
`hotel/gpt-4o`	`gpt-4o`	`display_model = 'gpt-4o'`
`hotel/llama-3.1-8b`	`llama-3.1-8b`	`display_model = 'llama-3.1-8b'`
`hotel/gpt-4o-mini`	`gpt-4o-mini`	`display_model = 'gpt-4o-mini'` (different group)

Base Name Extraction:

The code does not maintain a hardcoded prefix list. Instead, normalizeBaseModel() in internal/failover/failover.go strips everything before the last / in the model ID, then lowercases the result:

func normalizeBaseModel(modelID string) string {
    if idx := strings.LastIndex(modelID, "/"); idx >= 0 {
        return strings.ToLower(modelID[idx+1:])
    }
    return strings.ToLower(modelID)
}

This handles any org prefix depth (e.g. zai-org/glm-5.1, zai-org/anthracite-org/magnum-v4-72b) without needing to enumerate known providers. The SQL in SyncForModel uses SUBSTRING(m.model_id FROM '[^/]+$') to match on the same leaf segment.

Example: openai/gpt-4o, deepseek/gpt-4o, and zai-org/gpt-4o all map to the same failover group gpt-4o.

Resolution Logic

// internal/proxy/resolve.go:resolveHotelModel
func (h *Handler) resolveHotelModel(ctx context.Context, displayModel string) ([]modelCandidate, resolveTimings, error) {
    // 1. Lookup failover group (with cache)
    fg, err := h.failoverRepo.GetByModel(ctx, displayModel)
    if err != nil {
        return nil, t, err  // 404 to client
    }

    // 2. Check group enabled
    if !fg.GroupEnabled {
        return nil, t, fmt.Errorf("failover group disabled")
    }

    // 3. Collect enabled model UUIDs
    enabledModelIDs := make([]uuid.UUID, 0, len(fg.PriorityOrder))
    for _, modelUUID := range fg.PriorityOrder {
        entryEnabled := true
        if val, ok := fg.EntryEnabled[modelUUID.String()]; ok {
            entryEnabled = val
        }
        if entryEnabled {
            enabledModelIDs = append(enabledModelIDs, modelUUID)
        }
    }

    // 4. Batch load models and providers
    models, _ := h.modelRepo.GetByIDs(ctx, enabledModelIDs)
    providers, _ := h.providerRepo.GetByIDs(ctx, uniqueProviderIDs)

    // 5. Build candidate list (filtering disabled, circuit breakers)
    candidates := make([]modelCandidate, 0)
    for _, modelUUID := range fg.PriorityOrder {
        // Skip if entry disabled
        if !entryEnabled { continue }

        // Skip if model/provider disabled
        if !m.Enabled || !prov.Enabled { continue }

        // Skip if circuit breaker open
        if cbEnabled && h.circuitBreaker.IsOpen(prov.ID) { continue }

        // Decrypt API key
        apiKey, _ := auth.DecryptCached(prov.EncryptedKey, ...)

        candidates = append(candidates, modelCandidate{model: m, provider: prov, apiKey: apiKey})
    }

    return candidates, t, nil
}

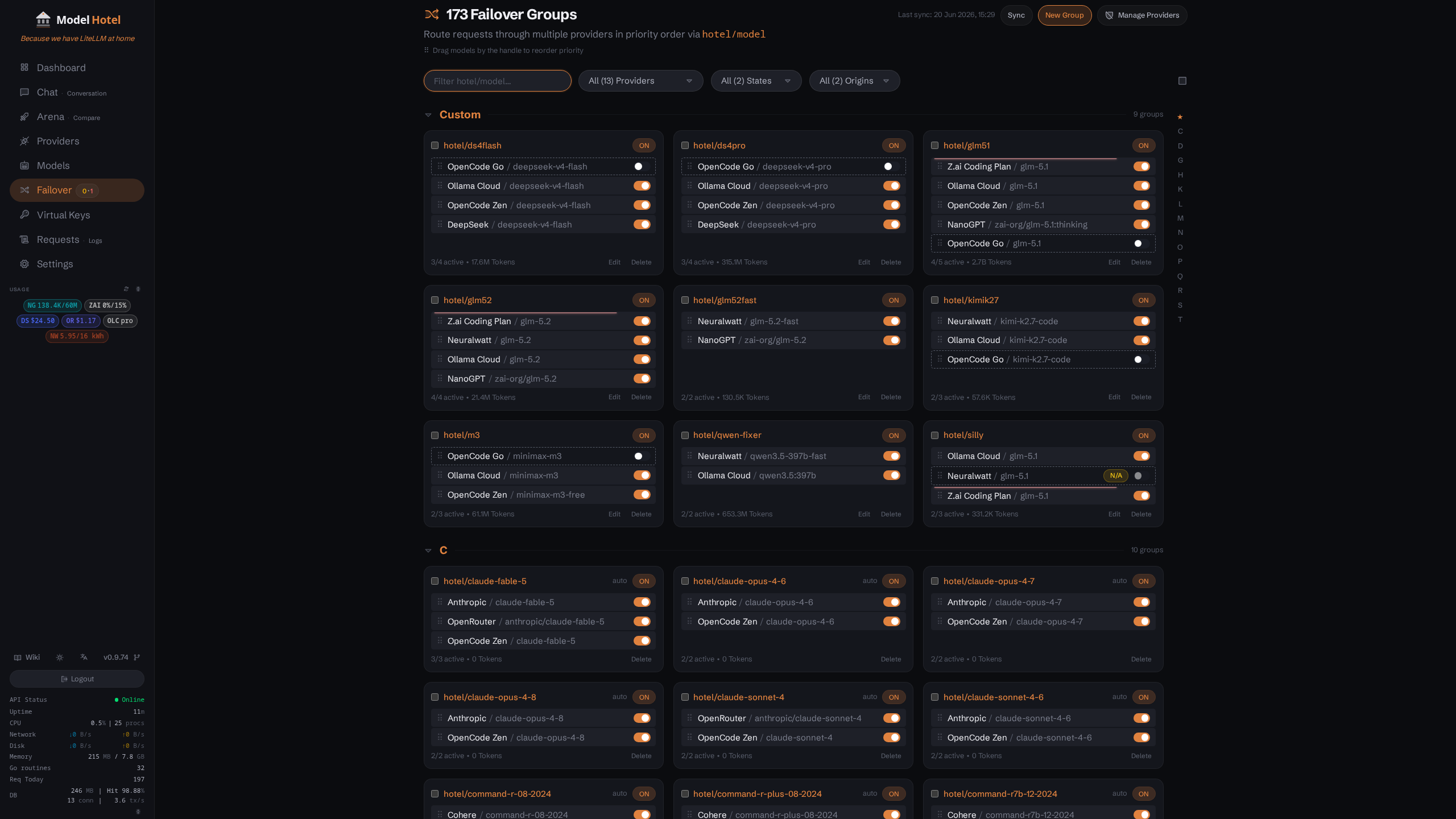

Failover Groups page - showing groups with enabled status, model entries, and priority badges

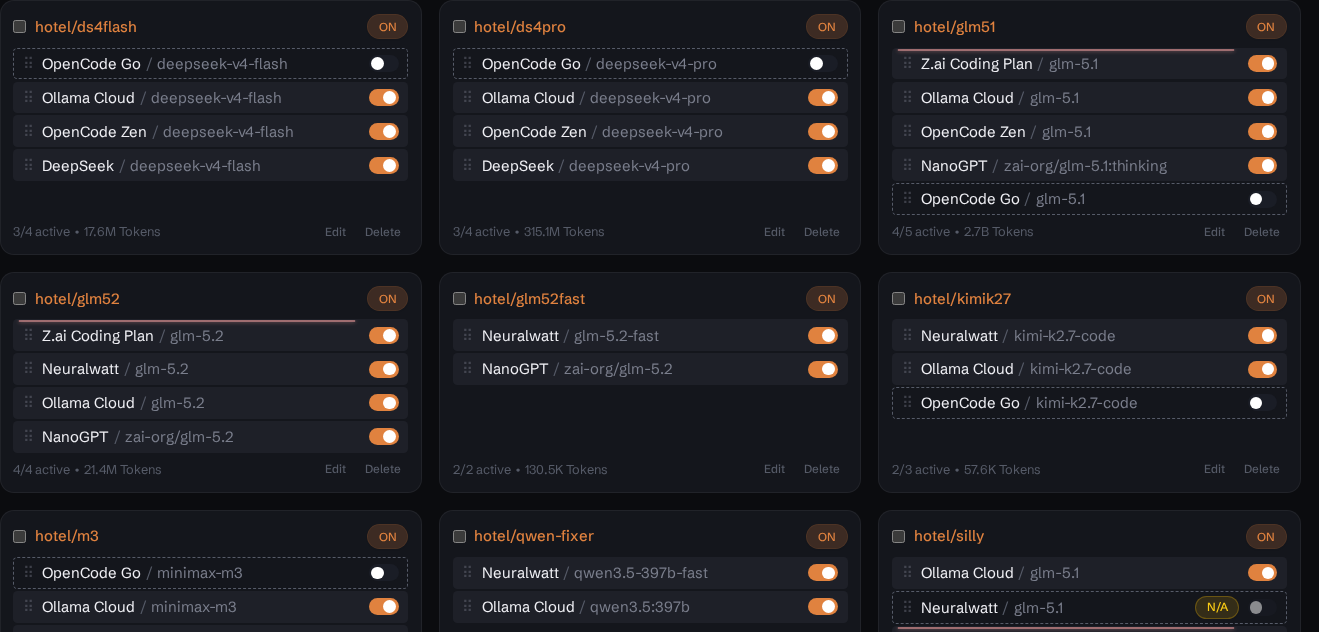

Failover Per-Entry Toggles Failover group entries with per-entry enable/disable toggles, strikethrough for disabled entries, and priority ordering.

Provider Selection Algorithm

The provider selection algorithm builds an ordered list of candidates from a failover group:

Provider Selection Algorithm

Key Properties:

Priority order preserved: Candidates are always in priority_order sequence
Graceful degradation: Disabled/failed entries are skipped, not fatal
Circuit breaker integration: Unhealthy providers filtered before failover loop
Batch efficiency: Single DB query for all models, single query for all providers

Transparent Failover

Transparent failover happens automatically when an upstream provider request fails with a retriable error. It is the proxy's mechanism to ensure requests succeed even when individual providers are flaky or misconfigured.

Failover applies to all /v1 endpoints, not just chat completions - the multimodal endpoints (embeddings, images, audio) share the same candidate-resolution and failover loop. For streaming or binary responses, failover is only possible before the first response byte has been forwarded to the client; once a stream is committed, the proxy stays with that provider.

How It Works

Failover is sequential - providers are tried one at a time, in order:

Client requests a model (e.g. hotel/gpt-4o or openai/gpt-4o)
The proxy resolves a list of candidate providers
The first candidate is tried
If the upstream returns a retriable error, the proxy moves to the next candidate
This continues until the request succeeds or all candidates are exhausted
If all candidates fail, a generic 502 error is returned to the client

Failover Decisions

Failover triggers on:

Condition	Behavior	Source
Any 5xx status (status >= 500)	Always triggers failover	Server errors indicate upstream problems
HTTP 429 (rate limit)	Triggers failover if `failover_on_rate_limit=true` (default)	Configurable via settings
HTTP 401 / 403 (auth errors)	Always triggers failover	Stale or rotated API keys
HTTP 404 (model not found at provider)	Always triggers failover	Stale DB entry, overloaded provider returning not_found
Timeouts	Always triggers failover	Network timeout, connection refused, DNS failure

Failover does not trigger on:

Condition	Behavior	Reason
HTTP 400 (bad request / param rejection)	Triggers auto-retry on SAME provider with the offending parameter stripped or renamed	The provider's 400 names the unsupported parameter; the retry drops it (e.g. an injected `chat_template_args` or `thinking` a strict backend rejects) and tries again on the same provider. The one exception is a param that carries the caller's token budget: when a model demands `max_completion_tokens` instead of `max_tokens` (OpenAI gpt-5 / o-series), the value is renamed rather than dropped, so the response stays capped. The learned rejection is cached per model, so later requests skip the round-trip.
HTTP 404 (model not found at provider)	Always triggers failover	Stale DB entry, overloaded provider returning not_found
Other 4xx errors (422, etc.)	Returned to client as-is	Client errors (validation errors) are not retriable
Slow responses	No latency-based failover exists	There is no response-time threshold that triggers failover

Exponential Backoff Between Failover Attempts

Each failover attempt includes an exponential backoff delay to prevent overwhelming failing providers:

Base delay: 100ms
Maximum delay: 2s
Jitter: [0, base) (adds 0 to base-1ms random offset, not symmetric)
First attempt (attempt=0): No delay
Client disconnection during backoff: Returns HTTP 499

The delay doubles with each subsequent attempt (100ms → 200ms → 400ms → 800ms → 1.6s → capped at 2s), with jitter applied to prevent thundering herd issues.

// internal/proxy/proxy.go:failoverBackoff
func failoverBackoff(base, capacity time.Duration, attempt int) time.Duration {
    exp := time.Duration(float64(base) * math.Pow(2, float64(attempt-1)))
    if exp > capacity {
        exp = capacity
    }
    jitter := time.Duration(rand.Int64N(int64(base)))
    return exp + jitter
}

The `failover_on_rate_limit` Setting

By default, a 429 rate-limit response from one provider triggers failover to the next. This is controlled by the failover_on_rate_limit setting (default: true). If you prefer to return 429 errors directly to the client rather than retrying on another provider, set this to false.

The `shouldFailover` Logic

The proxy evaluates whether an upstream response should trigger failover based on the HTTP status code:

// internal/proxy/resolve.go:shouldFailover
func (h *Handler) shouldFailover(ctx context.Context, statusCode int) bool {
    if statusCode >= 500 {
        return true  // 5xx → failover immediately
    }
    if statusCode == 429 {
        enabled := h.settingsRepo.GetBool(ctx, "failover_on_rate_limit", true)
        return enabled  // 429 → failover only if setting enabled
    }
    if statusCode == 401 || statusCode == 403 {
        return true  // Auth errors → failover immediately
    }
    if statusCode == 404 {
        return true  // Model not found at provider → failover (stale DB, overloaded provider)
    }
    return false  // Other status codes → no failover
}

Note: failover only proceeds if there are remaining candidates. If the last candidate returns a retriable error, that error is returned to the client directly.

The `request_timeout` Setting

The proxy uses the request_timeout setting (default: 1m) for all upstream requests:

Non-streaming requests: Uses the setting value directly
Streaming requests: Uses 10× the timeout value (10 minutes by default)

This setting is configurable at runtime via the Settings UI or the admin API.

Request Body Caching

The request body is cached in the context at the start of the failover loop. This allows the body to be re-read for each retry without requiring the client to resend it. The cached body is used when building upstream requests for each failover attempt.

TTFT Probe (Time-to-First-Token)

For streaming requests, the proxy reads ahead to confirm the first token arrives before committing the stream to the client. This prevents the client from receiving a broken or partial stream from a provider that responded 200 but fails to produce content.

Timeout: Configurable via ttft_timeout setting (default: 1m0s). If the provider fails to produce a token within this timeout, the request fails over to the next provider.
Measurement: The actual TTFT measured during the probe is stored in logEntry.ttftMs for request logging.
Disable: Set ttft_timeout to 0s to disable the probe (immediate stream commit, backward-compatible behavior).

Stall Watchdog

Once streaming begins, a stall watchdog monitors for silence in the SSE stream:

Timeout: Configurable via stream_stall_timeout setting (default: 30s). If no data arrives within this window, the connection is terminated and the circuit breaker records a failure.
Progressive extension: After 50 chunks, the effective stall timeout is multiplied by 3 (default: 30s × 3 = 90s) to tolerate tool-call pauses and long reasoning chains.
Disable: Set stream_stall_timeout to 0s to disable the watchdog.

resolved_model_id

The resolved_model_id field in request logs records the actual upstream model ID used (e.g. openai/gpt-4o), which may differ from the requested hotel/ name (e.g. hotel/gpt-4o). For non-hotel requests where the requested and resolved model are the same, this field is NULL.

Failover Attempt Logging

Each request produces one request_logs row containing the final attempt's data:

Intermediate failover attempts are logged to stdout only (via log.Printf), not to the database
The final request_logs record includes the failover_attempt number indicating how many attempts were made (0-indexed)
A request that succeeds on the first try has failover_attempt = 0
The resolved_model_id field records the actual upstream model ID used

This means the request_logs table always has exactly one row per incoming request, and the failover_attempt field tells you whether failover occurred and how many providers were tried before the final result.

Intermediate attempts appear in stdout logs like:

[proxy] failover triggered: attempt=1 provider=<uuid> status=429
[proxy] failover triggered: attempt=2 provider=<uuid> status=502

Virtual Key Token Tracking

During proxy requests, token usage is tracked against the virtual key used for authentication. Token counts (prompt tokens, completion tokens, and total tokens) are extracted from the upstream provider's response and recorded in the request_logs table. This enables usage tracking and quota enforcement per virtual key.

Circuit Breaker

The proxy includes a per-provider circuit breaker that prevents sending requests to providers that are consistently failing, giving them time to recover.

Success Recording: The circuit breaker records success for any response that does NOT trigger failover. This includes 400 errors (parameter rejections), since these indicate the provider successfully processed the request but rejected it due to invalid parameters - not a provider health issue. Only 5xx, 429 (when enabled), 401/403, and timeouts are recorded as failures.

State Machine

The circuit breaker operates as a three-state machine:

Circuit Breaker States

Implementation

// internal/failover/circuitbreaker.go
type CircuitBreaker struct {
    mu       sync.RWMutex
    circuits map[string]*circuit  // provider UUID → circuit state

    Threshold         int           // Default: 5 consecutive failures
    Cooldown          time.Duration // Default: 60s
    HalfOpenMaxProbes int           // Default: 1 success to close
}

type circuit struct {
    state            State       // Closed, Open, or HalfOpen
    consecutiveFails int
    openedAt         time.Time   // When transitioned to Open
    halfOpenProbes   int         // Successful probes in HalfOpen
}

State Transitions:

Current State	Trigger	Next State	Action
Closed	Failure count >= threshold	Open	Block all requests, start cooldown
Closed	Success	Closed	Reset failure counter
Open	Cooldown elapsed	HalfOpen	Allow one probe request
HalfOpen	Probe success	Closed	Resume normal operation
HalfOpen	Probe failure	Open	Restart cooldown

Failover Integration

Open circuits are filtered out during provider resolution:

// internal/proxy/resolve.go:resolveHotelModel
cbEnabled := h.settingsRepo.GetBool(ctx, "circuit_breaker_enabled", true)
if cbEnabled && h.circuitBreaker.IsOpen(prov.ID) {
    debuglog.Info("resolve: skipping candidate: circuit breaker open")
    continue  // Skip this provider entirely
}

This means providers with open circuits are never tried at all - they are skipped during the initial provider selection phase, not during the failover process.

Client Disconnections:

Client disconnections (context.Canceled) and deadlines (context.DeadlineExceeded) do NOT count as provider failures:

// internal/proxy/proxy.go:ChatCompletions
if !errors.Is(err, context.Canceled) && !errors.Is(err, context.DeadlineExceeded) {
    if circuitBreakerEnabled {
        h.circuitBreaker.RecordFailure(candidate.provider.ID)
    }
} else {
    debuglog.Info("proxy: client disconnected - not counting as provider failure")
}

These are treated as user-side cancellations rather than provider health issues.

Settings

Setting	Type	Default	Description
`circuit_breaker_enabled`	bool	`true`	Global kill switch. When disabled, no circuit tracking occurs.
`circuit_breaker_threshold`	int	`5`	Number of consecutive failures before a circuit opens. Only effective when value > 0.
`circuit_breaker_cooldown`	duration	`60s`	How long an open circuit stays open before transitioning to half-open.
`ttft_timeout`	duration	`1m0s`	Time-to-first-token probe timeout for streaming requests. Set to `0s` to disable.
`stream_stall_timeout`	duration	`30s`	Maximum silence during streaming before termination. After 50 chunks, timeout is multiplied by 3. Set to `0s` to disable.

All of these settings are runtime-configurable and take effect immediately. They have UI controls in the Settings page: the Circuit Breaker & Failover section (enabled, threshold, cooldown, failover-on-429) and the Proxy section (ttft_timeout, stream_stall_timeout). They can also be changed via PUT /api/settings.

SSE Events

The circuit breaker publishes real-time events via the SSE event bus:

Event	When
`circuit_breaker.open`	A provider's circuit transitions from Closed to Open
`circuit_breaker.half-open`	Circuit transitions from Open to Half-Open
`circuit_breaker.closed`	Circuit recovers (Half-Open → Closed)

These events appear in the real-time sidebar and dashboard.

// internal/failover/circuitbreaker.go:publishEvent
func (cb *CircuitBreaker) publishEvent(providerID uuid.UUID, state string, c *circuit) {
    events.Publish(events.Event{
        Type:     "circuit_breaker." + state,
        Severity: cb.severityForState(state),
        Message:  fmt.Sprintf("Provider %s circuit breaker: %s", providerID, state),
        Metadata: map[string]interface{}{
            "provider_id":       providerID.String(),
            "state":             state,
            "consecutive_fails": c.consecutiveFails,
        },
    })
}

API Reference

List All Failover Groups

GET /api/failover-groups

Returns all failover groups with their entries and configuration.

Response (200):

{
  "groups": [
    {
      "id": "uuid-of-group",
      "display_model": "gpt-4o",
      "display_name": "GPT-4 Omni",
      "description": "Multi-provider failover",
      "group_enabled": true,
      "auto_created": true,
      "entries": [
        {
          "model_uuid": "uuid-1",
          "model_id": "openai/gpt-4o",
          "provider_id": "uuid-prov-1",
          "provider_name": "OpenAI",
          "display_name": "GPT-4o",
          "enabled": true,
          "model_enabled": true,
          "provider_enabled": true,
          "context_length": 128000,
          "owned_by": "openai"
        },
        {
          "model_uuid": "uuid-2",
          "model_id": "deepseek/gpt-4o",
          "provider_id": "uuid-prov-2",
          "provider_name": "DeepSeek",
          "display_name": "GPT-4o",
          "enabled": false,
          "model_enabled": true,
          "provider_enabled": true,
          "context_length": 64000,
          "owned_by": "deepseek"
        }
      ],
      "total_tokens": 1234567,
      "created_at": "2024-01-15T10:30:00Z",
      "updated_at": "2024-01-20T14:45:00Z"
    }
  ],
  "last_synced_at": "2024-01-20T14:45:00Z"
}

enabled on each entry is the per-entry intent toggle; model_enabled / provider_enabled expose the underlying model and provider state the router also checks. An entry is effectively routable only when all three are true - the UI greys out and badges entries where they disagree.

Get Failover Group by ID

GET /api/failover-groups/{id}

Response (200): Same structure as single group in list response.

Response (404): {"error": "failover group not found"}

Create Failover Group

POST /api/failover-groups

Request:

{
  "display_model": "llama-3.1-8b",
  "display_name": "Llama 3.1 8B",
  "description": "Custom failover group for Llama 3.1 8B",
  "entry_ids": [
    "uuid-model-1",
    "uuid-model-2",
    "uuid-model-3"
  ]
}

Validation:

Minimum 2 entries required
display_model must be unique
All entry_ids must be valid model UUIDs

Response (201): Full group object (same as GET response).

Response (400): Validation error (e.g. "at least 2 entries required").

Response (409): {"error": "failover group with display_model '...' already exists"}

Update Failover Group

PUT /api/failover-groups/{id}

Request:

{
  "display_name": "Updated Name",
  "description": "Updated description",
  "group_enabled": true,
  "priority_order": ["uuid-3", "uuid-1", "uuid-2"],
  "entry_enabled": {
    "uuid-1": true,
    "uuid-2": false,
    "uuid-3": true
  }
}

All fields are optional. Only provided fields are updated.

Response (200): Updated group object.

Response (400): Validation error (e.g. "at least one entry must be enabled").

Response (404): Group not found.

Delete Failover Group

DELETE /api/failover-groups/{id}

Response (204): No content (success).

Response (404): Group not found.

Sync Failover Groups

POST /api/failover-groups/sync

Manually trigger failover group synchronization with current model discovery state.

Response (200):

{
  "deleted_groups": [
    {
      "display_model": "gpt-4o-mini",
      "reason": "only 1 enabled provider (need 2+ for failover)",
      "provider_count": 1,
      "provider_names": ["OpenAI"]
    }
  ],
  "purged_entries": [],
  "sync_errors": []
}

Per-model syncs (run automatically during discovery) additionally report membership changes as updated_groups entries (display_model plus removed_model_ids / added_model_ids); a newly created auto-group reports every member as added. These appear in the discovery diff's failover_updated_groups, not in this endpoint's response.

Get Failover Group by Model UUID

GET /api/failover-groups/by-model/{model_uuid}

Returns brief info about the failover group containing a specific model UUID.

Response (200):

{
  "id": "uuid-of-group",
  "display_model": "gpt-4o",
  "position": 2,
  "total_entries": 3
}

Response (404): {"error": "model not in any failover group"}

Get Candidate Models

GET /api/failover-groups/candidates

Returns all enabled models that can be added to failover groups.

Response (200):

[
  {
    "model_uuid": "uuid-1",
    "model_id": "openai/gpt-4o",
    "provider_id": "uuid-prov-1",
    "provider_name": "OpenAI",
    "display_name": "GPT-4o",
    "context_length": 128000,
    "owned_by": "openai"
  }
]

Request Flow Sequence

Complete Request Flow: `hotel/gpt-4o`

Complete Request Flow: hotel/gpt-4o

Circuit Breaker State Transitions

Cache Behavior

Failover Group Cache

Failover group lookups are cached with a 5-minute TTL:

// internal/failover/cache.go
const failoverCacheTTL = 5 * time.Minute

type failoverCacheEntry struct {
    group     FailoverGroup
    expiresAt time.Time
}

var failoverByModelCache = make(map[string]failoverCacheEntry)

Cache Operations:

Operation	Function	When Called
Read	`GetCachedFailoverByModel(displayModel)`	Every `GetByModel` query (before DB)
Write	`cacheFailoverGroup(&fg)`	After successful DB query
Invalidate	`InvalidateFailoverCache()`	On group create/update/delete
Warm	`WarmFailoverCache(groups)`	On startup, periodic refresh

Cache Invalidation:

The cache is invalidated on any mutation:

// internal/failover/failover.go:UpsertWithConfig
func (r *Repository) UpsertWithConfig(...) (*FailoverGroup, error) {
    // ... INSERT/UPDATE query ...
    cacheFailoverGroup(&fg)  // Update cache entry
    return &fg, nil
}

// internal/failover/failover.go:Delete
func (r *Repository) Delete(ctx context.Context, displayModel string) error {
    _, err := r.pool.Exec(ctx, `DELETE FROM model_failover_groups WHERE display_model = $1`, displayModel)
    InvalidateFailoverCache()  // Clear entire cache
    return err
}

Cache Warming:

On startup and periodic sync, the cache is pre-populated:

// internal/failover/cache.go:WarmFailoverCache
func WarmFailoverCache(groups []*FailoverGroup) {
    for _, fg := range groups {
        cacheFailoverGroup(fg)
    }
}

Combined Behavior

Transparent failover and hotel routing work together seamlessly:

Client requests hotel/gpt-4o
Hotel routing resolves the failover group and selects the first provider (highest priority)
That provider returns a retriable error (5xx, 429, 401/403, 404, or timeout) → transparent failover kicks in
Proxy tries the next provider in the group's priority order
Retries continue sequentially through provider-b, provider-c, etc.
If all providers in the group fail, a generic 502 error is returned to the client

This means hotel routing provides ordered preference (which provider to try first), while transparent failover provides exhaustive sequential retry - together they give you the best chance of a successful request.

Troubleshooting

Common Issues

"Failover group disabled" Error:

Check group_enabled flag in group configuration
Auto-created groups are disabled if provider count drops below 2
Manual intervention required: re-enable after adding providers

"No available provider" Error:

All entries in priority order are disabled (entry_enabled: false)
All providers have open circuit breakers
API key decryption fails (wrong MASTER_KEY)

Circuit Breaker Opens Frequently:

Check provider health (API status, rate limits)
Increase circuit_breaker_threshold (default: 5)
Reduce circuit_breaker_cooldown for faster recovery (default: 60s)

Single-Provider Groups Auto-Disabled:

Expected behavior: groups need 2+ providers for failover
Add another provider with the same base model name
Or use direct provider routing (e.g. openai/gpt-4o) instead

Debug Logging

Enable debug logging via DEBUG_LOG=true environment variable:

[resolve] failover group found: model=gpt-4o entries=3 enabled=true
[resolve] building candidates from failover group: model=gpt-4o priority_order_count=3
[resolve] skipping candidate: circuit breaker open provider=uuid-xyz model=gpt-4o
[resolve] hotel model resolved: model=gpt-4o candidates=2 decrypt_failures=0
[proxy] failover triggered: attempt=1 provider=uuid-abc status=502
[proxy] failover backoff: backoff=150ms attempt=2
[circuit-breaker] provider state=closed→open provider=uuid-abc consecutive_failures=5

Performance Considerations

Batch Queries:

Provider selection uses batch queries to minimize DB round-trips:

// Single query for all models
models, err := h.modelRepo.GetByIDs(ctx, enabledModelIDs)

// Single query for all providers
providers, err := h.providerRepo.GetByIDs(ctx, providerIDs)

Cache Hit Rate:

Failover group cache (5-minute TTL) should achieve >95% hit rate under normal load. Monitor cache misses in debug logs.

Circuit Breaker Overhead:

Circuit breaker state checks are O(1) with RWMutex-protected map lookups. The fast path (Closed state) uses only read locks.

Security Notes

API Key Encryption: Provider keys are AES-256-GCM encrypted with Argon2id key derivation. Decryption happens in-memory only during request processing.
Never Log Keys: Decrypted API keys are never logged or stored in request_logs.
Virtual Key Hashing: Client virtual keys are SHA-256 hashed; only the hash is stored and compared.

Failover and Hotel Routing

🔀 Failover & Hotel Routing

Table of Contents

Architecture Overview

Database Schema

model_failover_groups Table

Related Tables

Failover Groups

Bulk Provider Management

Group Lifecycle

Creation

Configuration

Deletion

Hotel Routing

Using Hotel Routing

Model Name Resolution

Resolution Logic

Provider Selection Algorithm

Transparent Failover

How It Works

Failover Decisions

Exponential Backoff Between Failover Attempts

The failover_on_rate_limit Setting

The shouldFailover Logic

The request_timeout Setting

Request Body Caching

TTFT Probe (Time-to-First-Token)

Stall Watchdog

resolved_model_id

Failover Attempt Logging

Virtual Key Token Tracking

Circuit Breaker

State Machine

Implementation

Failover Integration

Settings

SSE Events

API Reference

List All Failover Groups

Get Failover Group by ID

Create Failover Group

Update Failover Group

Delete Failover Group

Sync Failover Groups

Get Failover Group by Model UUID

Get Candidate Models

Request Flow Sequence

Complete Request Flow: hotel/gpt-4o

Circuit Breaker State Transitions

Cache Behavior

Failover Group Cache

Combined Behavior

Troubleshooting

Common Issues

Debug Logging

Performance Considerations

Security Notes

Related Documentation

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Navigation

Getting Started

Using

Operating

Reference

Quick Links

Clone this wiki locally

`model_failover_groups` Table

The `failover_on_rate_limit` Setting

The `shouldFailover` Logic

The `request_timeout` Setting

Complete Request Flow: `hotel/gpt-4o`
