Mcu Reference

Page Sections:

• Popular MCUs
  • BigTreeTech BTT MMB CAN v1
  • BigTreeTech BTT MMB CAN v2.0
  • Fysetc ERB v2
  • Mellow CAN v1
  • Mellow CAN v2
  • ERCF Easy Brd v1.1
• Flashing Firmware

Popular MCUs

The folling a collection of reference material showing pinouts, pin numbering and firmware programming notes for the most popular MCU's used for MMU Designs

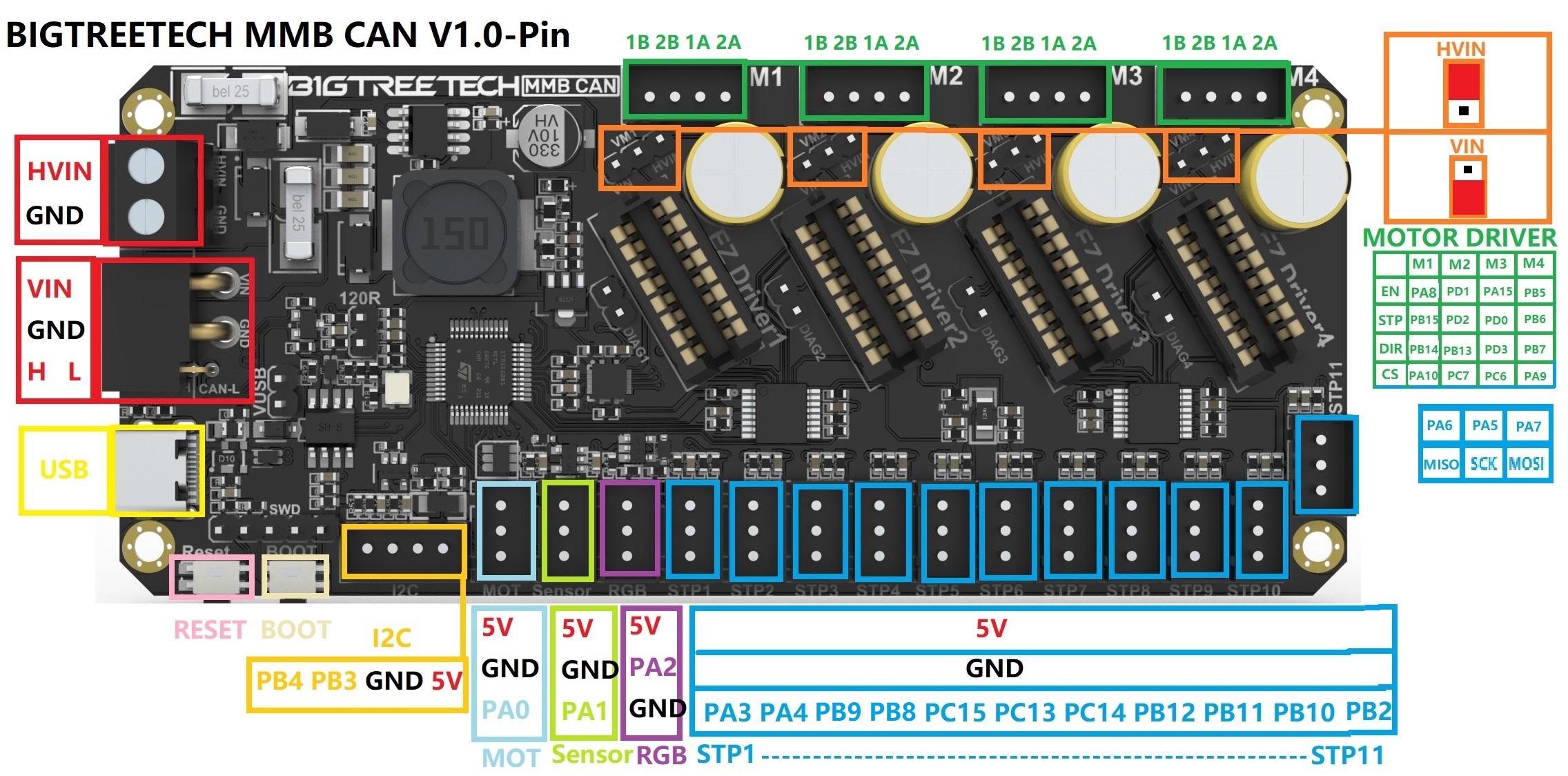

BigTreeTech BTT MMB CAN v1

Click for details on Firmware flashing

Probably the best guide available is Esoterical's site: Firmware Guide

---

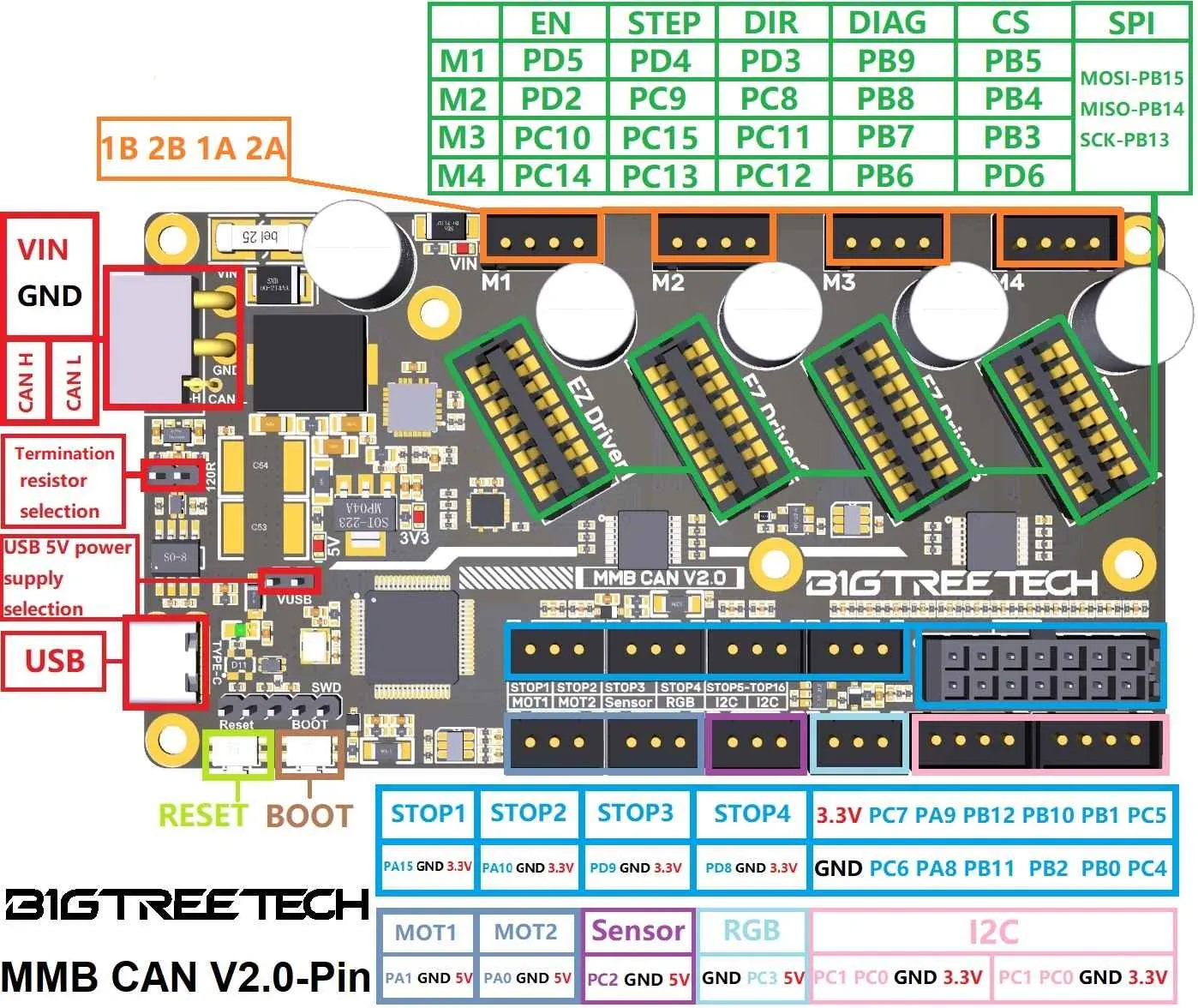

BigTreeTech BTT MMB CAN v2.0

Click for details on Firmware flashing

Probably the best guide available is Esoterical's site: Firmware Guide

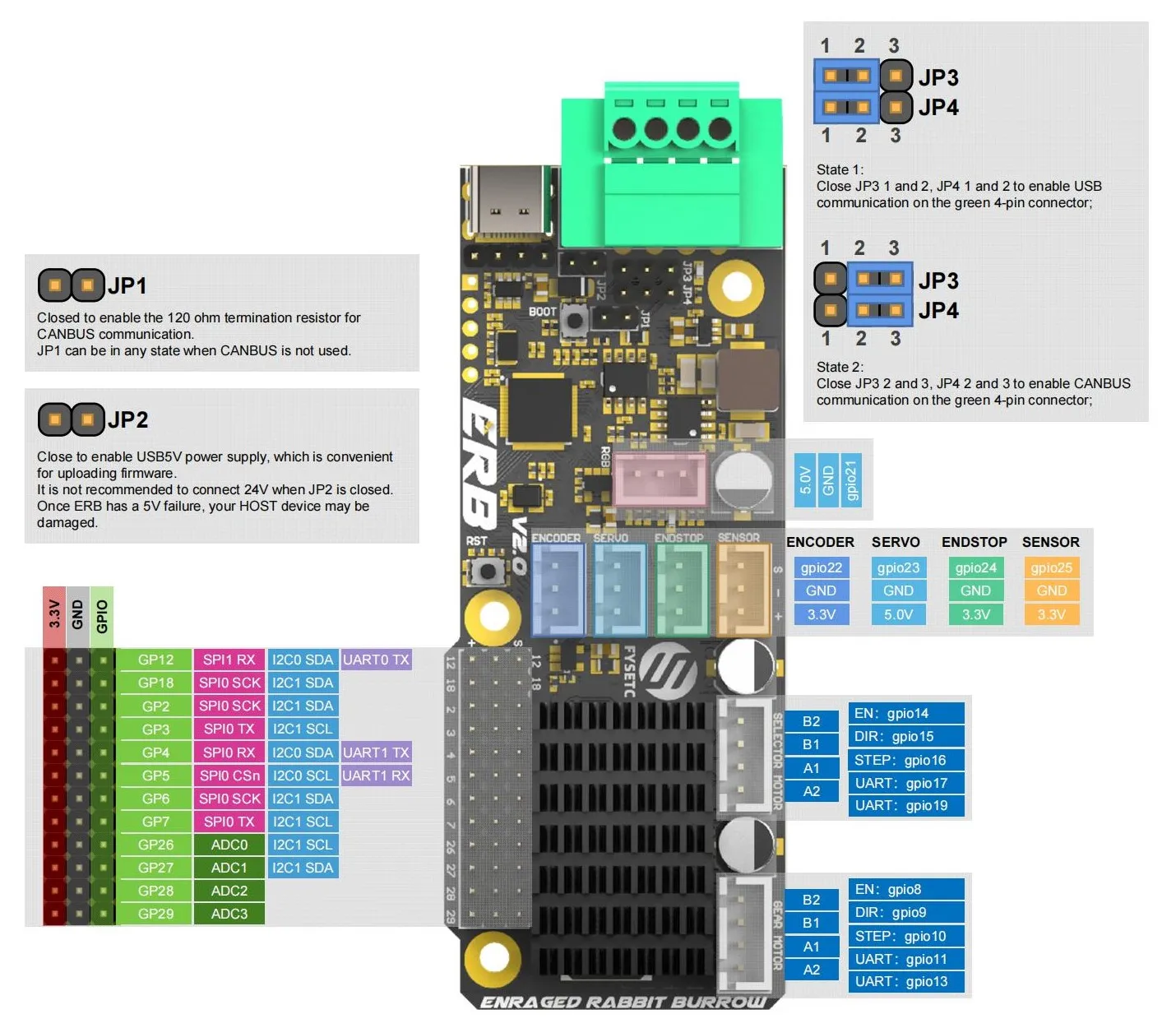

Fysetc ERB v2

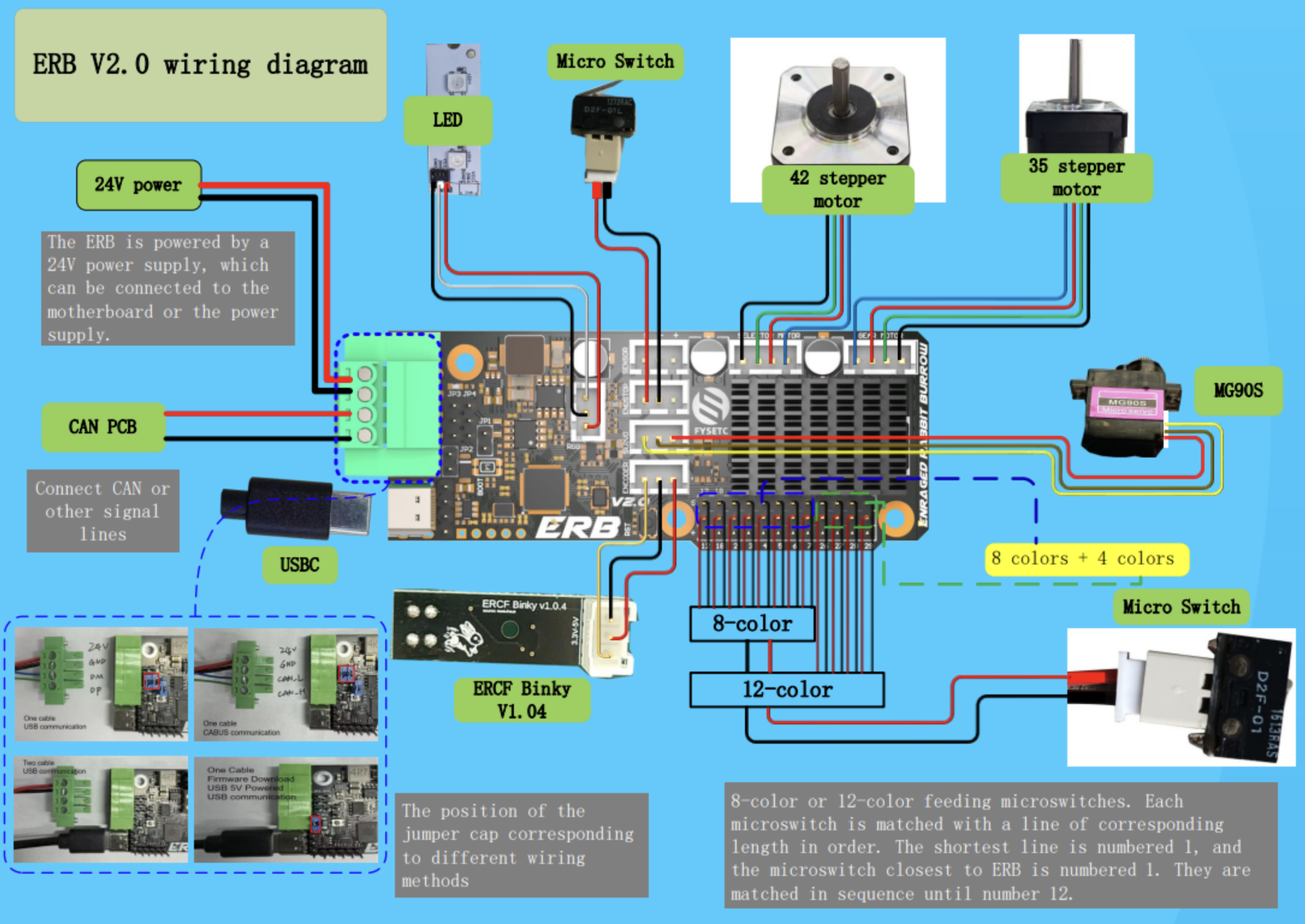

ERCF v2 Connection Diagram:

Click for details on Firmware flashing

Read the Flashing Firmware Notes

---

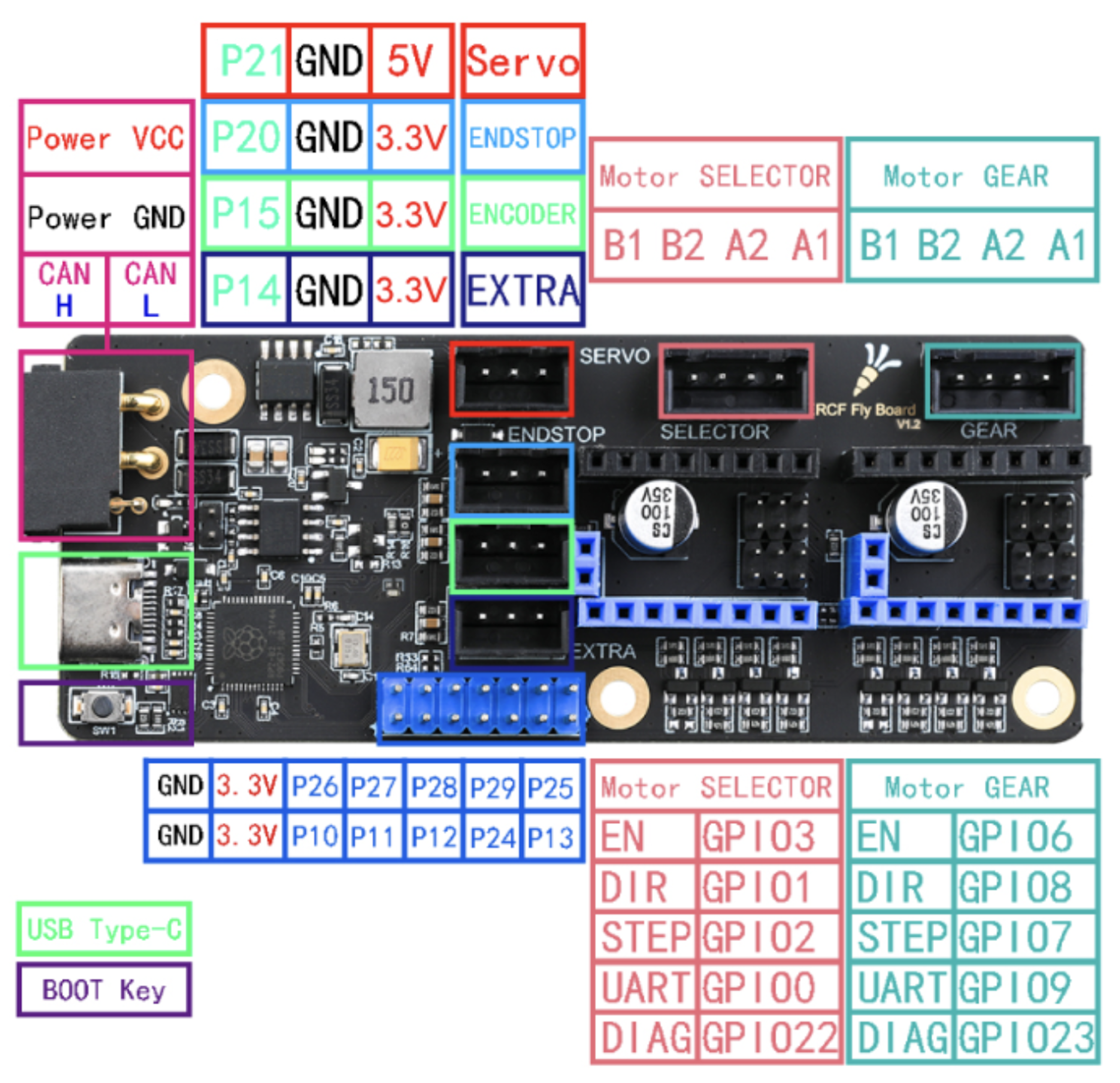

Mellow CAN v1

Click for details on Firmware flashing

Probably the best guide available is Esoterical's site: Firmware Settings

---

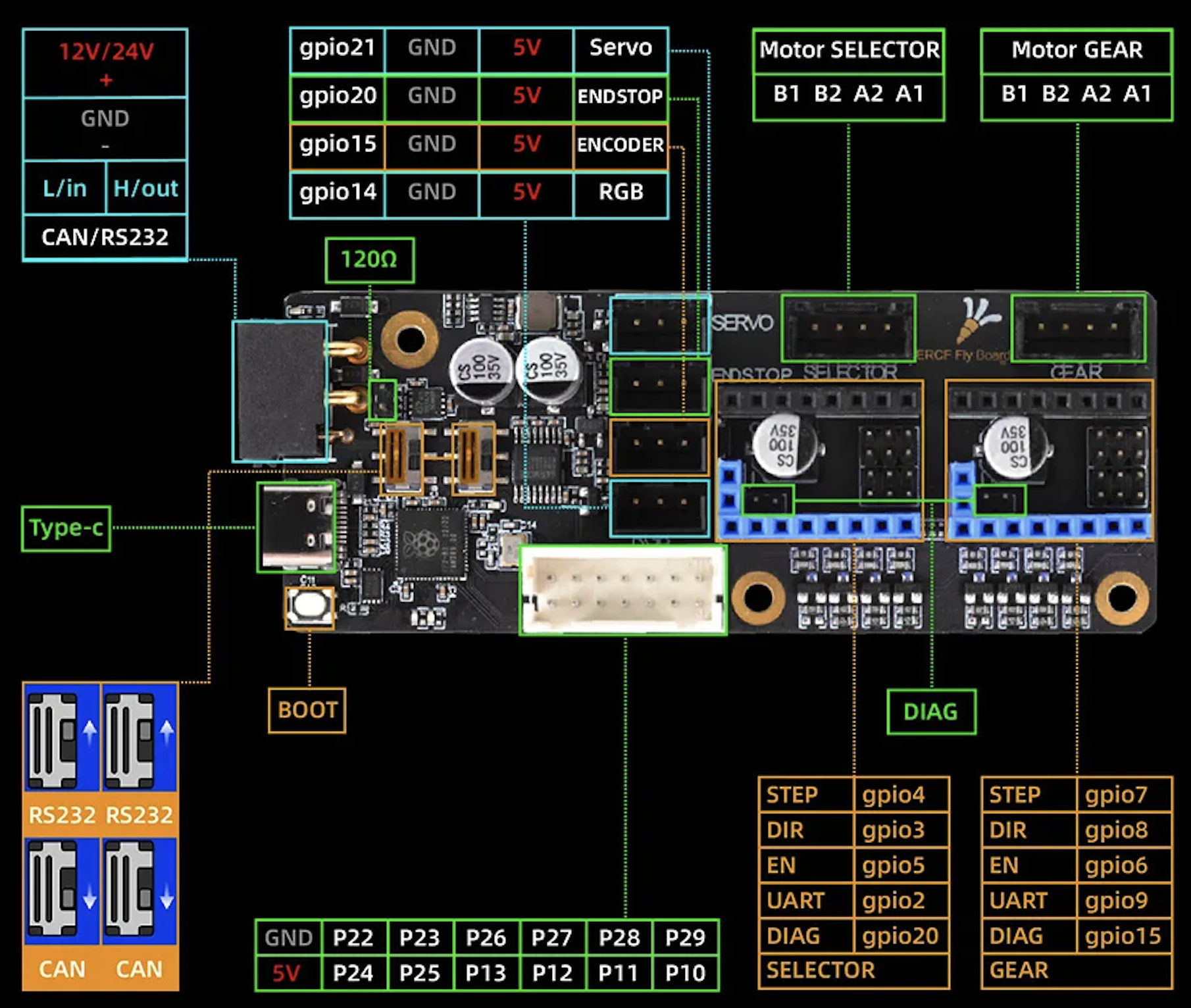

Mellow CAN v2

Click for details on Firmware flashing

Probably the best guide available is Esoterical's site: Firmware Settings

---

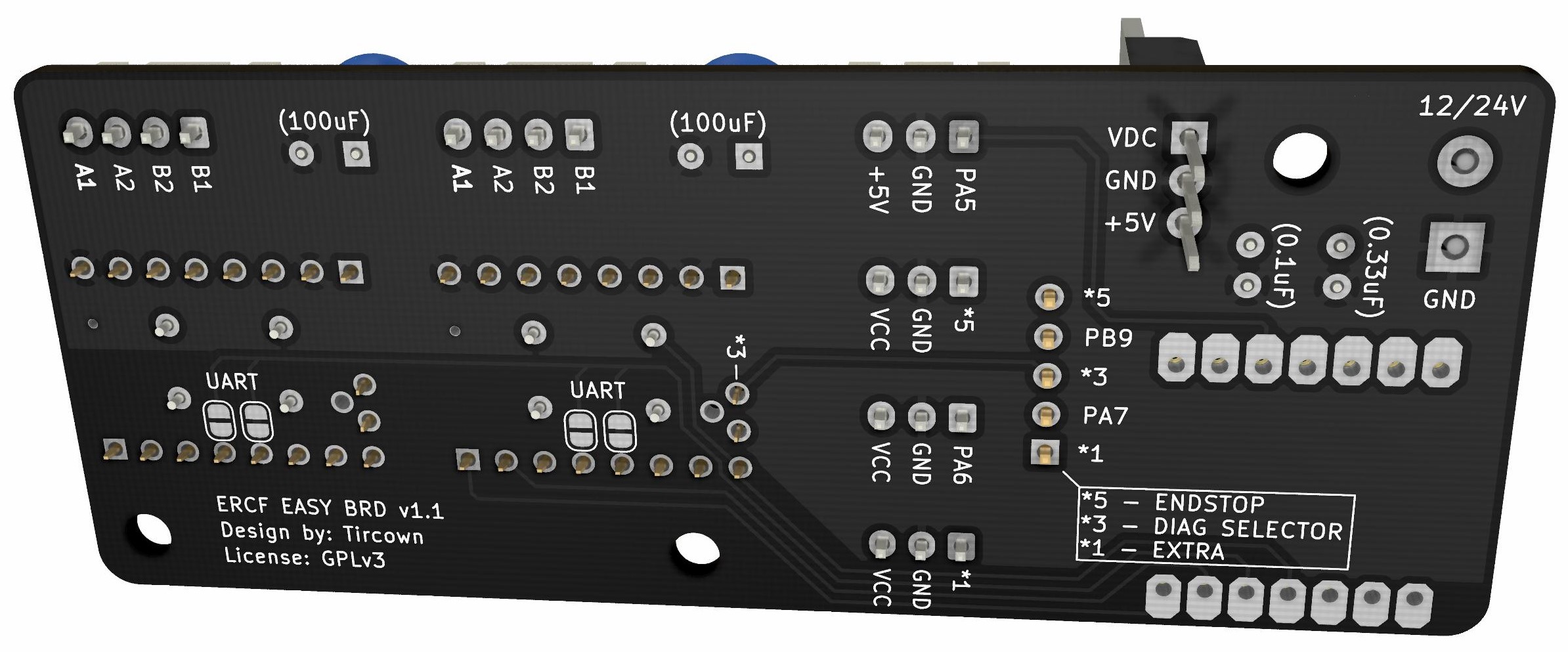

ERCF Easy Brd v1.1

Click for details on Firmware flashing

Read the Flashing Firmware Notes

)

---

Flashing Firmware

When using any MCU with Klipper, it is important to first flash Klipper firmware. Follow these steps to flash your MCU with Klipper firmware:

Important

For MCU's using CANbus, follow this guide.

1. SSH (PuTTy) into your Raspberry Pi

2. Run the following commands:

   cd ~/klipper
   make menuconfig


3. Enter your MCU board's firmware settings, as explained later in this page.

4. Save (Q)

5. Run the following command:

   make flash FLASH_DEVICE=/dev/serial/by-id/<your-mcu-id>


Tip

To find your serial port, open a new SSH window, unplug your controller board, and run:

 ls /dev/serial/by-id

Next, plug in your controller board, and re-run the command. The newly added line is your controller's serial address.
