HTML Dashboard

The optional dashboard gives operators a live browser view of lobby health, player counts, routing activity, affinity, and the active configuration summary. It uses its own port and can be changed in navigator.toml.

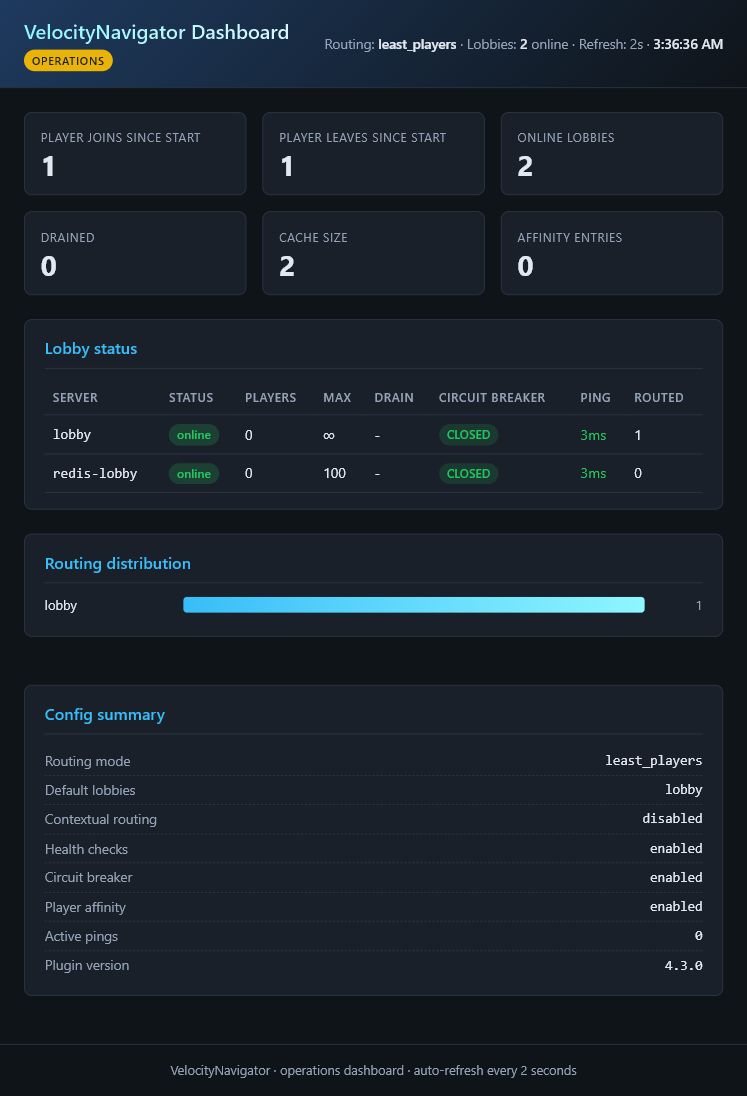

This capture comes from a running proxy with one configured lobby and one Redis-discovered lobby. Dynamic servers appear alongside configured servers and keep their advertised capacity.

Enable it

[dashboard]
enabled = true
port = 9226
bind_host = "127.0.0.1"
bearer_token = "choose-a-long-random-token"
refresh_seconds = 5

127.0.0.1 is the universal loopback address, not anybody's public or personal IP. The values above are safe examples. Choose a port assigned by your hosting provider, and choose a bind address that exists inside your server or container.

Where Velocity runs	bind_host	port	Address you open
Your own machine, local access only	127.0.0.1	Any unused port	http://127.0.0.1:<port>/
Pterodactyl or another container panel	Usually 0.0.0.0	A separate port allocated by the provider	Your provider's node address or assigned domain plus that port
Behind a reverse proxy	127.0.0.1 or a private interface	Any private unused port	Your HTTPS dashboard domain

Do not copy a provider's public IP into bind_host unless its documentation specifically tells you to. bind_host is the local interface the plugin listens on; it is not necessarily the hostname or IP that you type into a browser. When a token is configured, the page asks for it before loading live data.

What the page shows

• current lobby health, state, latency, and player count;
• routing distribution and live counters since the proxy started;
• the current number of saved affinity records;
• routing mode and important feature settings;

The dashboard reads live proxy data. It is an operations view, not a historical analytics database, so counters reset when the proxy restarts.

Reading the summary cards

Field	Meaning
Player joins / leaves	Connections and disconnections observed since this proxy started; these are not the current online-player count.
Online lobbies	Tracked lobbies with a current online health sample.
Drained	Lobbies intentionally excluded from new routing.
Cache size	Health records currently held by the proxy.
Affinity entries	Players with a remembered lobby assignment.

Reading a lobby row

Field	Meaning
Players	Player count from the latest health sample.
Capacity	The lobby's configured or dynamically advertised max_players; uncapped servers show no fixed limit.
Latency	Latest measured backend ping time; an unavailable value means no usable sample has been recorded yet.
Routed	Successful routing decisions sent to that lobby since the proxy started.
Drained	Whether operators have paused new routing to the lobby.
Circuit	CLOSED is normal, OPEN blocks routing after repeated failures, and HALF_OPEN is a recovery probe.

The routing distribution counts decisions made by VelocityNavigator. It is not a billing or long-term traffic report and should not be treated as one.

Port and network access

Both the port and bind address are configurable. 127.0.0.1 is the safest default because only the proxy machine can connect. Hosting-panel users must allocate a separate dashboard port in their provider panel and put that exact number in port. Use 0.0.0.0 only when the container or network requires it, and protect it with a strong bearer_token plus the provider firewall or allocation rules.

The built-in listener serves HTTP. For a public hostname or HTTPS, keep it on a private address and place a trusted reverse proxy in front of it.

Troubleshooting

Problem	Check
Page does not open	Confirm enabled, the port, bind address, and firewall rule
Address already in use	Choose another unused or provider-allocated port and reload
Cannot assign requested address	The configured bind_host does not exist inside the machine or container; panel users usually need 0.0.0.0
Token is rejected	Copy the value exactly; tokens are case-sensitive
Another computer cannot connect	Do not use 127.0.0.1 for remote access; bind to a private interface and add a firewall rule
Values look empty	Join through the proxy and wait for a health-check cycle

After a change, run /vn reload and check the proxy log for the dashboard address.
