Streaming
OBEY API Gateway provides robust streaming support that improves perceived reliability for slow/thinking models and flaky upstreams. When a client requests stream: true, a suite of reliability features activates automatically.
The gateway operates in two streaming modes depending on provider capabilities:
| Mode | When Used | Behavior |
|---|---|---|
| True Pass-Through | OpenAI-compatible providers | Upstream SSE chunks relayed in real time |
| Buffer-and-Replay | Bedrock, XML tool rewrite, Codex OAuth, token sanitization | Response buffered, transformed, then re-chunked as SSE |
Pass-through delivers the lowest latency; buffer-and-replay is used when the response needs transformation before delivery.
Emits a role: assistant SSE chunk within ~500ms so clients don't idle-timeout while the model "thinks." This is especially useful for reasoning models (o1, o3, DeepSeek-R1) that may take 30-120 seconds before generating output.
- Skipped on cache hits (response starts immediately)
- Prevents HTTP client timeout errors in downstream applications
Periodic SSE comment lines (:-prefixed) keep client connections alive during long generations:
: keep-alive
data: {"choices":[{"delta":{"content":"..."}}]}
This prevents proxies, load balancers, and HTTP clients from closing the connection during extended model reasoning.
For OpenAI-compatible providers, upstream SSE chunks are relayed token-by-token with no buffering overhead. This delivers sub-second time-to-first-token (TTFT) for most models.
When timeouts or mid-stream failures occur, the gateway surfaces them as proper SSE events rather than silent disconnects:
data: {"error":{"message":"Inter-chunk timeout after 60s","type":"stream_error"}}
data: [DONE]
The client receives a clean error and a proper stream termination.
If a provider fails before any content reaches the client, the gateway transparently retries the request on the next provider in the failover chain. No duplicate role events are sent.
After content has already been sent to the client, failover is not possible — the gateway emits an error frame and closes the stream.
A finish_reason: "length" response that stops well short of the requested max_tokens is treated as a truncation. The gateway:
- Retries on the next provider in the fallback ordering
- If every provider truncates, returns the longest partial response

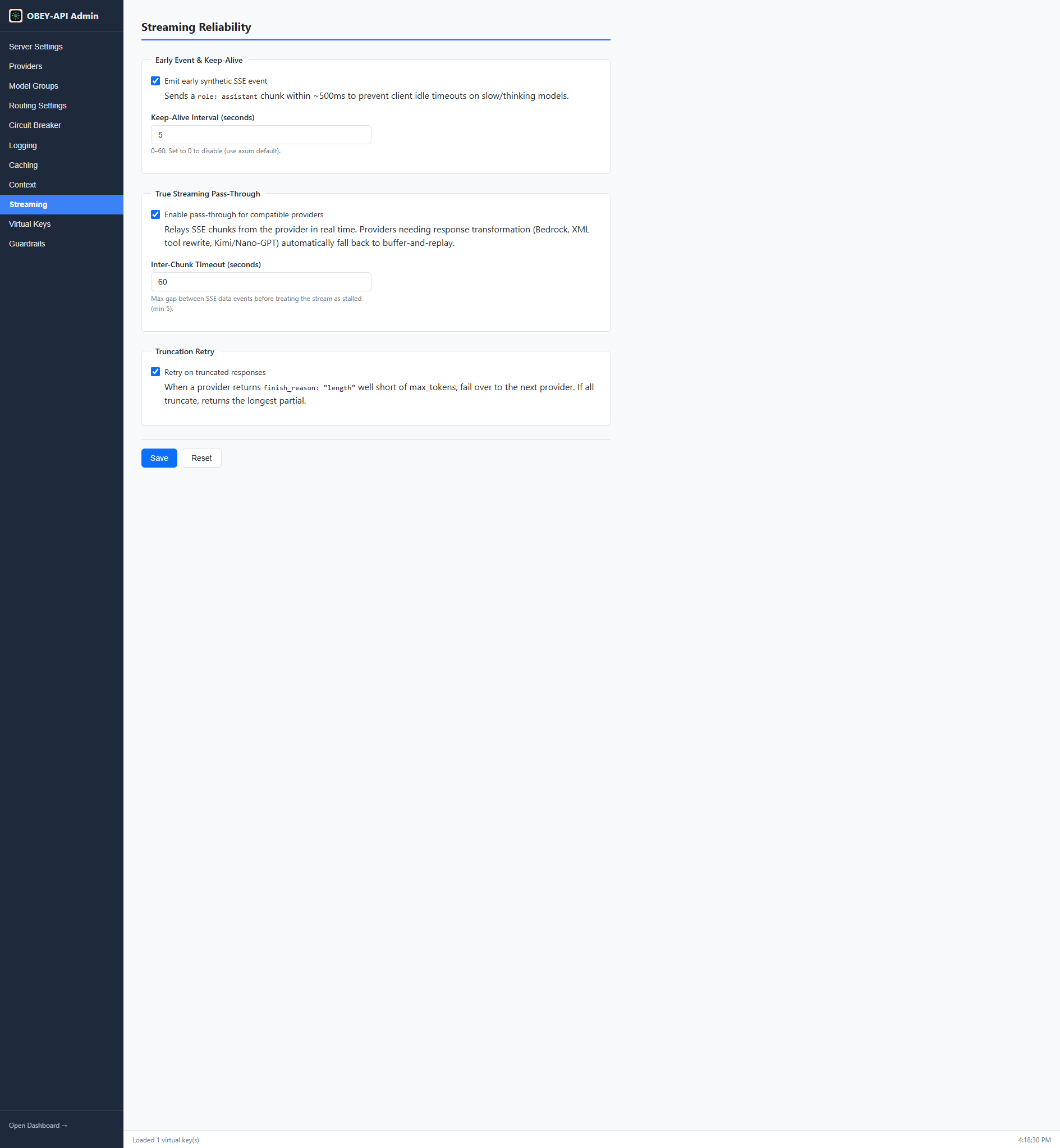

All fields are optional with safe defaults:
streaming:
emit_early_event: true # Synthetic role:assistant chunk before upstream responds
keepalive_interval_seconds: 5 # 0–60; 0 disables (axum default)
passthrough_enabled: true # True SSE relay for capable providers
chunk_timeout_seconds: 60 # Max gap between SSE chunks (min 5)
retry_on_truncation: true # Failover on suspicious finish_reason=length
| Timeout | Trigger | Result |
|---|---|---|
| TTFB timeout | No first byte from provider | Failover to next provider |
| Inter-chunk timeout | Gap between SSE chunks exceeds chunk_timeout_seconds
|
Error frame + stream close |
| Total timeout | Overall request duration exceeded | Error frame + stream close |
Some models emit XML-style tool calls instead of native tool_calls JSON. The gateway learns which provider::model combinations do this at runtime:
- First streaming request detects XML tool syntax in pass-through mode
- Combination is recorded in an in-memory set
- Subsequent tool requests for that combo use buffer-and-replay to rewrite XML into native
tool_calls
This set resets on process restart — it's a runtime optimization only.
Streaming responses are cached at the same tier as non-streaming responses. The cache key deliberately excludes the stream flag, so:
- A cached non-streaming response can be replayed as SSE chunks to a streaming client
- A streaming response, once assembled, can serve a non-streaming client
- The dashboard "Cache Hit Rate" reflects hits across both call styles
