Control button

button control

Control catalogue · Documentation home

Minimal field JSON:

{
  "id": "button",
  "type": "button",
  "name": "Button"
}

Full field JSON:

{
  "id": "button",
  "type": "button",
  "name": "Button",
  "default": null,
  "controls": [
    {
      "key": "",
      "type": "action",
      "label": "ui_107",
      "command": "",
      "payload": "PRESS"
    }
  ],
  "ha": {
    "command_topic": "$command",
    "payload_press": "PRESS"
  }
}

Properties in the full example:

Property	Required?	Meaning / default
id	Required	Stable application key; unique across registered pages.
type	Required	Enabled field type.
name	Required title¹	Display title; may be replaced by a nonempty names object.
default	Optional	Omit to use the built-in initial value.
controls	Optional	Omit to use the preset controls; supplying an array replaces them.
ha	Optional	Omit to use automatic HA discovery; supplied properties override defaults.

¹ name can be replaced by names. Other shared optional properties are listed in the catalogue.

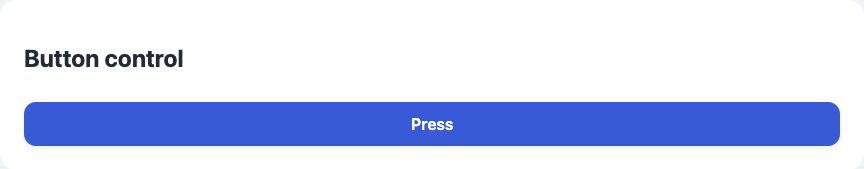

Appearance: Action button

Value: Literal string PRESS; perform a short operation, such as queuing a calibration.

Integration with Home Assistant

MQTT component: button. Requires the control’s feature flag, dynamic pages, MQTT and HA support to be enabled. ArdPortal registers MQTT Discovery and routes state/commands; the sketch implements device behavior. Action callbacks acknowledge acceptance, not physical completion.

Supported by ArdPortal: A HA press sends PRESS to the base command topic and invokes onAppConfigCommand. The command callback must accept and execute the action.

Not provided by the built-in integration / limits: No persistent on/off state, automatic hardware action, repeated/long-press gesture recognition, or confirmation that the hardware finished. An acceptance acknowledgement is not completion.

Explicit ha properties can override Discovery metadata. They do not create additional hardware behavior, application value properties or command handlers by themselves. See HA integration for the shared setup.

Integration with Zigbee

Implemented as a composite mapping. The functions below are separate standard endpoints on the same physical Zigbee device. The optional generated Zigbee2MQTT converter and ZHA quirk add names and option/state semantics; a composite mapping does not guarantee one combined gateway entity. Requires ESP32-C5/C6/H2, Zigbee and dynamic pages enabled, and the field’s control flag enabled. MQTT/HA is not required.

Standard mapping: Momentary On/Off.

Supported by ArdPortal: Sending ON invokes the preset PRESS action through onAppConfigCommand. OFF does not execute the action. After processing, the endpoint reports OFF again.

Not provided / limits: It can appear as a switch rather than a button. OFF is a reset/idle state, not an undo command or completion confirmation. Commands sent faster than the bounded queue/report cycle can be rejected or coalesced by the stack/gateway; this is not a lossless gesture-event stream.

Endpoint IDs follow registration order, then the preset’s controls order; read-only measurement/status endpoints follow the editable/action endpoints. Composite fields consume multiple slots in the shared 239-endpoint budget. Startup stages one endpoint per loop and reports one endpoint per loop. Values and action callbacks use the existing AppConfig routes and persist; accepting an action is not hardware completion.

Standard Basic ProductLabel contains field name / property or action, truncated to 63 UTF-8 bytes; Analog/Multistate endpoints also carry their Description. A gateway is not required to use these labels or expose all these clusters. Option/state names are documented here but are not currently sent as StateText. Unknown discrete readings set the standard status fault flag and leave the last representable ordinal unchanged.

visibleWhen does not remove endpoints or create a dynamic Zigbee form. Dependency rules do not affect Zigbee control visibility or command acceptance. Native endpoint definitions freeze at startup; changes need restart. Physical coordinator interoperability is still unverified.

See Zigbee integration and page/order limitations.

Read and update values from C++

These examples use the field ID from the JSON above and an existing ArdPortal portal. Run them after page registration has finished and portal.portalAndAppConfigReady() is true. Call portal.loop() frequently. Register callbacks once in setup(); do not repeat setters on every loop iteration.

This field represents a transient action/event, not a durable setting. Do not persist its command and automatically replay it after restart. The state setters are not a substitute for action execution or event publication.

Handle an action without saving it

portal.onAppConfigCommand([](const String& field, const String& command,
                            const ArdJSON::JSONVar& value,
                            ArdPortal::ChangeSource source) {
  if (field != "button") return false; // Add branches for other action IDs.
  Serial.println(ArdJSON::JSON.stringify(value));
  // Queue the hardware/application action here; keep this callback nonblocking.
  return true; // Acceptance, not confirmation of physical completion.
});

Portal and MQTT actions reach this callback. The action payload is available as value; getAppConfigValue("button") returns the field's null state, not a command history. Keep a separate application variable if the last action needs to remain available in RAM.

Automatic persistence

This control has no persistent setting value: actions and events are transient. Do not save its command as a setting or replay it after restart. Automatic ArdFS persistence applies to persistent setting controls through setAppConfigValue(), not to this action/event field. No separate storage key or manual ArdFS write is needed for using this control.
