Plugin mqtt
Shared MQTT client, status publishing and remote OSPy control.
| Item | Value |
|---|---|
| Version | 1.0.1 |
| Category | Automation and integrations |
| Author | Martin Pihrt |
| License | GPL-3.0 |
| OSPy |
3.0.211 or newer |
| Python |
3.8 or newer |
| Permissions |
network, subprocess, system
|
| Hardware | No dedicated hardware requirement declared |
| Dependencies | None |
| Python/OS packages |
paho.mqtt.client / paho-mqtt (optional) |
| Interfaces | No provider or mobile API declared |
| Source | Open the plug-in directory |
Shared MQTT client, status publishing and remote OSPy control.
Version 1.0.1 registers its OSPy signal receivers only while the plug-in is running and disconnects them during shutdown, preventing duplicate or stale callbacks after a plug-in restart.
Tested in Python 3+
If you change settings you must restarting OSPy!
This MQTT plugin adds an MQTT client to the OSPy daemon for other plugins to use to publish information and or receive commands over MQTT. On this page, the shared client is configured. Having a shared MQTT client simplifies configuration and lowers overhead on the OSPy process, network and broker. This plugin needs paho-mqtt. On Raspberry Pi OS Bookworm and newer, install it from apt with sudo apt install python3-paho-mqtt, or use the Install libraries button when it is shown in settings. We can use a public Broker server to test: http://www.hivemq.com/demos/websocket-client/.
The plug-in implements the OSPy health() interface. Diagnostics reports whether the dependency is installed, the MQTT function is enabled, the MQTT client is initialized, the broker is connected, and when the last connection, disconnection, publish, or error occurred. Its sender startup thread is registered with the shared OSPy plug-in runtime and responds to the common stop signal.
The MQTT plugin allows multiple secondary OSPy controlers to be running with the control OSPy system running. This means that one OSPy system can act as the control driver for secondary systems that also use OSPy and have the mqtt plugin installed. The control OSPy sends a list containing the on/off states of all stations. The secondary system receives the list and checks whether it is necessary to switch on one of its stations or switch it off and make the necessary changes. All irrigation plans are set on the main system and it records all running stations as if they were on the OSPy control system itself. There is no feedback from the secondary OSPy, so the control system assumes that all stations are working as they should. If enabled logging in secondary OSPy, stations running on this secondary OSPy are also stored in the log. This provides a way to check if the station on the secondary is working properly. You must this OSPy switch to manual mode! MQTT core is required for this feature.
Status of all stations will be sent to the given topic. MQTT core is required for this feature. Example: [{"station": 0, "status": "off", "name": "Station 01", "reason": ""}, {"station": 1, "status": "off", "name": "Station 02", "reason": ""}, {"station": 2, "status": "off", "name": "Station 03", "reason": ""}, {"station": 3, "status": "off", "name": "Station 04", "reason": ""}, {"station": 4, "status": "off", "name": "Station 05", "reason": ""}, {"station": 5, "status": "off", "name": "Station 06", "reason": ""}, {"station": 6, "status": "off", "name": "Station 07", "reason": ""}, {"station": 7, "status": "off", "name": "Station 08", "reason": ""}]
will be received from the given topic for commands to start stations. MQTT core is required for this feature. The received message is a sheet that contains list or dict (station number, time in seconds.) Note: the list or dict must be as long as the number of stations. Otherwise, the processing will not take place! We can use a dictionary or list for control. The list is simpler than the dictionary (we do not have to change it in the commands every time we change the name of a station. You must this OSPy switch to scheduler mode! If you change settings you must restarting OSPy!
The status of the system settings will be sent to the given topic (cpu temperature, manual mode, scheduler enabled...) This list is sent whenever there is a change in the system. Example: {"cpu_temp": "47.1", "temp_unit": "C", "manual_mode": true, "scheduler_enabled": true, "system_name": "Test VIP2", "output_count": 8, "rain_sensed": false, "rain_block": 0, "level_adjustment": 1.0, "ospy_version": "3.0.58", "release_date": "2023-08-13", "uptime": "3. day 05:38"}
-
Use MQTT core: Required to receive and send MQTT messages. This MQTT core is always required for all options below.
-
Broker Host: Type host for MQTT Broker. For test use: http://www.hivemq.com/demos/websocket-client/.
-
Broker Port: Type Port for MQTT Broker. Range for port is 80 to 65635.
-
Broker Username: Type User name for MQTT Broker.
-
Broker Password: Type Password for MQTT Broker.
-
Up/down topic: Type Publish for up/down topic.
-
Use manual control: After checking the box, station control commands (on/off) will be received from the given topic. This OSPy will be controlled by another device. Warning: only works if OSPy is in manual mode! MQTT core is required for this feature.
-
Control topic: The topic to subscribe to for control commands.
-
First station number: The number from the control OSPy of this secondary OSPy first station.
-
Station count: The number of station this secondary uses.
-
Use zones: When the box is checked, the statuses of all stations will be sent to the given topic. MQTT core is required for this feature.
-
Zones topic: The topic to broadcast from zones.
-
Use run-once: When the box is checked, will be received from the given topic for commands to start stations. MQTT core is required for this feature.
-
Run-once topic: The topic to broadcast from zones.
- OSPy control system There are a total of 8 physical stations on the control OSPy system. We want to control another secondary OSPy system, which also has 8 physical stations. On the control OSPy system, set a total of 16 stations in the settings tab. The scheduler will control all 16 stations through the set programs. Run the "MQTT" plugin on the control OSPy system and set it (server, user, password, port) for connection to MQTT server (message broker). Manual MQTT control will not be used on the OSPy controller! Next, check "MQTT Use zones" for sharing stations status.
Example of outgoing message (main OSPy): [{"station": 0, "status": "off", "name": "Station 01", "reason": ""}, {"station": 1, "status": "off", "name": "Station 02", "reason": ""}, {"station": 2, "status": "off", "name": "Station 03", "reason": ""}, {"station": 3, "status": "off", "name": "Station 04", "reason": ""}, {"station": 4, "status": "off", "name": "Station 05", "reason": ""}, {"station": 5, "status": "off", "name": "Station 06", "reason": ""}, {"station": 6, "status": "off", "name": "Station 07", "reason": ""}, {"station": 7, "status": "off", "name": "Station 08", "reason": ""}]
- OSPy secondary system There are a total of 8 physical stations. On the secondary OSPy system, set a total of 8 stations in the settings tab. Run the "MQTT" plugin on the control OSPy system and set it (server, user, password, port) for connection to MQTT server (message broker). MQTT manual control will be used on the secondary OSPy system! Fill in the Zones topic to receive messages with station statuses. With the control system we want to control this secondary system from station 1 from station 9. So we fill in the First station number to the number 9. Next, fill in the number of controlled stations from the control system. the control system will control stations 9-16. So we enter Station count to the number 8. we switch the secondary ospy system to manual control on the main screen! We can also use a plugin for sending emails from the slave system (as a feedback check of the device operation). Before the first use, we will restart the OSPy system!
More information can be found in the help directly in the plugin (help button)
The following notes are generated from the help page shipped with this plug-in. Field names are also explained directly in the OSPy settings page.
If you change settings you must restarting OSPy!
- MQTT core
This MQTT plugin adds an MQTT client to the OSPy daemon for other plugins to use to publish information and or receive commands over MQTT. On this page, the shared client is configured. Having a shared MQTT client simplifies configuration and lowers overhead on the OSPy process, network and broker. This plugin needs paho-mqtt. On Raspberry Pi OS Bookworm and newer, install it from apt with sudo apt install python3-paho-mqtt, or use the Install libraries button when it is shown in settings. We can use a public Broker server to test http://www.hivemq.com/demos/websocket-client/.
- MQTT manual control
The MQTT plugin allows multiple secondary OSPy controlers to be running with the control OSPy system running. This means that one OSPy system can act as the control driver for secondary systems that also use OSPy and have the mqtt plugin installed. The control OSPy sends a list containing the on/off states of all stations. The secondary system receives the list and checks whether it is necessary to switch on one of its stations or switch it off and make the necessary changes. All irrigation plans are set on the main system and it records all running stations as if they were on the OSPy control system itself. There is no feedback from the secondary OSPy, so the control system assumes that all stations are working as they should. If enabled logging in secondary OSPy, stations running on this secondary OSPy are also stored in the log. This provides a way to check if the station on the secondary is working properly. You must this OSPy switch to manual mode! MQTT core is required for this feature.
- MQTT zones state
Status of all stations will be sent to the given topic. MQTT core is required for this feature. Example: [{"station": 0, "status": "off", "name": "Station 01", "reason": ""}, {"station": 1, "status": "off", "name": "Station 02", "reason": ""}, {"station": 2, "status": "off", "name": "Station 03", "reason": ""}, {"station": 3, "status": "off", "name": "Station 04", "reason": ""}, {"station": 4, "status": "off", "name": "Station 05", "reason": ""}, {"station": 5, "status": "off", "name": "Station 06", "reason": ""}, {"station": 6, "status": "off", "name": "Station 07", "reason": ""}, {"station": 7, "status": "off", "name": "Station 08", "reason": ""}]
- MQTT run-once
will be received from the given topic for commands to start stations. MQTT core is required for this feature. The received message is a sheet that contains list or dict (station number, time in seconds.) Note: the list or dict must be as long as the number of stations. Otherwise, the processing will not take place! We can use a dictionary or list for control. The list is simpler than the dictionary (we do not have to change it in the commands every time we change the name of a station. You must this OSPy switch to scheduler mode!
- MQTT get values
The status of the system settings will be sent to the given topic (cpu temperature, manual mode, scheduler enabled...) This list is sent whenever there is a change in the system. Example: {"cpu_temp": "47.1", "temp_unit": "C", "manual_mode": true, "scheduler_enabled": true, "system_name": "Test VIP2", "output_count": 8, "rain_sensed": false, "rain_block": 0, "level_adjustment": 1.0, "ospy_version": "3.0.58", "release_date": "2023-08-13", "uptime": "3. day 05:38"}
Example of settings for two OSPy systems (main OSPy and more secondary OSPy.)
OSPy main system
There are a total of 8 physical stations on the control OSPy system. We want to control another secondary OSPy system, which also has 8 physical stations. On the control OSPy system, set a total of 16 stations in the settings tab. The scheduler will control all 16 stations through the set programs. Run the "MQTT" plugin on the control OSPy system and set it (server, user, password, port) for connection to MQTT server (message broker). Manual MQTT control will not be used on the OSPy controller! Next, check "MQTT Use zones" for sharing stations status.
Example of outgoing message (main OSPy): [{"station": 0, "status": "off", "name": "Station 01", "reason": ""}, {"station": 1, "status": "off", "name": "Station 02", "reason": ""}, {"station": 2, "status": "off", "name": "Station 03", "reason": ""}, {"station": 3, "status": "off", "name": "Station 04", "reason": ""}, {"station": 4, "status": "off", "name": "Station 05", "reason": ""}, {"station": 5, "status": "off", "name": "Station 06", "reason": ""}, {"station": 6, "status": "off", "name": "Station 07", "reason": ""}, {"station": 7, "status": "off", "name": "Station 08", "reason": ""}]
OSPy secondary system
There are a total of 8 physical stations. On the secondary OSPy system, set a total of 8 stations in the settings tab. Run the "MQTT" plugin on the control OSPy system and set it (server, user, password, port) for connection to MQTT server (message broker). MQTT manual control will be used on the secondary OSPy system! Fill in the Zones topic to receive messages with station statuses. With the control system we want to control this secondary system from station 1 from station 9. So we fill in the First station number to the number 9. Next, fill in the number of controlled stations from the control system. the control system will control stations 9-16. So we enter Station count to the number 8. we switch the secondary ospy system to manual control on the main screen! We can also use a plugin for sending emails from the slave system (as a feedback check of the device operation).
Example MQTT run-once
The value in the list or dictionary determines the behavior of the control: 0 (the state of the station will not be changed in any way. If the station is already running, it will not be affected). >1 (one-shot time in seconds. for example 10 will be for a time of 10 seconds). -1 (If the station is running, it will be stopped).
Example for 5 stations (5 stations are set in OSPy).
Sending message in MQTT as list - prefered method
Station 1 -> ignore, 2 -> ignore, 3 -> ON time 100 second, 4 -> ON time 30 second, 5 -> OFF...
[0,0,100,30,-1]
Example for 17 stations (17 stations are set in OSPy).
[0,0,0,0,0,0,0,0,0,0,20,0,0,0,0,0,-1]
Sending message in MQTT as dict
Station 1 -> OFF, 2 -> OFF, 3 -> ON time 100 second, 4 -> ON time 30 second, 5 -> OFF...
{"station name 1": 0, "station name 2": 0, "station name 3": 100, "station name 4": 30, "station name 5": -1}
MQTT plugin publish this states
RunOnce Restart - restart MQTT connection
RunOnce Exit - OSPy exit
RunOnce Ready - Ready for processing
RunOnce Processing - Processing command
RunOnce Error - Any Error
Examples and demonstration of control via MQTT

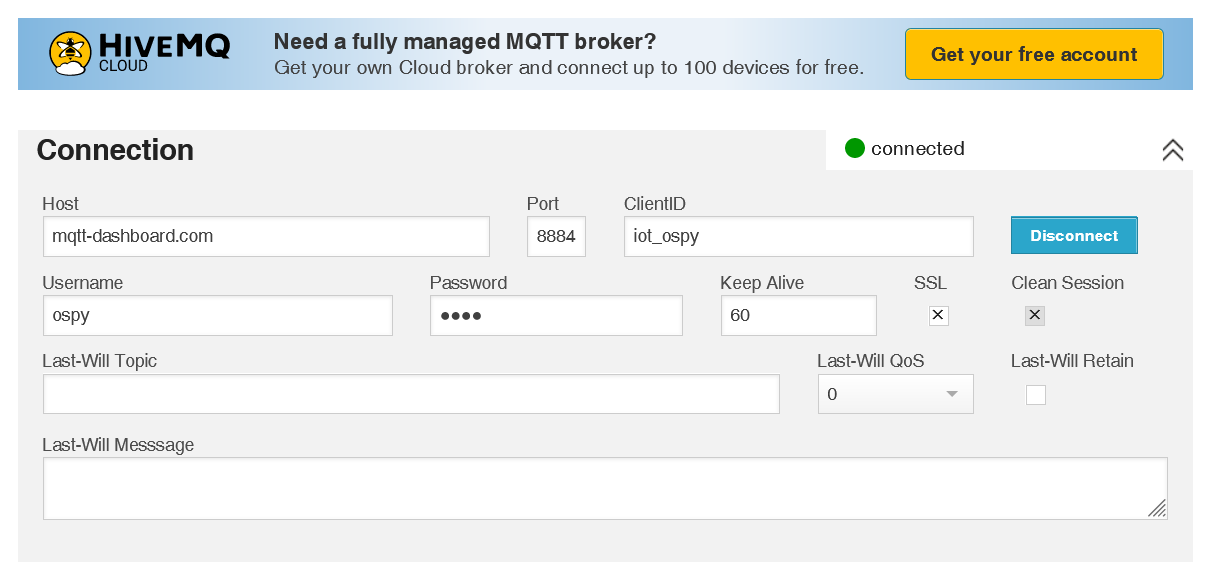

Creating an MQTT broker (we can use https://www.hivemq.com/demos/websocket-client/ to try it out).

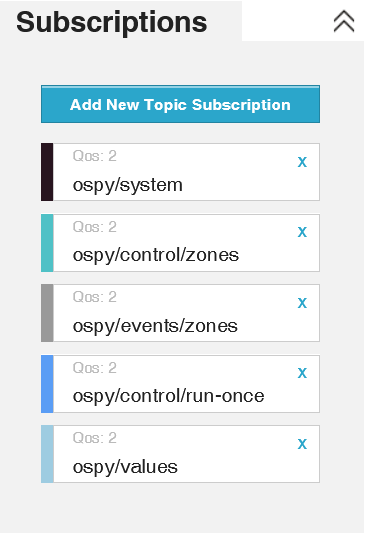

Subscribe (run-once and ospy/system)

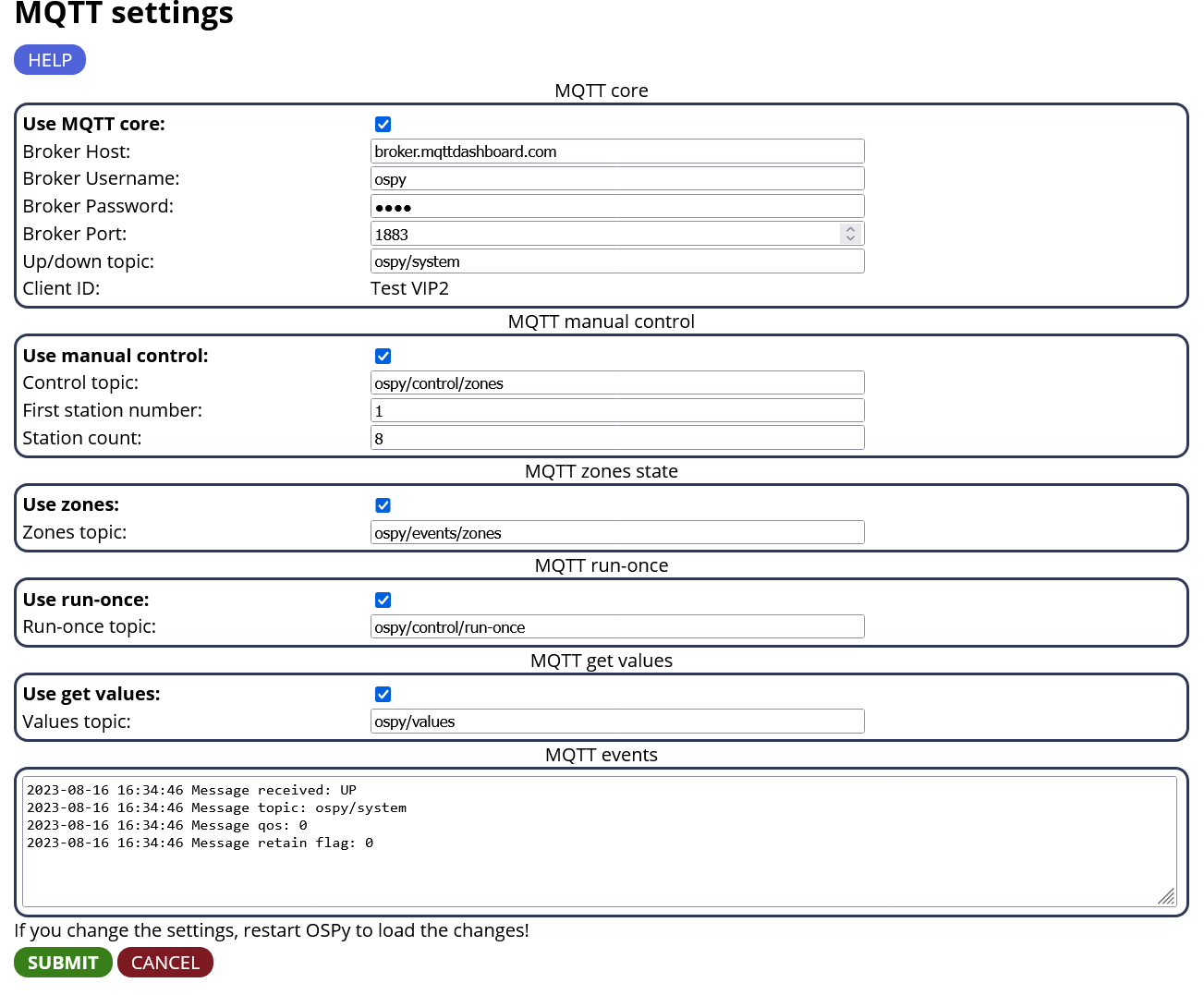

In OSPy, we start the plugin and fill in the login data (then we restart OSPy).
A "RunOnce Ready" message will appear when set correctly and reboot.

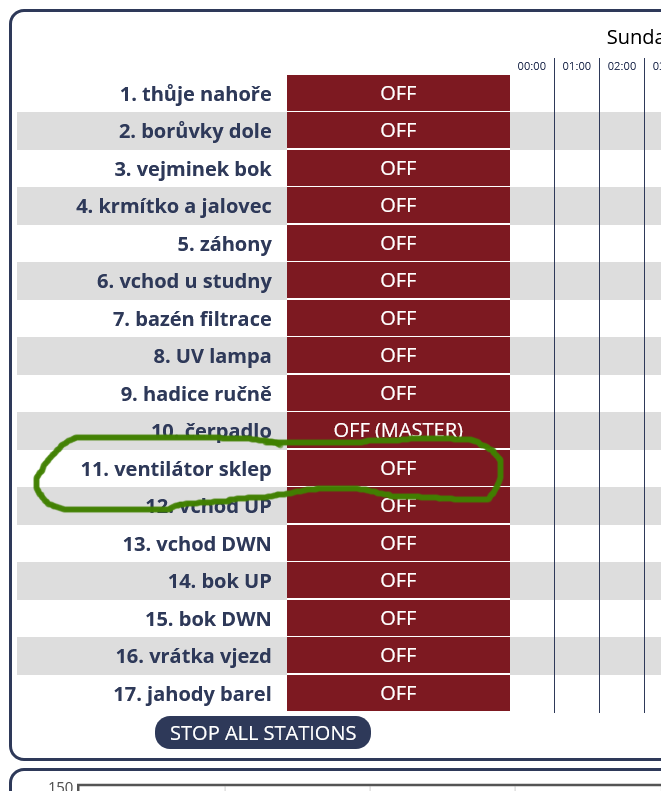

In this example we will want to turn on station 11 for 20 seconds. Circled in green in the image below - the station is now switched off.

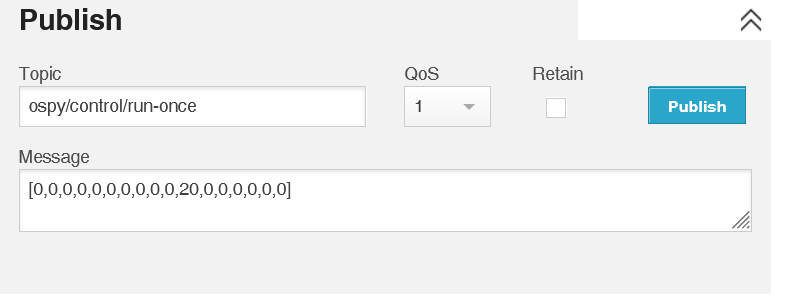

Now we will try to send a command to the run-once topic to turn on station 11 for 20 seconds.

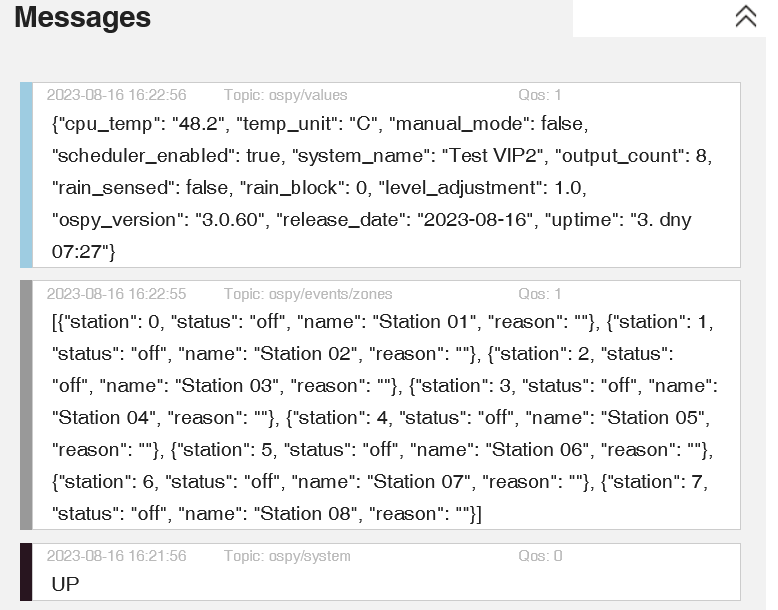

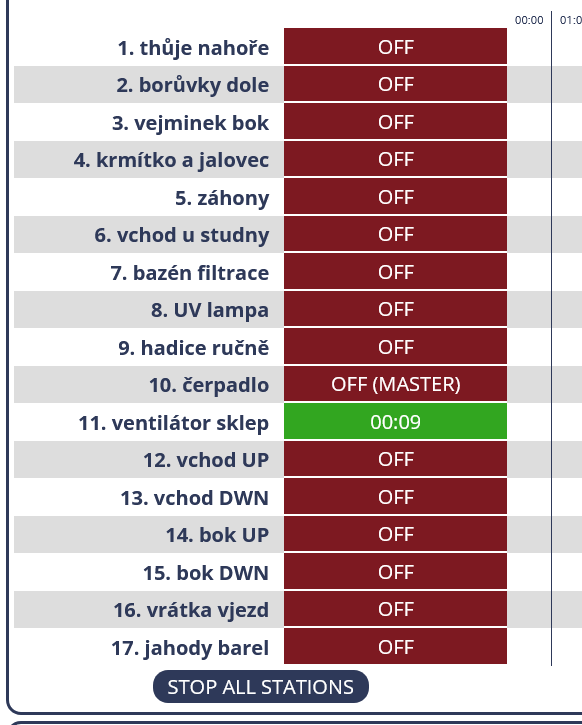

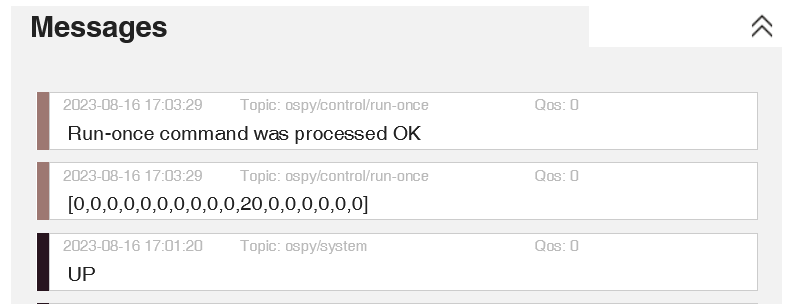

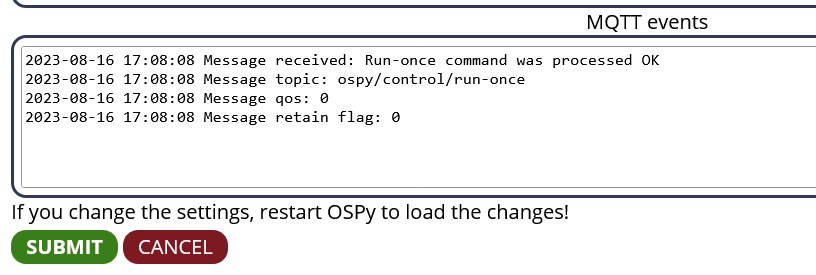

The received message can be seen in the plugin. At the same time, we see a reply on the broker about receiving the message. On the home page of OSPy, the station started for 20 seconds.
The plugin uses Python paho-mqtt for running in OSPy. If paho-mqtt is not available on the system, install python3-paho-mqtt from apt or use the Install libraries button in the plugin settings.
QoS Publisher
0: at most once. Will send a message only once.
1: at least once. Will send a message at least once as long as an acknowledgement is received or the command to end the transmission is received.
2: exactly once. Will only send a message once.
Check OSPy → Diagnostics first and remove passwords, tokens, private addresses and other secrets before sharing logs. Report reproducible plug-in problems in the OSPy-plugins issue tracker.
