Plugin real time
Synchronizes system time with NTP and supported I2C real-time clocks.
| Item | Value |
|---|---|
| Version | 1.0.1 |
| Category | Hardware, displays and outputs |
| Author | Martin Pihrt |
| License | GPL-3.0 |
| OSPy |
3.0.211 or newer |
| Python |
3.8 or newer |
| Permissions |
network, i2c, subprocess, system
|
| Hardware | platforms: raspberry_pi; interfaces: i2c; I²C: 0x68
|
| Dependencies | None |
| Python/OS packages |
smbus / python3-smbus (required) |
| Interfaces | Mobile API v1 |
| Source | Open the plug-in directory |
Synchronizes system time with NTP and supported I2C real-time clocks.
Tested in Python 3+
The plug-in includes a plugin.json manifest and reports its worker, NTP configuration, latest NTP and RTC values, synchronization cycle and errors through the OSPy system health interface.
When is enabled synchronization RTC Time and NTP time, system time adjusted every hour from NTP server (is posible) or RTC time (if exists). Time from NTP server is saved to real time DS 1307 (on I2C bus 0x68) as HW time.
RTC Clocks:
- DS1307, MCP79400, DS3231, PCF8563.
-
Check Use real time DS1307: If checked use real time plugin is enabled.
-
Check Use NTP time: If checked use NTP time Time is adjusting every hour from NTP server.
-
Primary NTP server IP adress: Type IP adress or name for NTP server.
-
Secondary NTP server IP adress: Type IP adress or name for NTP server.
-
NTP port: Type port for NTP server (default is 123).
-
Status: Status window from the plugin.

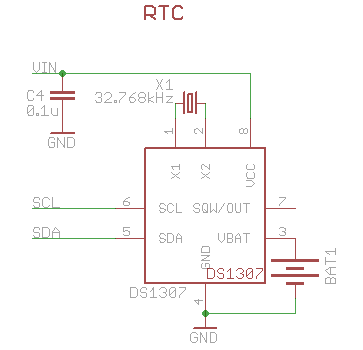

The hardware should be connected as follows:
Visit Martin Pihrt's blog. for more information.
Note: For this plugin neaded enabled I2C bus and SMBus in system.
The following notes are generated from the help page shipped with this plug-in. Field names are also explained directly in the OSPy settings page.
When is enabled synchronization RTC Time and NTP time, system time adjusted every hour from NTP server (is posible) or RTC time (if exists). Time from NTP server is saved to real time DS 1307 as HW time.
NTP servers in Czech Republic NTP NTP servers in World NTP
DS1307 Real time
Connected via interface
On the main OSPy board by pihrt.com is already installed this RTC circuit.
Check OSPy → Diagnostics first and remove passwords, tokens, private addresses and other secrets before sharing logs. Report reproducible plug-in problems in the OSPy-plugins issue tracker.
