Plugin weather stations
Displays selected OSPy sensor and plug-in values as configurable gauges or text.
| Item | Value |
|---|---|
| Version | 1.0.0 |
| Category | Weather, climate and environmental sensors |
| Author | Martin Pihrt |
| License | GPL-3.0 |
| OSPy |
3.0.211 or newer |
| Python |
3.8 or newer |
| Permissions |
files, system
|
| Hardware | No dedicated hardware requirement declared |
| Dependencies | None |
| Python/OS packages | None |
| Interfaces | No provider or mobile API declared |
| Source | Open the plug-in directory |
Displays selected OSPy sensor and plug-in values as configurable gauges or text.
Tested in Python 3+
This plugin Displays data probes DS18B20 (DS1-6) from Air Temperature and Humidity Monitor plugin and volume, percent from Water Tank Monitor plugin and more sensors.
The plug-in includes a manifest declaring access to OSPy sensors and other plug-in readings, uses the shared OSPy lifecycle, and reports configured channels, refreshes and unavailable values through the Diagnostics health interface.
-
Canvas or Text mode for showing data: When checked, it is text mode.
-
Canvas Size XY: The number determines the size of the meter wheel. The minimum is 150px, the maximum is 850px.
-
Text Font Size: The number determines the font size in text mode. The minimum is 15px, the maximum is 800px.
-
Show this DS1: When checked, showing this canvas (text) is enabled.
-
Name for Canvas DS1: Any name for this meter.
-
Units: In which units we want to display the data.
-
Scale: Division scale according to our requirements.
-
Min: This value must be the minimum of the range from "Scale".
-
Max: This value must be the maximum of the range from "Scale".
-
Red color from to: Red color on the scale according to the value from to.
-
Blue color from to: Blue color on the scale according to the value from to.
-
Green color from to: Green color on the scale according to the value from to.
If the set range is the same (for example from 0 to 0) then the color will not be displayed.
Same setting as in temperature.
Same setting as in temperature.
Same setting as in temperature.
The following notes are generated from the help page shipped with this plug-in. Field names are also explained directly in the OSPy settings page.
This plugin Displays data probes DS18B20 (DS1-6) from Air Temperature and Humidity Monitor plugin and volume, percent from Water Tank Monitor plugin and more sensors.
Plugin setup
- Canvas or Text mode for showing data
When checked, it is text mode.
- Canvas Size XY
The number determines the size of the meter wheel. The minimum is 150px, the maximum is 850px.
- Text Font Size
The number determines the font size in text mode. The minimum is 15px, the maximum is 800px.
This part needs correct setuped plugin Air Temperature and Humidity Monitor
- Show this DS1
When checked, showing this canvas (text) is enabled.
- Name for Canvas DS1
Any unique name for this meter.
- Units
In which units we want to display the data.
- Scale
Division scale according to our requirements.
- Min
This value must be the minimum of the range from Scale.
- Max
This value must be the maximum of the range from Scale.
- Red color from to
Red color on the scale according to the value from to.
- Blue color from to
Blue color on the scale according to the value from to.
- Green color from to
Green color on the scale according to the value from to.
If the set range is the same (for example from 0 to 0) then the color will not be displayed.
This part needs correct setuped plugin Water Tank Monitor
Same setting as in temperature.
This part needs correct setuped plugin Wind Speed Monitor
This part needs correct setuped OSPy sensors

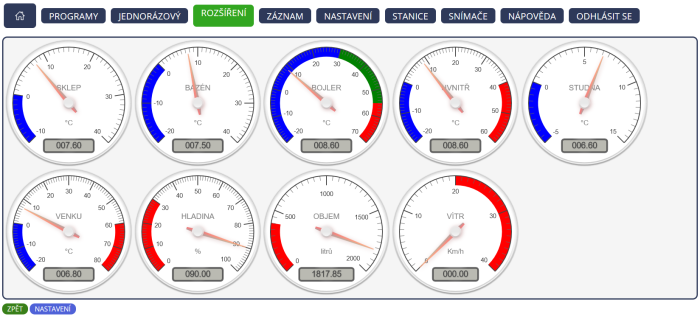

Example canvas mode

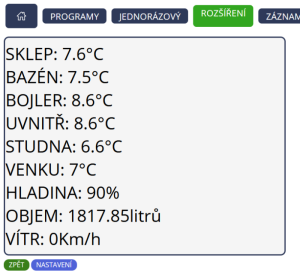

Example text mode
Check OSPy → Diagnostics first and remove passwords, tokens, private addresses and other secrets before sharing logs. Report reproducible plug-in problems in the OSPy-plugins issue tracker.
