YamlScreensaver3
olialb edited this page Jun 22, 2026
·
2 revisions

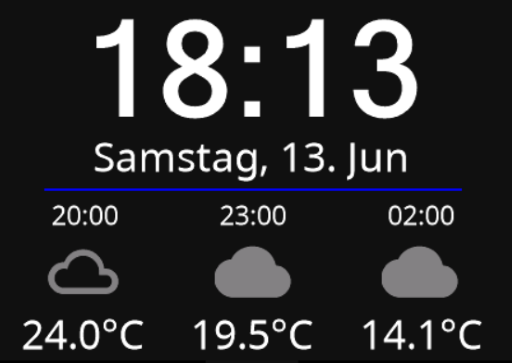

A screensaver3 is similar to sceensaver. screensaver3 has bigger time and date and bigger icons but only 3 slots for waether forcasts.
Note: This card type is only supported in ticaki/ioBroker.nspanel-lovelace-ui for EU panels.
The screensaver3 card can have up to 4 slots
| Slot number | slot type | default value | optional / Mandetory | Description |
|---|---|---|---|---|
| 1 | openwathermap | empty | O | Current weather iormation. This slot is ignored! |
| 2-4 | openwathermap | empty | O | 3 weather forcasts |

Example yaml:
- name: testpanel.screensaver #name of the nspanel where this screensacer should be shown + ".screensaver" suffix
type: screensaver3
backgroundColor: #0f0f0f
slots:
- class: ohItem #current weather (ignored)
type: openweathermap
item: W_IconID_0
textItem: W_Temperatur_0
timeItem: W_Messung_0
- class: ohItem #first weather forecast
type: openweathermap
item: W_IconID_3
textItem: W_Temperatur_3
timeItem: W_Messung_3
- class: ohItem #second weather forecast
type: openweathermap
item: W_IconID_6
textItem: W_Temperatur_6
timeItem: W_Messung_6
- class: ohItem #third weather forecast
type: openweathermap
item: W_IconID_9
textItem: W_Temperatur_9
timeItem: W_Messung_9
