Multi-tile murals & mux

One map is 128×128 pixels; a mural is a grid of them. Two mechanisms keep grids manageable: whole-composition processing, which avoids visible seams, and mux, which avoids wasted bytes.

Making a mural

1. Set the grid at import (Cols × Rows, up to 128 each; "auto" derives it from the aspect ratio). Quantization and dithering run on the whole image before splitting, so colors and dither patterns flow across tile borders as if they weren't there.

2. Edit with the ⊞ Grid canvas; selections, fills, and brush strokes work across boundaries:

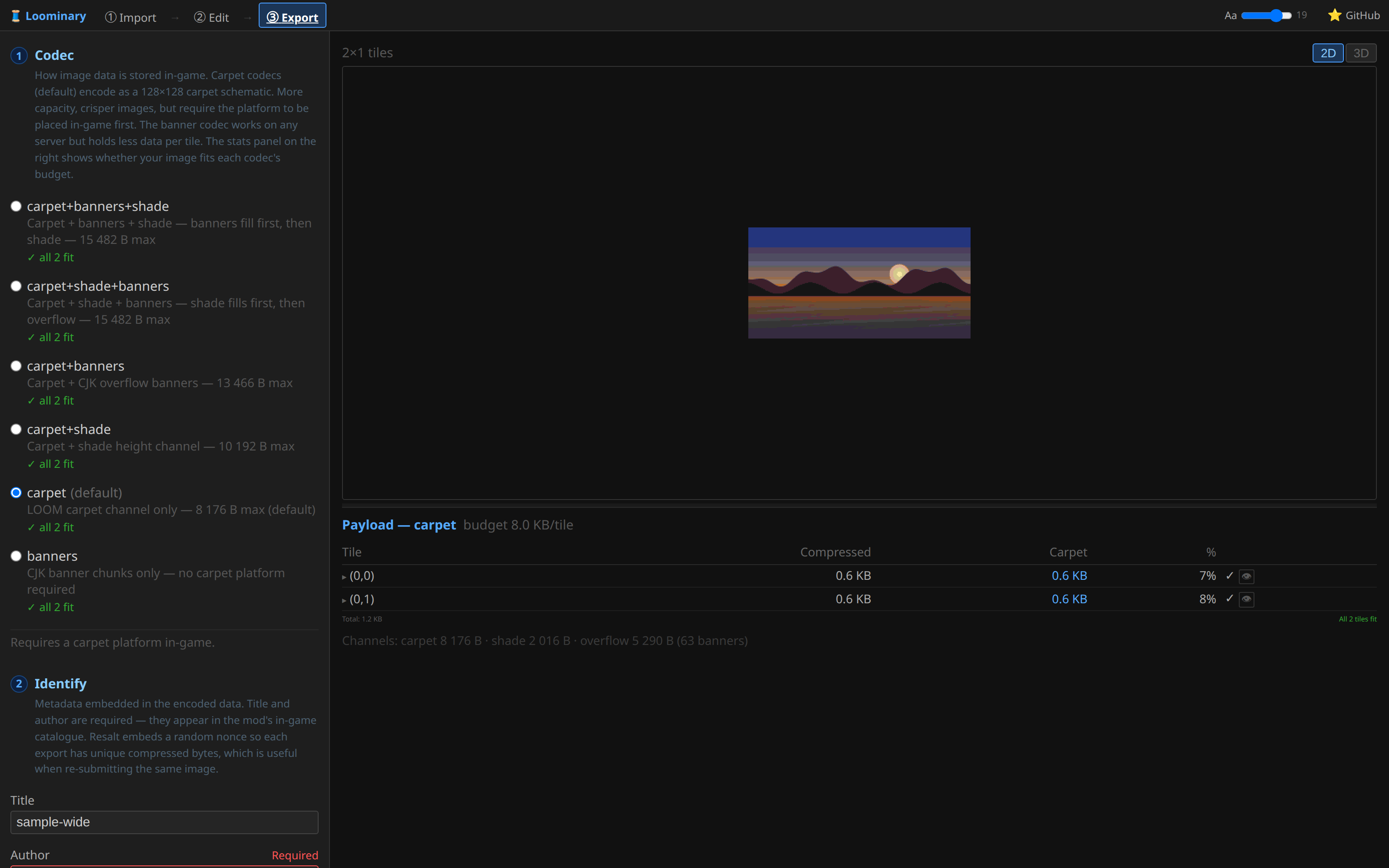

3. Export produces one schematic per tile, named loominary_carpet_r<row>_c<col>.litematic, plus per-tile budget stats:

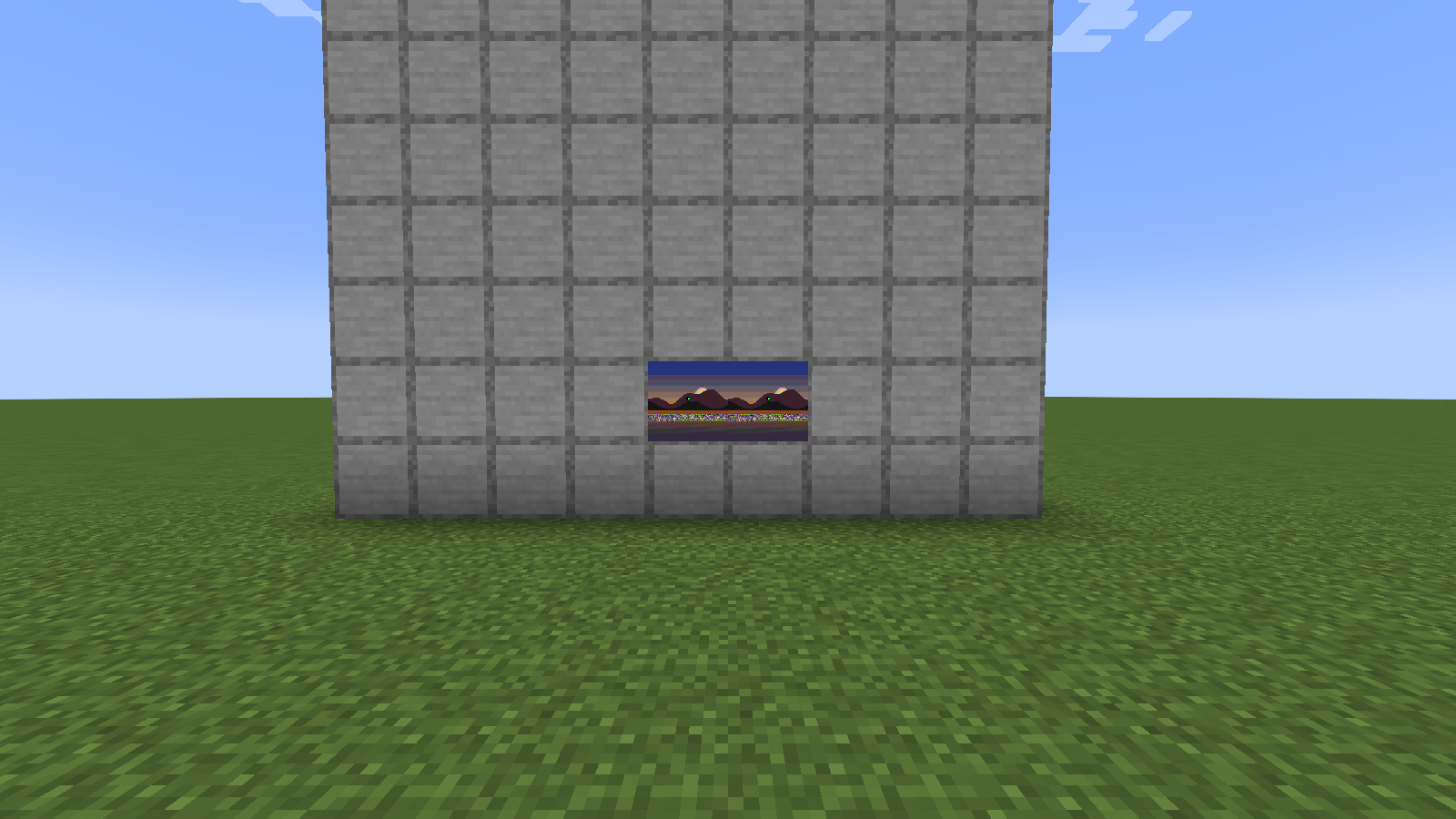

In-game: place each tile's platform, scan a map per tile, hang them in a matching wall of item frames (placement guide). /loominary tile next / tile pos <col> <row> step the active tile for banner work. Preview can discover the whole wall: look at any one frame and /loominary preview paints every tile of the grid:

Mux: sharing bytes between tiles

Tiles never fill evenly: the sky tile compresses to 800 bytes while the busy center tile wants 18,000. Mux lets over-budget tiles (receivers) spill overflow into under-budget siblings (donors):

• Each donor reserves part of its channel capacity for guest segments (a 10-byte routing descriptor plus the guest bytes), which are invisible to the donor's own art.
• The export page's mux panel shows the whole allocation: every tile's role (normal / receiver / donor), its own vs guest byte counts, and who routes to whom. If the art tiles can't absorb everything, blank auto-donor tiles (pure carriers, no art) are appended.
• In banner-only mode donors work too; a donor tile spends spare banner slots on guest chunks (one extra routing banner per guest).
• The mod reassembles every receiver from its donors before decoding. The allocator is implemented identically in the web editor and the mod and locked by cross-language tests, so a web-baked allocation always reassembles.

In-game equivalents: /loominary mux appends blank donor tiles to the loaded batch (mux undo removes them), and /loominary status donors pages through donor assignments.

All-or-nothing decoding

A muxed receiver can't decode until its donors are scanned, and a composite lossy animation needs every tile scanned. Until then, waiting tiles paint a status screen counting scanned siblings:

Scan each map of the grid once and the whole wall resolves together.

Practical grid advice

• Frames on a wall must form the same grid shape as the export. The decoder identifies tiles by the grid position embedded in each payload, but preview's auto-discovery and animation sync walk frame adjacency outward from the one you're looking at.
• Murals multiply everything: platforms, scans, banners. The carpet+shade+banners codec variant trades staircase building for fewer banners if your bottleneck is anvil time.
• For animated murals, composite lossy encoding means seams never exist in the first place; see Animated Art.
